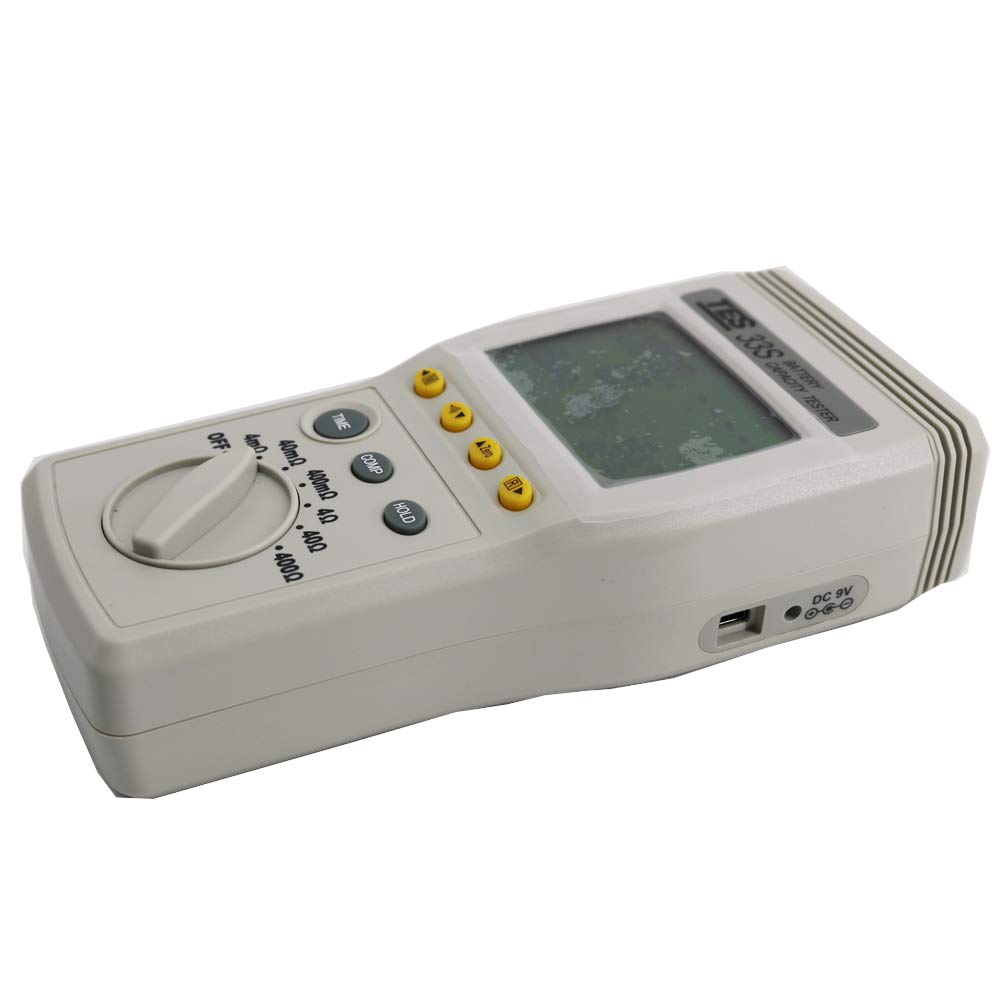

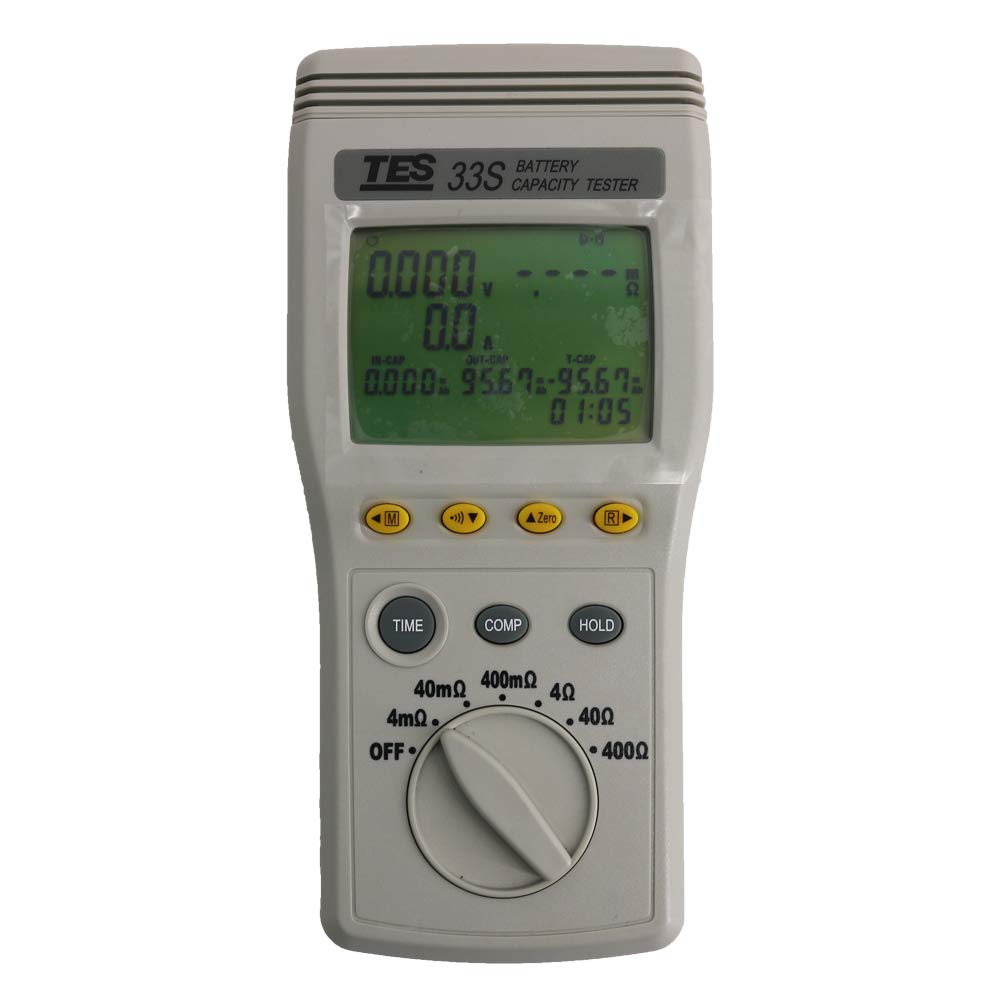

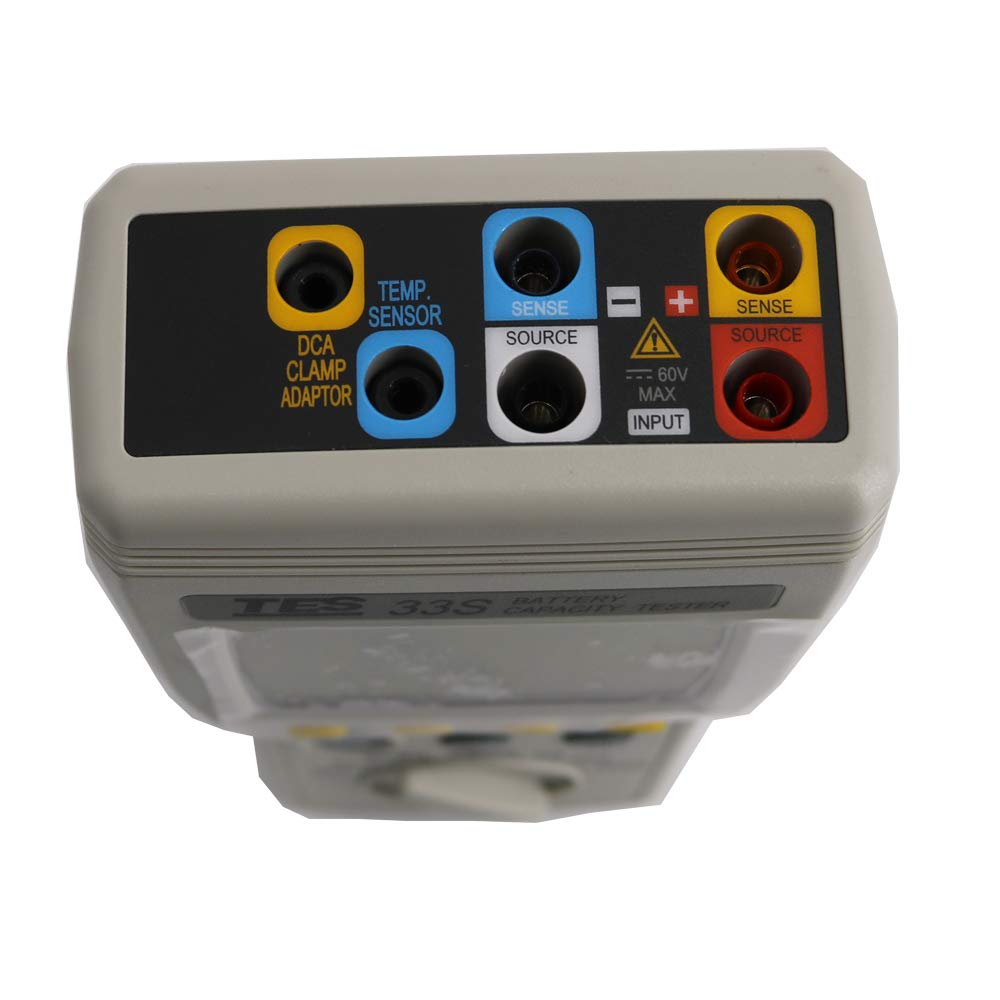

TES-33S Battery Capacity Tester TES33S Battery Capacity 0 to 1200AH RS232 PC Interface Original Upgraded Version Battery Tester
TES-33S Battery Capacity Tester TES33S Battery Capacity 0 to 1200AH RS232 PC Interface Original Upgraded Version Battery Tester
Couldn't load pickup availability
Features:
*RS-232 Interface/Software for curve decay variation during charging and discharging
* Storage Battery Systems Battery Capacity Testers, Check battery condition in seconds, with the battery in service!
*Test condition without shutting down battery
* Simultaneously measure battery Resistance, Voltage, Current, Temperature
*Hold and Auto Hold function
*Comparator function for battery Pass,Warning or Fail indications
*Manual and Auto data memory and read up to 999 data sets
*Auto datalogging micro SD CARD up to 99 blocks
*Compact and lightweight
*USB PC Interface
Specifications:
|
Battery Types Tested |
Compact storage batteries, Alkali and lead-acid batteries |
|
Battery Capacity |
0 to 1200AH |
|
Resistance |
Ranges :4mΩ,40mΩ,400mΩ,40Ω,400Ω,4000Ω Resolution : 1mΩ,10mΩ,100mΩ,1mQ,10mΩ,100mΩ Accuracy : +(3%reading + 20digits) on 4mΩrange +(0.8%reading + 6digits) on 4mΩother ranges |
|
Measurement Condition |
Current : Approx. 40mA,4mA,400mA, 40mA,4mA Frequency :1kHz+30Hz |
|
DC Voltage |
Range : 6V, 60V Resolution : 1mV, 10mV Accuracy :+(0.1%rdg+6digits) |
|
Temperature |
Range :-20℃ to 60℃(-4℉ to 140℉) Resolution :0.1℃/0.1℉ Accuracy :+1℃/+1.8℉ |
|
DC Current |
Range :600A Resolution : 0.1A Accuracy : 600A: +(2%rdg+2dgt) |
|
Open Circuit Voltage |
5V max |
|
Manual and Auto Data Memory & Read |
999 data sets |
|
Auto Datalogging |
micro SD CARD (maximum 99 blocks) |
|
Comparator |
Setting : Resistance upper and lower limits and voltage threshold limit. Memory : 99 sets of values |
|
Operating Environment |
0°C to 40°C (32°F to 104°F), 80%RH or less, non-condensing. |
|
Maximum Input Voltage |
60VDC |
|
Power Supply or AC Adapter |

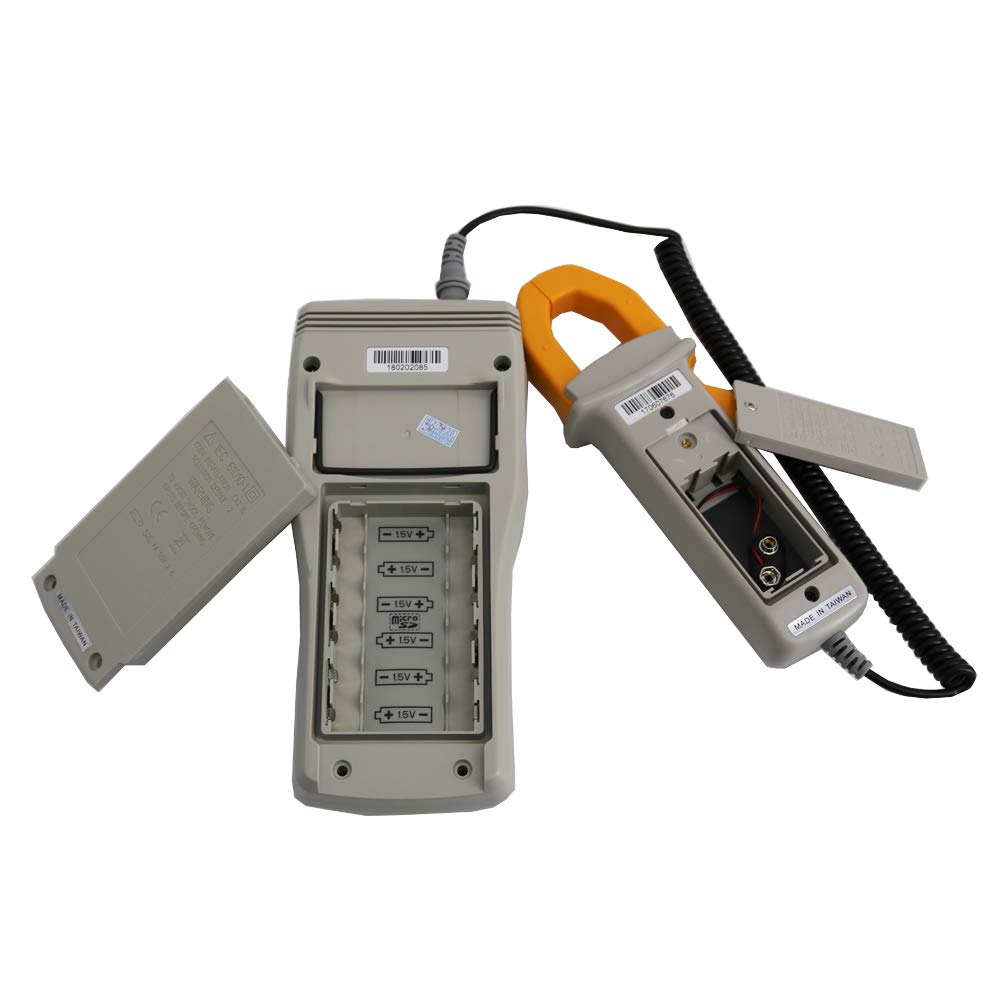

Six AA size 1.5V alkaline batteries |
|
Battery Life |
5.5 hours |
|
Dimensions/Weight |
Approx. 198(L)x 94(W)x 49(H)mm /Approx. 530g |
|
Accessories |

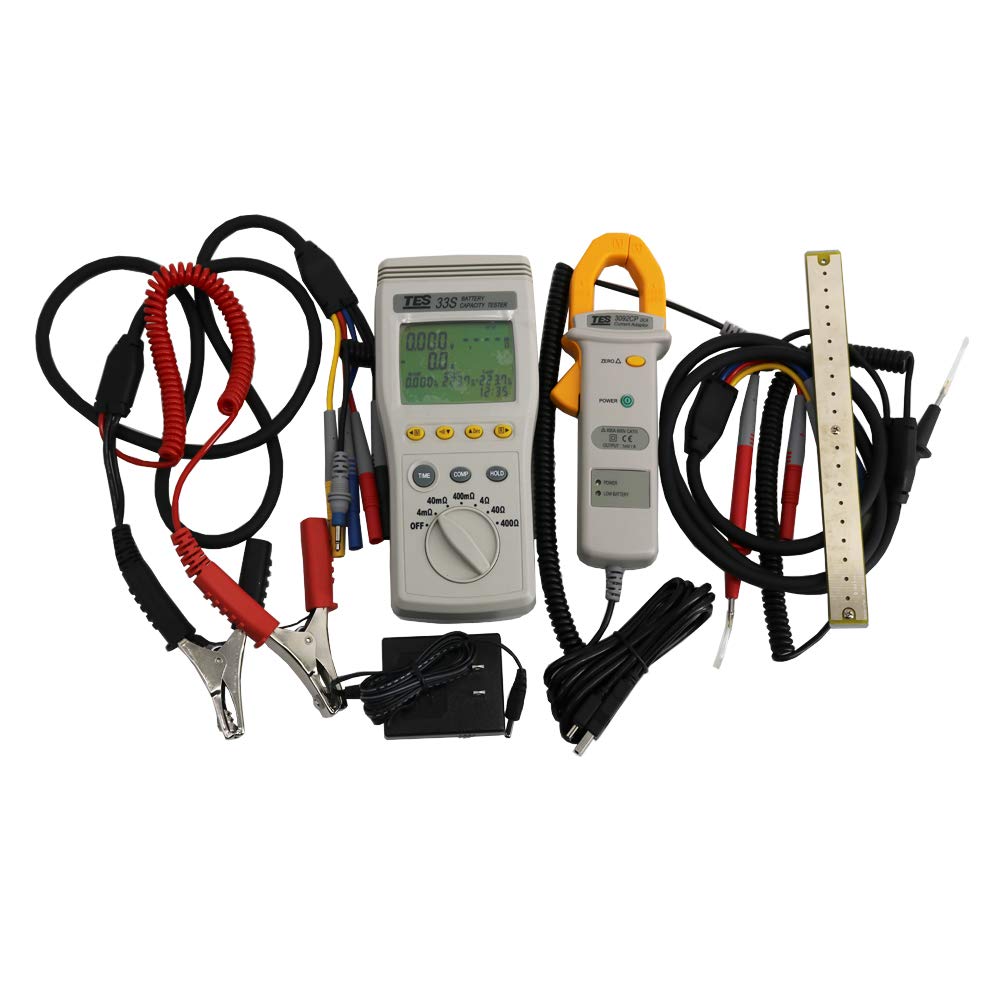

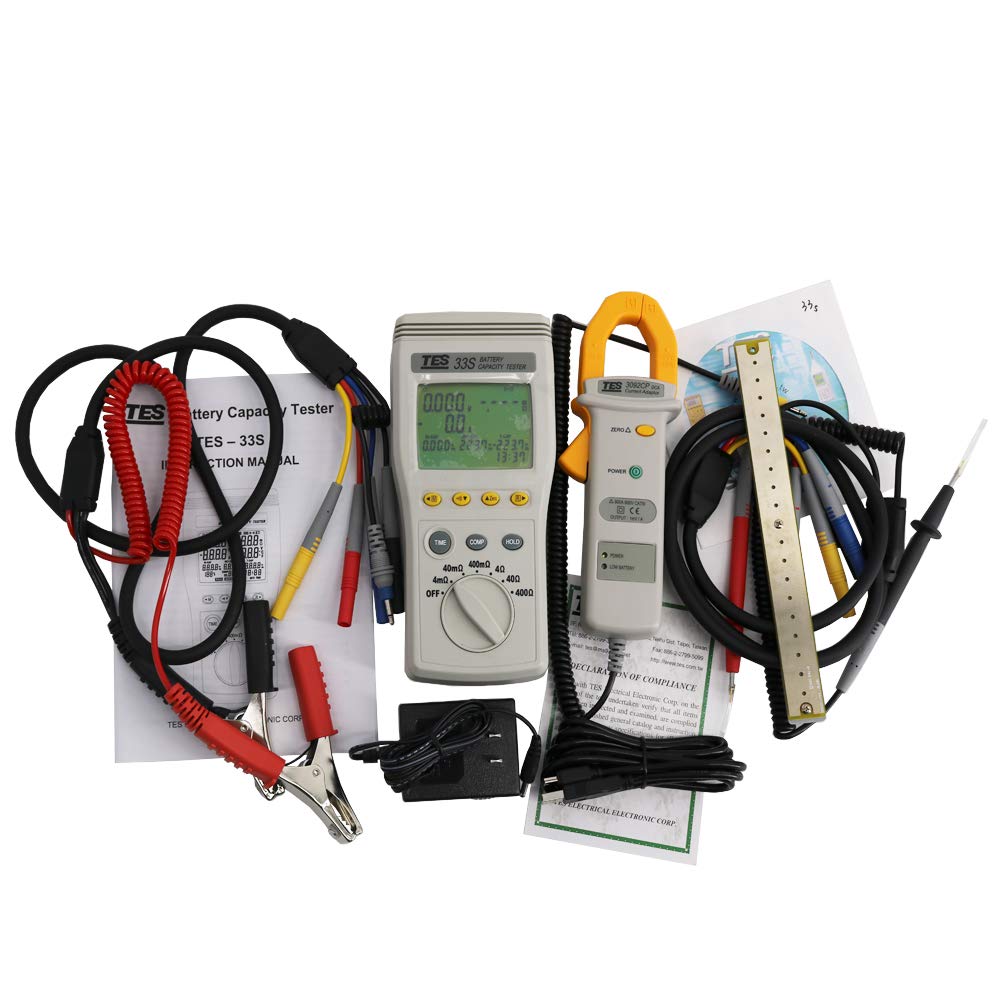

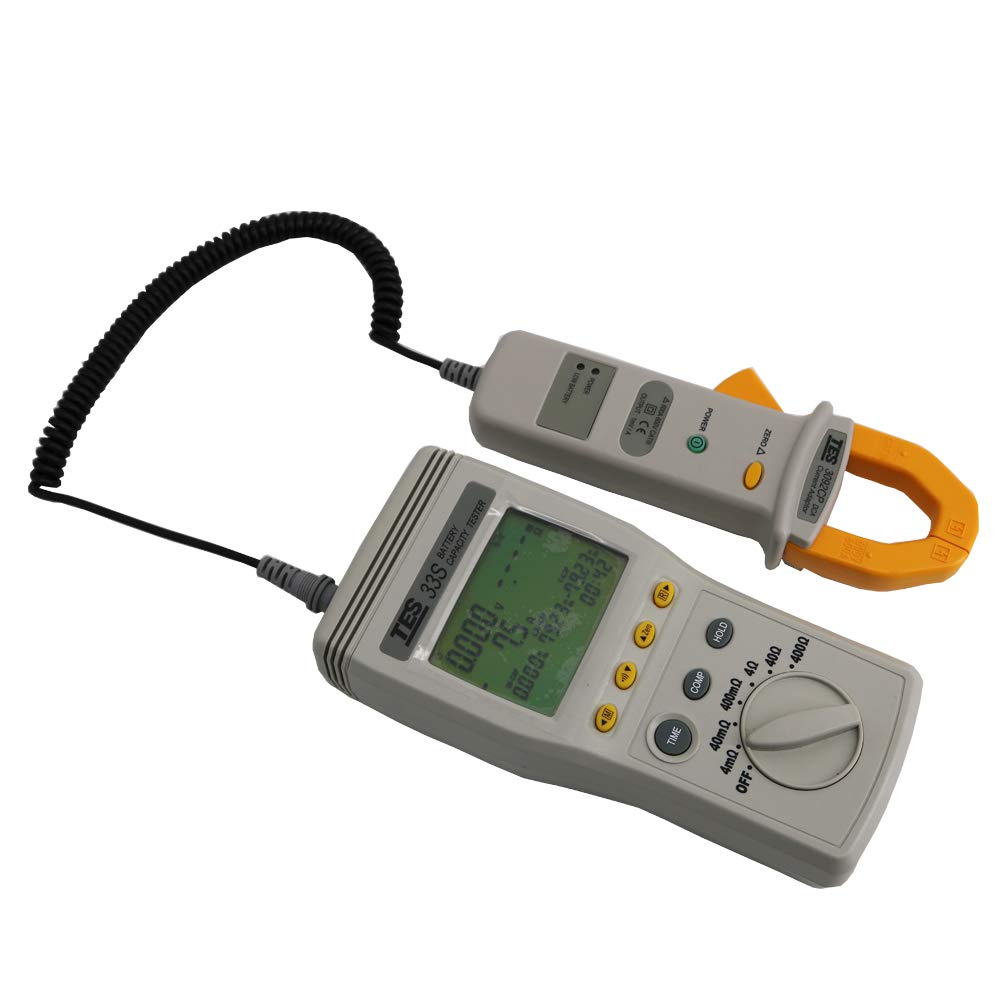

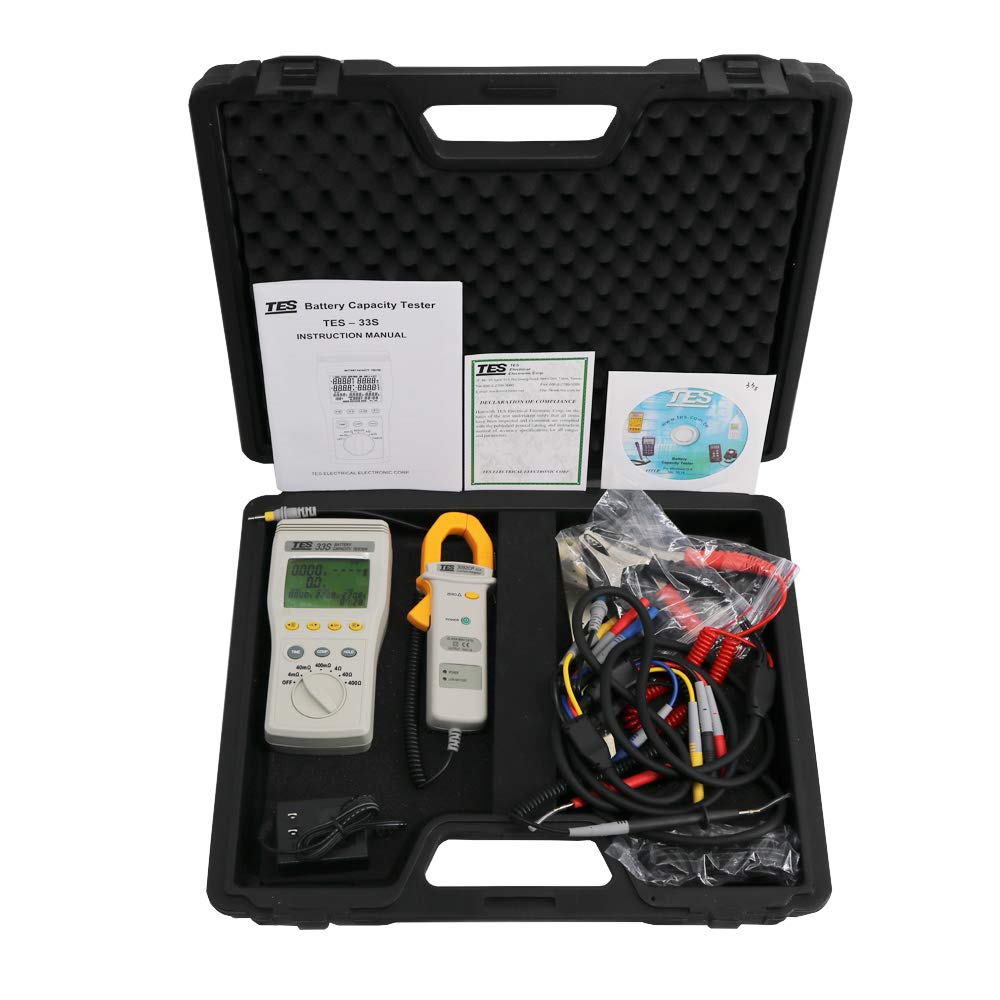

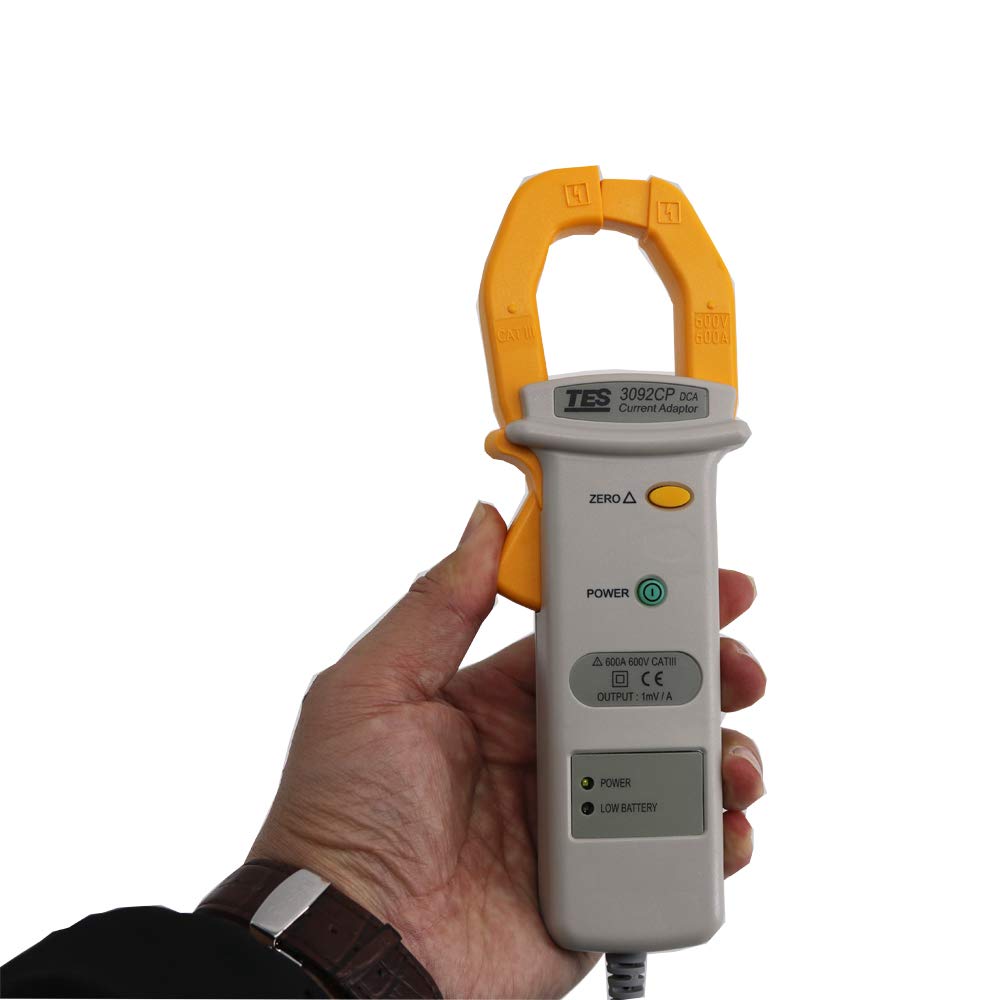

Large clip - type test lead with temperature sensor, Small clip-type test lead, Pin - type test lead, 3092CP DCA current adaptor, Zero adjustment board, Instruction manual, AC adaptor, USB cable, CD PC software, Carrying case. |
