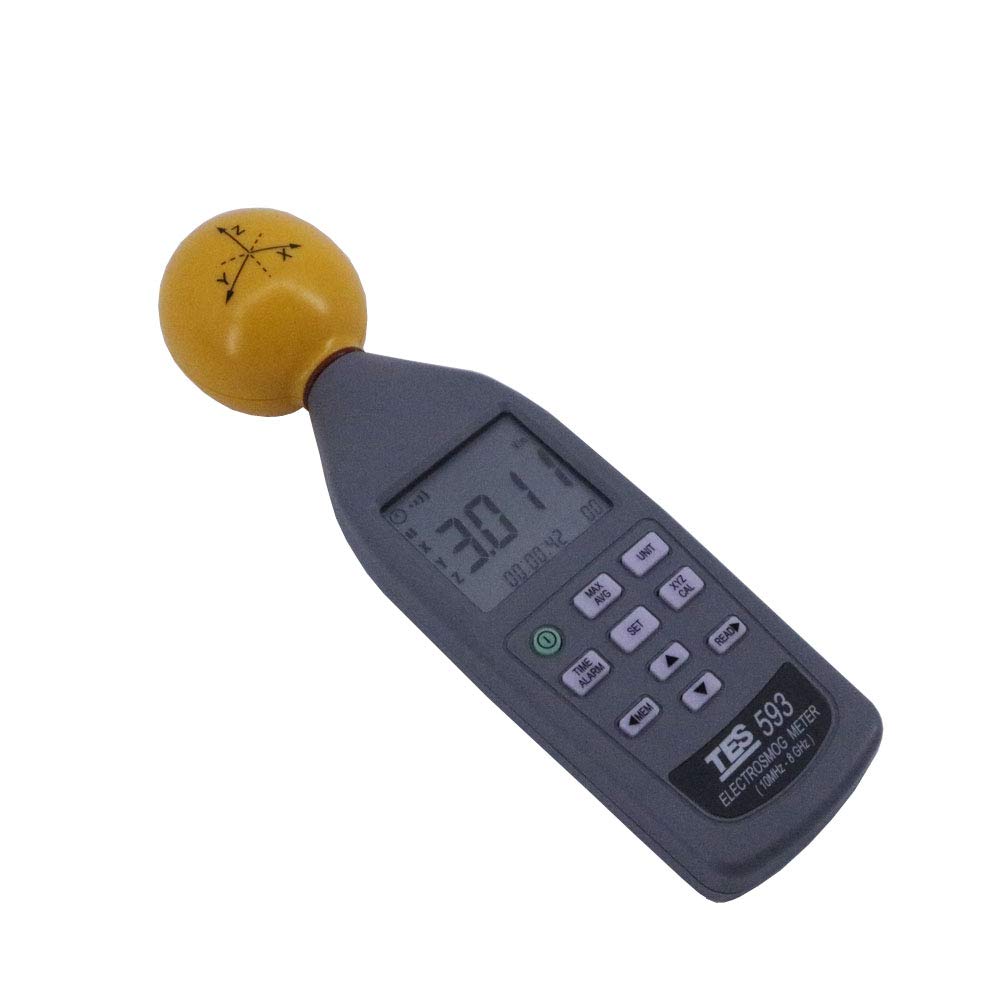

TES-593R has high dynamic range due to three-channel digital results processing.
TES-593R has high frequency (RF) electromagnetic wave field strength measurement.
TES-593R has very excellent performance in isotropic measurements of electromagnetic fields.
Non-directional (isotropic ) measurement with three-channel measurement probe.
Configurable alarm threshold and memory function.
Part Number: TES-593R
Details: Directional characteristic : Isotropic, triaxial.
Measurement range selection : One continuous range.
Display resolution : 0.1mV/m, 0.1µA/m, 0.1µW/㎡, 0.001µW/c㎡
Setting time : Typically 1s (0 to 90% of measurement value).
Display refresh rate : Typically 0.5 seconds

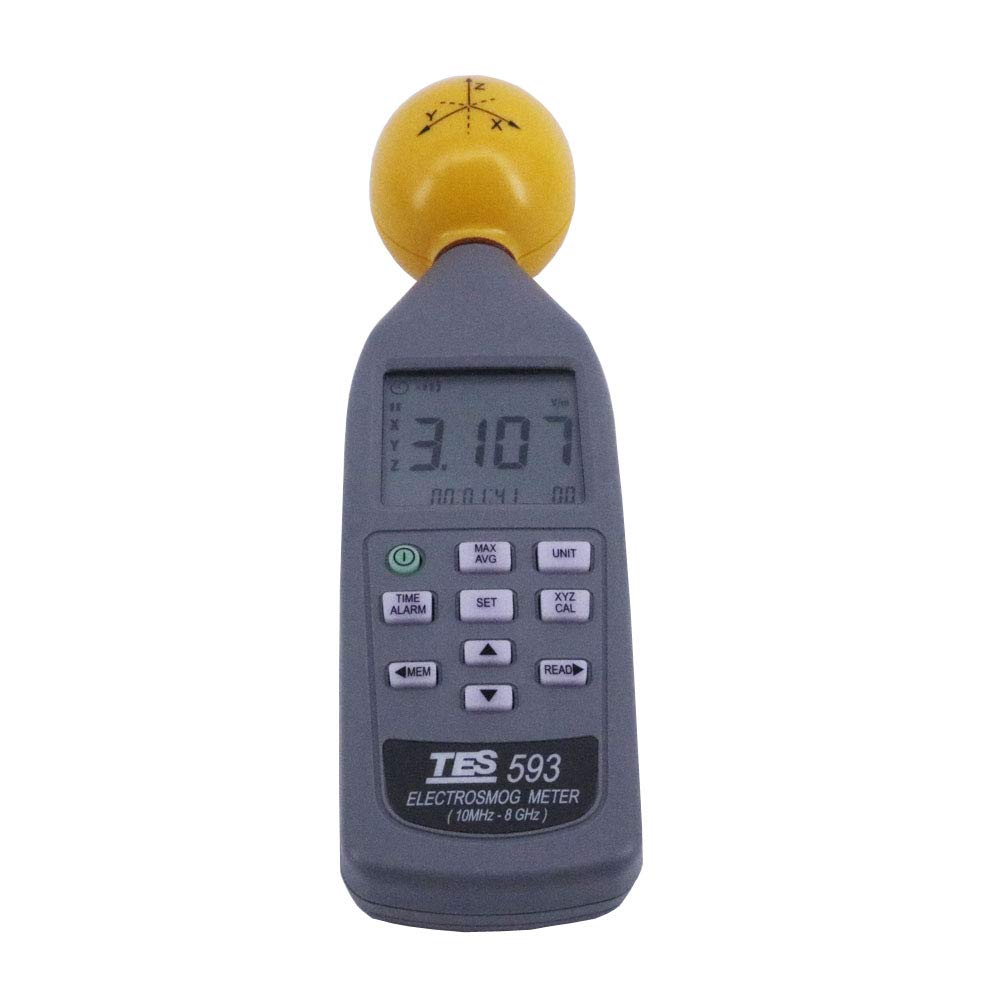

Display type : Liquid-crystal (LCD), 4 digit.
Audible alarm : Buzzer.
Display value : Instantaneous measured value, maximum value,
average value, or maximum average value.
Calibration factor CAL : Adjustable.
Manual data memory and read storage : 99 data sets.

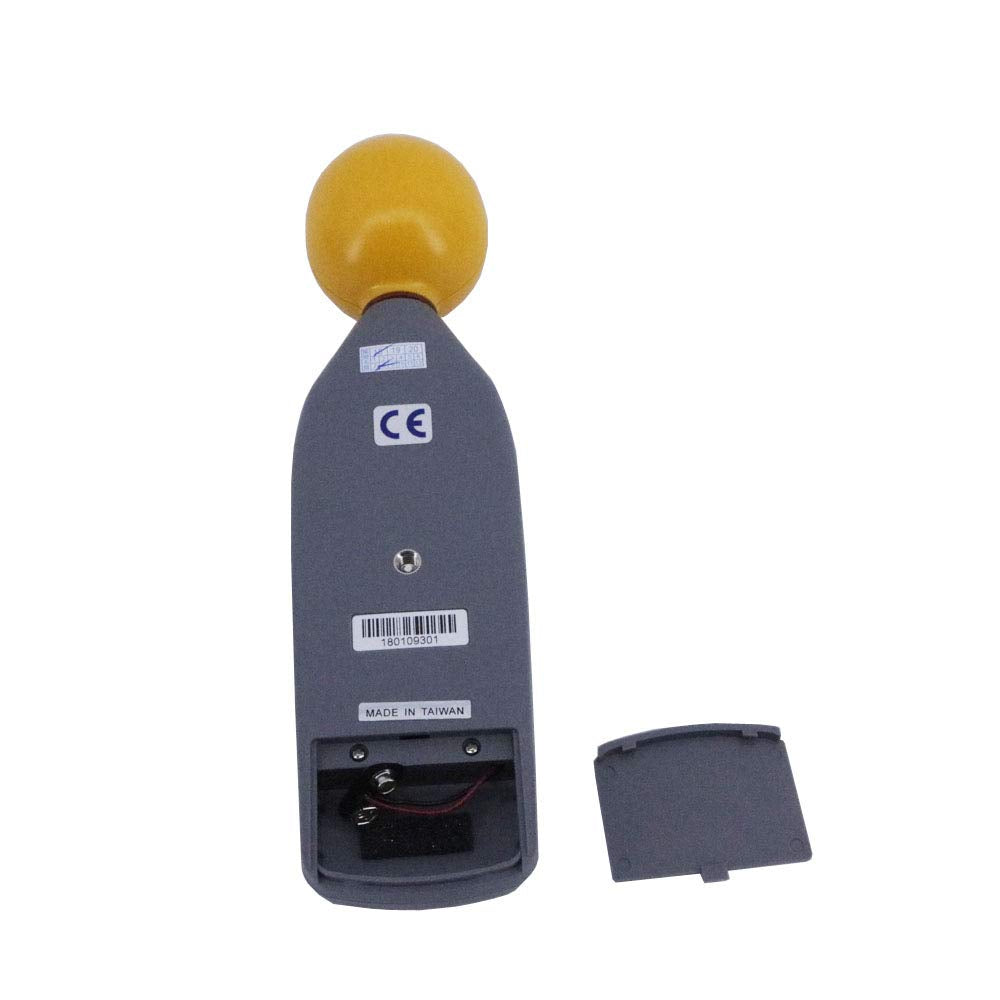

Dry batteries : 9V NEDA 1604/1604A (Alkaline battery)
Battery life : > 3 hours
Operating temperature range : 0℃ to +50℃
Operating humidity range : 25% to 75%RH
Storage temperature range : -10℃ to +60℃
Storage humidity range : 0% to 80%RH
Dimensions : Approx. 67(W)×60(T)×247(L)mm.
Weight (including battery) : Approx. 250g

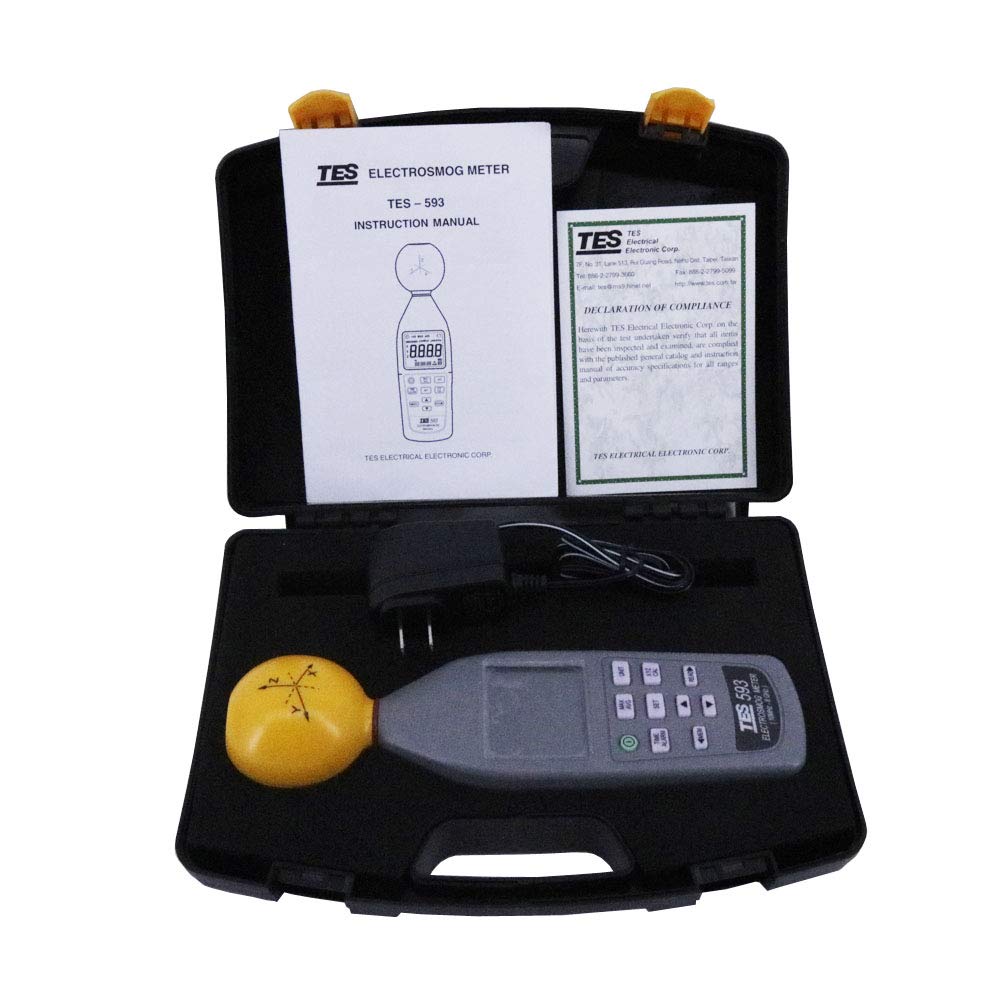

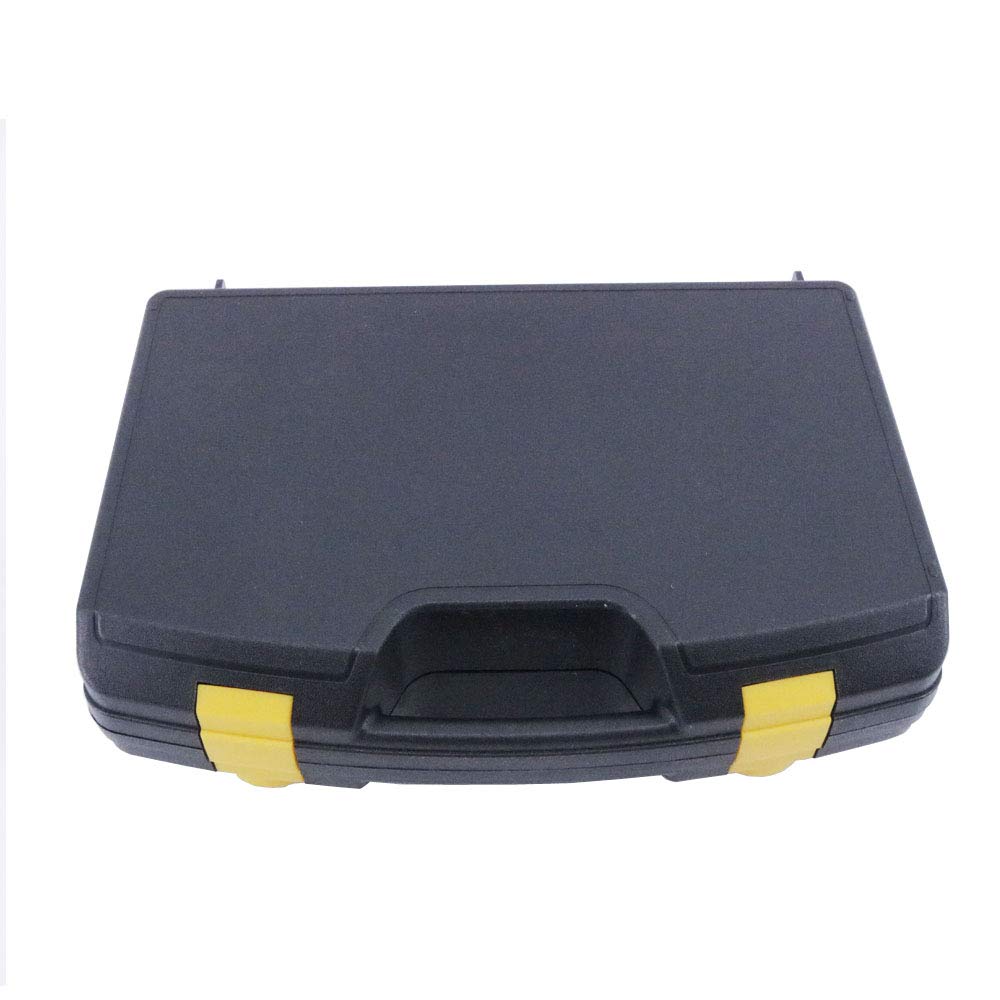

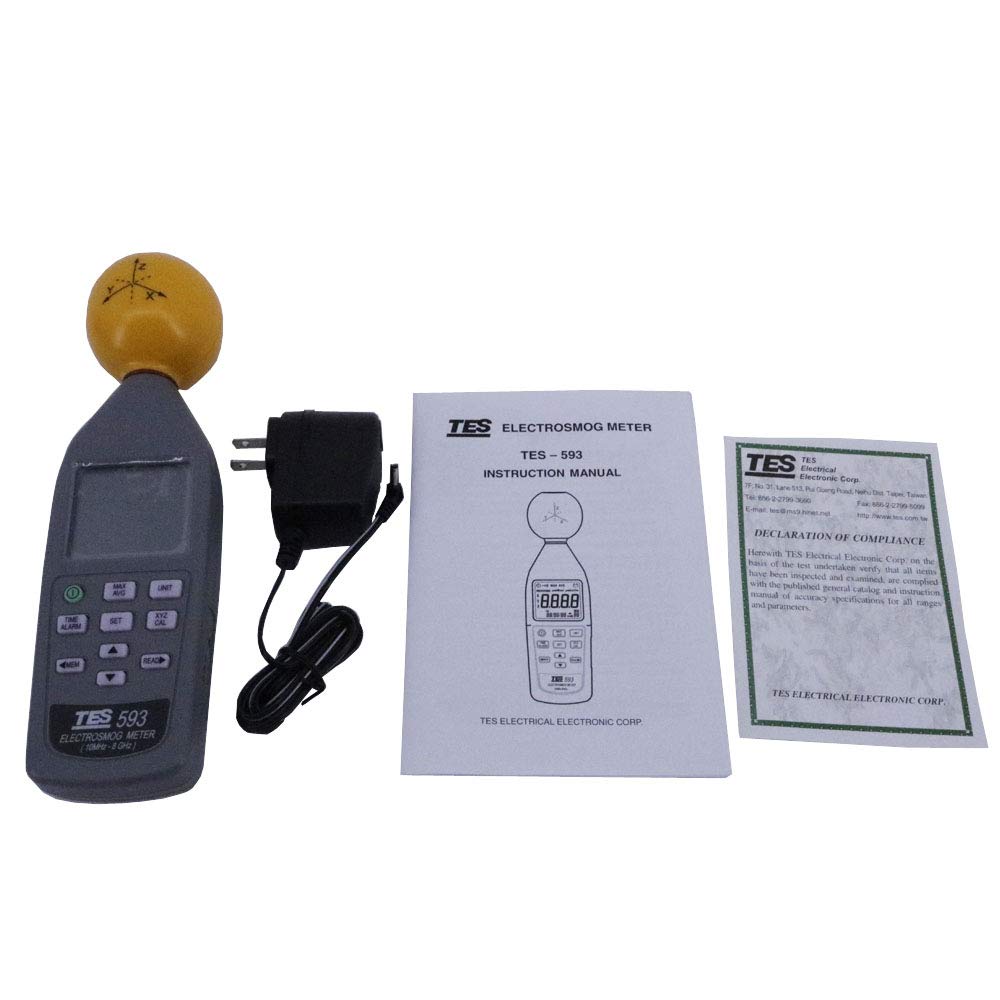

Accessories : Instruction manual, battery, Carrying case.
Sensor type : Electrical field (E)
Frequency range : 10MHz to 8GHz
Specified measurement range :
CW signal (f > 10MHz) : 20mV/m to 108.0V/m , 53µA/m to 286.4mA/m , 1µW/㎡ to 30.93W/㎡,0 µW/c㎡ to 3.093mW/c㎡
Dynamic range : Typically 75dB
Absolute error at 1 V/m and 10 MHz : ±1.0dB
Frequency response :
Sensor taking into account the typical CAL factor :
±1.0dB (10MHz to 1.9GHz)
±2.4dB (1.9GHz to 8GHz)
Isotropy deviation : Typically ±1.0dB (f>10MHz)
Overload limit : 10.61mW/c㎡ (200V/m)
Thermal response (0 to 50℃) : ±0.5dB
