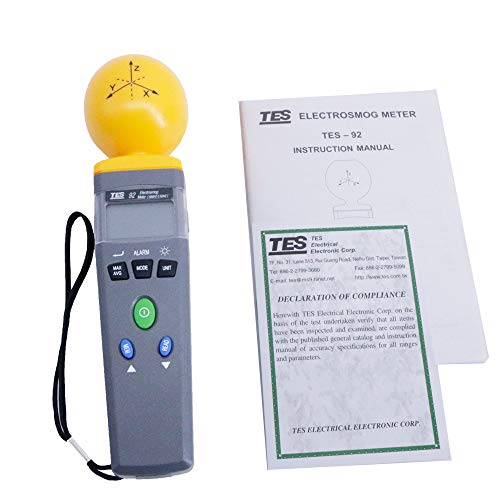

Graigar TES-92 EMF Meter Triaxial Data Logger The Electromagnetic Radiation Detector TES92

Brand: Graigar

Color: Black

Features:

• TES-92 EMF Meter Triaxial Data Logger Test the 50MHz to 3.5GHz frequency range.
• TES-92 EMF Meter Triaxial Data Logger.
• Non-directional measurement uses a 3-axis measurement sensor bar.
• The high dynamic range uses 3 channel digits.
• Planable alarm limit values ​​and storage capabilities,Easy to use.

Part Number: TES-92

Details: TES-92 high frequency electromagnetic radiation detector details:
Sensor type: electric field (E)
Frequency range: 50MHz to 3.5 GHz

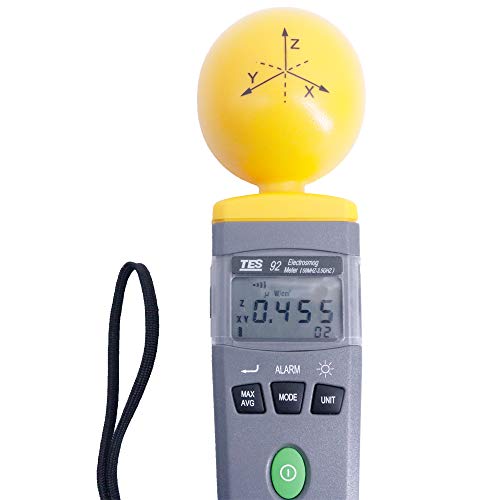

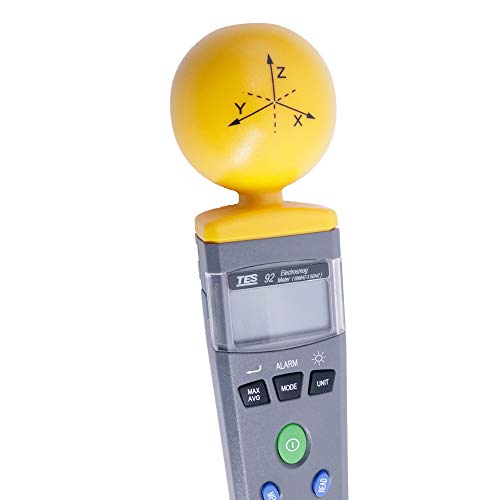

Directional characteristics: isotropic, 3-axis
Measuring range (continuous wave signal >50MHz): 38mV/m to 11V/m
Absolute error (@1V/m and 50MHz): ± 1.0dB
Frequency response (correction factor CAL included): ± 1.0dB (50MHz to 1.9 GHz), ±2.4dB (1.9GHz to 35GHz)
Isometric deviation: about ±1.0dB at f>50 MHz
Continuous wave overload limit (CW): 4.2W/m2 (40 V/m)
Temperature effect (0 to 50 ° C): ± 1.5 dB
annotation:
Unless otherwise stated, all specifications are under the following conditions: sinusoidal signal; device at the far field of the source, the sensing head is directed at the source; ambient temperature +23 °C ± 3 ° C; relative air humidity 25% to 75% .
Specification
Measurement method: digital three-axis measurement
Directional characteristics: isotropic, three-axis
Measuring range selection: 1 continuous gear
Display resolution: 0.1mV/m, 0.1 μA/m, 0.1 μW/m2, 0.001 μW/cm2
Reaction time: about one second (0 to 90% of the measured value)
Display rate: about 400mS
Display: LCD 4 digits
Alarm: Buzzer
Unit of measurement: mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, μW/cm2
Measurement display value: instantaneous value, maximum value and average value after power on
Average measurement time: 4 seconds to 15 minutes can be preset
Measurement alarm function: adjustable limit value and ON/OFF
Measurement Correction Factor (CAL): Adjustable
Manual data storage and reading: 99 groups (can only be read on the table)

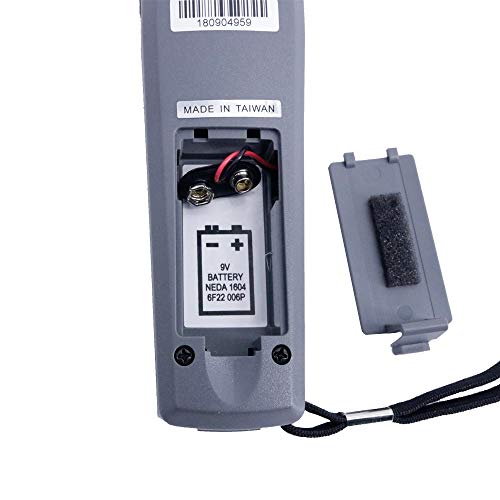

Power: 9V battery (not included)

EAN: 0761272050192
