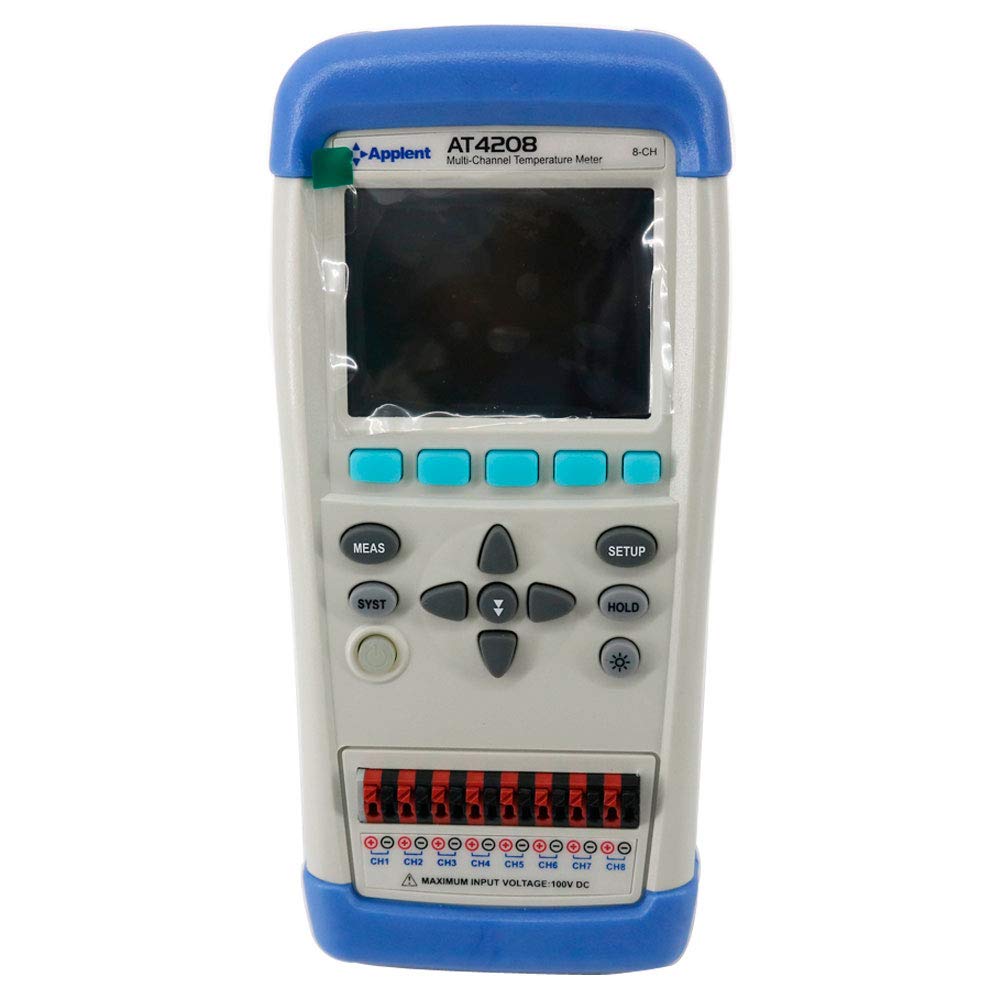

Graigar Thermocouple Temperature Meter AT4208 Handheld Multi-channel Temperature Meter with LCD Display Touch Screen 8 Channels

Brand: Graigar

Color: Gray

Features:

• AT4208 handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly
• AT4208 has the function of checking broken thermocouple, high/low beep function and communication transmission
• Ultra-low power consumption and high density SMD assembly technology
• True-color TFT liquid crystal display, keypad and touch screen double control
• It is Li- battery powered. USB communication. Switch in both English and Chinese

Part Number: AT4208

Details: Application
Apply to home appliance, motors, heating appliance, temperature controller, transformer, oven, thermal protector, power supply, lighting,electric power,LED and so on.

Technical Specifications
* Graduation: Thermocouple：J/K/T/E/S/N/B
* Accuracy: 0.2%+1℃
* Range: -200C~1300C（variation depend on graduation）
* Resolution: 0.1C

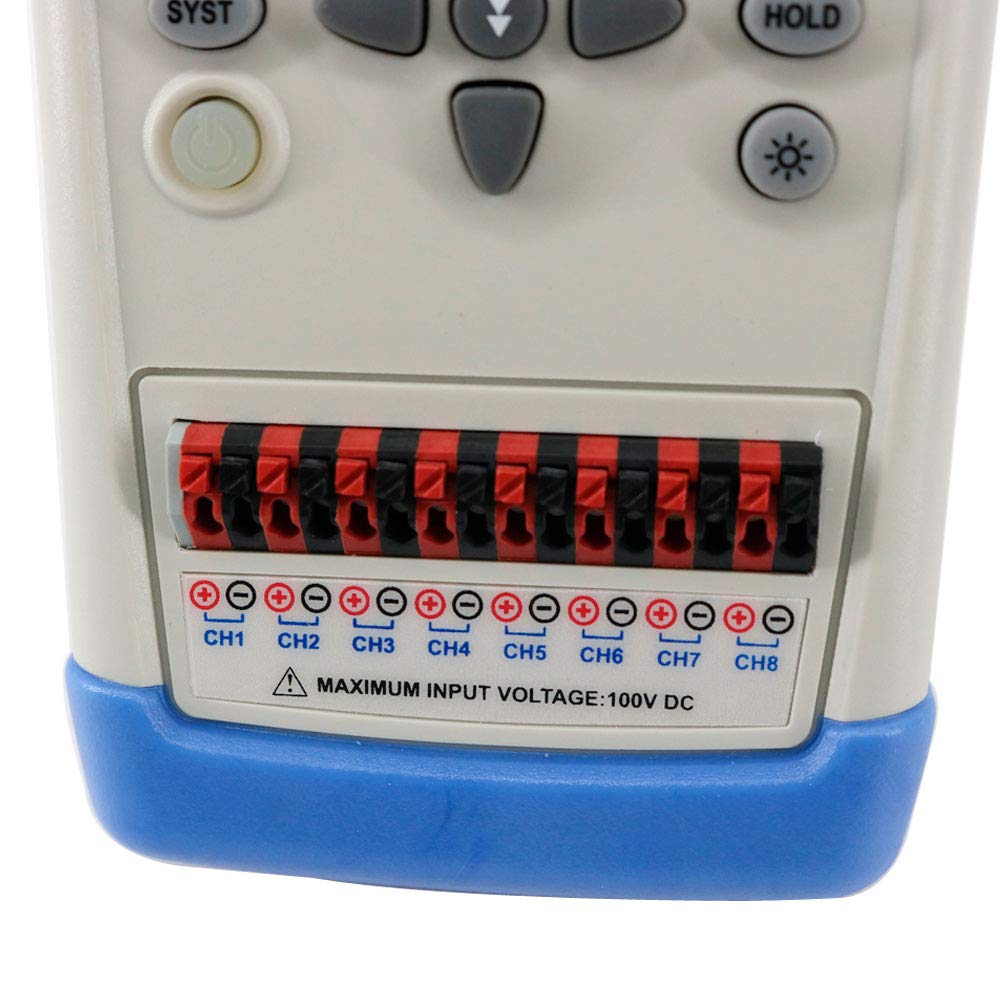

* Channels:8 channels
* Speed: Fast：100ms/channel Medium：500ms/channel Low：1s/channel
* Correction: Error correction for each channel
* Comparator: High & low beep function

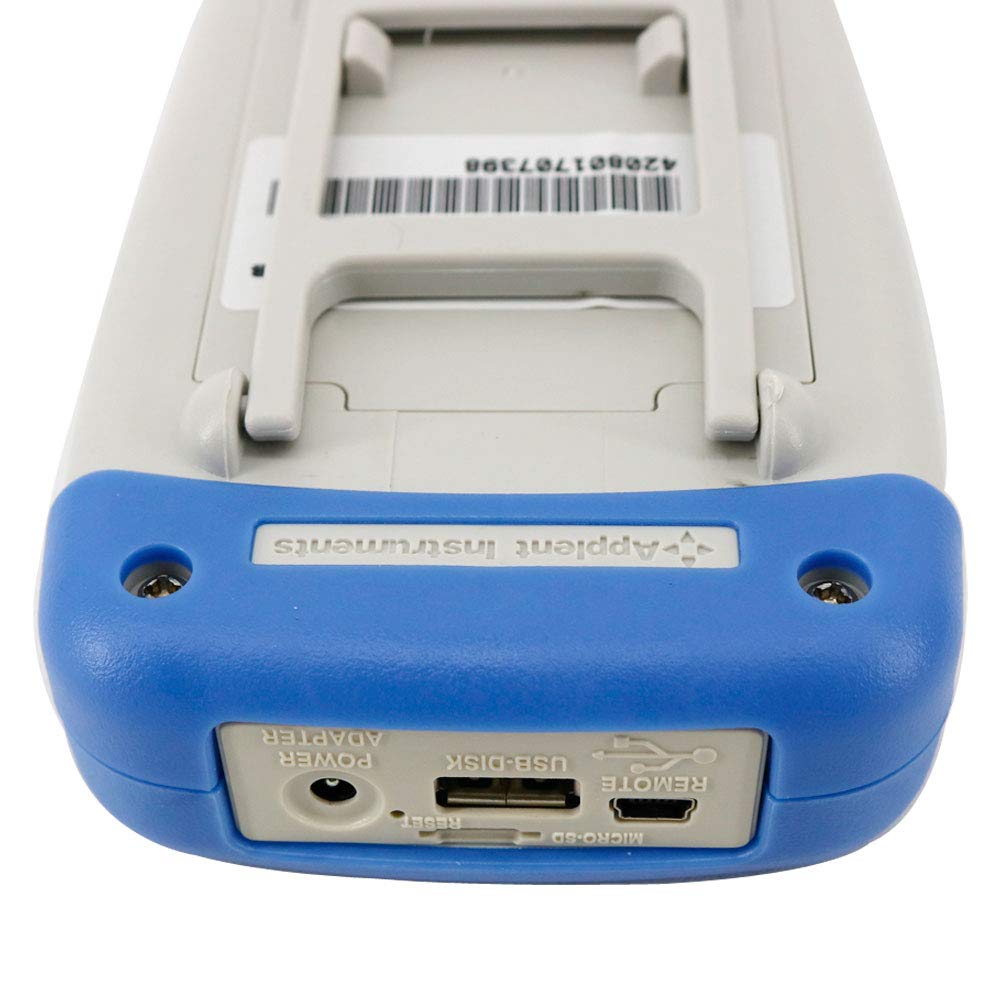

* Interface: Mini-USB
High & low beep function
* Cold Junction: Accuracy：0.5℃
*Other features: 2.8 inches True-color 16M TFT-LCD LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese；adjustable back light; automatic power off
* Power requirements: Input：100-240V~50/60Hz 0.35A Output：9V 1A DC

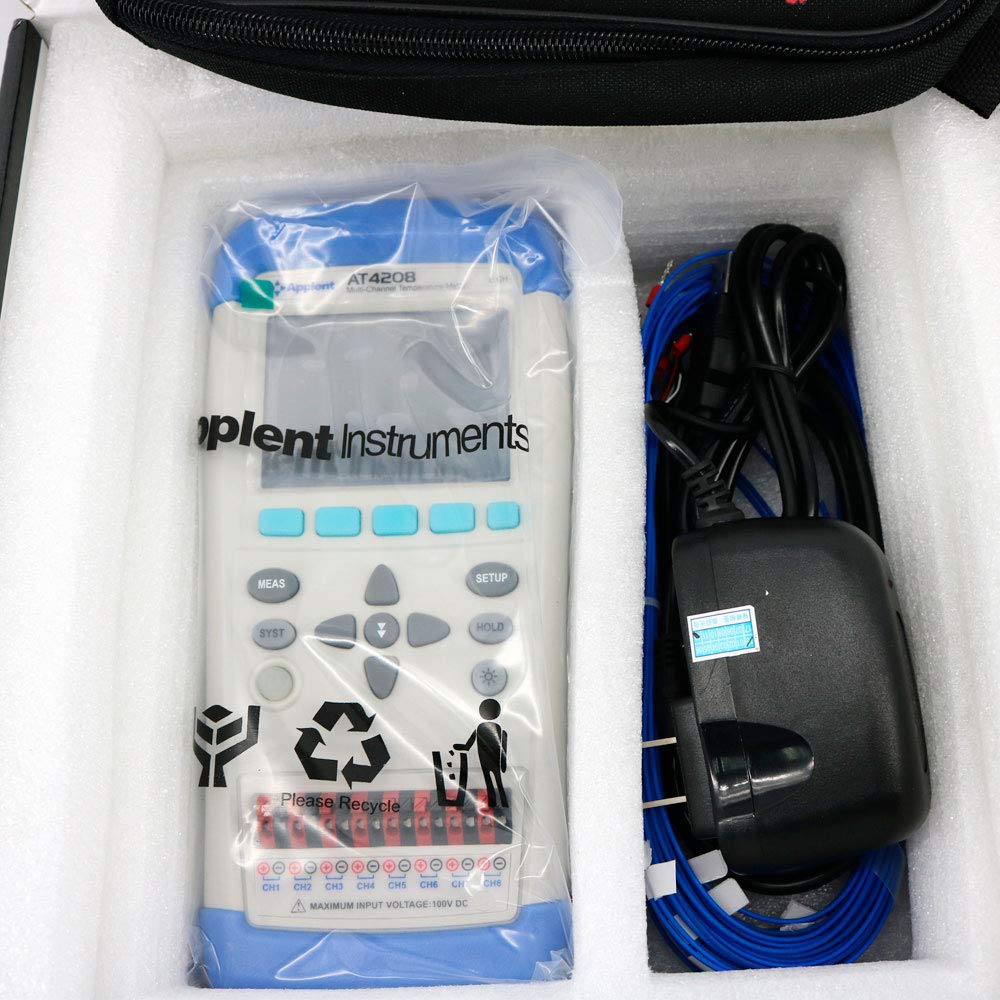

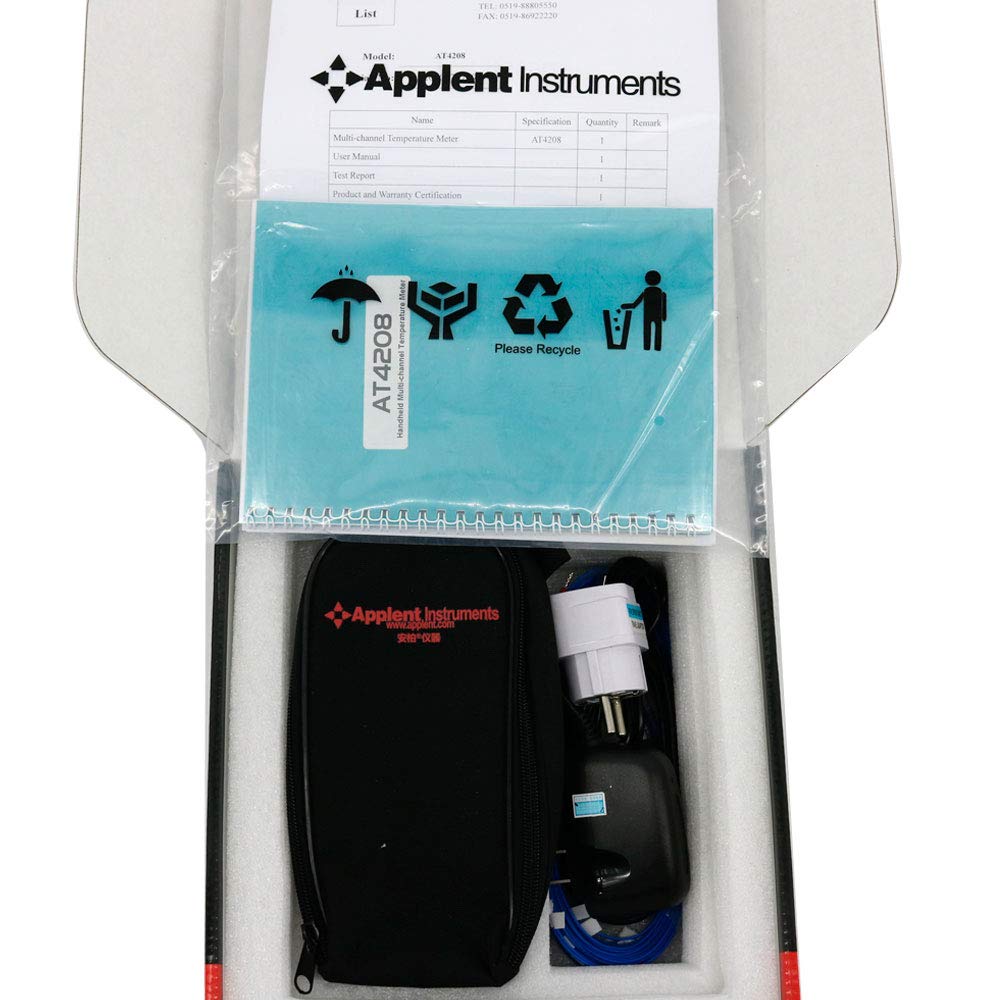

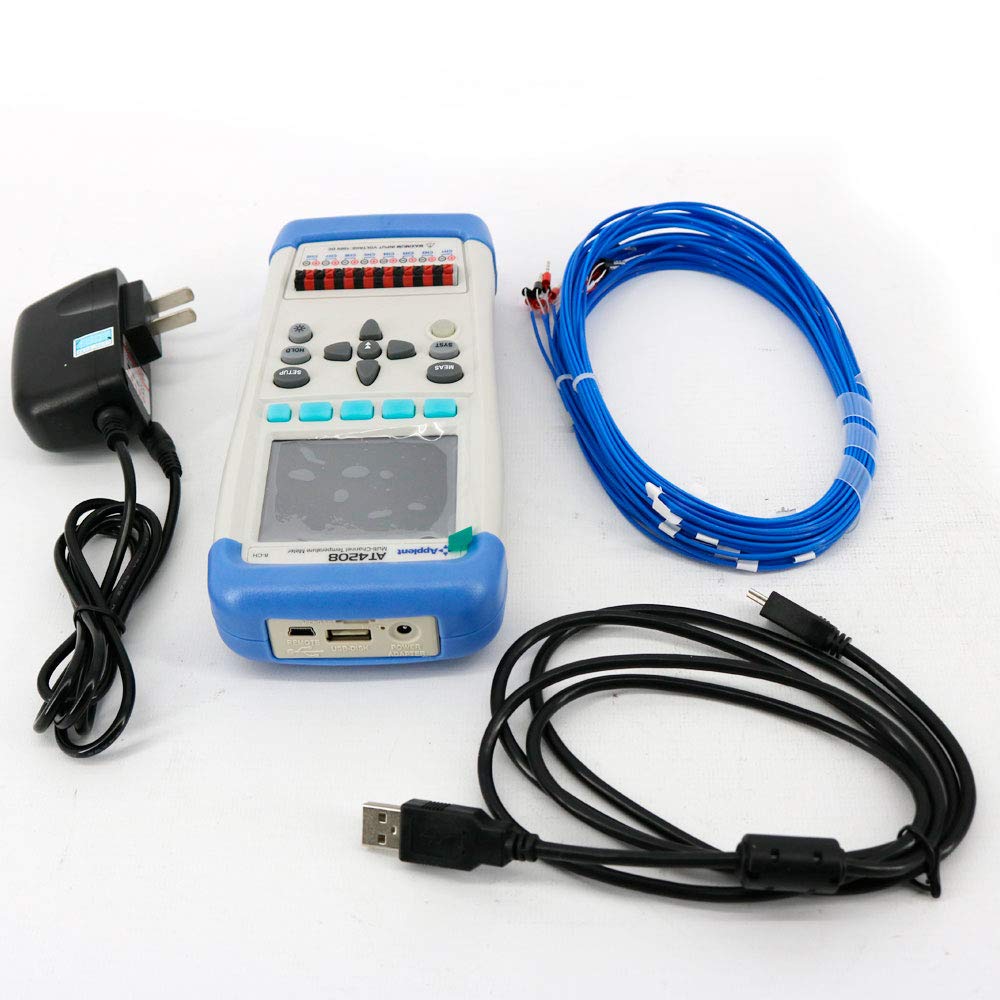

* Accessories: T thermocouple 8 teams(2m/team) ATL909: DC power adaptor, ATL105Mini-USB communication cable ATS42 data acquisition software

EAN: 0705419446806
