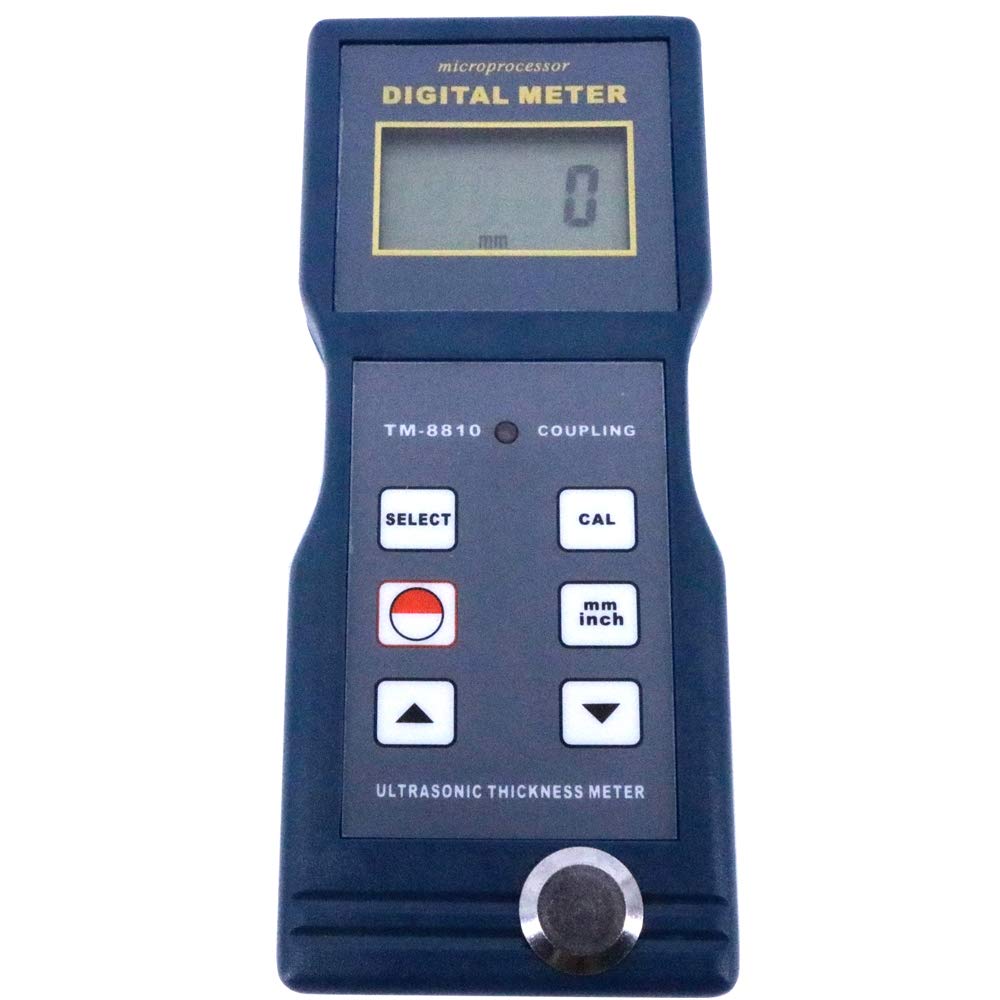

Graigar TM-8810 Digital Wall Ultrasonic Thickness Gauge TM8810 Thickness Meter Tester 1.2-200mm

Brand: Graigar

Features:

• TM-8810 ultrasonic thickness gauge with high power of emission and broad of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
• Digital display gives exact reading with no guessing errors
• Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
• Wide measuring range (1.5 ~ 200 mm) and high resolution

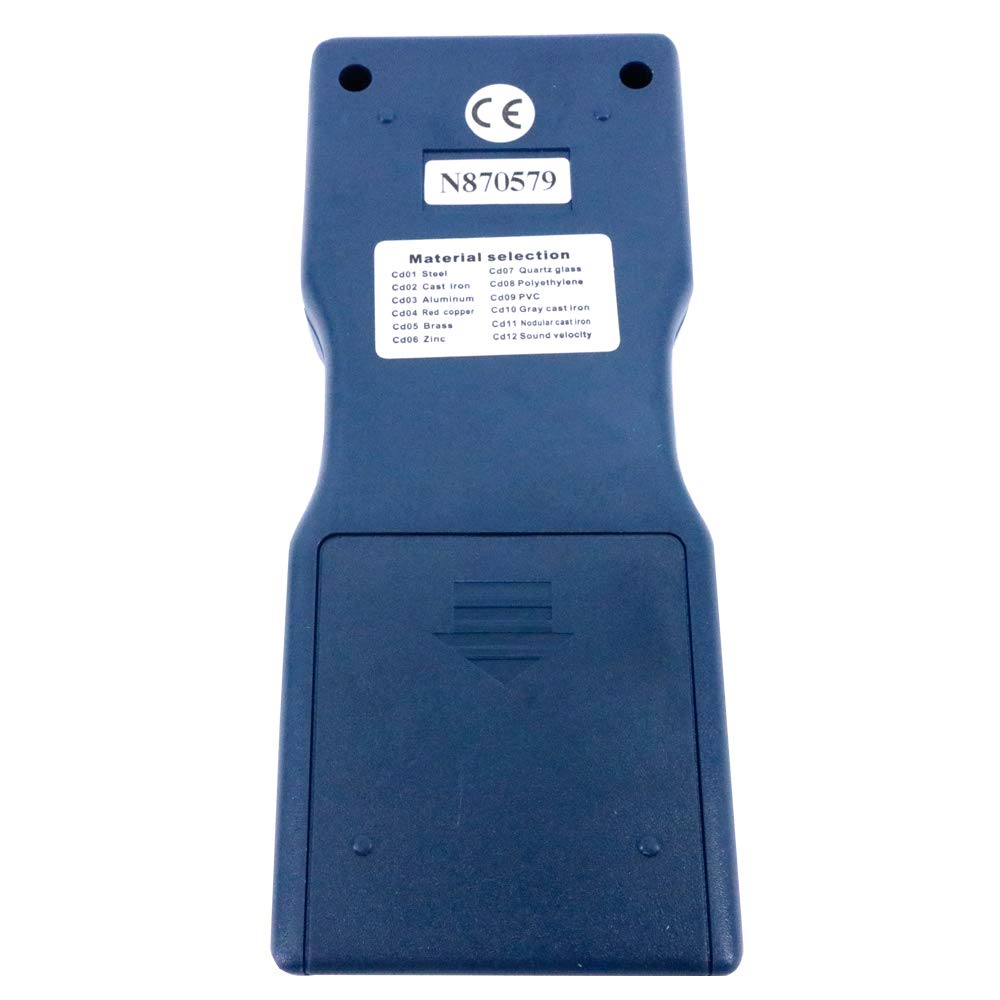

• Capable to measure the thickness of many materials, e.g. Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

model number: TM8810

Part Number: TM8810

Details: Features
-Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
-Wide measuring range (1.5 ~ 200 mm) and high resolution
-Digital display gives exact reading with no guessing errors
-With high power of emission and broad of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
-Capable to measure the thickness of many materials, e.g. Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
-Automatic power off to conserve power
-FREE protective & sturdy carrying case

Specifications

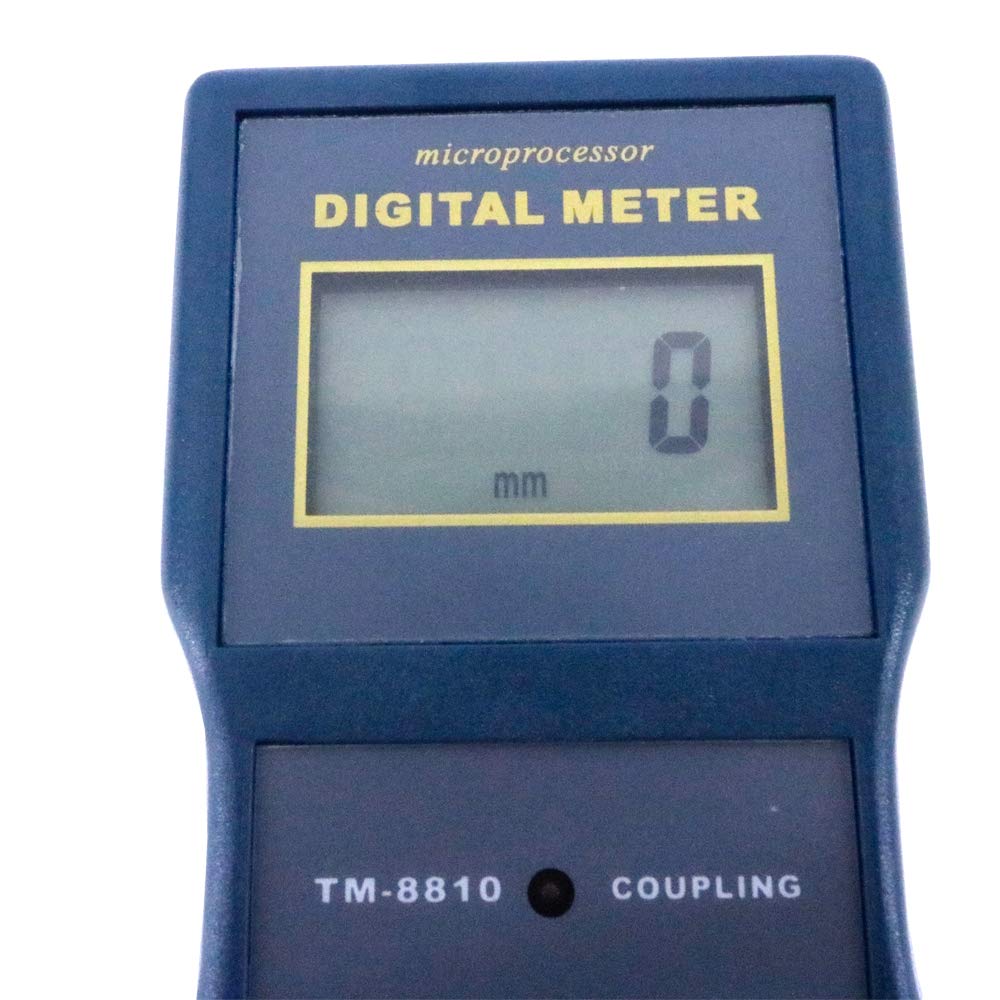

-Display: 4 digits, 10 mm LCD
-Range: 1.5 ~ 200 mm (45# Steel)
-Resolution: 0.1 mm / 0.001 inch
-Accuracy: ¡Ó (0.5% n + 0.1)
-Power Supply: 4 x 1.5 V AA (UM-3) battery
-Operating Temperature: 0 ~ 50 ?C (32 ~ 122 ?F)
-Operating Humidity: <80 %
-Item Size: approx. 160 (L) x 68 (W) x 32 (D) mm (6.29' x 2.66' x 1.25' inch)
-Item Weight: approx. 168 g (5.93 oz) (Batteries excluded)

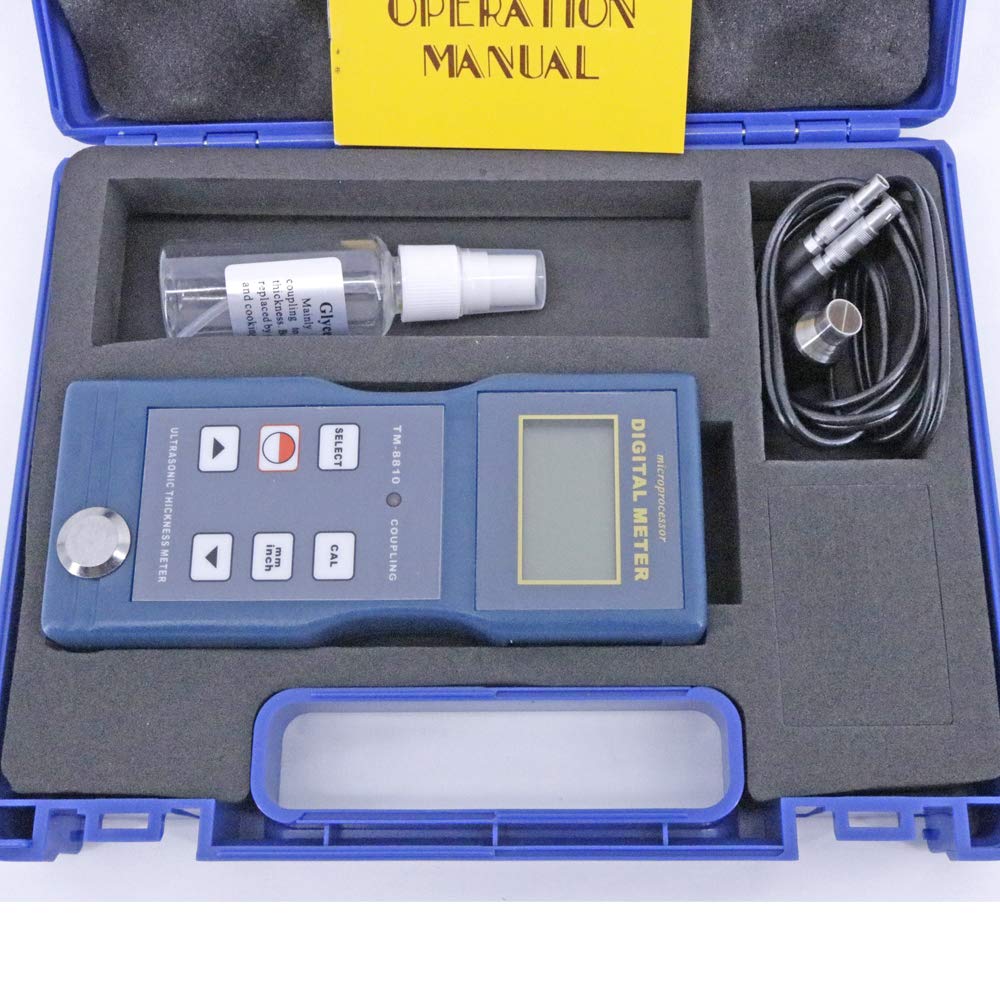

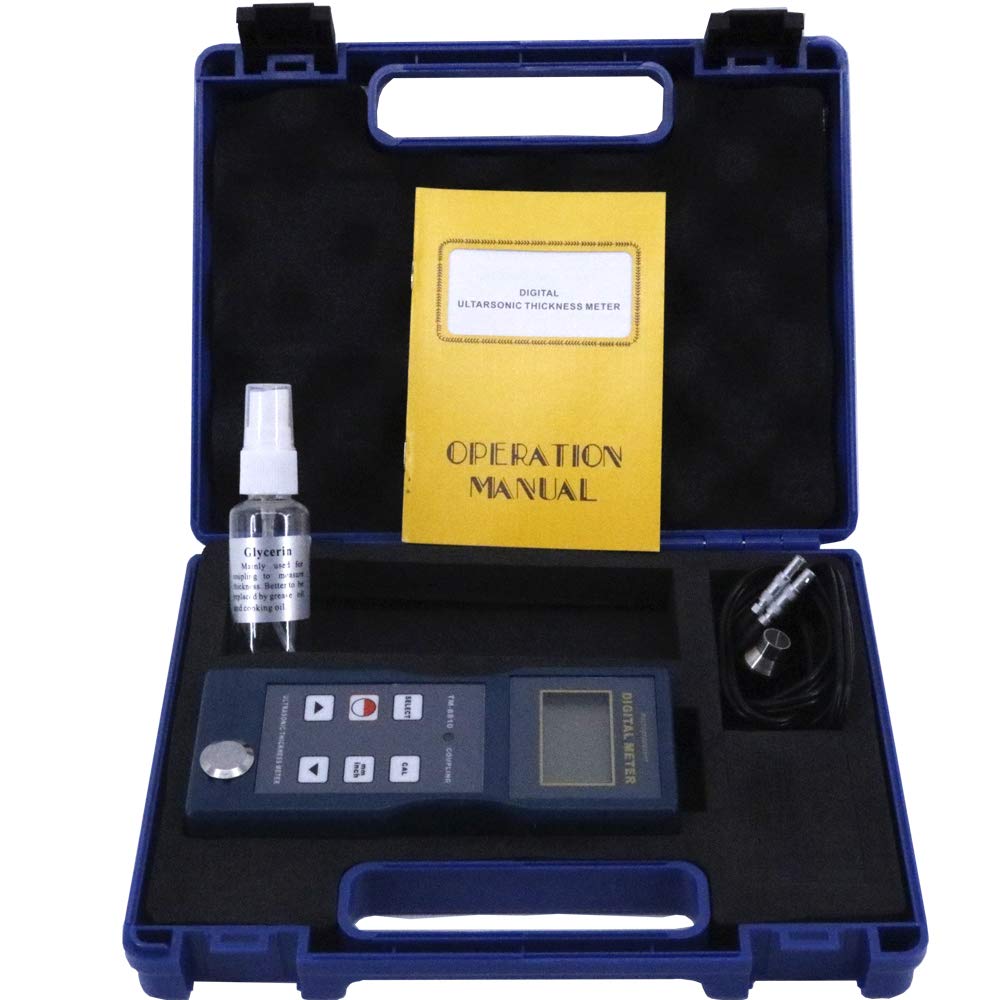

Standard Configuration

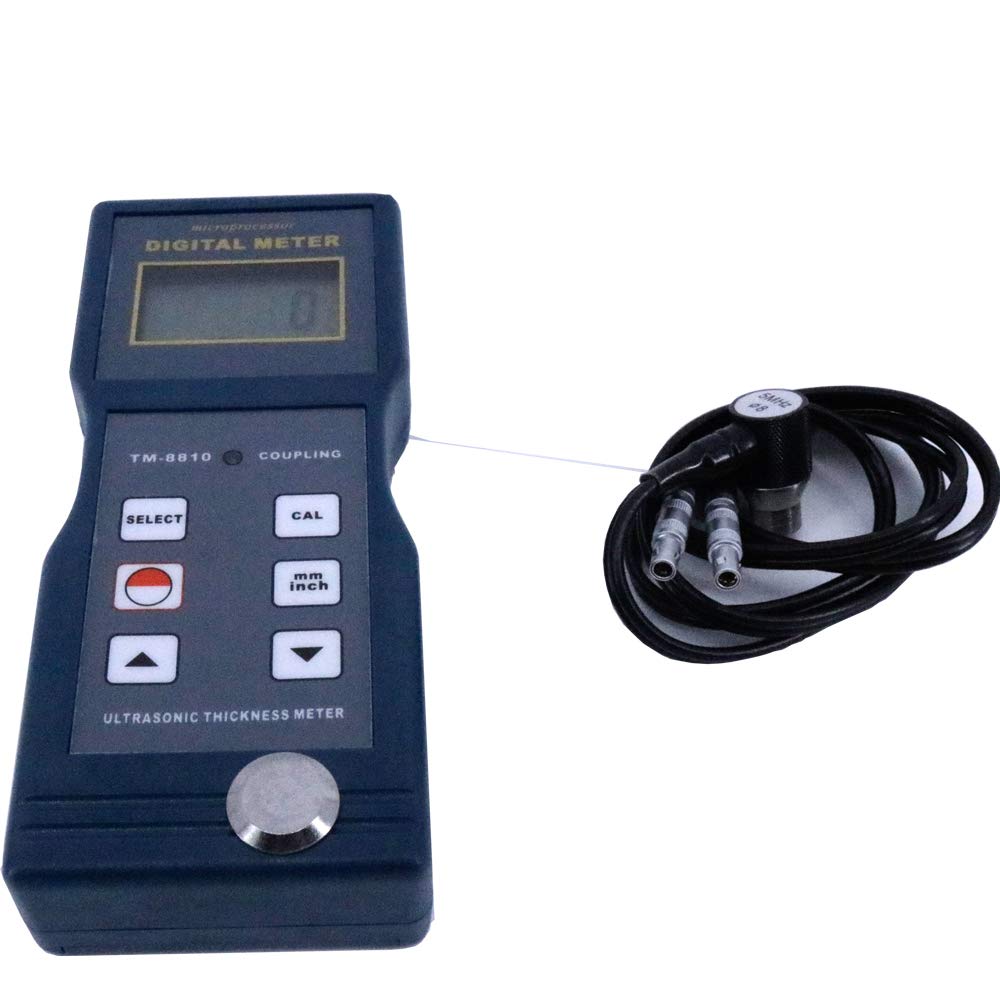

-1 x Ultrasonic Thickness Meter

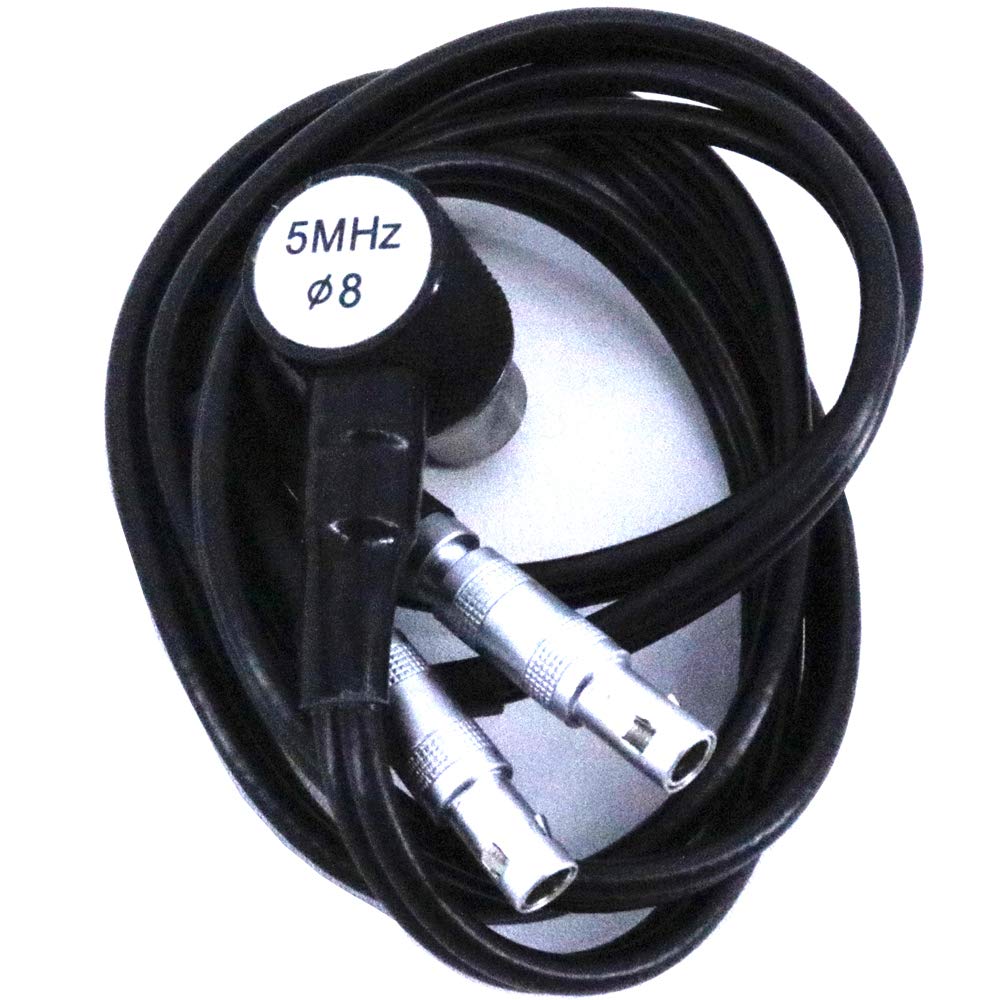

-1 x Ultrasonic Sensor
-1 x Bottle of Glycerin
-1 x Operation Manual

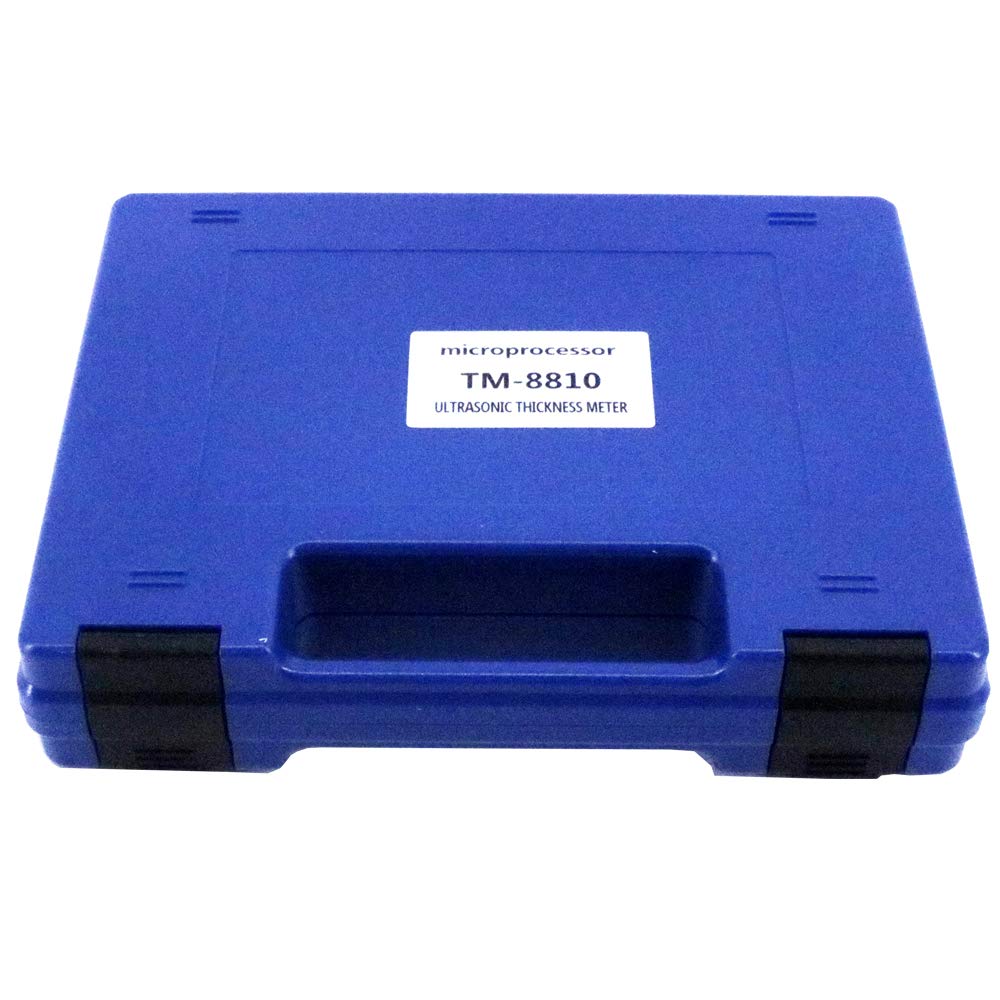

-1 x Carrying Case

EAN: 0705419446554
