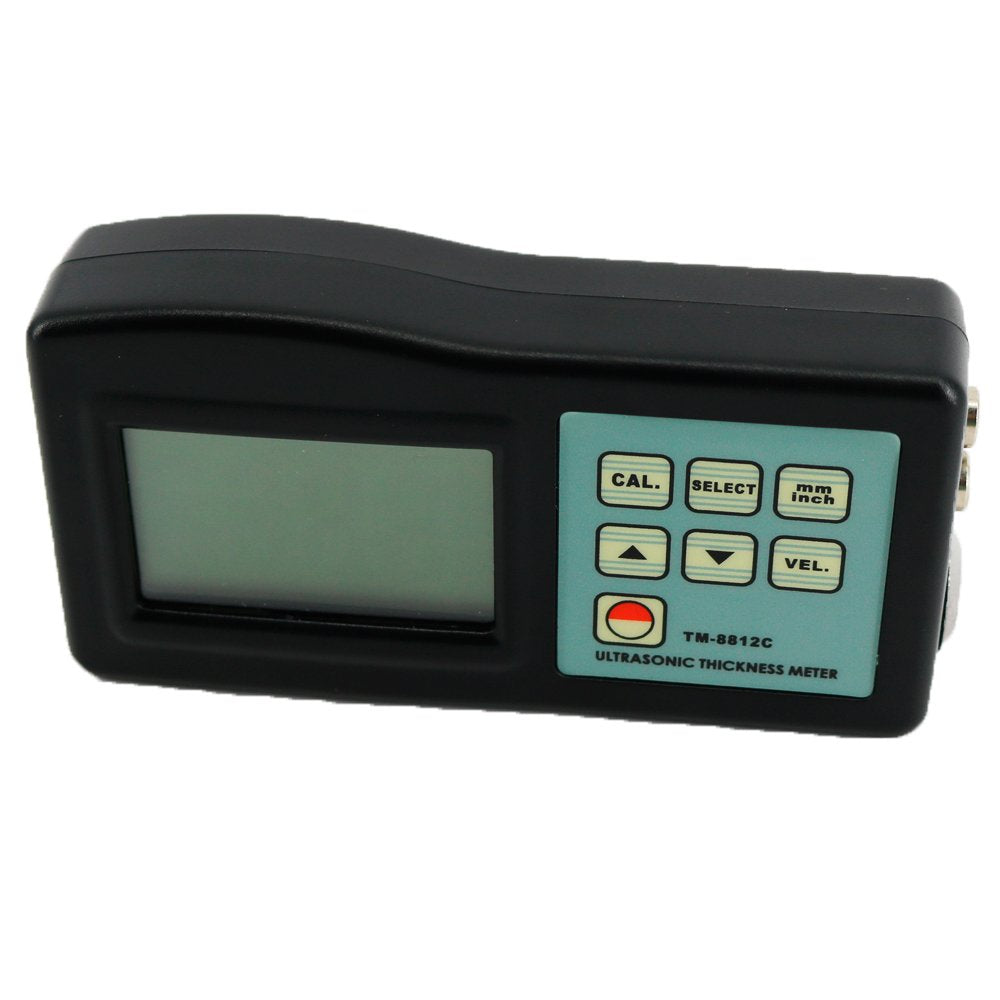

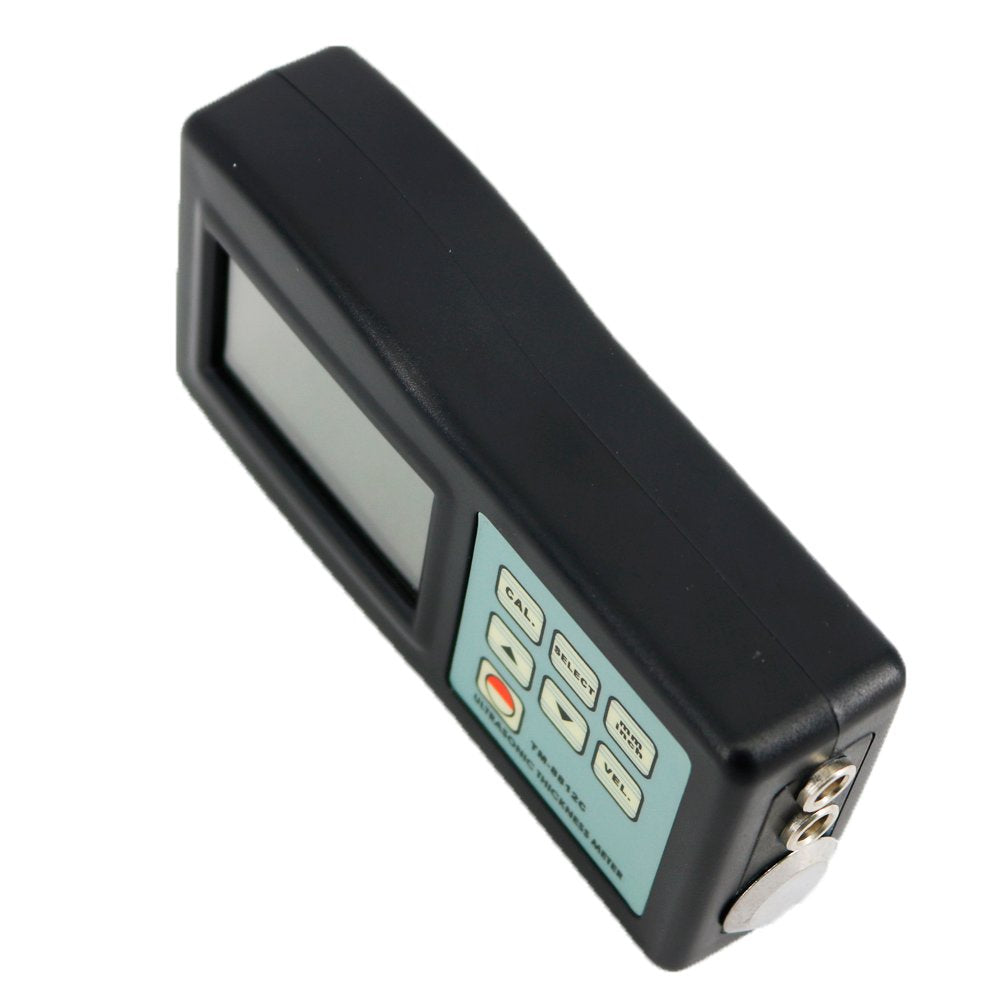

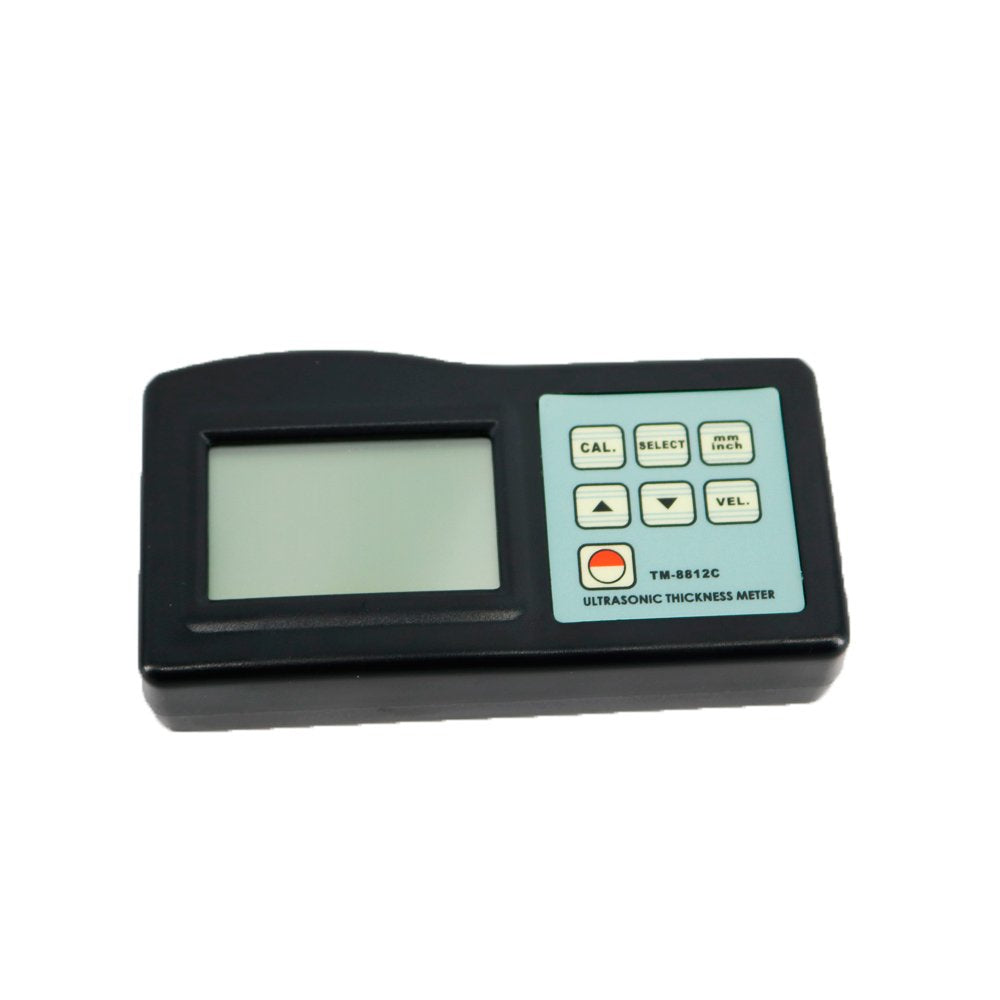

Graigar TM-8812C Ultrasonic Thickness Gauge Meter Tester 1.0~200 mm / 0.04~8 inch Resolution 0.01mm TM8812C

Brand: Graigar

Features:

• TM-8812C Ultrasonic Thickness Gauge Using the latest high performance and low power consumption microprocessor technology.
• Automatic memory material code and sound velocity value, convenient to use.
• Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
• Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
• Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

model number: TM8812C

Part Number: TM-8812C

Details: Application:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.


Standard Accessories:

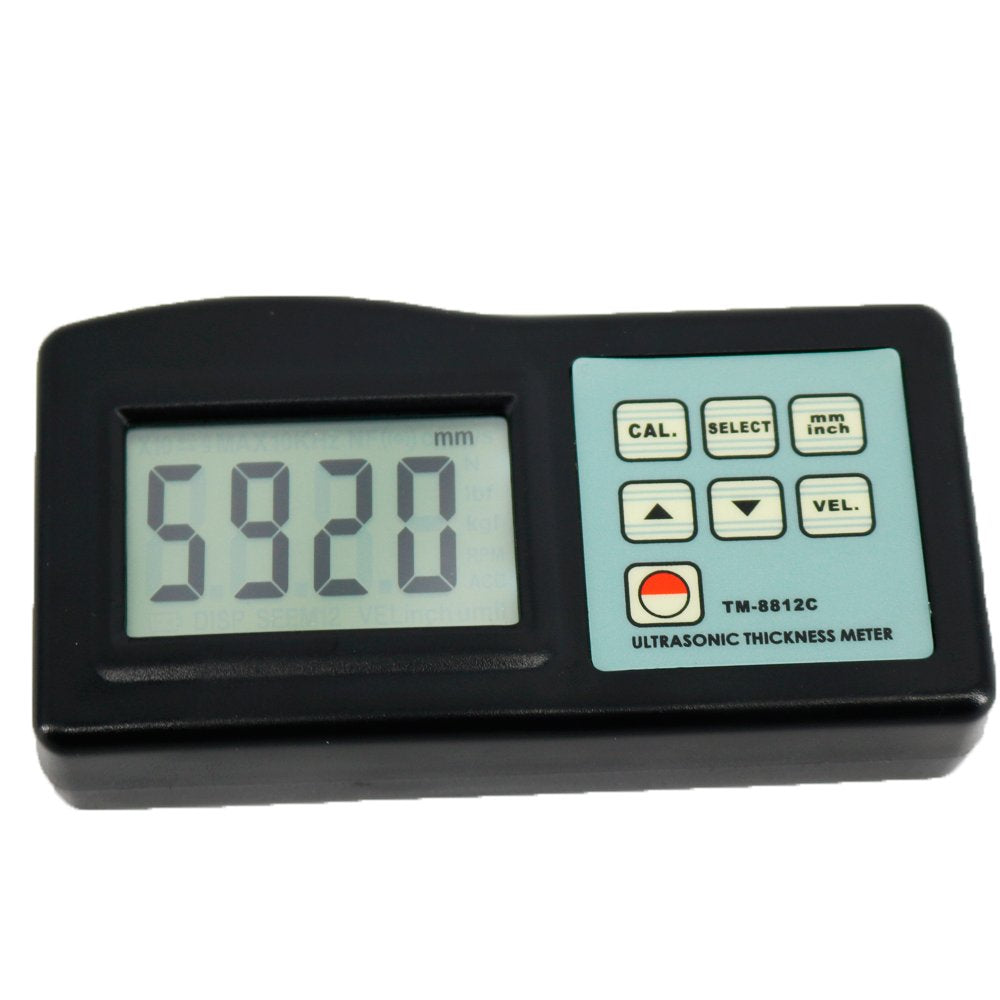

Display: 4 Digit, 10 mm(0.39in) LCD

Operating Principle: Ultrasonic

Measuring Range (metric / Imperial) : 1.0~200 mm / 0.04~8 inch

Battery Indication: Low Battery Indication

Sound Velocity: 1000~9000 m/s

Lower Limit Steel Pipes: Diameter:15 x 2.0 mm(0.59*0.08in)/ Diameter: 20 x 3.0 mm(0.78*0.12in) determined by transducer

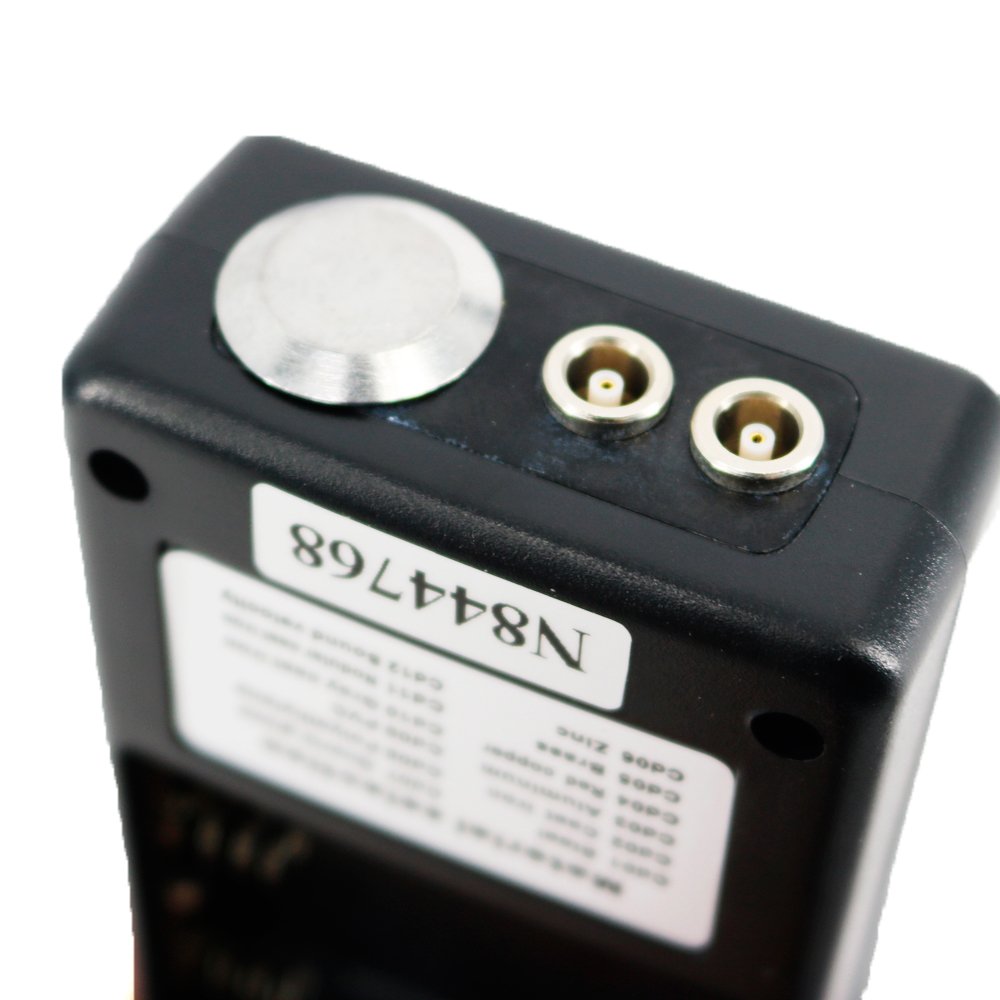

Calibration Block: Included

Resolution: 0.01 mm

Accuracy: ± (0.5%n + 0.1)

Automatic memory material code and the value of sound velocity

Power off: Auto Power off & Manual Power Off

Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH

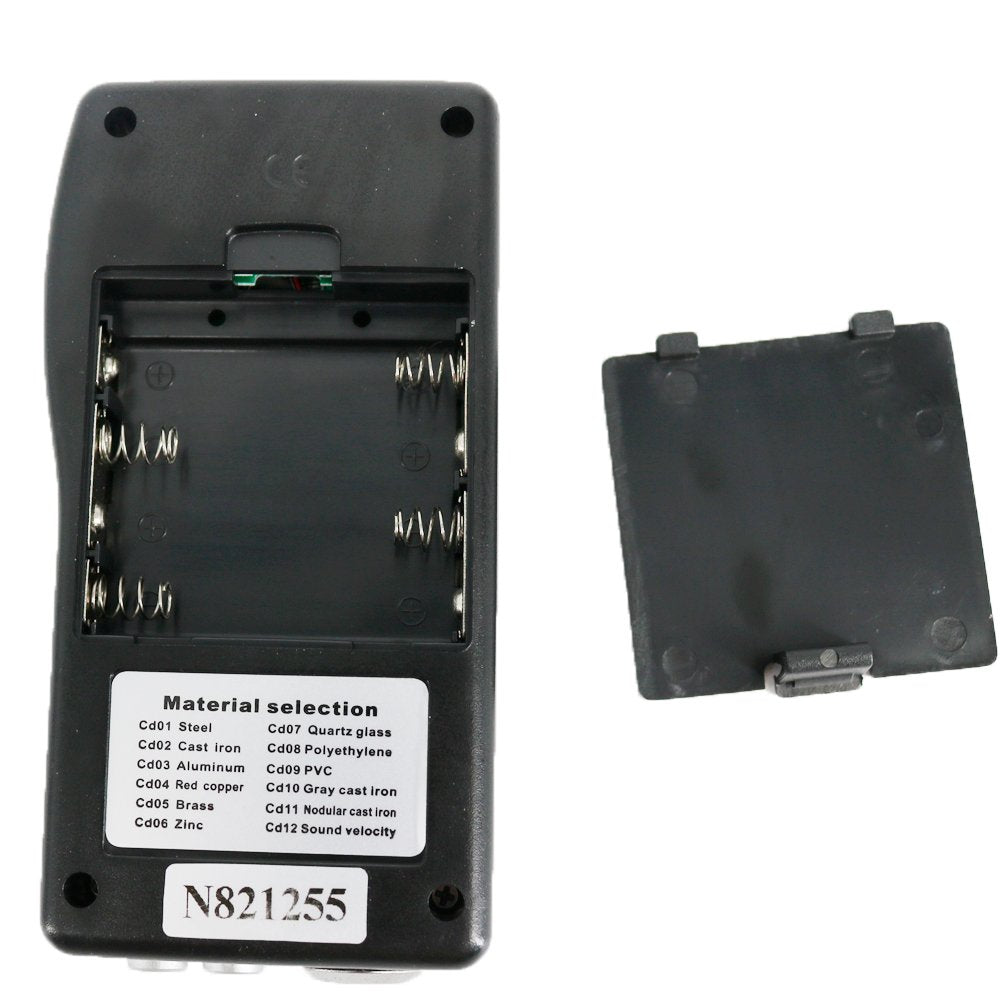

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 120 x 62 x 30 mm(4.7*2.4*1.2in)

Weight: 164 g(0.36lb) (Not Including Batteries)

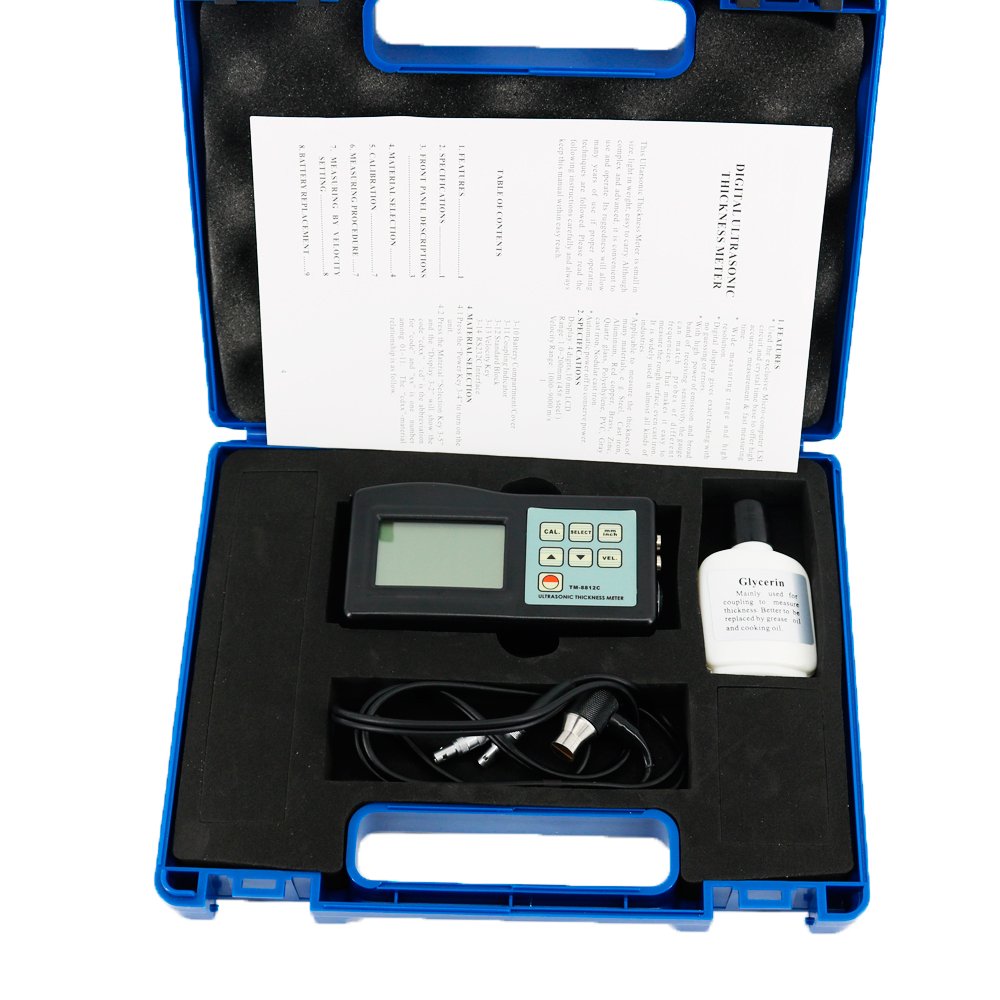

Standard Accessories:

1. Main Unit

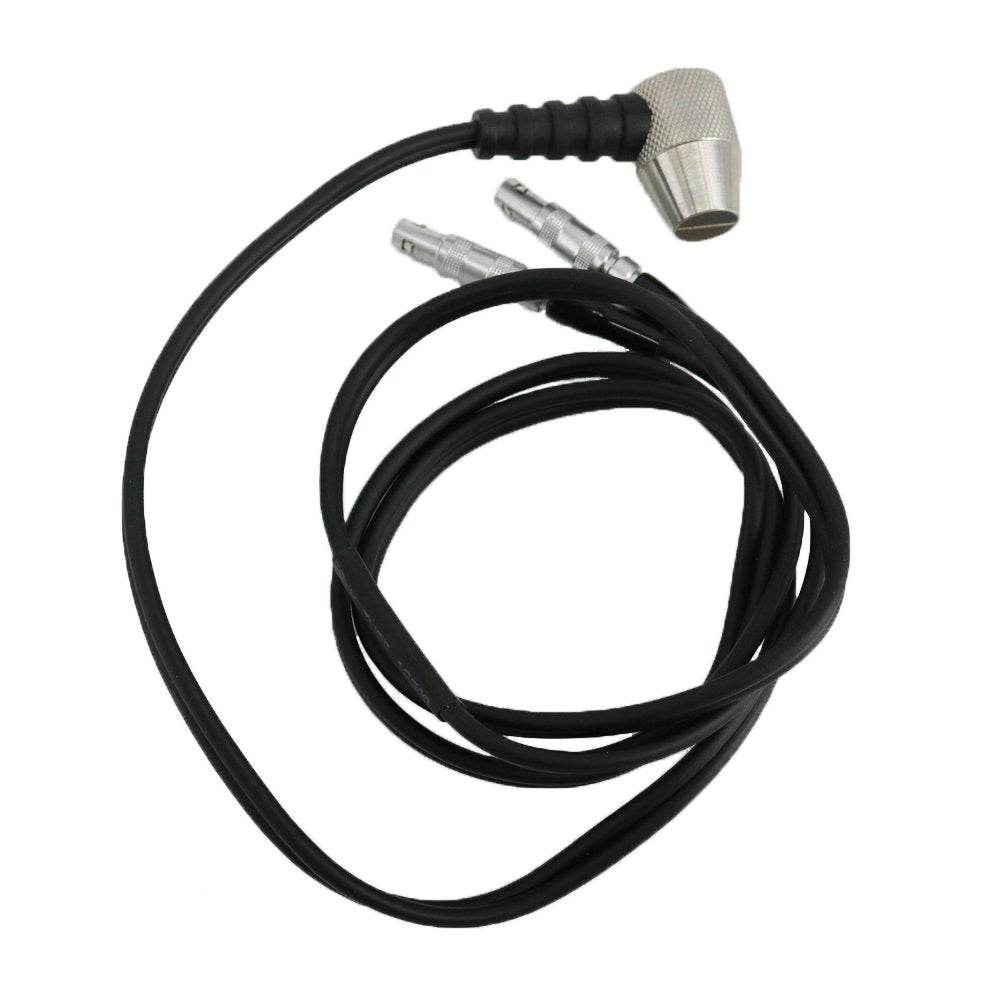

2. 5M Diameter 8 Standard Sensor

3. Coupling Agent

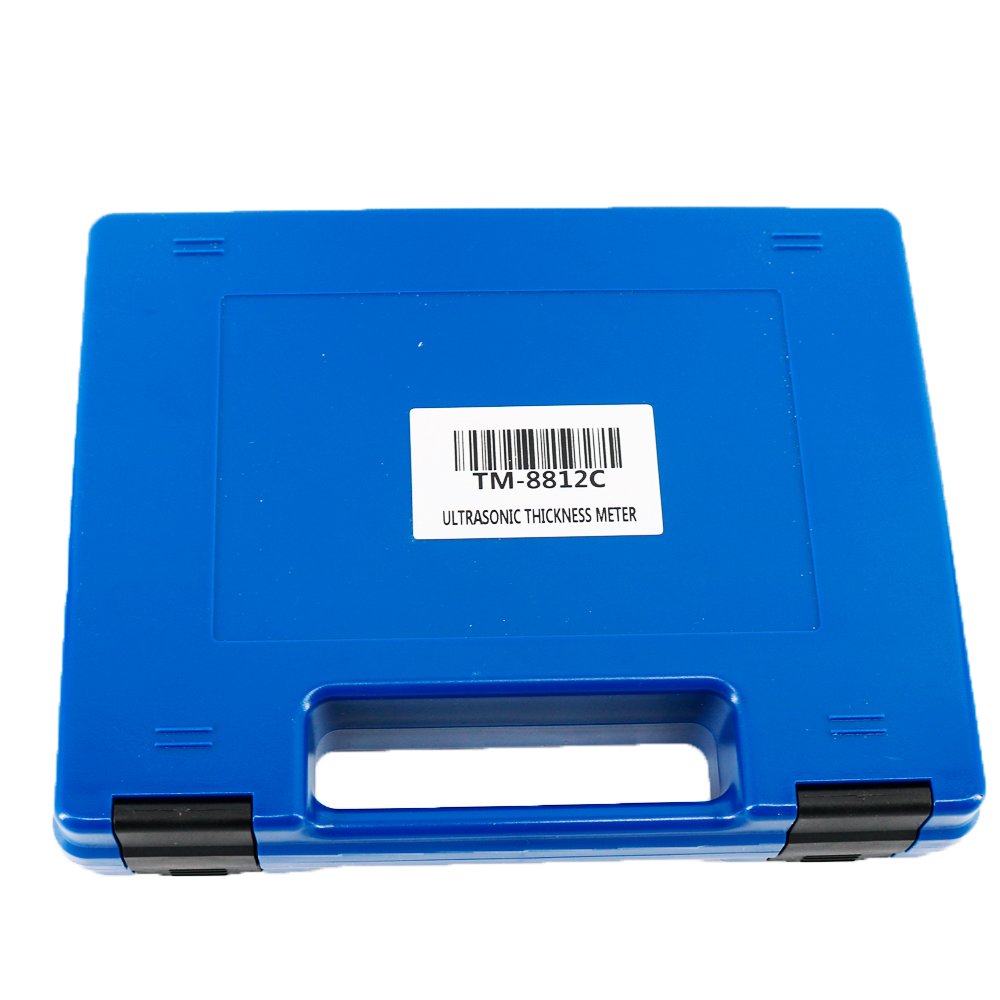

4. Carrying Case

5. Operating Manual

EAN: 0725370409962
