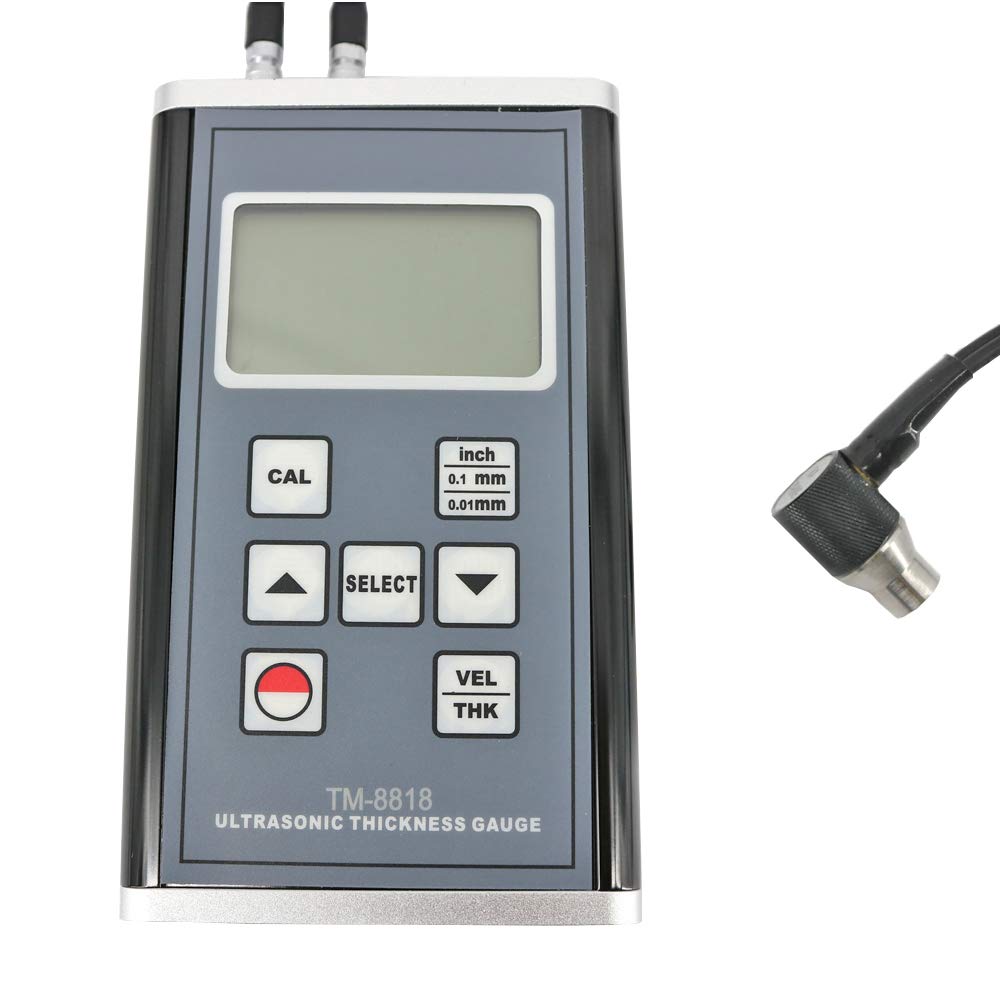

TM-8818 Ultrasonic Thickness Gauge using the latest high performance and low power consumption microprocessor technology.
Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
Automatic memory material code and sound velocity value, convenient to use.
Coupling symbol indication.
Automatic power off to conserve power.
model number: TM-8818
Part Number: TM-8818
Details: Specifications:
Case Material: Aluminum Alloy Display: 4 Digit LCD
Operating Principle: Ultrasonic
Measuring Range (metric / Imperial): 0.75~400 mm ( 45 # steel, Depend on Probe )
Battery Indication: Low Battery Indication
Sound Velocity: 1000~9,999 m/s
Lower Limit Steel Pipes: | 20 x 3.0 mm
Calibration Block: Included
Resolution: 0.01 mm / 0.1 mm
Accuracy: +/- (0.5%n + 0.05)
Automatic memory material code and the value of sound velocity
Power off: Auto Power off & Manual Power Off
Operating Conditions: Temperature: 0~40 degree, Humidity: less than 85 %RH

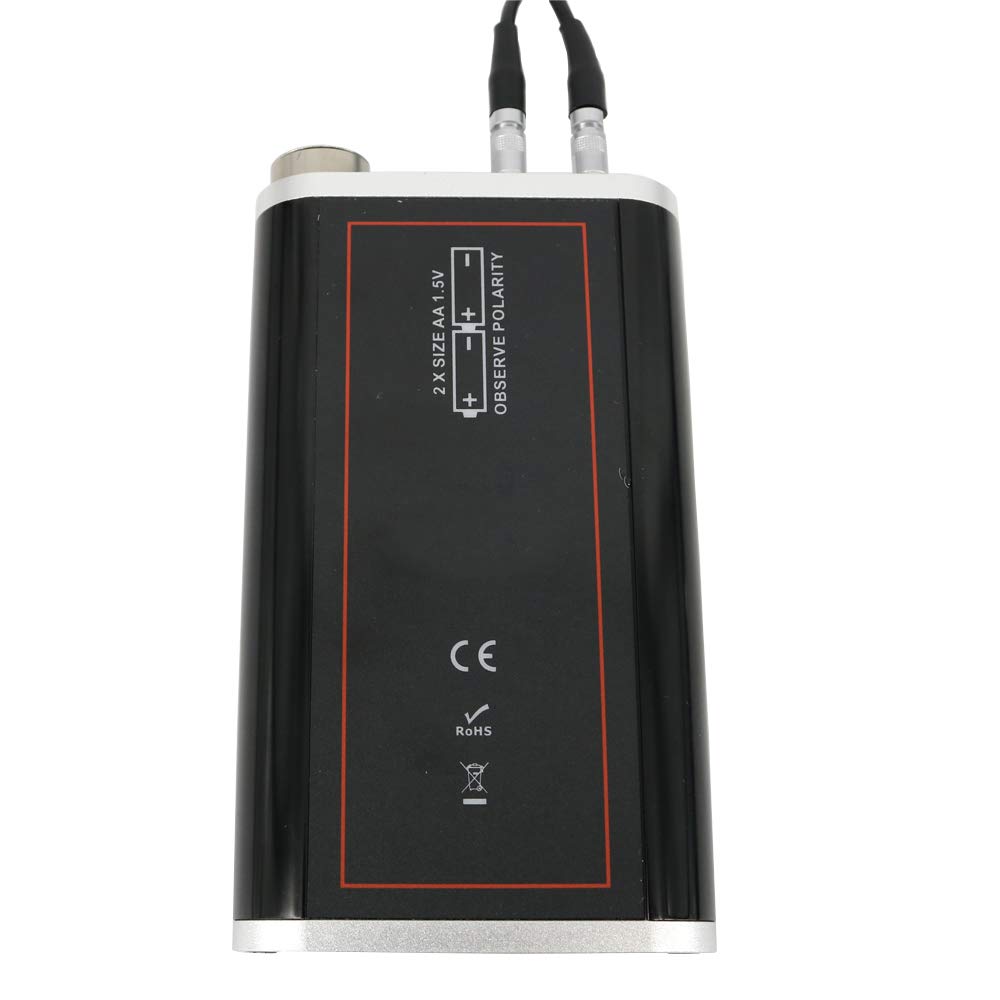

Power Supply: 2 x 1.5 V AA (UM-3) Battery
Dimensions: 130 x 76 x 31 mm
Weight: 340 g (Not Including Batteries)
Standard Accessories:
1. Main Unit

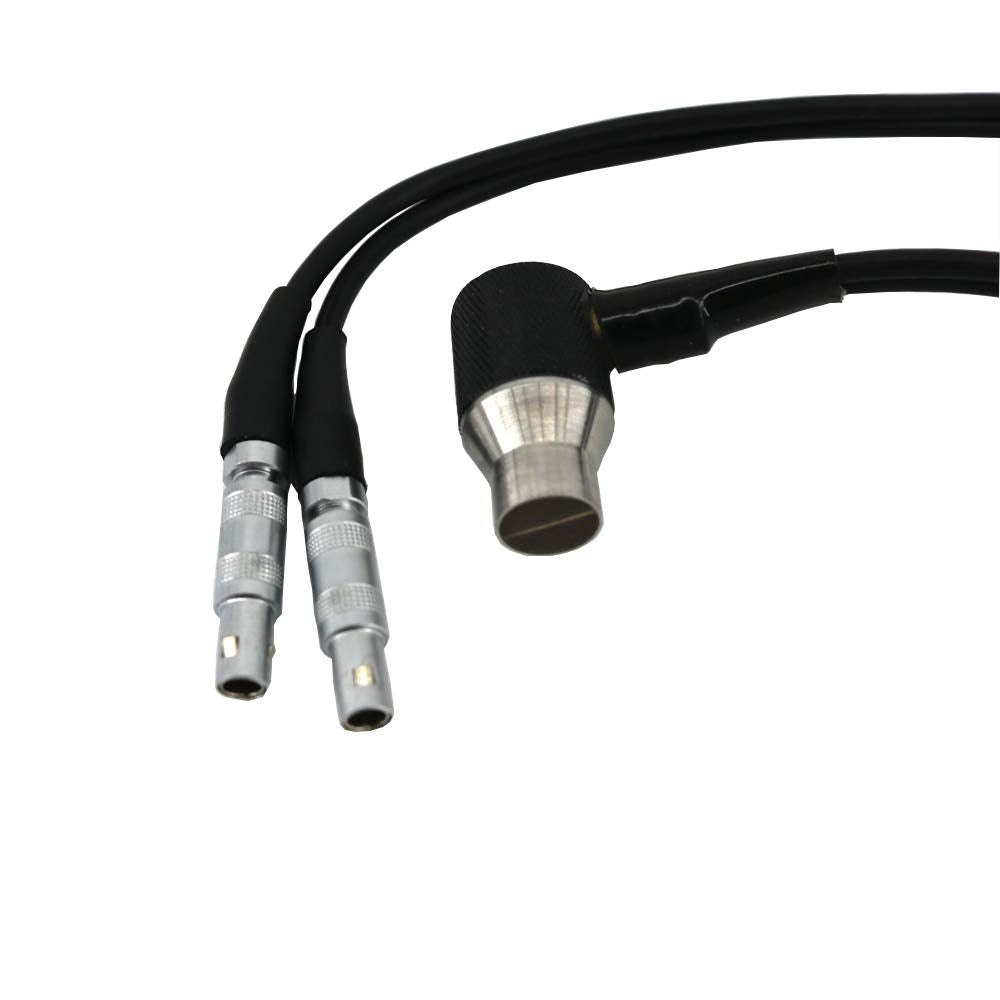

2. 5MФ8 Standard Sensor
3. Coupling Agent

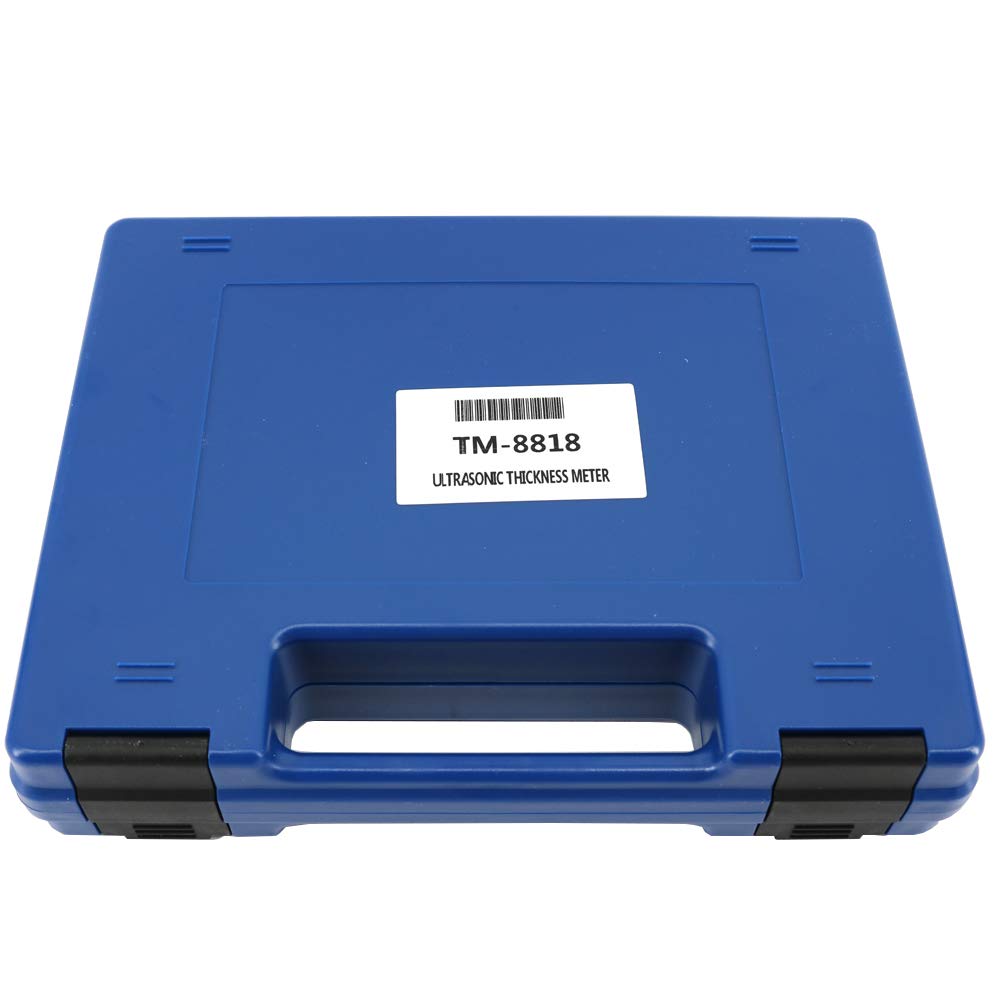

4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M Ф6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Ф12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
