Using the latest high performance and low power consumption microprocessor technology.

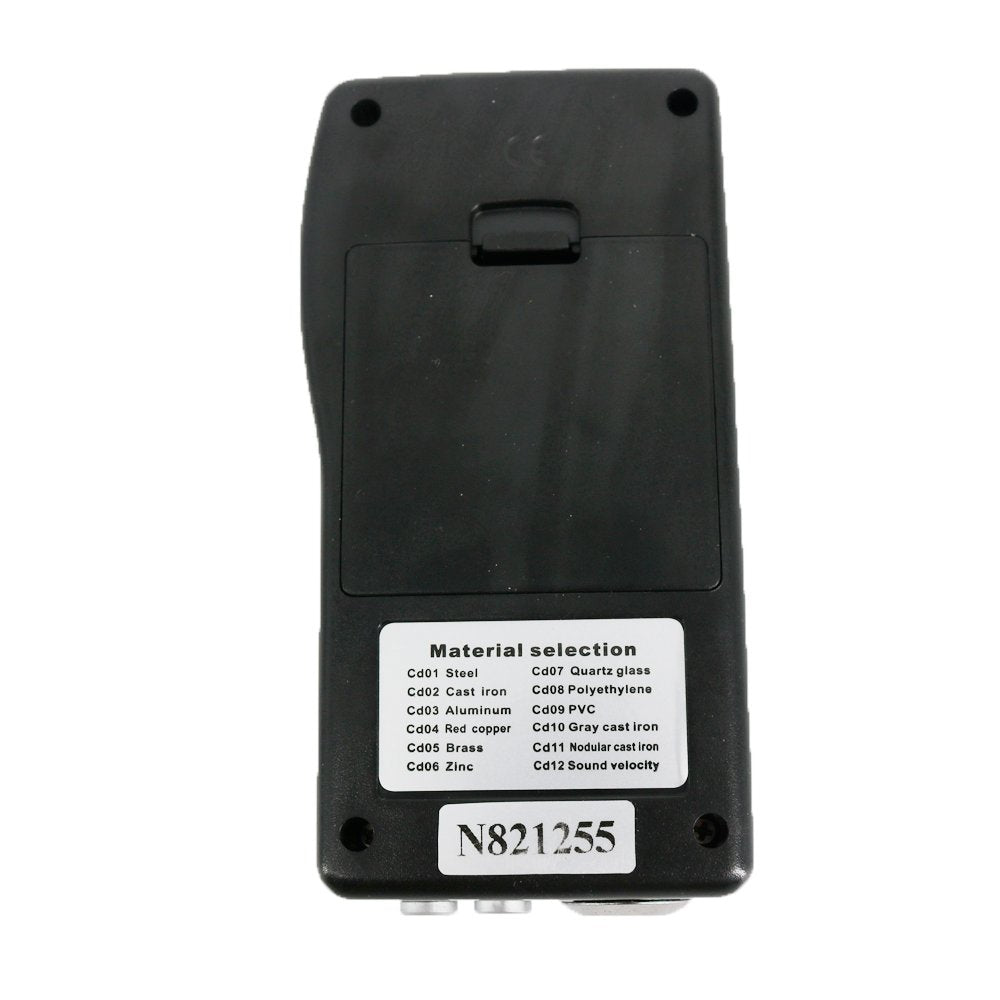

Automatic memory material code and sound velocity value, convenient to use.
Use "USB data output" and "RS-232 data output" to connect with PC.
Provide "Bluetooth data output" choice.
Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.

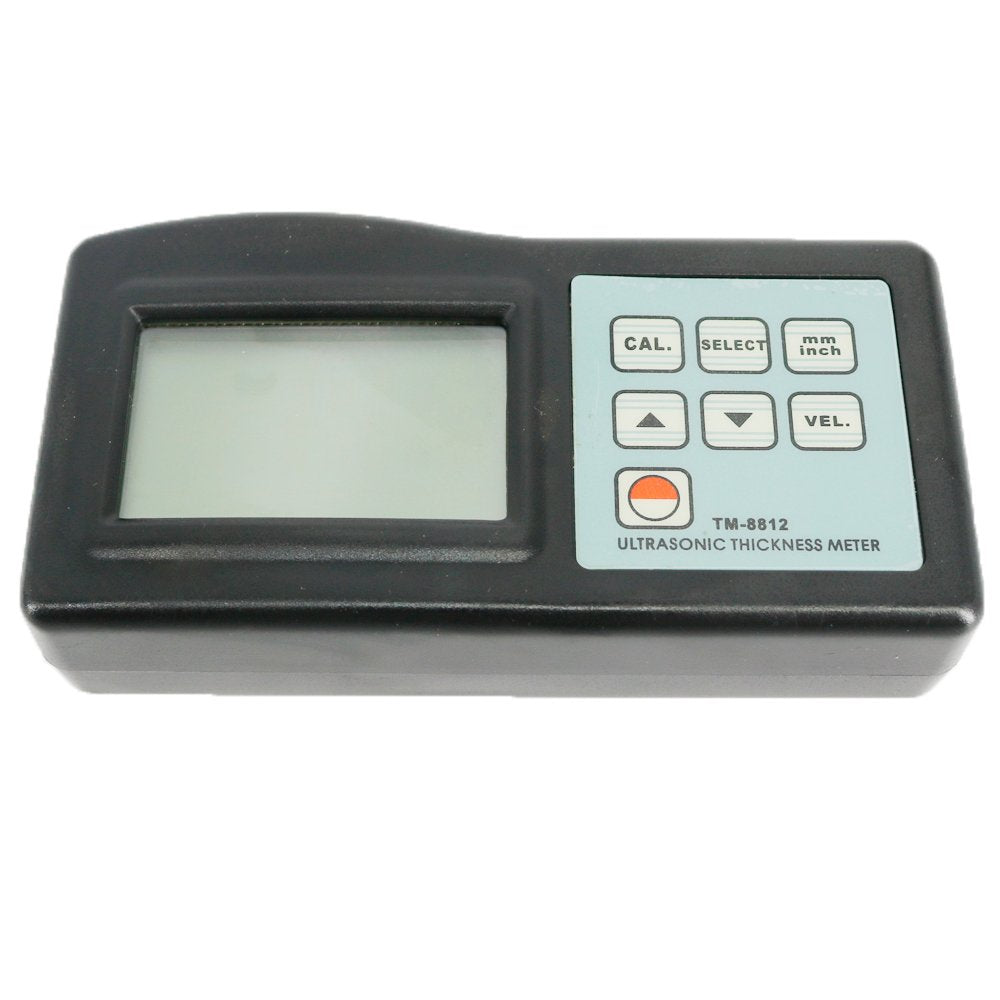

model number: TM8812
Part Number: TM-8812
Details: Applications:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Specifications:

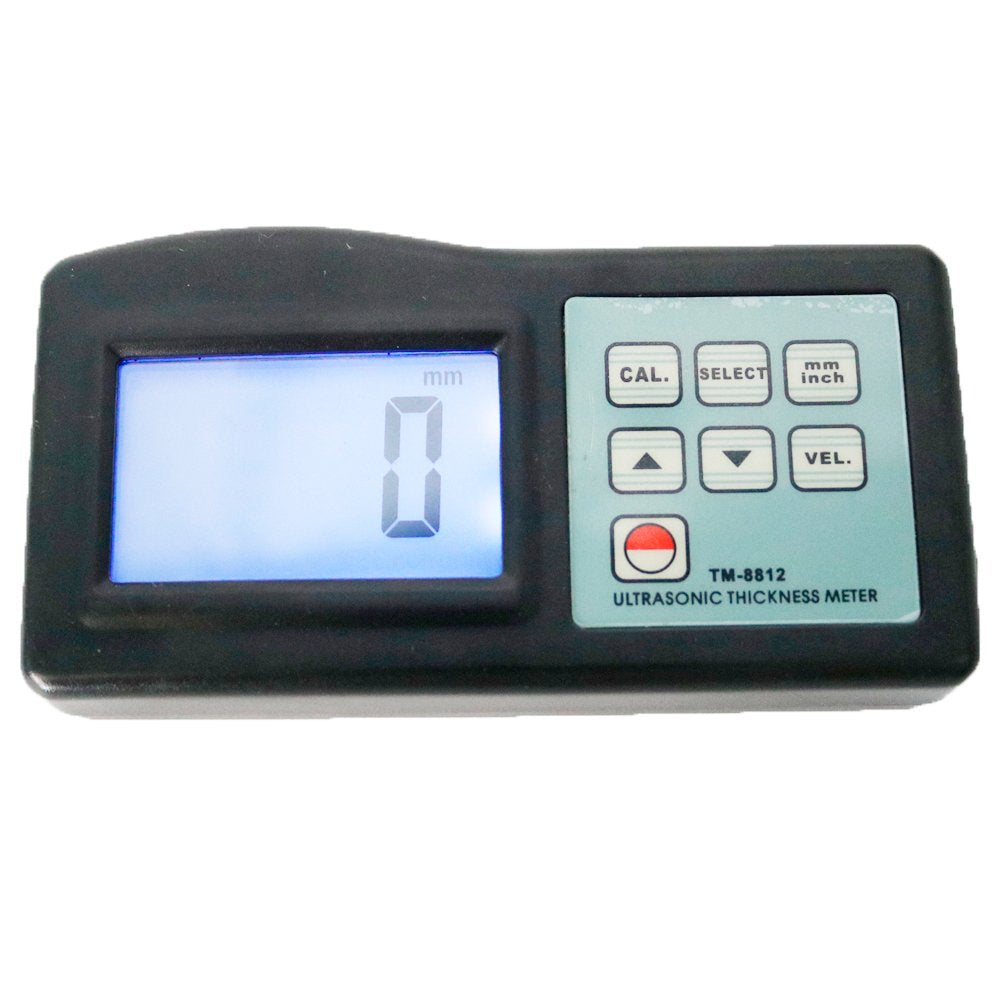

Display: LCD
Sensor: Ultrasonic Probe
Measuring Range:1.2~200mm/0.05~8 inch
Resolution:0.1mm
Accuracy:+/-(0.5%n+0.1)
Sound Velocity:1000~9,000 m/s
Lower Limit of Pipes: Φ15x2.0mm Φ20x3.0 Determined By Transducer
Operating Conditions: Temperature:0~40C; Humidity:<85%RH

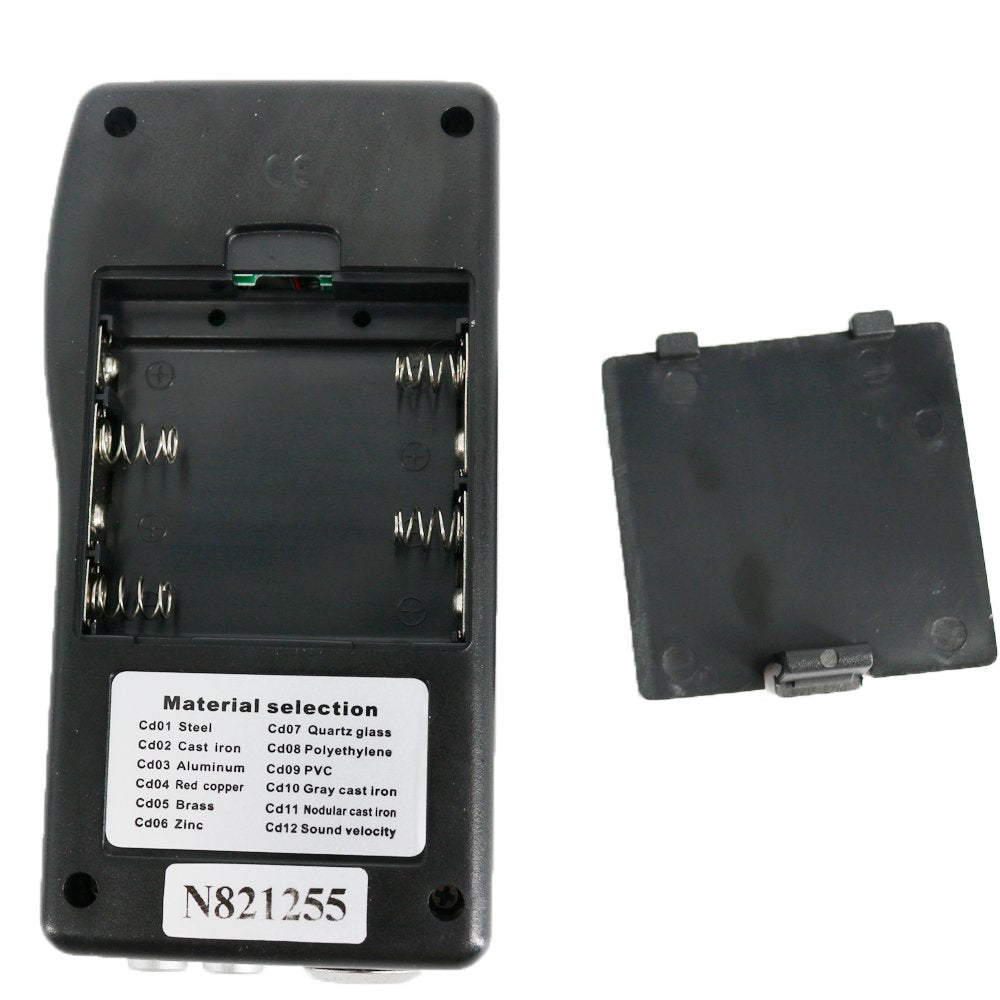

Power Supply:4x1.5V AAA(UM-4)Battery
Dimensions:120x62x30mm
Weight:164g(Not Including Batteries)

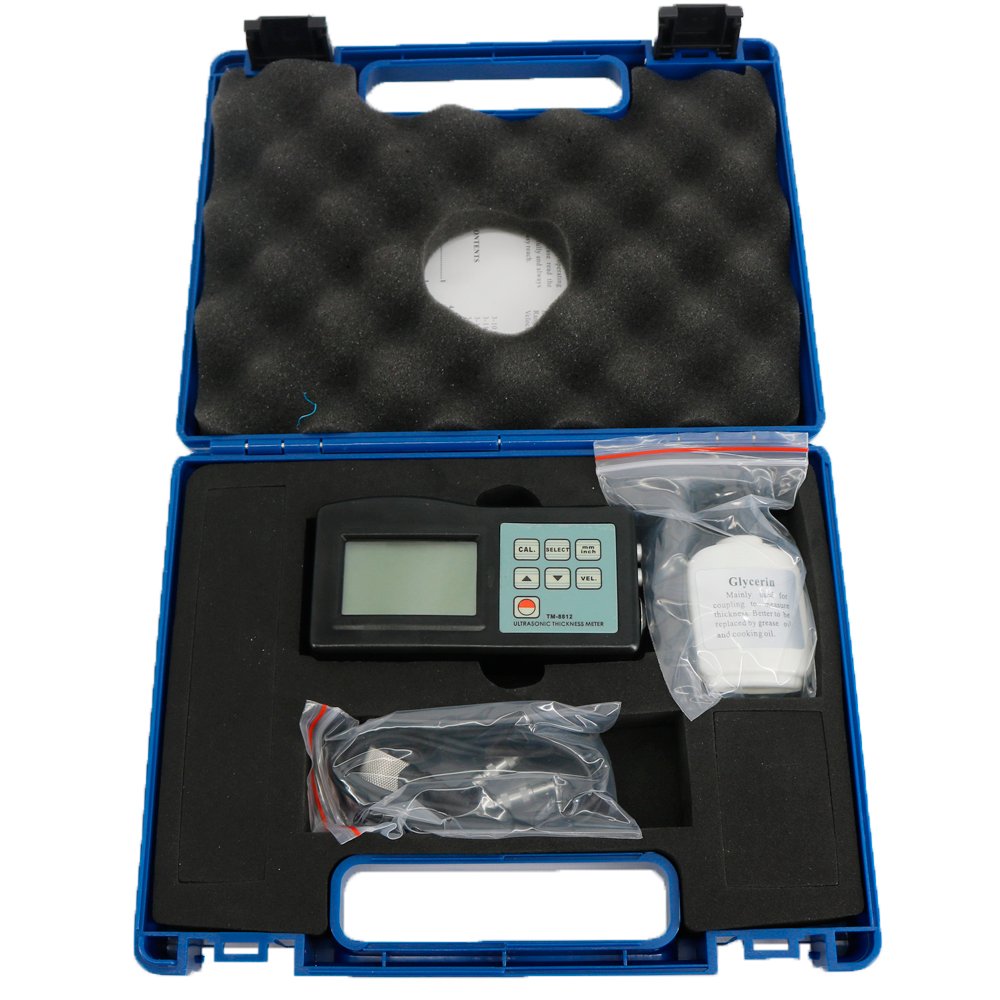

Package includes:
Main Unit

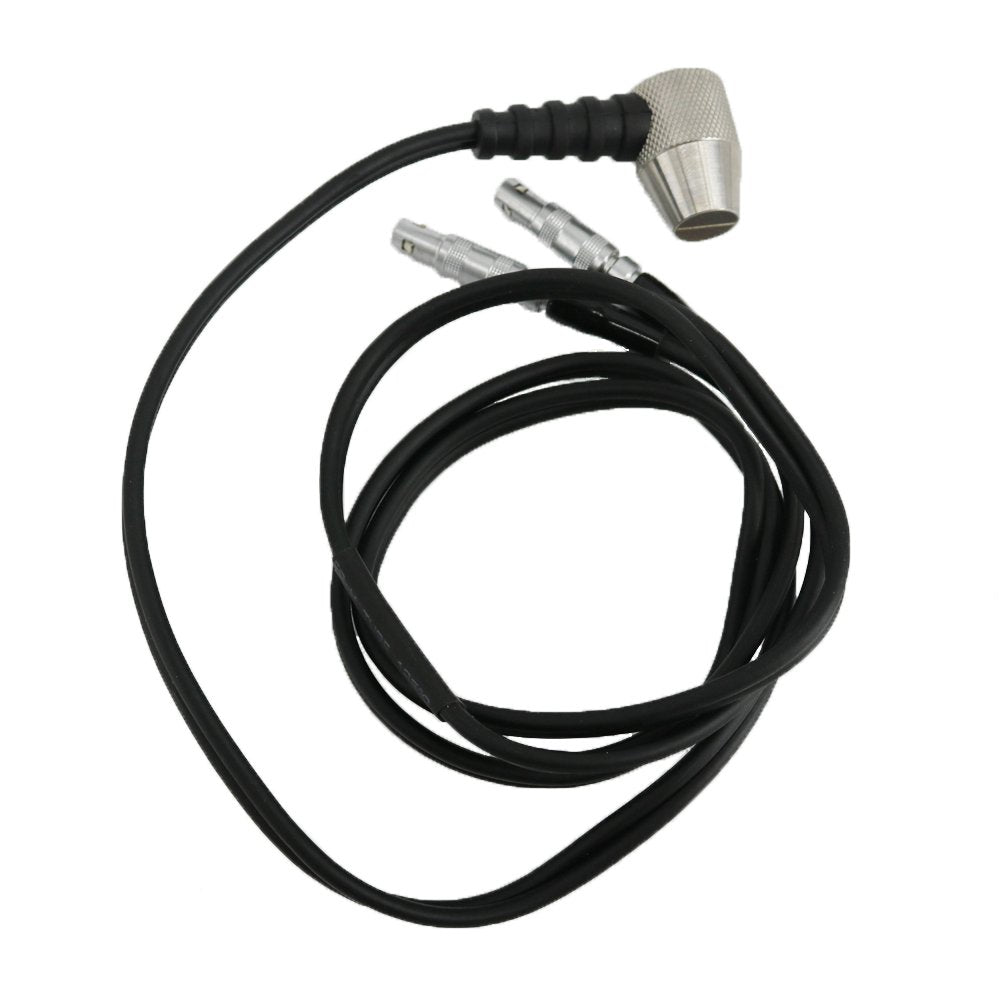

5M8 Standard Sensor
Coupling Agent

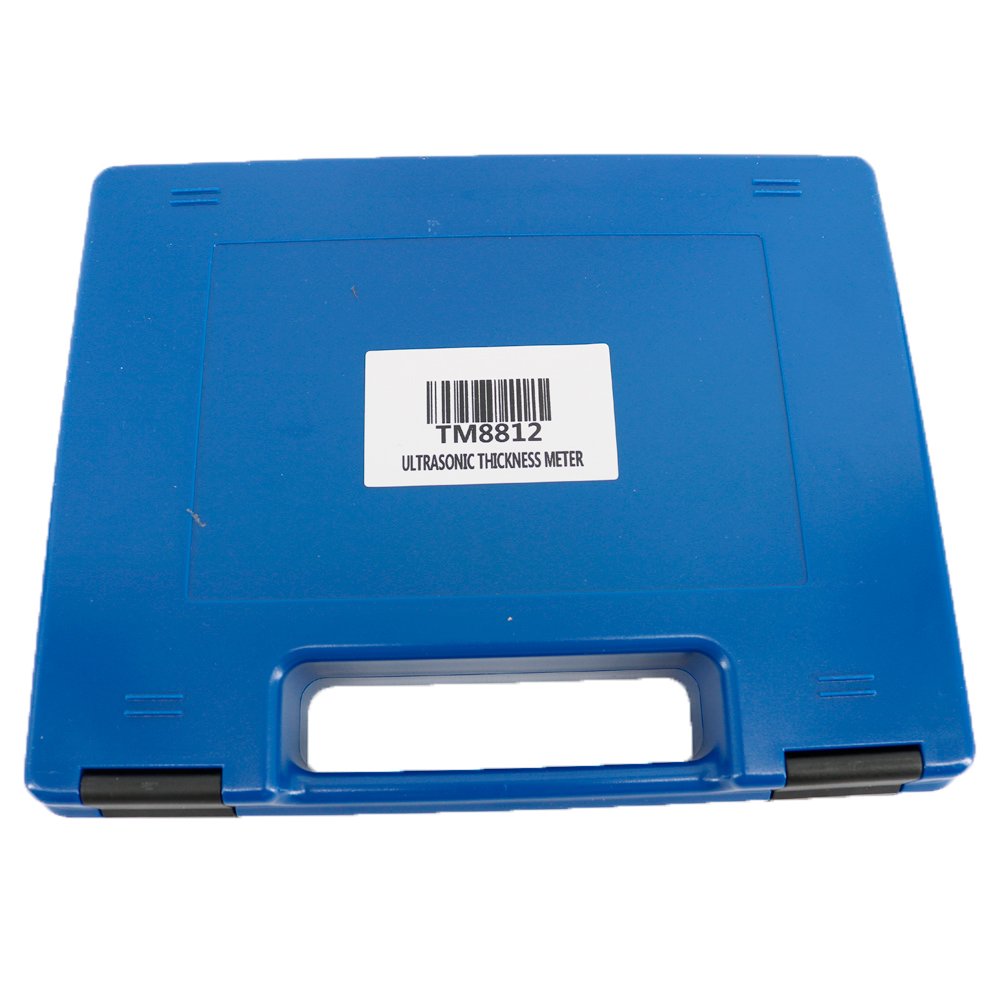

Carrying Case
Operating Manual
Optional accessories:
RS232 Data Cable with Software
Bluetooth Data Adapter with Software
