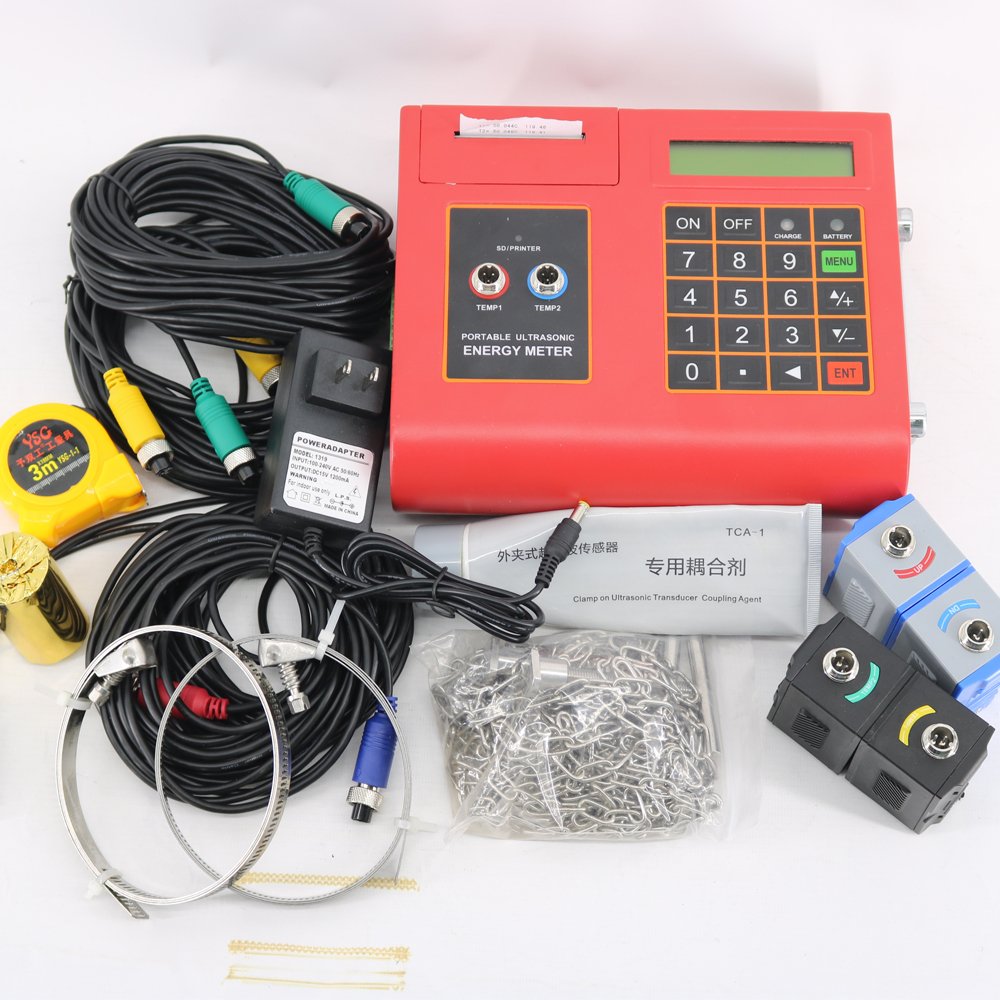

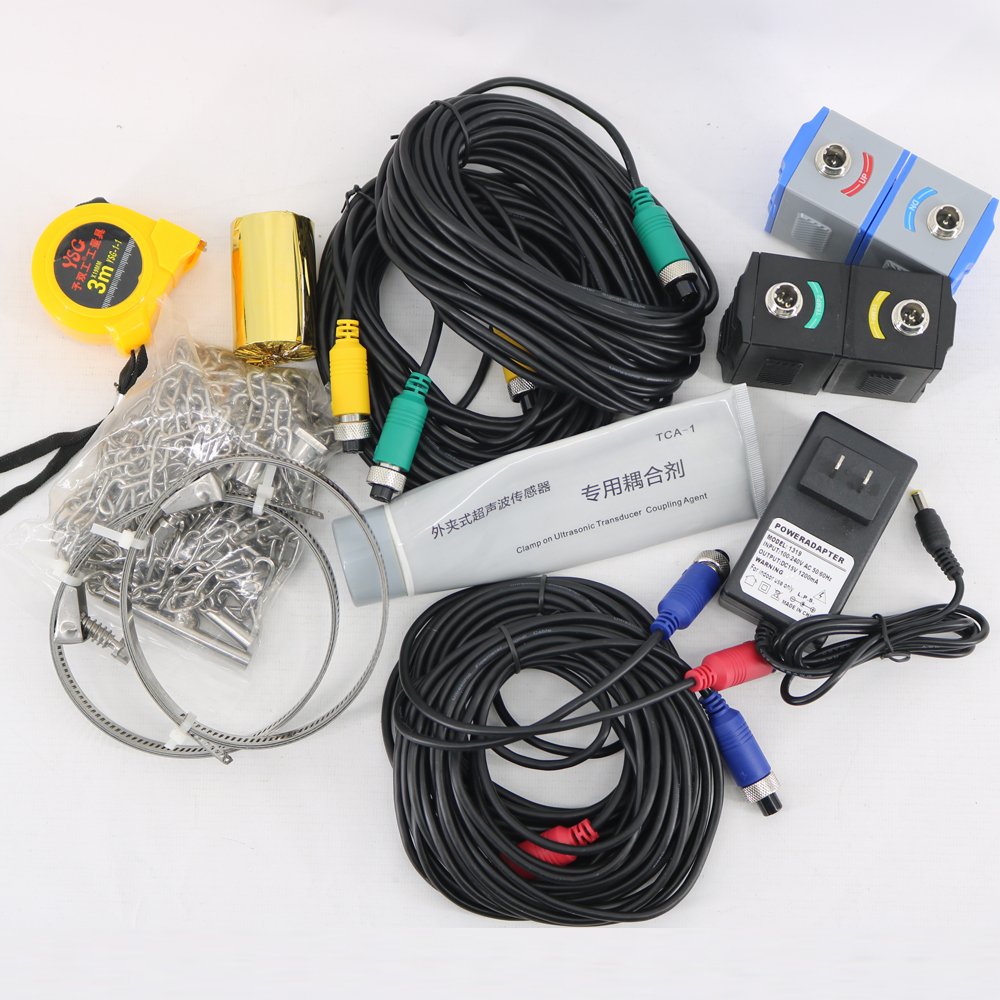

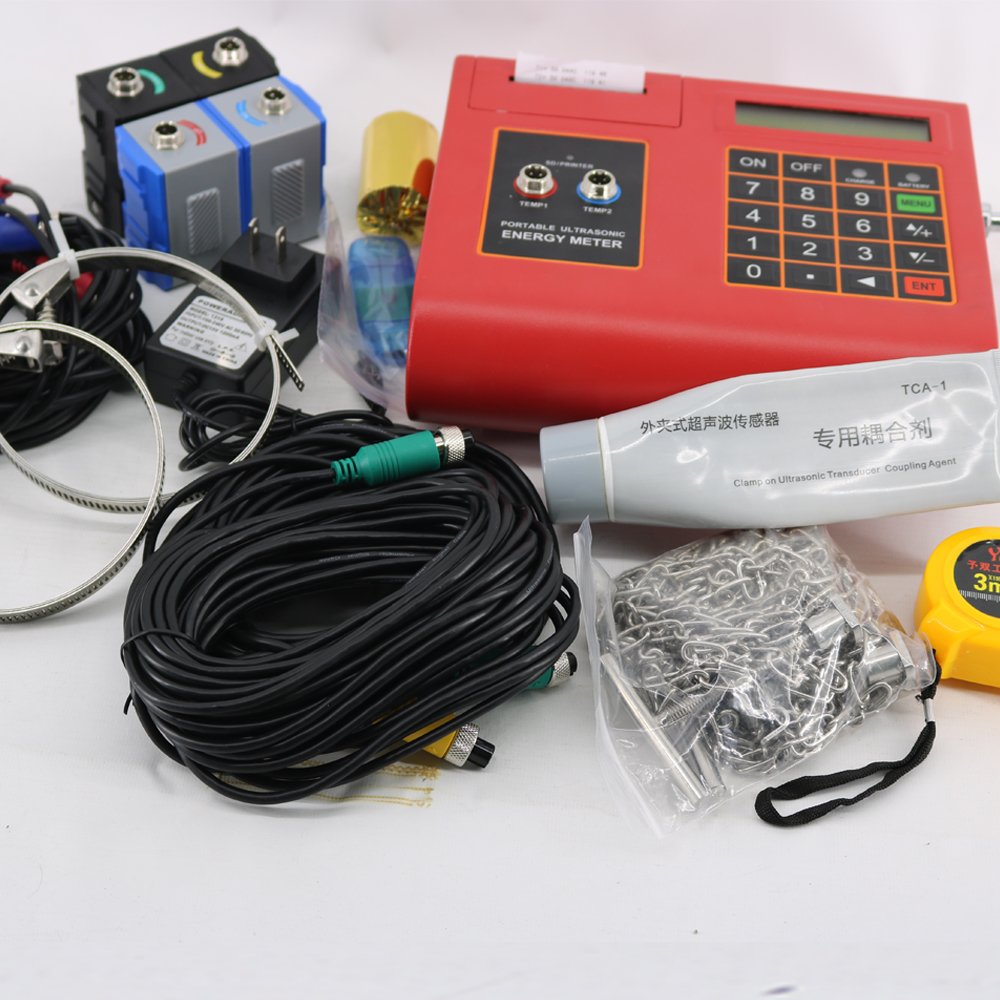

Graigar TUC-2000E+TM-1 Ultrasonic Flow Meter Temperature Heat Flowmeters Transducer TM-1 and Temperature Sensor CT-1 DN50mm-DN700mm 1.97-27.56in wtih SD Storage Card

Brand: Graigar

Features:

• TUC-2000E Ultrasonic Flow Meter High Accuracy measuring Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ± 1%
• Non-intrusive measuring Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Wide measuring range Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
• Large capacity battery Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation

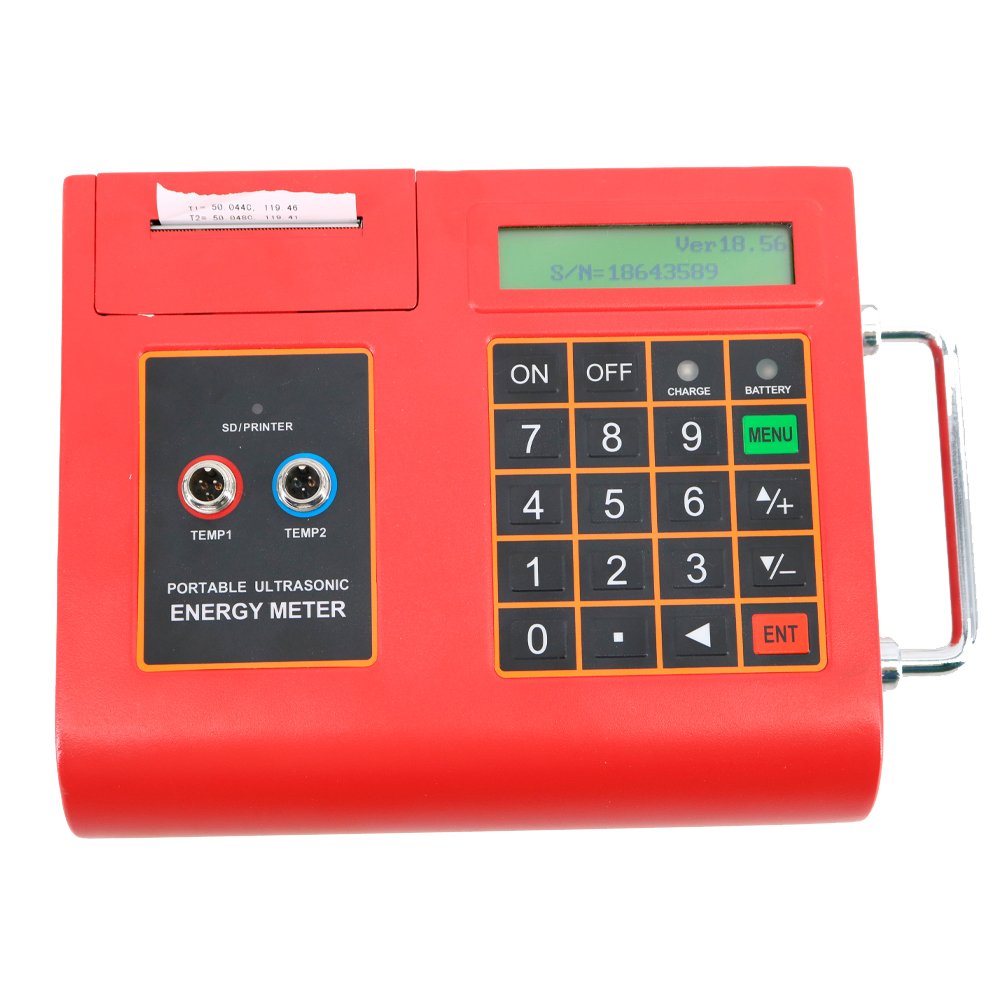

• Built-in printer Built-in mini thermal printer with instant and timing print function,Built-in data logger Uplink over 20 measuring data to computer or internet,Chinese & English display, easy to operate.

model number: TUC-2000E+TM-1

Part Number: TUC-2000E+TM-1

Details: Applications:1. Measuring heat flow;2. Sewage and drainage water with small particle quantity. Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc.3. Beverage and food processors hot and cool water, water /glycol solutions;4. Water and waste treatment Power plants, heat energy boiler feed water;5. Energy consumption supervision and water conservation management;6. Metallurgy and miming applications (e.g., acid recovery);7. Marine operation and maintenance;8. Pulp and paper industries Pipeline leak detection;9. inspection, tracking and collection Energy measurement and balancing. General Specifications:Main unit2 line x 20 character LCD with backlightWorking temperature: -25--60CMini thermal printer with 24 line character output4x4+2 pushbutton keypadRS-485 interface for networkingUltrasonic Transducer optionsTS-2 : DN15-100mm  , temperature -40~90TM-1: DN50~DN700mm,  temperature -40~90TL-1:  DN300~DN6000mm ,  temperature -40~90Temperature TransducerThree wire pt100 platinic resistance,measuring range :-50 -----180Cmeasuring accuracy:100C, 0.8C ,the temperature difference ≤0.1CLiquid types Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.Flow velocity range 0- ±30m/sAccuracy Better than ±1%Power Supply Built-in rechargeable Ni-MH battery (for 20 hours operation) orAC 220VPower Consumption 1.5WCharging Intelligent charging with AC 220V; After charging sufficiently, it automatically stop and display green lightWeight Net weight: 2.5kg (main unit)

EAN: 0725370414287
