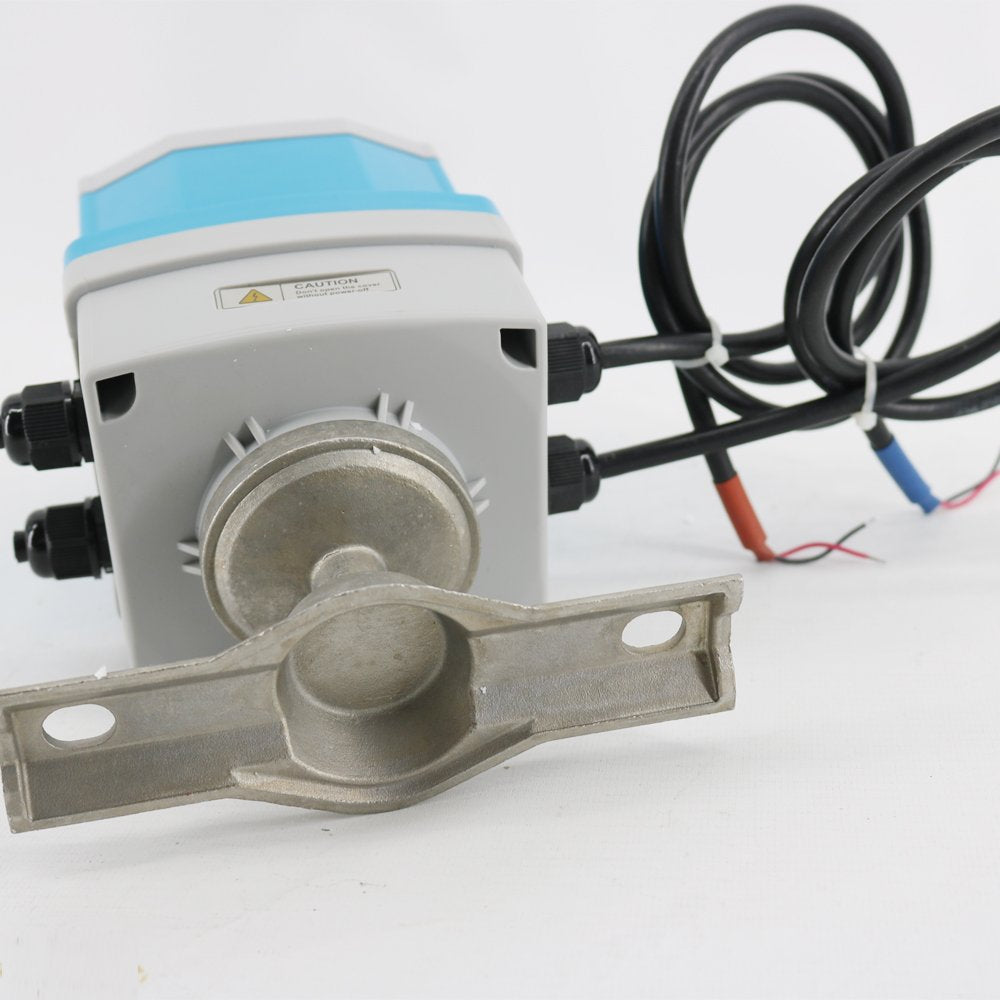

TUF-2000F Ultrasonic flow meter wide measuring range several types transducer for selection, pipe size from Dn15mm to Dn6000mS
High Reliability adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Strong Anti-interference dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
With Powerful Recording Function
Support Heat Measurement connect the temperature transducer ,can finish the heat/energy measurement
model number: TUF-2000F+TM-1
Part Number: TUF-2000F+TM-1
Details: Basic Parameters:
Accuracy: ≤1%
Velocity range: 0-±10m/s, Bi-directional measurement
Pipe size: DN15-DN6000mm
Temperature: -30-160°c
Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Signal output: 1 way 4-20mA output1 way OCT pulse output1 way Relay output
Signal input: 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface: RS485, support MODBUS
Consumption: 1.5W
Power supply: DC8-36V or AC85-264V

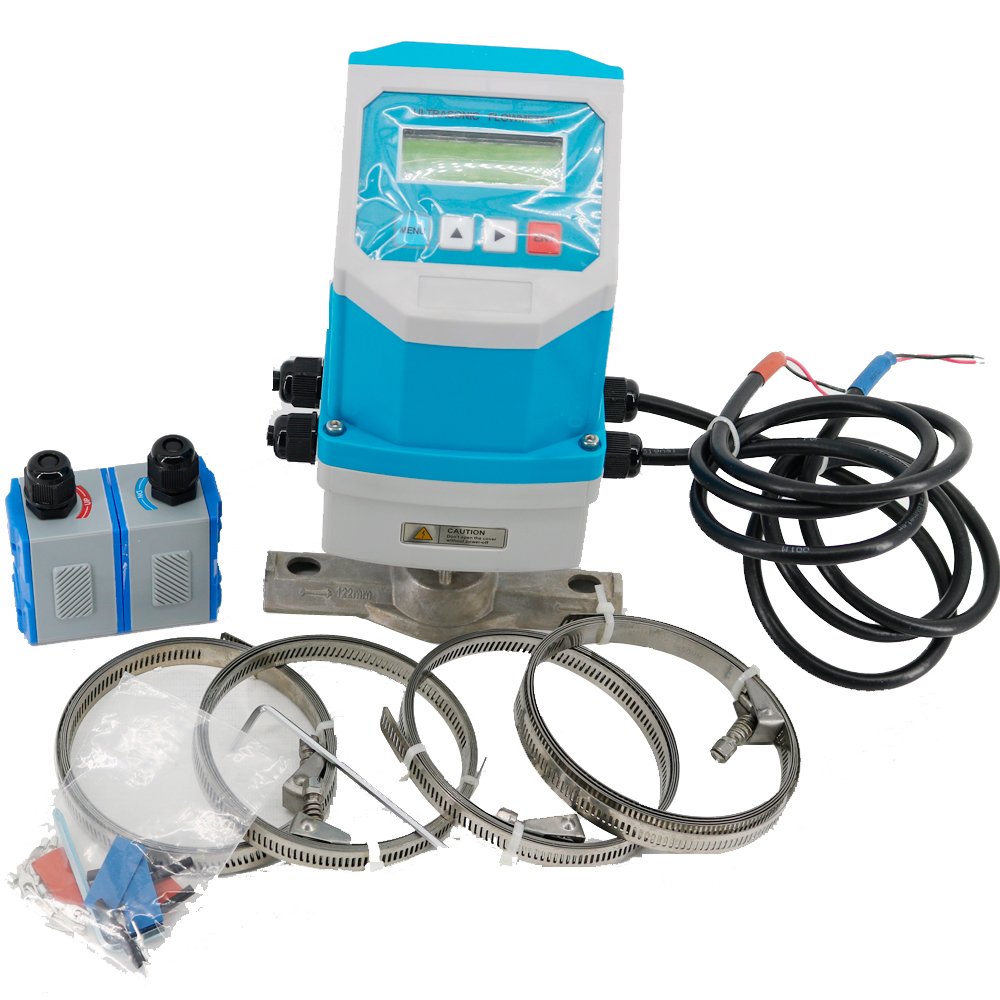

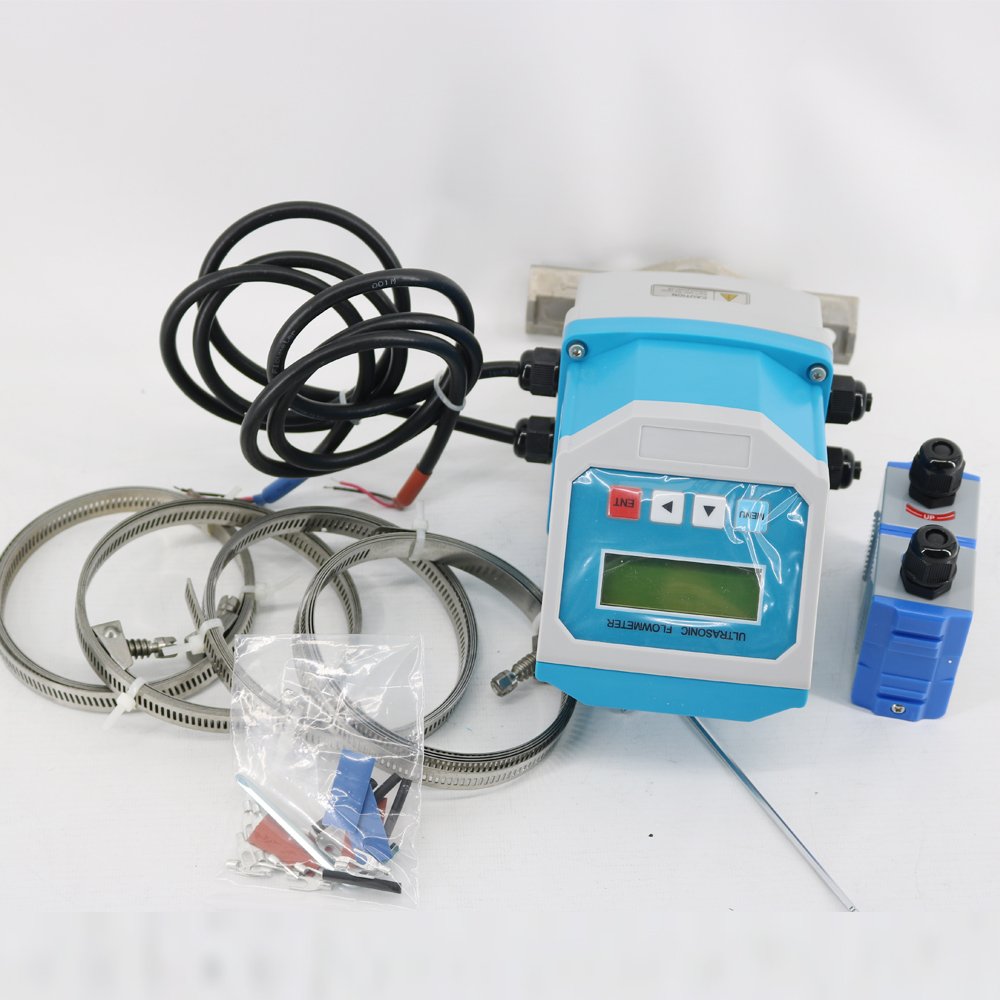

Standard Configuration:

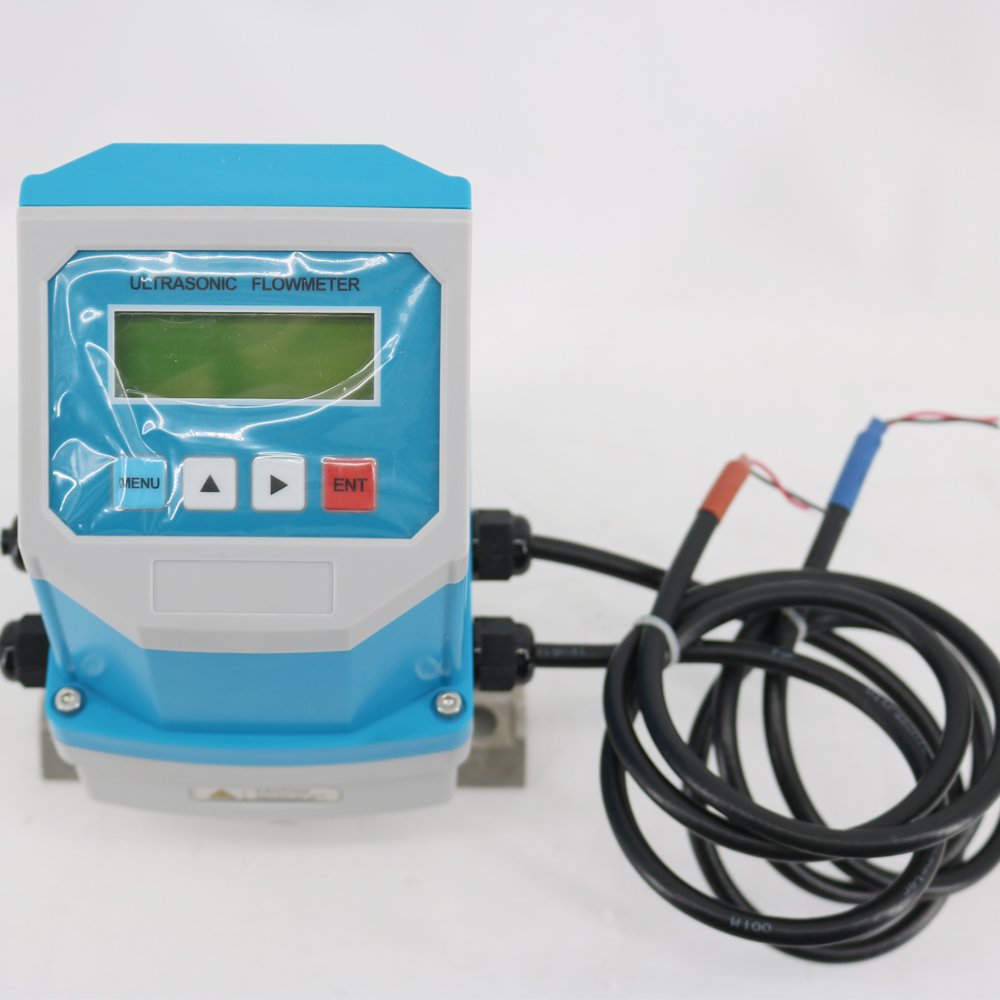

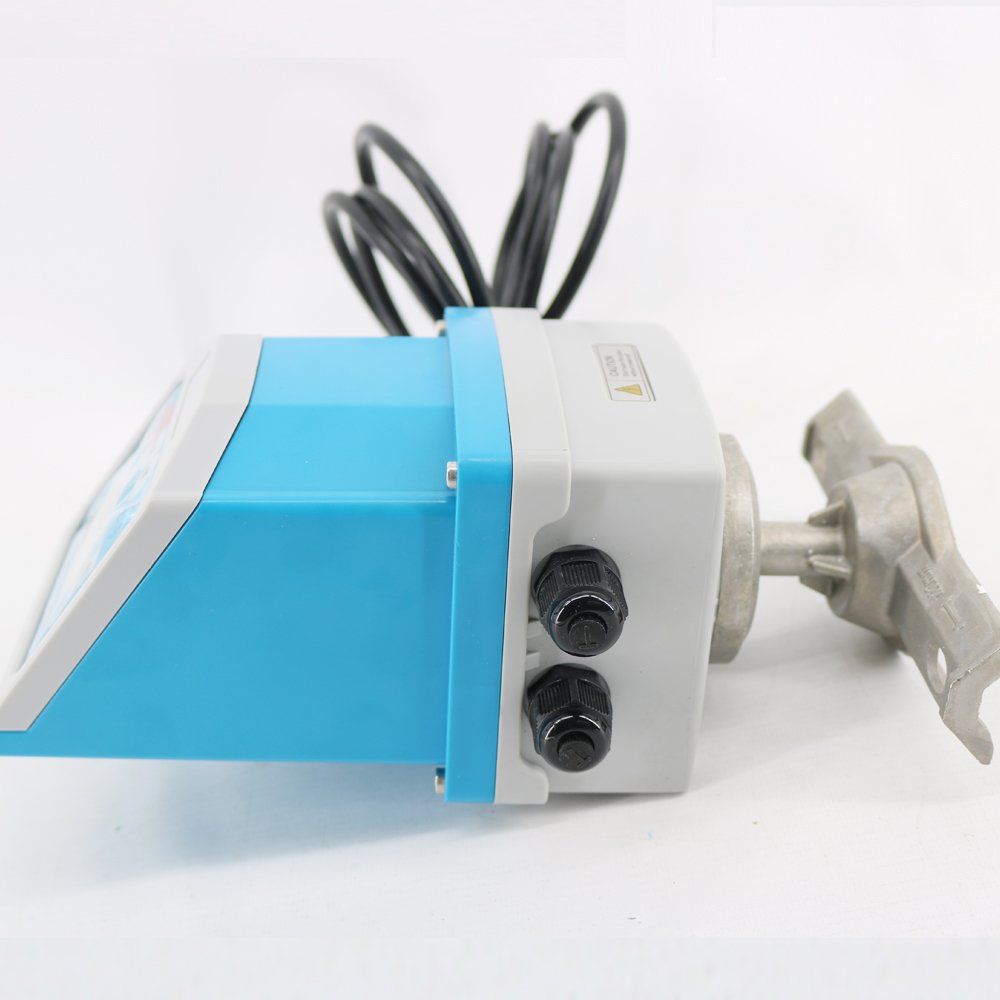

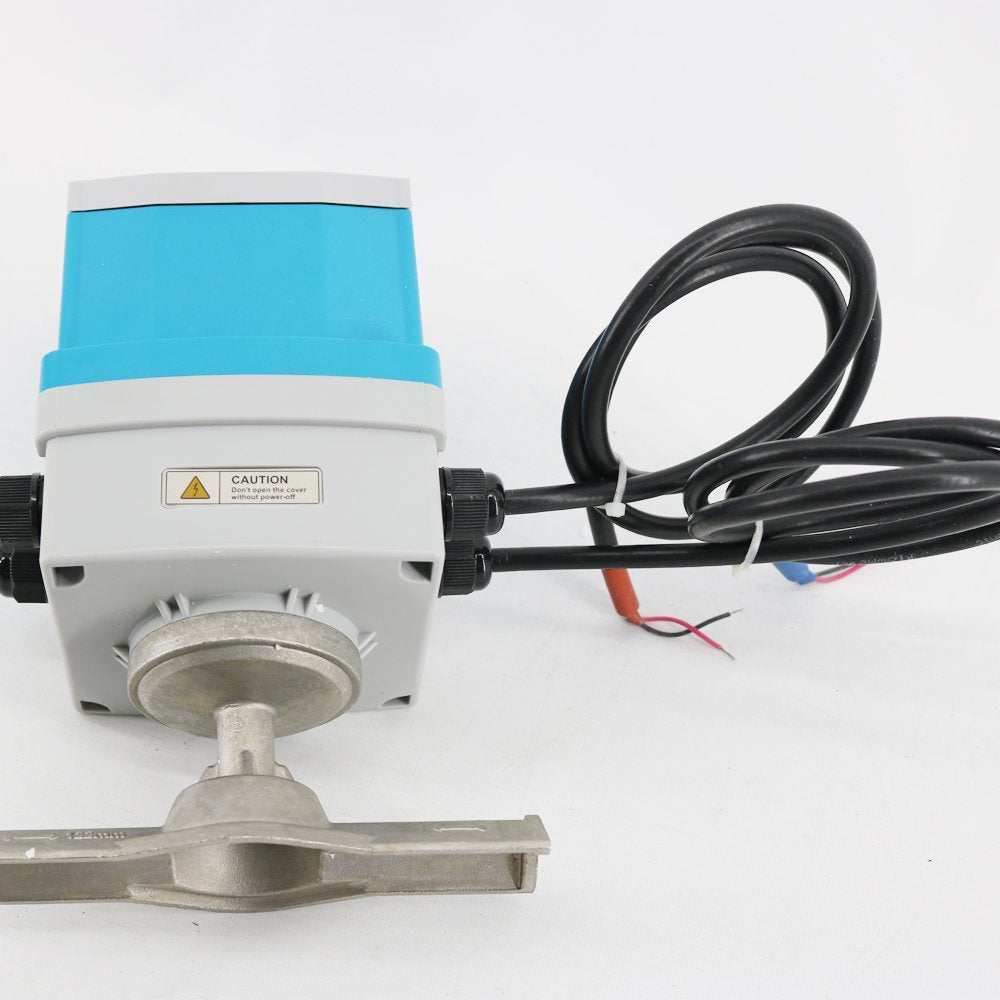

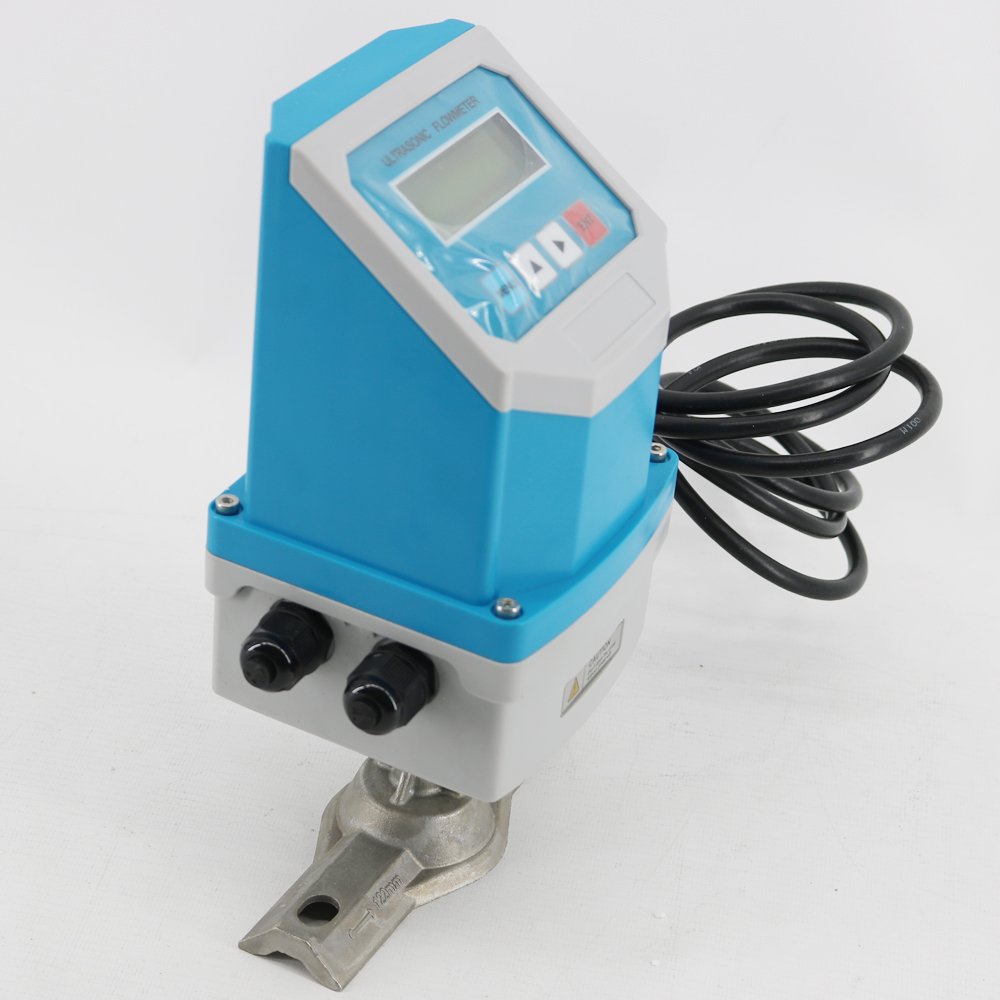

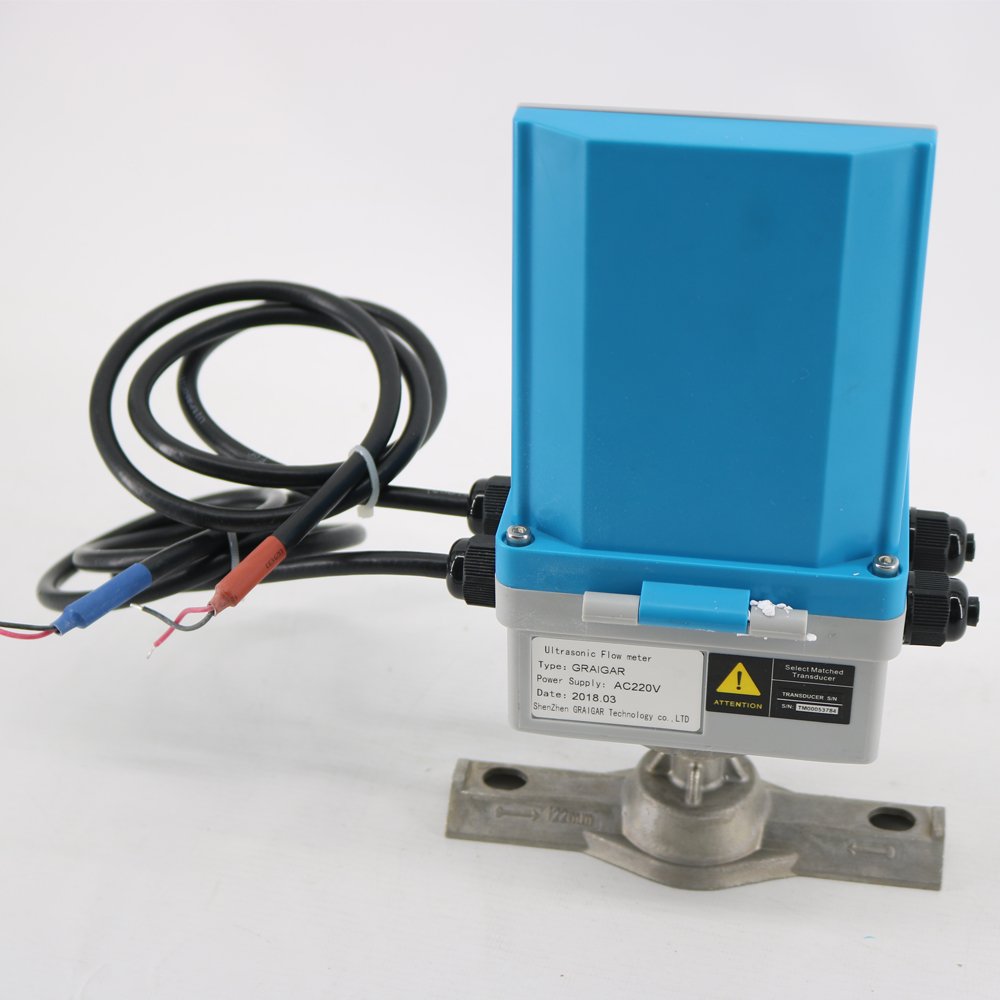

TUF-2000F Ultrasonic Flowmeter

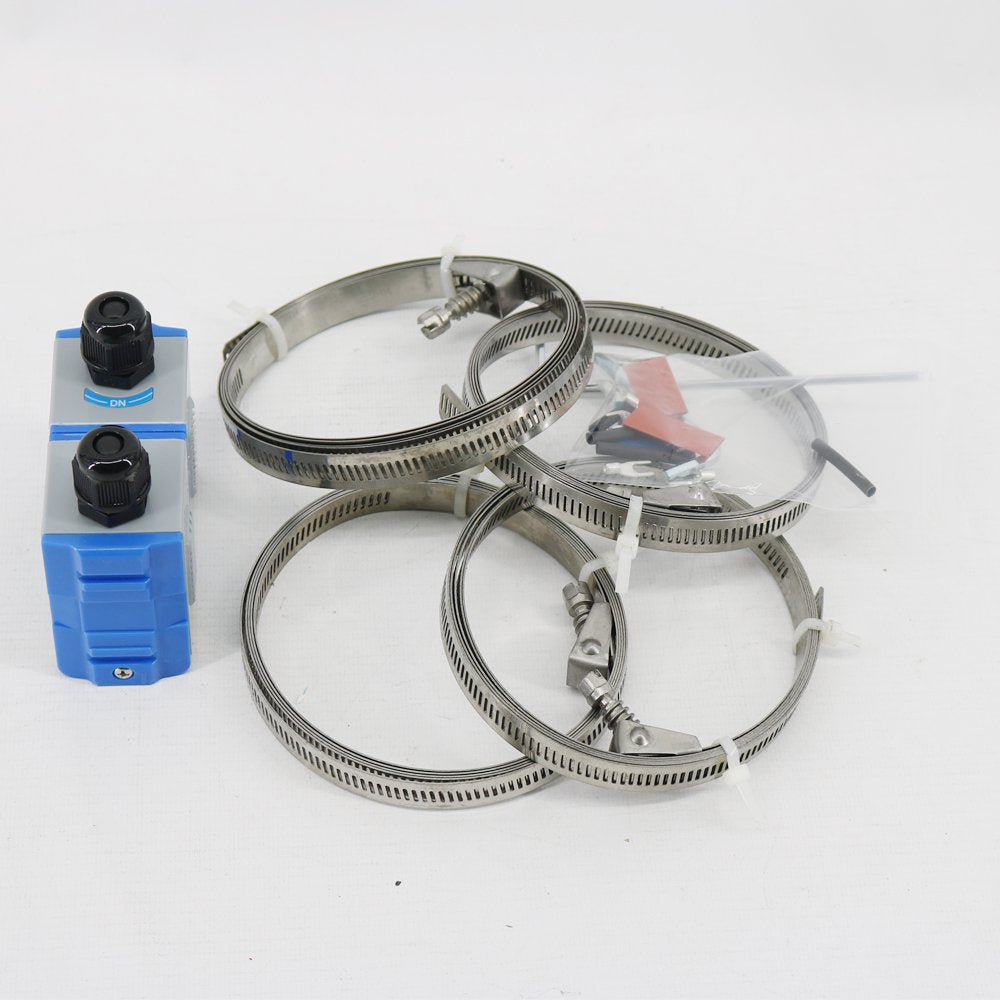

Steel Belt
TM-1 Transducer
2 x 5m Signal Cable
