Graigar TUF-2000H+TM-1 Digital Ultrasonic Flowmeter Flow Meter with Standard Transducer TM-1 Measuring Range DN50-700mm 1.97-27.56in

Brand: Graigar

Features:

• High Accuracy measuring,Wide measuring range,Small size, Light weight
• Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Several types transducer for selection, TM-1 transducer measuring pipe size from DN50mm to DN700mm 1.97-27.56in

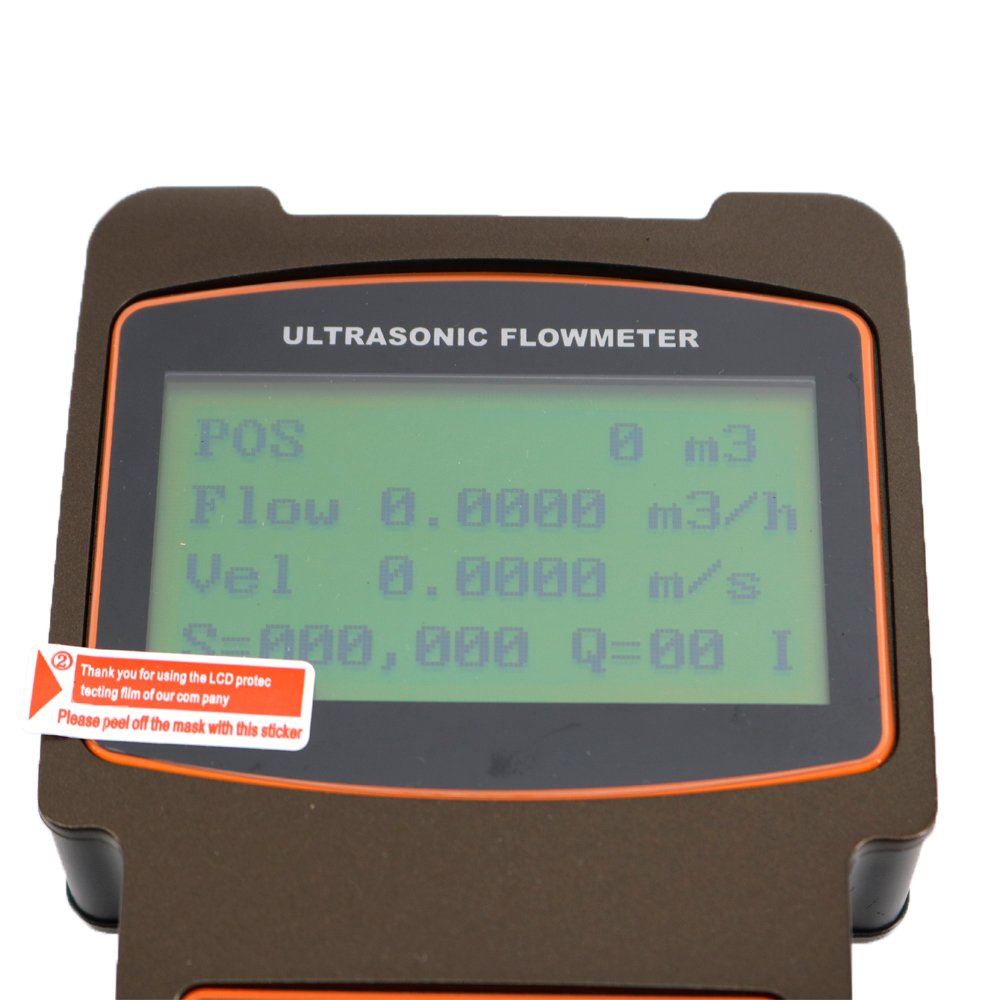

• Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.

Part Number: TUF-2000H+TM-1

Details: Description:

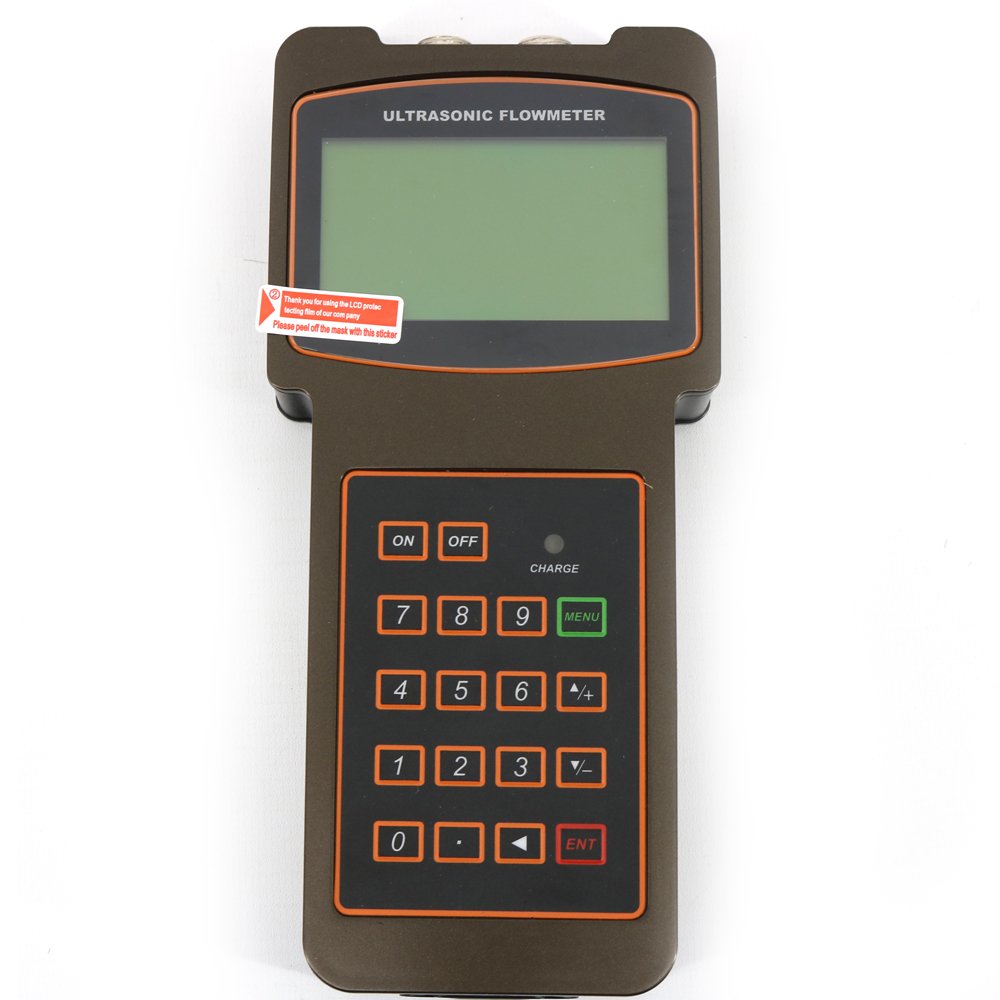

TUF - 2000H hand-held ultrasonic flowmeter using external clamp type sensor measuring liquid flow. Installation process is very simple, all Chinese man-machine interface, more easy to operate. Especially suitable for flow balance test and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial waste water, oil, diesel oil, fuel oil, chemical liquid, etc.
Second, the handheld ultrasonic flowmeter features

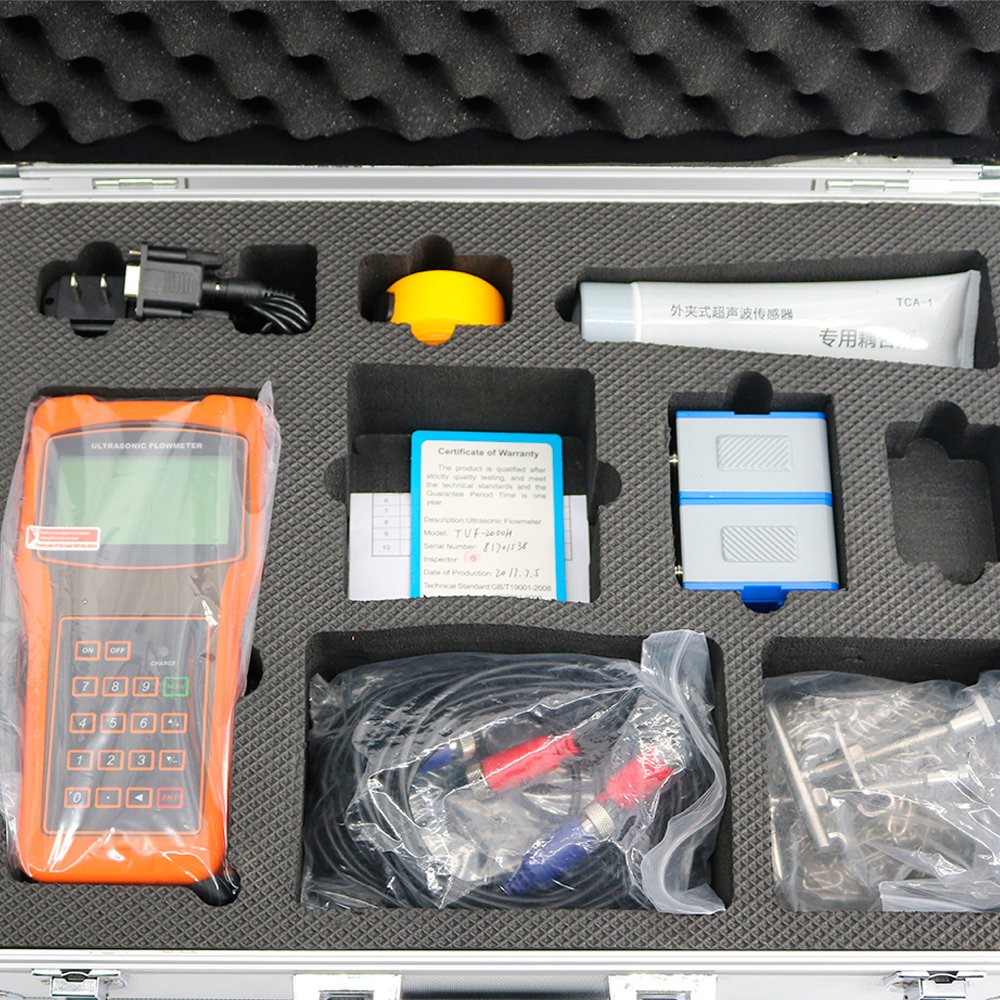

Standard Configurations:

1. Ultrasonic Flowmeter

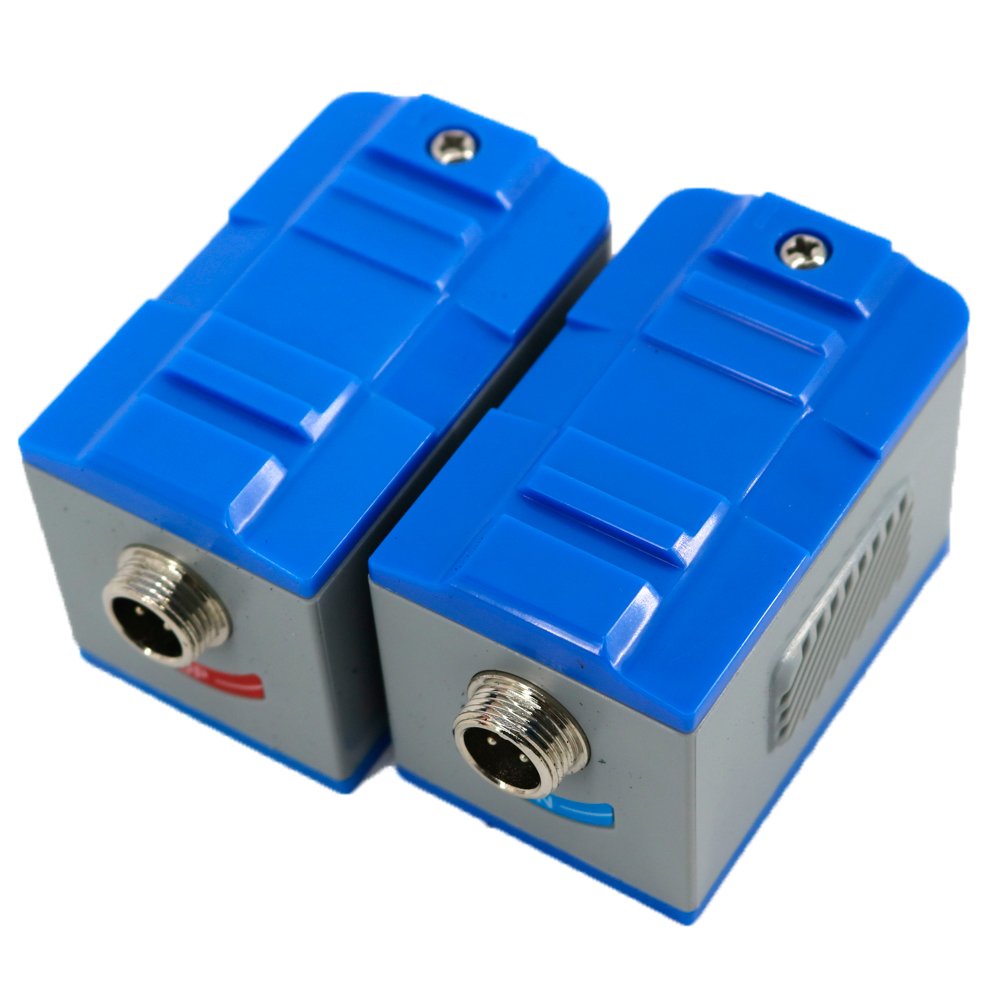

2. TM-1 Transducer
3. Signal cable
4. Data cable
5. Fixed steel chain
6. Charger
7. Ruler
8. Certificate of Warranty
9. Packing List
10. Empty Bottle

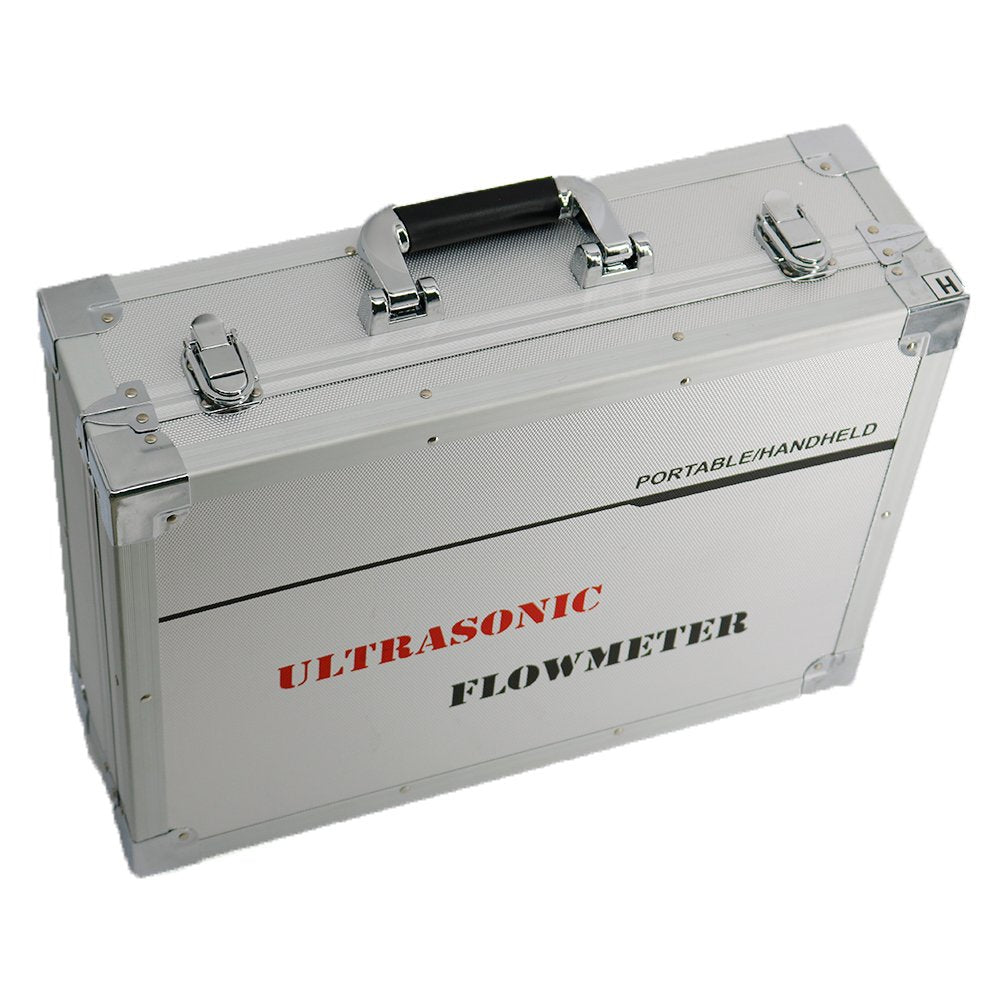

11. Carring box

Measurement Data

Linearity: 0.5%
Repeatability: 0.2%
Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s
Response Time: 0 ~ 999 seconds, the user option
Velocity Range: ± 32 m/s
Section Size: 15 mm(0.59in) to 6000 mm(236.2in)
Accumulator: seven are. Negative. Net cumulative apparatus
Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid
Ann all sex: setting value of the lock, change the data need to unlock
Display: 4 x 8 Chinese or 4 x 16 English

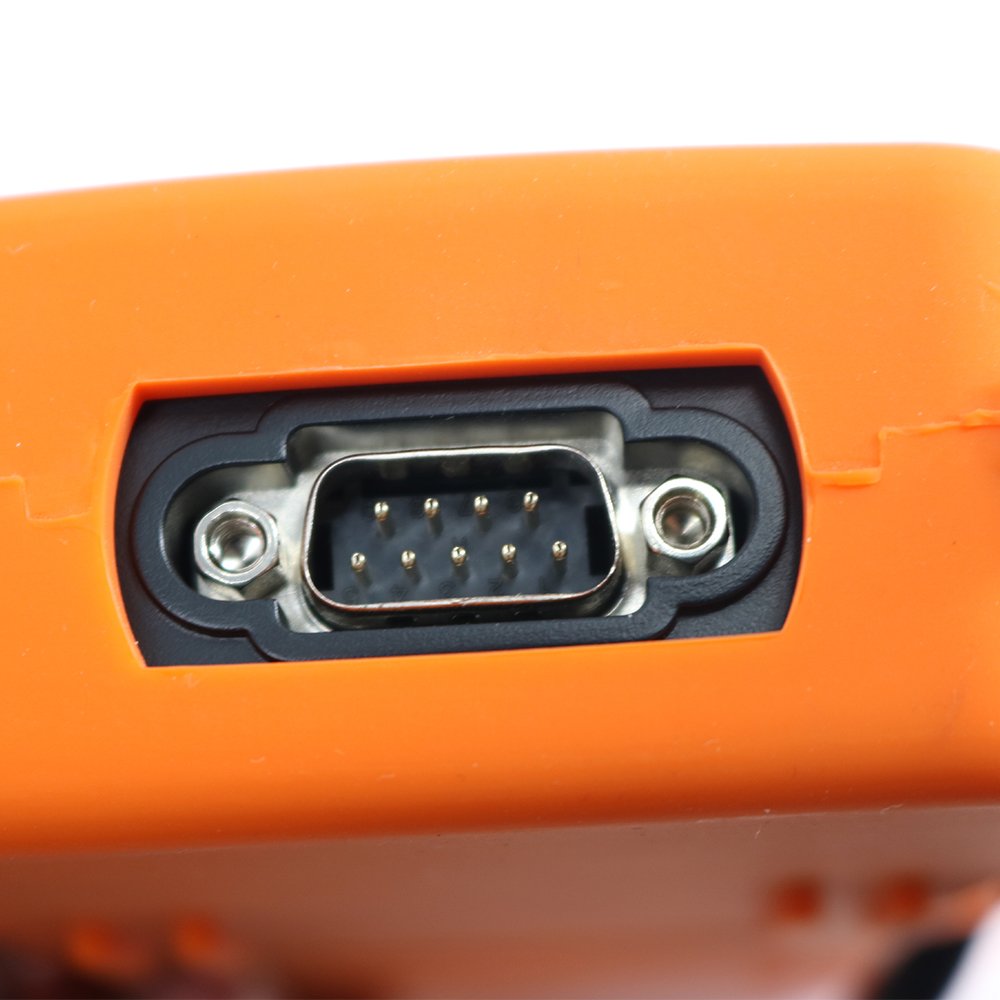

Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements compatible with other products
Sensor: mark worthy to type TM1, while the other four choices

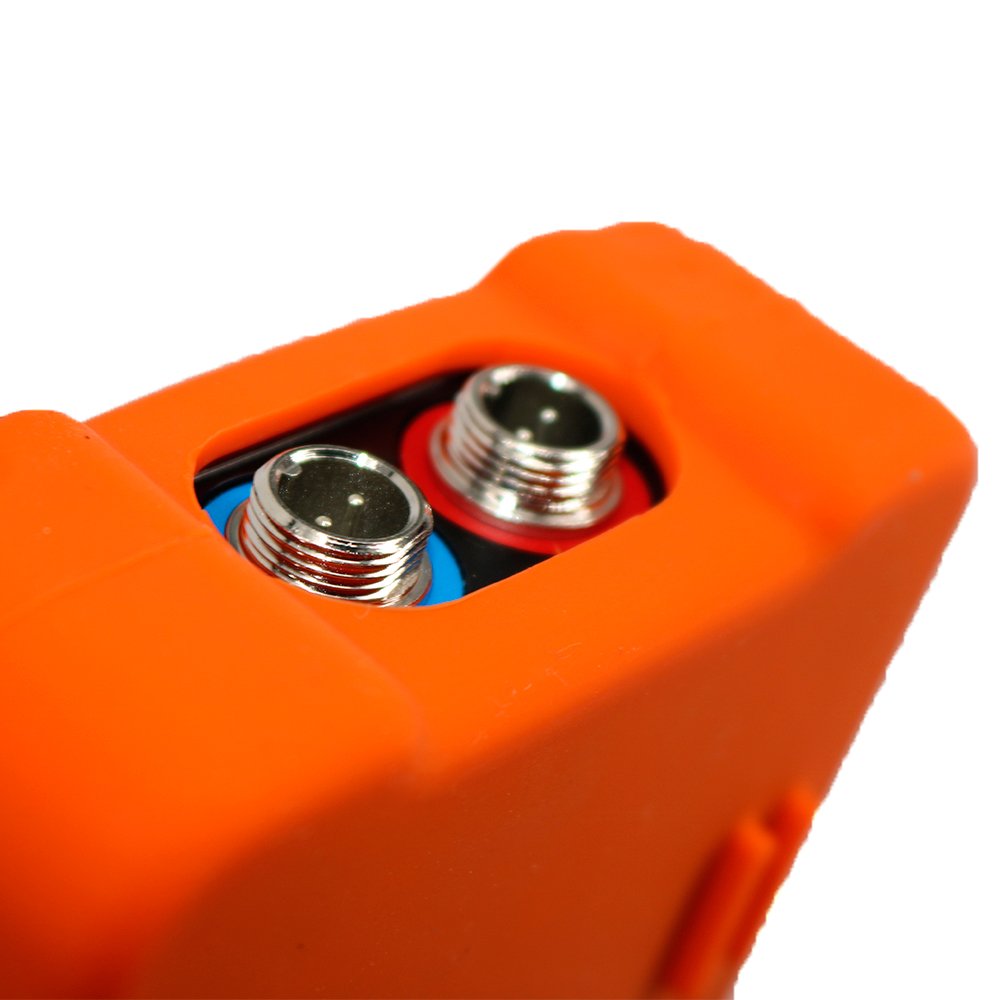

Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2
Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter
Data record: built-in data recorder can record 2000 line data
Manual accumulator: seven, key can start for calibration
Shell material: ABS
Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)
500 g(1.2 LBS) including battery

EAN: 0725370407807

Package Dimensions: 19.3 x 15.7 x 8.3 inches
