Graigar TUF-2000H+TS-2+TM-1 Digital Ultrasonic Flow Meter Flowmeter with TS-2 and TM-1 Transducers Measuring Range DN15-700mm 0.59-27.56in

Brand: Graigar

Features:

• TUF-2000H ultrasonic flow meter with high accuracy measuring,Wide measuring range,Small size, Light weight
• Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Several types transducer for selection, TS-2 measuring pipe size from DN15mm to DN100mm,TM-1 measuring pipe size from DN50mm to DN700mm

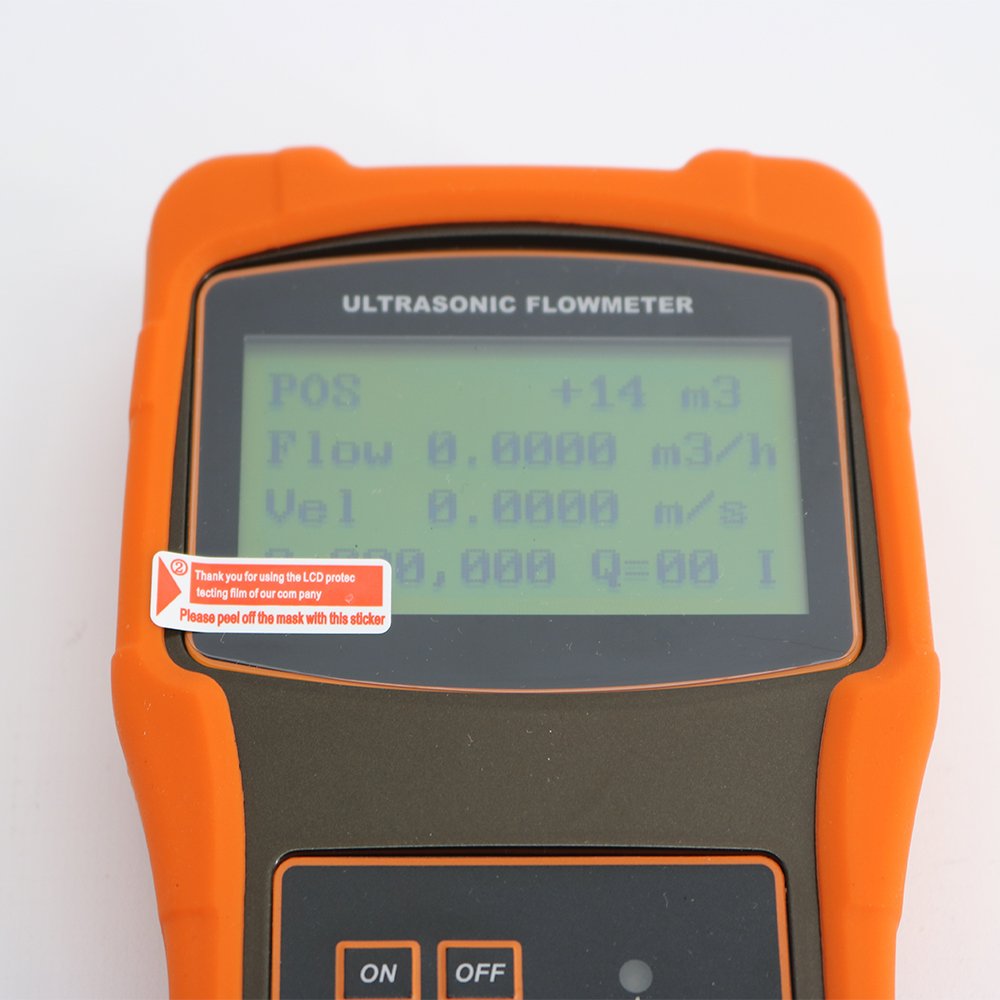

• Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.

Part Number: TUF-2000H+TS-2+TM-1

Details: Description:
Measurement Data
Linearity: 0.5%
Repeatability: 0.2%
Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s
Response Time: 0 ~ 999 seconds, the user option
Velocity Range: ± 32 m/s
Section Size: 15 mm(0.59in) to 6000 mm(236.2in)
Accumulator: seven are. Negative. Net cumulative apparatus
Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid
Ann all sex: setting value of the lock, change the data need to unlock
Display: 4 x 8 Chinese or 4 x 16 English
Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements compatible with other products
Sensor: mark worthy to type TM1, while the other four choices
Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2
Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter
Data record: built-in data recorder can record 2000 line data
Manual accumulator: seven, key can start for calibration
Shell material: ABS
Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)
500 g(1.2 LBS) including battery

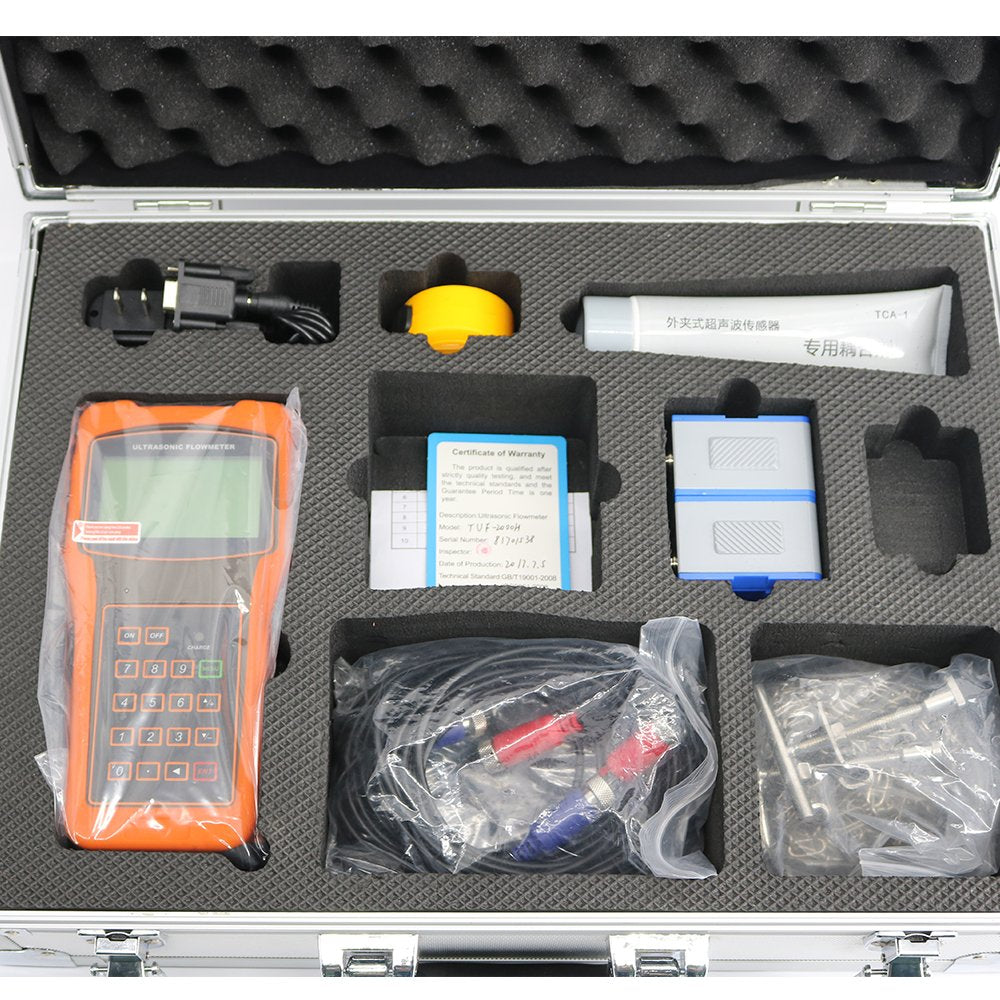

Standard Configurations:

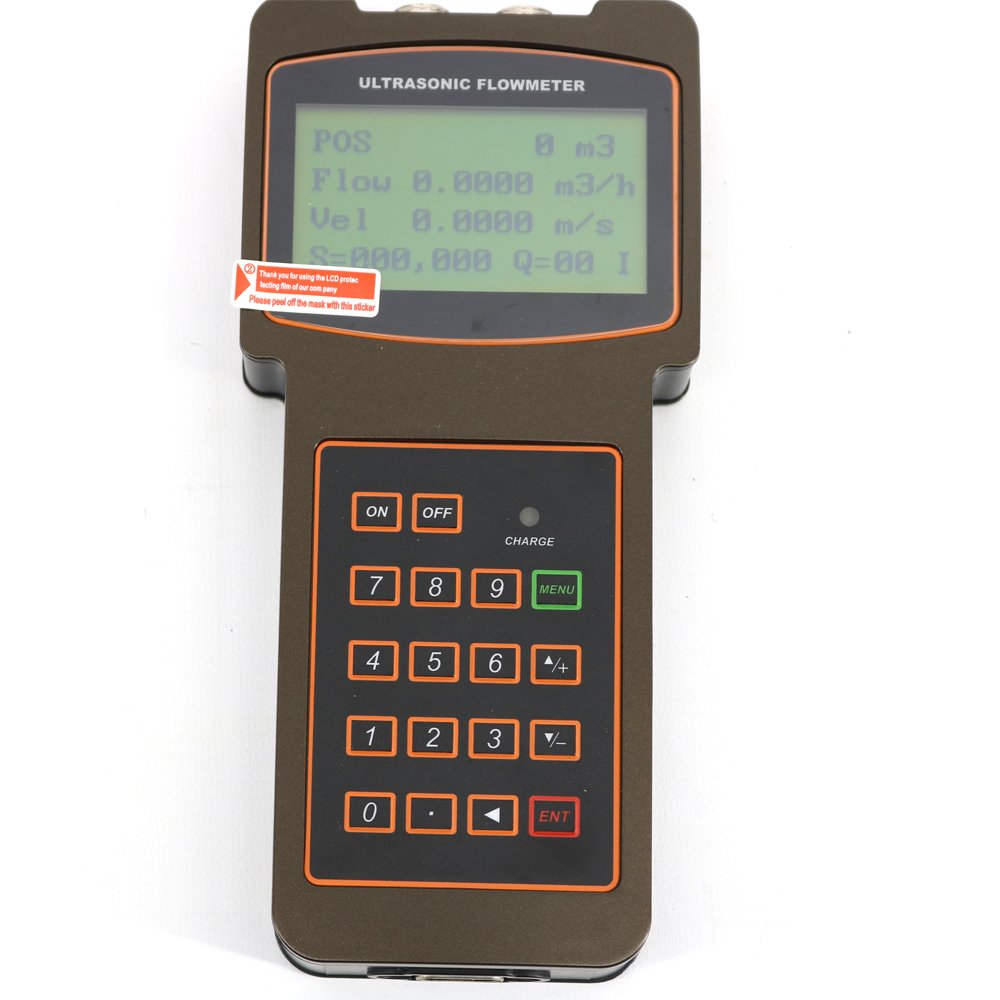

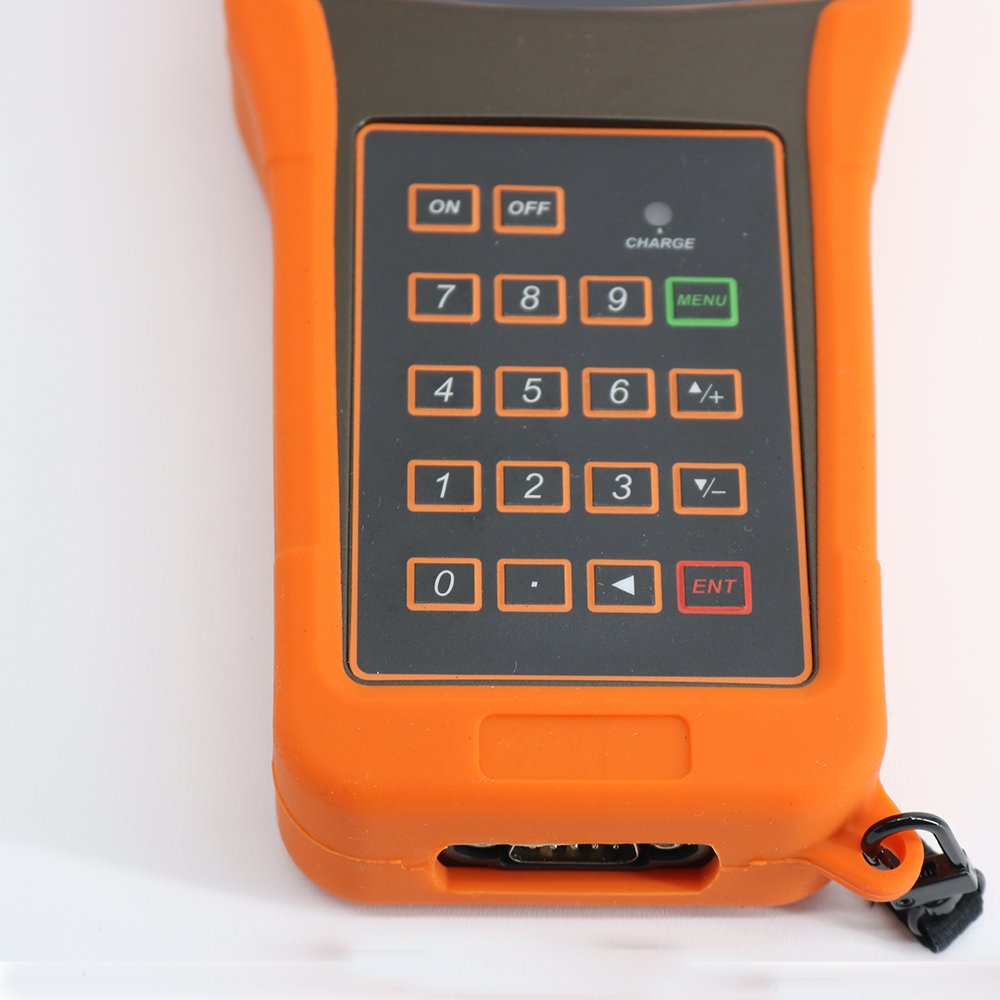

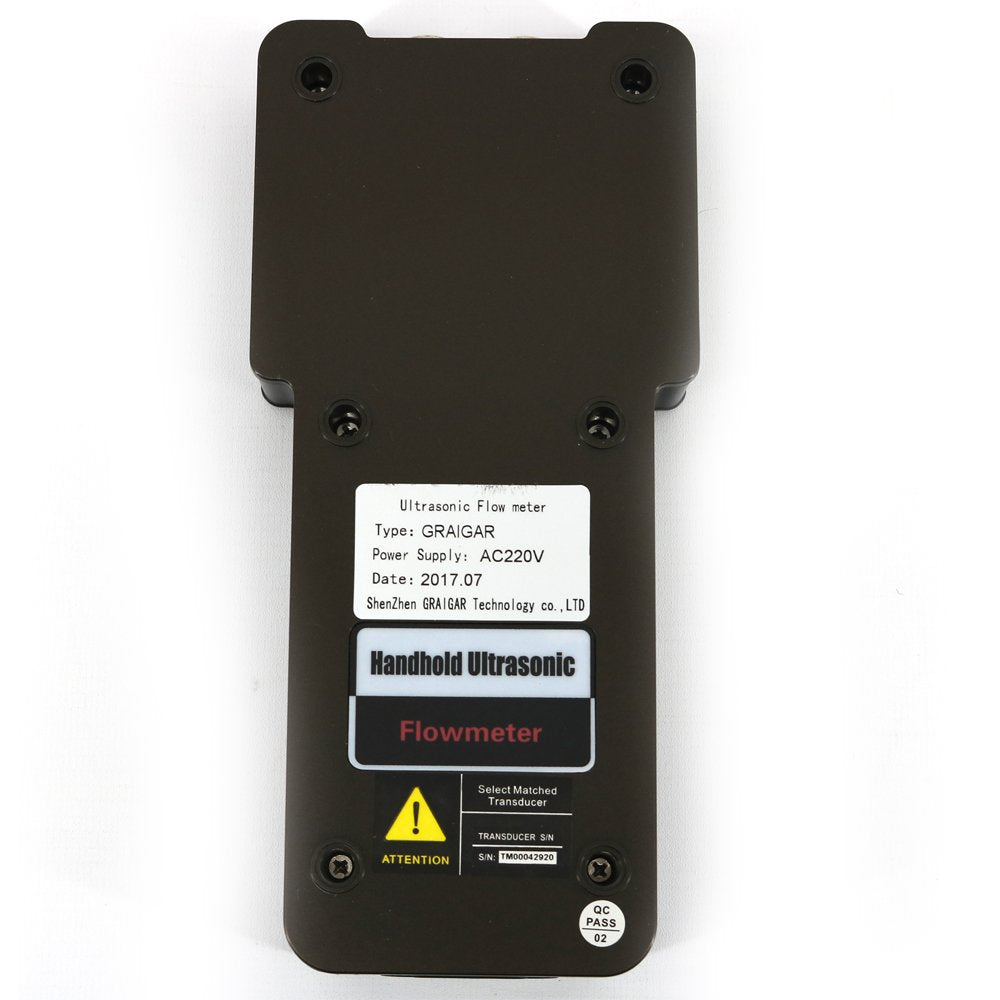

1. Ultrasonic Flowmeter

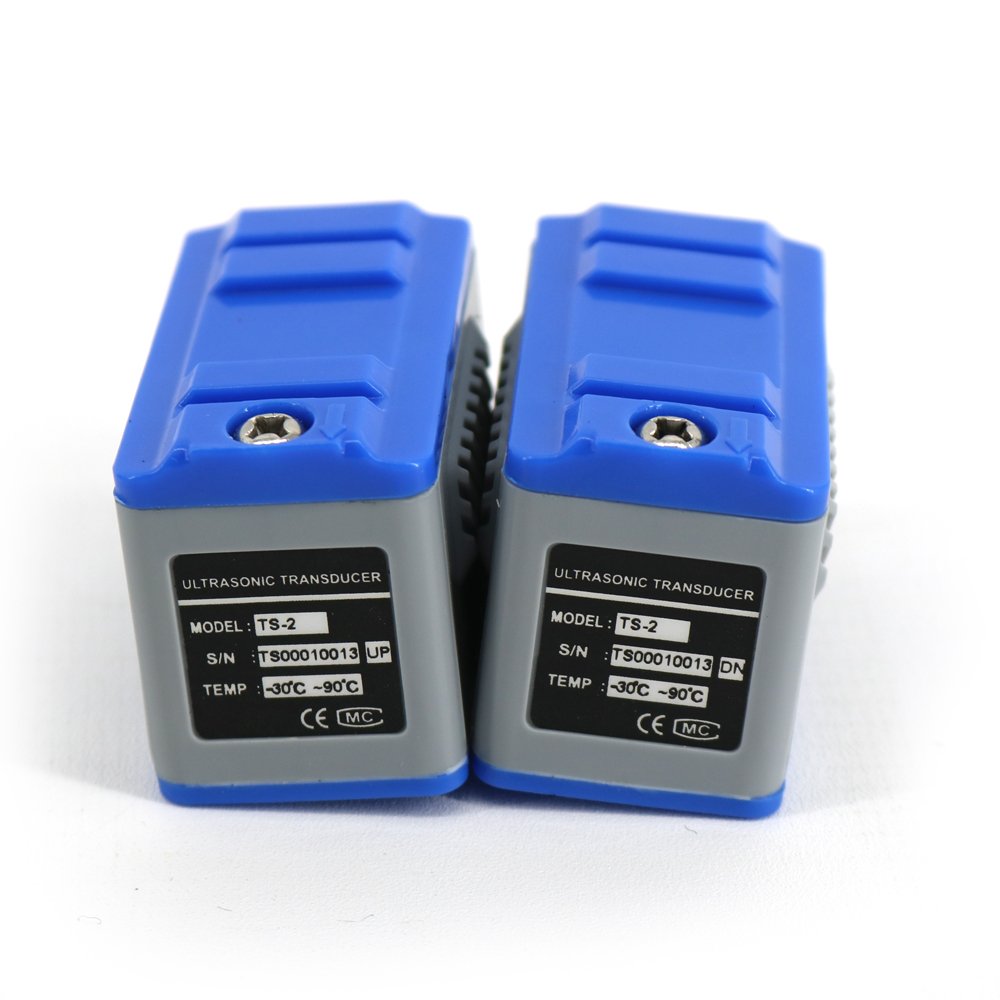

2. TS-2 Transducer

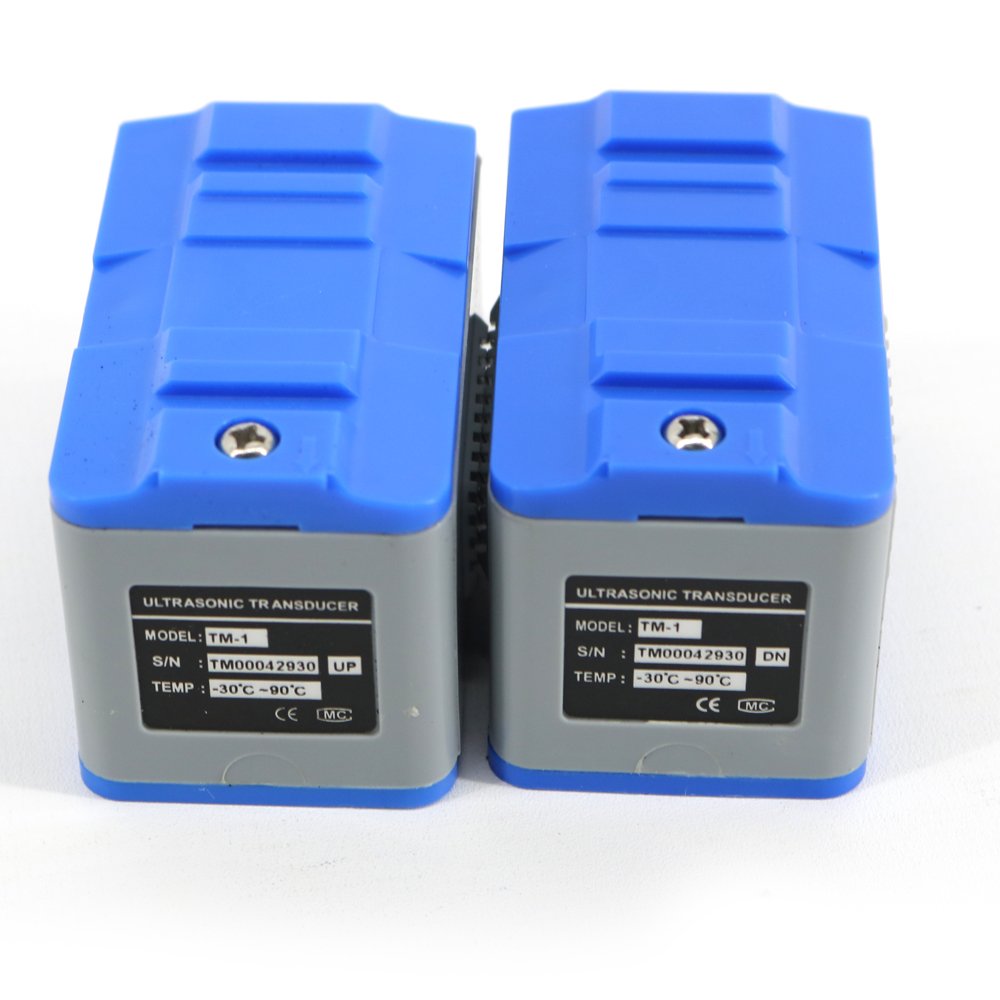

3. TM-1 Transducer
4. Signal cable
5. Data cable
6. Fixed steel chain
7. Charger
8. Ruler
9. Certificate of Warranty
10. Packing List
11. Empty Bottle

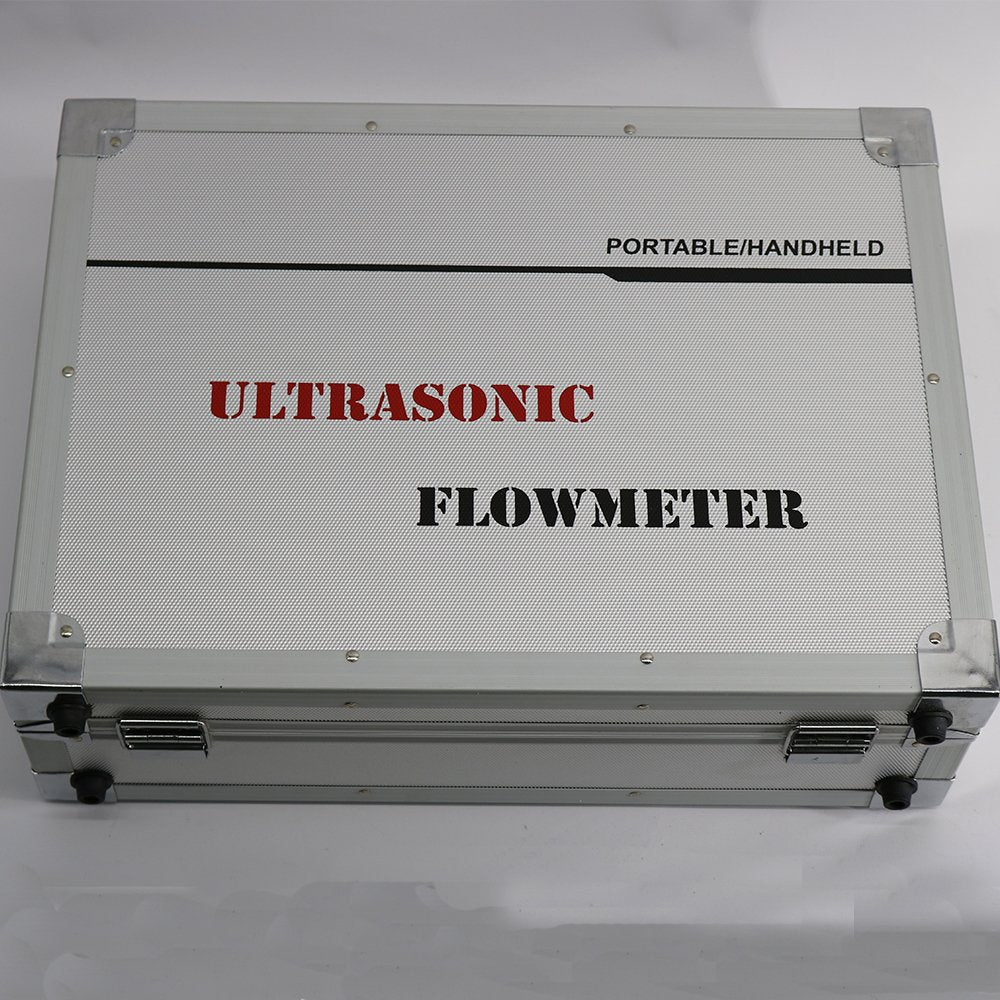

12. Carring box

leo

Package Dimensions: 19.3 x 15.7 x 8.3 inches
