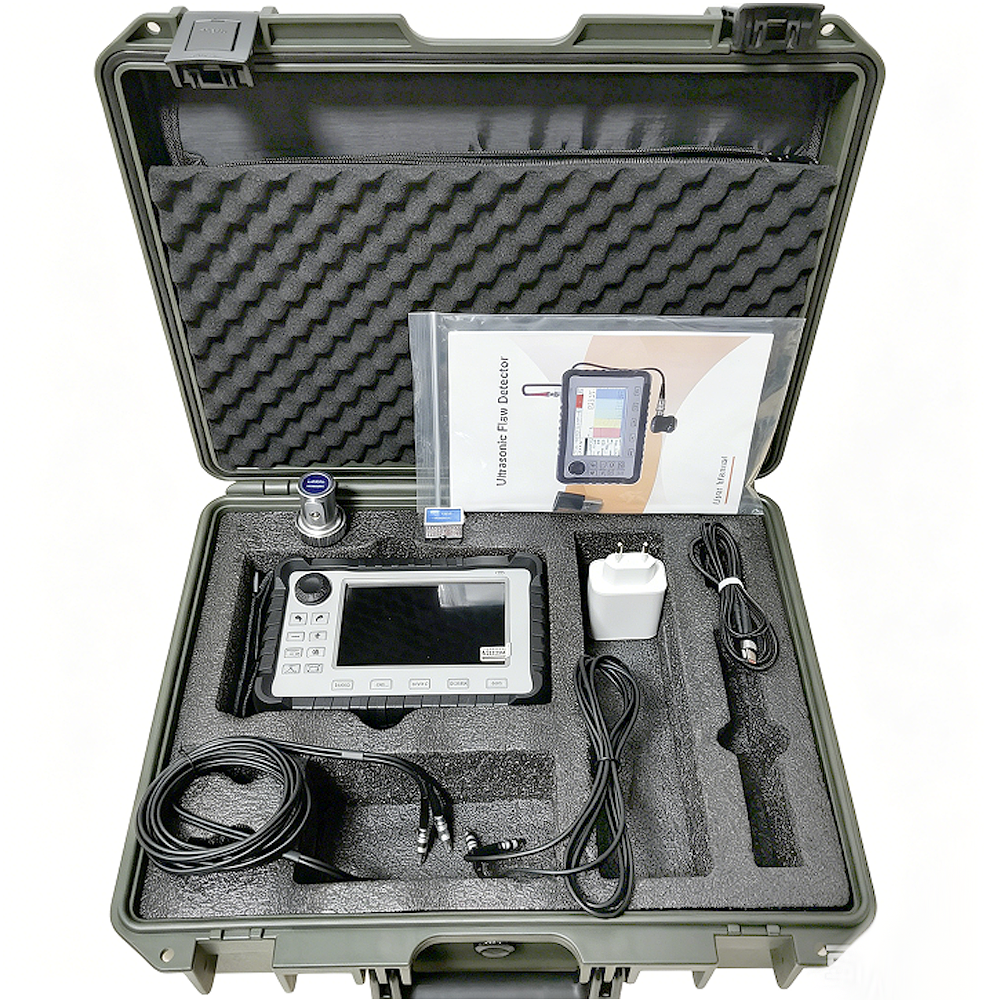

Graigar UFD100S Ultrasonic Flaw Detector 0-25m Detection Range 200Hz-2KHz with B Scan Function NDT Inspection Equipment
Graigar UFD100S Ultrasonic Flaw Detector 0-25m Detection Range 200Hz-2KHz with B Scan Function NDT Inspection Equipment
无法加载取货服务可用情况
UFD100S ultrasonic flaw detector is a new type of ultrasonic testing product launched by our company, widely used in industries such as boilers, pressure vessels, power, petroleum, chemical, offshore oil, pipelines, shipbuilding, automobiles, mechanical manufacturing, metallurgy, metal processing, steel structures, railway transportation, nuclear power, universities, etc. It can conveniently detect, locate, evaluate and diagnose various internal defects (cracks, looseness, pores, inclusions, etc.) in workpieces . This digital ultrasonic flaw detector has a compact structure, stable waveform, strong endurance, high sensitivity, fast response, and a maximum repetitive emission frequency of up to 10000Hz. It is an extremely portable ultrasonic flaw detection product.
Features
The body is lightweight and suitable for one-handed operation.
PD65W fast charge + 12 hours long battery life.
5.0-inch IPS high-definition display with a brand new UI interface.
Support full-screen touch, quick gesture operation, virtual keyboard, easy to use
With DAC, AVG, automatic gain, peak memory, color half-span, B-scan and other professional functions.
Including Chinese and English switching, data export to SD card, online upgrade, screen capture and many other practical functions.
Realising B- Scan Function.
Product technical parameters
|
Bandwidth |
0. 1MHz~20MHz |
|
Gain |
120dB ,pace 0. 1dB ,0.6dB ,1dB ,2dB ,6dB |
|
Wave filter |
Broadband,1M,1.25M,2.5M,5M,10M,15M,1M-5M |
|
Sampling rate |
Hardware sampling rate 100MSPS, equivalent sampling rate 500MSPS |
|
Detection mode |
Full wave, positive half wave, negative half wave, RF, envelope |
|
Detection range |
25 meters (longitudinal wave carbon steel), pace 100mm ,10mm ,0. 1mm 250~18000 m/s |
|
Sound velocity range |
|
|
Pulse mode |
Sharp pulse, square wave |
|
Pulse voltage |
25V~300V,25V pace |
|
Pulse width |
0ns~500ns continuously adjustable, 10ns pace |
|
Emission damping |
Strong/weak djustable |
|
Pulse frequency |
Automatic or manual, automatic range(200Hz-2KHz),manual range (0- 10KHz) |
|
Probe channel |
200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring |
|
Gate alarm |
Gate A and B alarm, lost wave/incoming wave |
|
Gate mode |
Independent gate A, gate B |
|
Measurement mode |
Peak, Front edge, J Front edge |
|
Quantitative mode |
DAC curve ,AVG(DGS)curve |
|
Flaw detection standards |
AWS D1. 1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345 |
|
Save content |
Single frame, multi-frame recording (≤ 500 frames), screenshot, B-scan screenshot, inspection report |
|
Auxiliary functions |
Professional B-scan, automatic gain, peak memory, waveform freezing, channel management, gate alarm, gate expansion, automatic gate, full screen touch,virtual keyboard, color half span, quick screenshot, inspection report, channel import/export |
|
Display screen |
High definition 5.0 inch 800×480 IPS_LCD |
|
Probe interface |
Dual LEMO-00 C5 |
|
Output interface |
Type-C1, MINI USB |
|
Input interface |
Type-C2(B scan trolley) |
|
B-scan imaging |
Supports up to 700 sets ofA-scan synthesis, with the highest resolution φ 2mm |
|
Data storage |
8GB SD card |
|
Charger |
65W_PD fast charging ,standard Type-C interface (100~240V, 50~60Hz) |
|
Size |
183mm×113mm×45mm |
|
Weight |
700g ,including battery but not rubber sleeve |
|
Unit |
Metric system, imperial syetem |
|
Battery |
7.4V 8000mAh Lithium battery, 12 hours of battery life |
|
Operation temperature |
- 10℃~55℃ |
|
Relative humidity |
(20-95) %RH |
|
Resolution ratio |
30 dB(Metrological performance requirements:≥26dB) |
|
Dynamic range |
35dB(Metrological performance requirements:≥26dB) |
|
Sensitivity margin |
55dB(Metrological performance requirements:≥42dB) |
|
Vertical linearity |
1.2%(Metrological performance requirements:≤6%) |
|
Horizontal linearity |
0. 15%(Metrological performance requirements:≤2%) |
|
Language |
Chinese/English/Russian |
