Graigar Ultrasonic Flow Meter Flowmeters TUF-2000H+TM-1+TL-1+HM Bracket Sensor+EB-1 Extend Stents

Brand: Graigar

Features:

• High Accuracy measuring,Wide measuring range,Small size, Light weight
• Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm

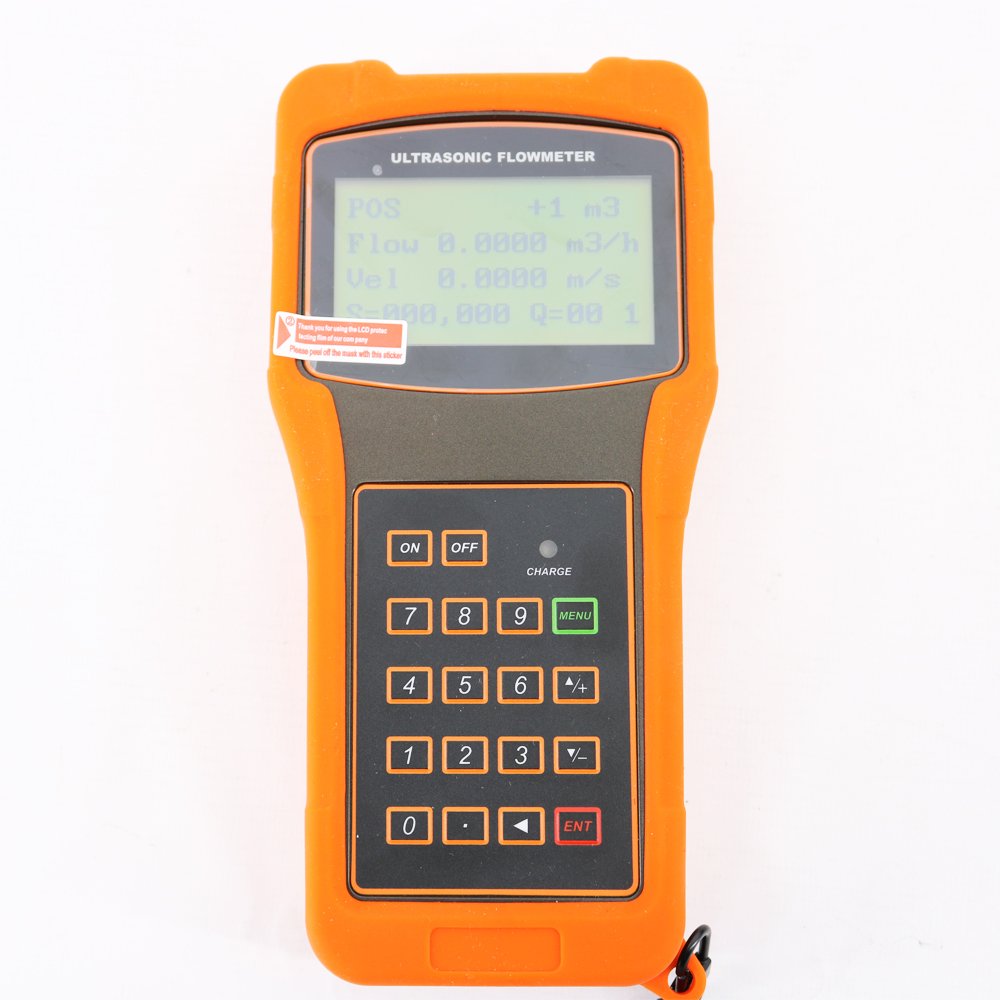

• Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.

model number: TUF-2000H+TM-1+TL-1+HM+EB-1

Part Number: TUF-2000H+TM-1+TL-1+HM+EB-1

Details: Specifications:
Linearity: 0.5%
Repeatability: 0.2%
Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s
Response Time: 0 ~ 999 seconds, the user option
Velocity Range: ± 32 m/s
Section Size: 15 mm(0.59in) to 6000 mm(236.2in)
Accumulator: seven are. Negative. Net cumulative apparatus
Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid
Ann all sex: setting value of the lock, change the data need to unlock
Display: 4 x 8 Chinese or 4 x 16 English
Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements compatible with other products
Sensor: mark worthy to type TM1, while the other four choices
Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2
Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter
Data record: built-in data recorder can record 2000 line data
Manual accumulator: seven, key can start for calibration
Shell material: ABS
Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)
500 g(1.2 LBS) including battery

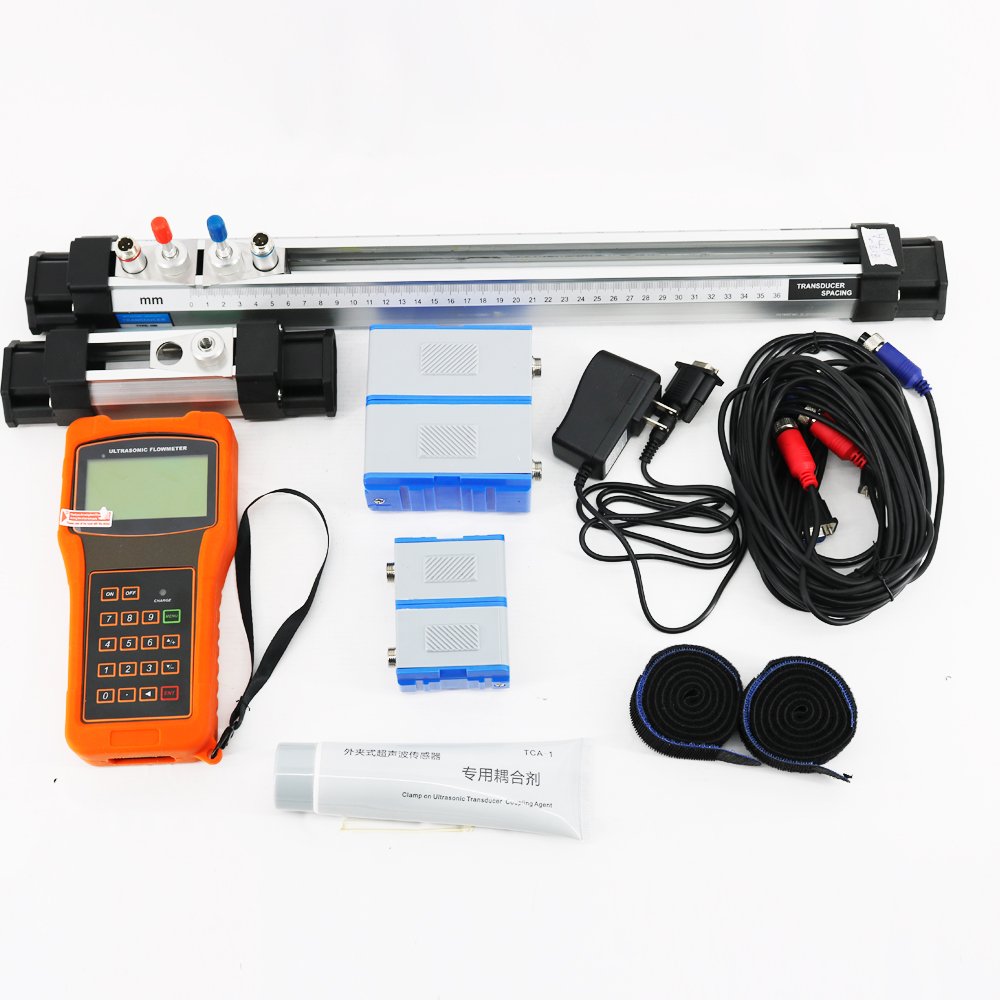

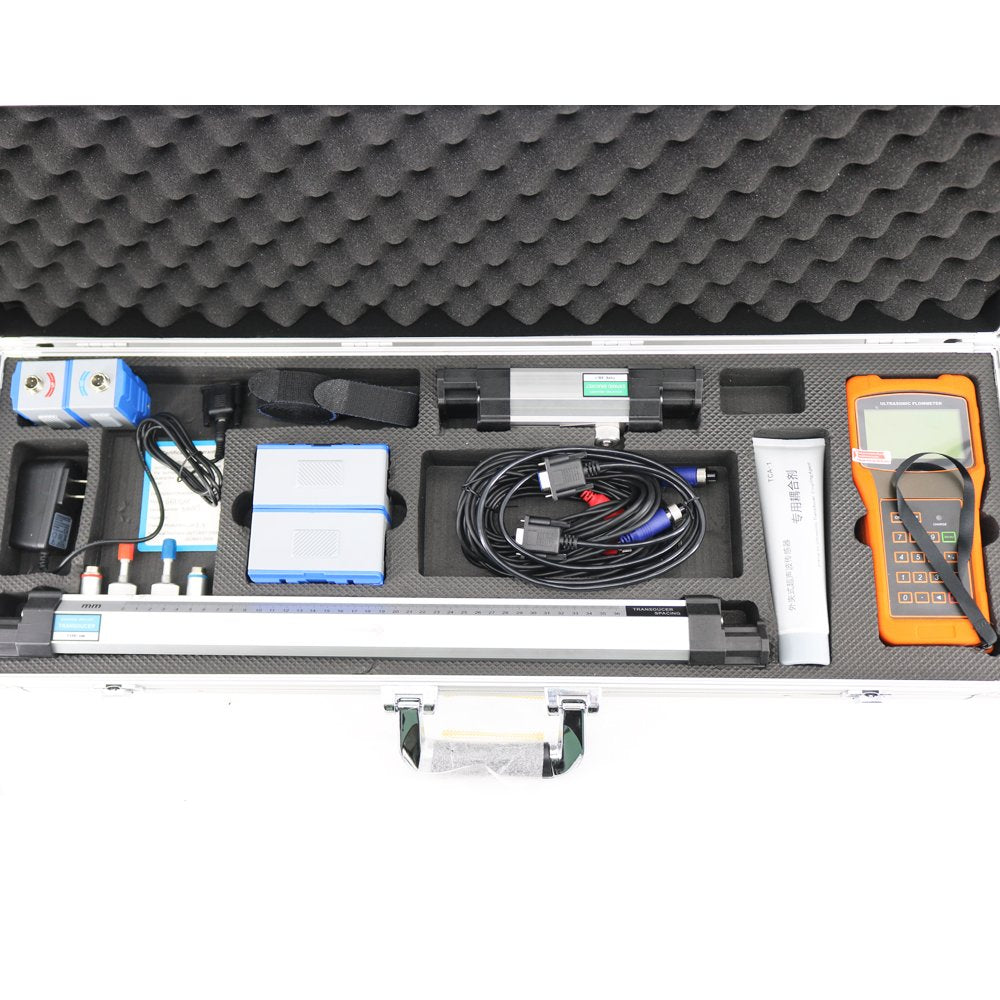

Standard Configurations:

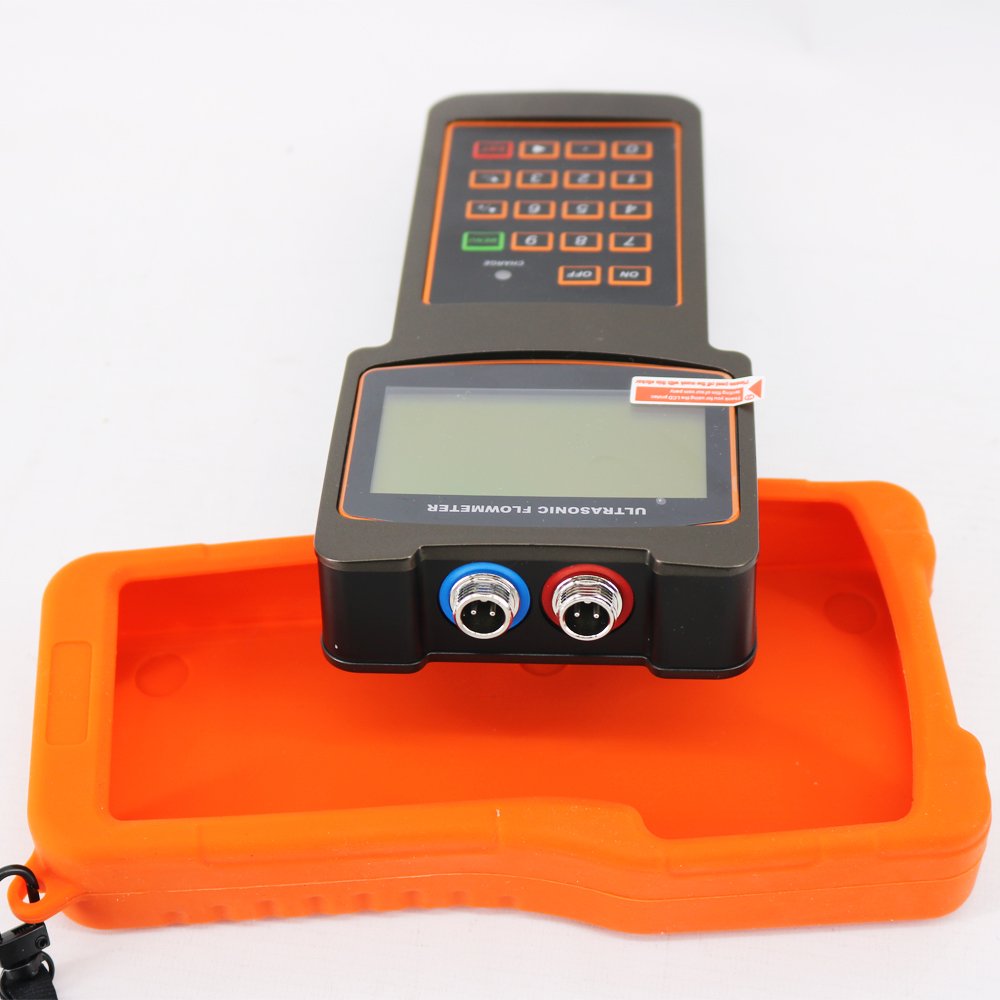

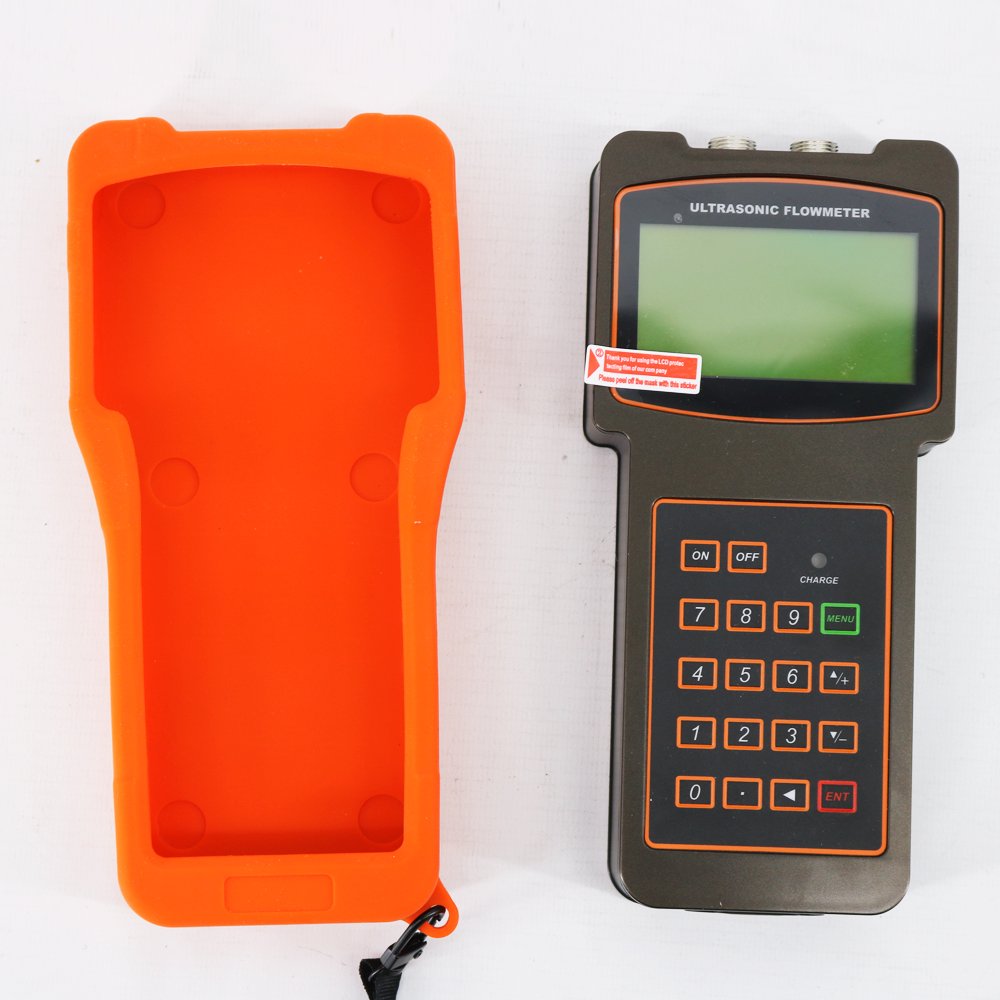

1. TUF-2000H Ultrasonic Flow Meter
2. TM-1 Transducer
3. TL-1 Transducer
4. HM Mounting bracket Transducer
5. EB-1 Extended bracket

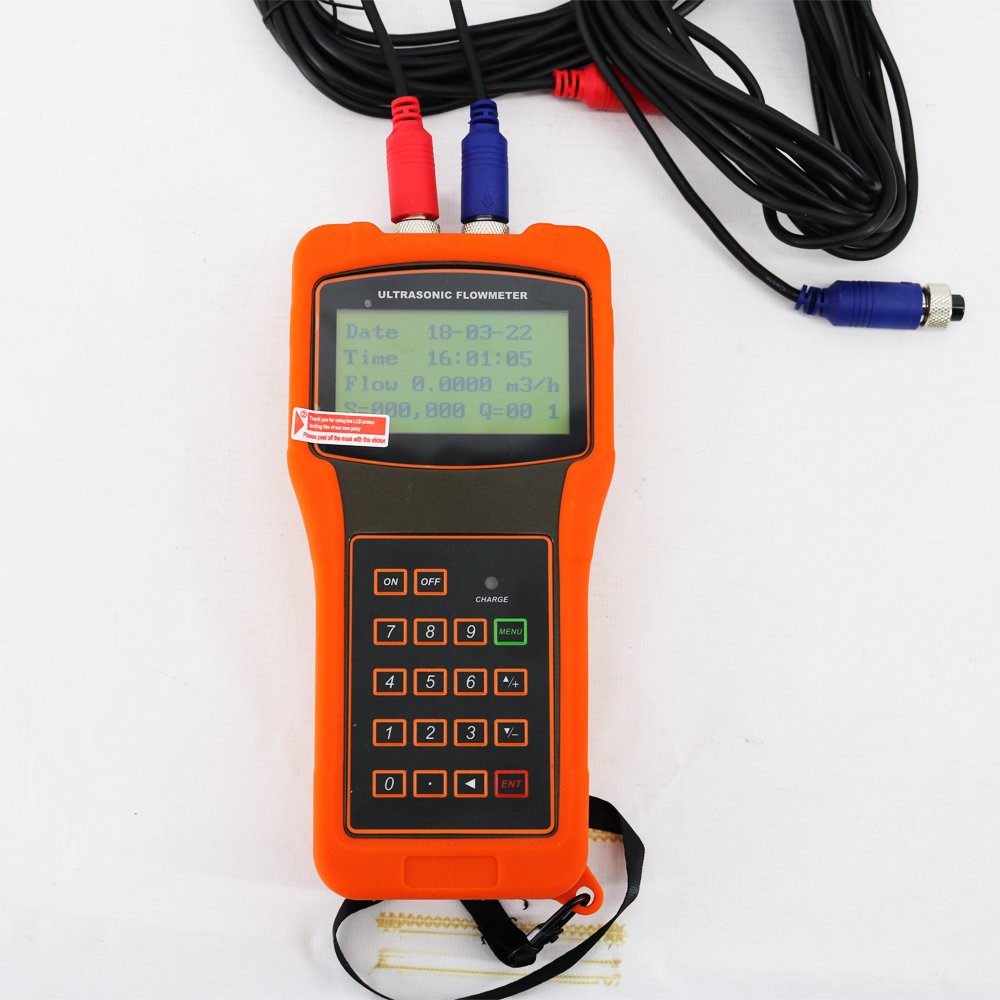

6. Signal cable
7. Data cable
8. Fixed bandage
9. Ruler
10. Certificate of Warranty
11. Packing List
12. Empty Bottle
13. Charger

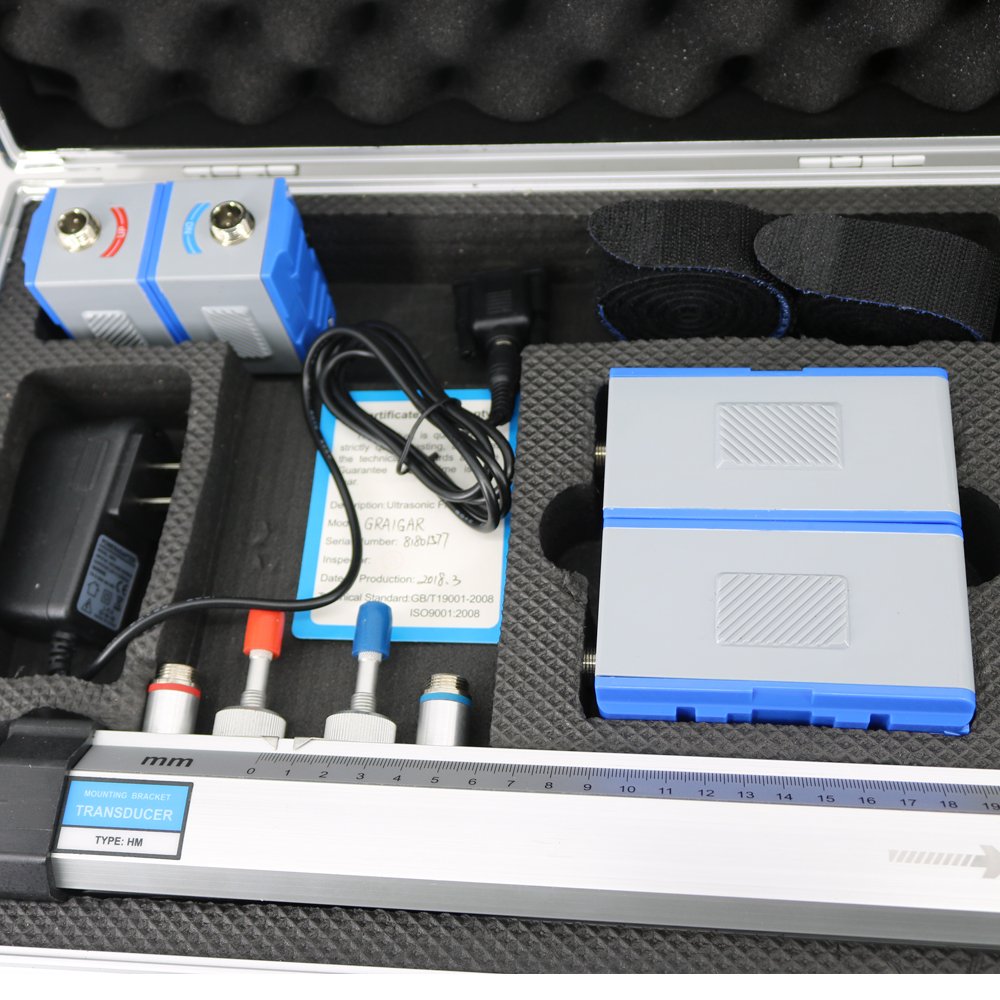

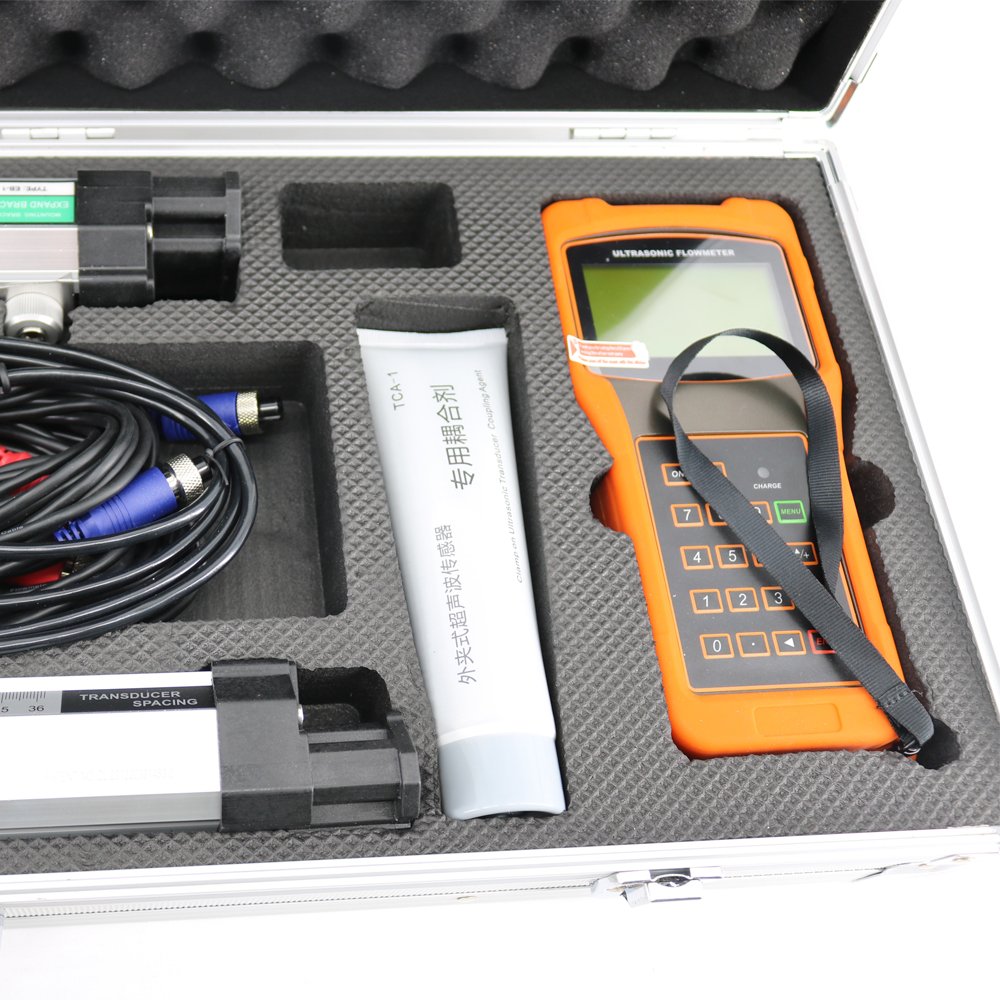

14. Carrying box

EAN: 0725370414263
