AR850+ Ultrasonic Thickness Gauge is suitable for measuring the thickness of any hard material, such as G. steel, cast iron, aluminum, copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, ductile iron.
The data storage function of up to 10 test results, even without data, does not lose data and is suitable for on-site measurement.
High-precision linear compensation circuit (1% H + 0.1).(H denotes the measured thickness); Accuracy +-1% when given thickness is over 20 mm.
Sound test speed (m / s) with 12 storage memory. Sound Speed Range: 1000-9999m/s; Operating Frequency: 5MHz.

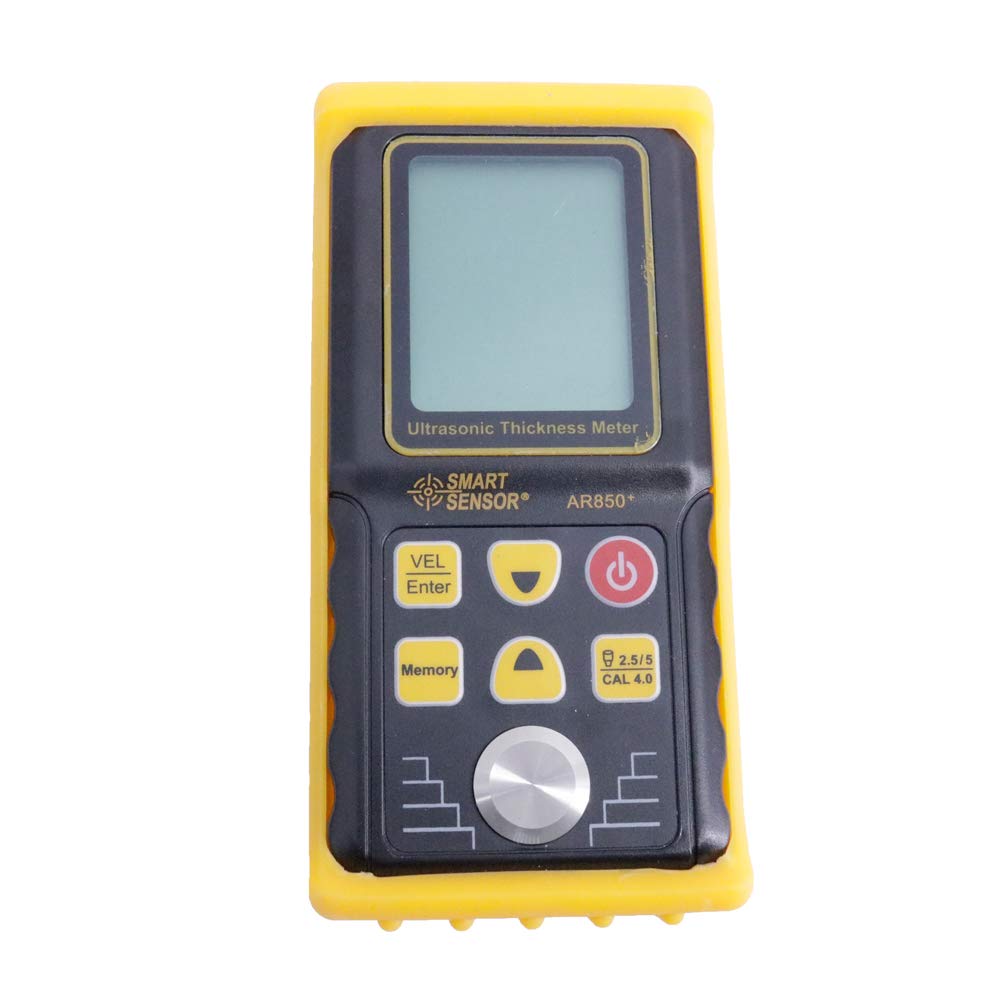

Press the UP or DOWN arrow to switch between mm or m/s readings. Automatic Zero Adjustment and Auto Power Shut Off function.
Part Number: AR850+

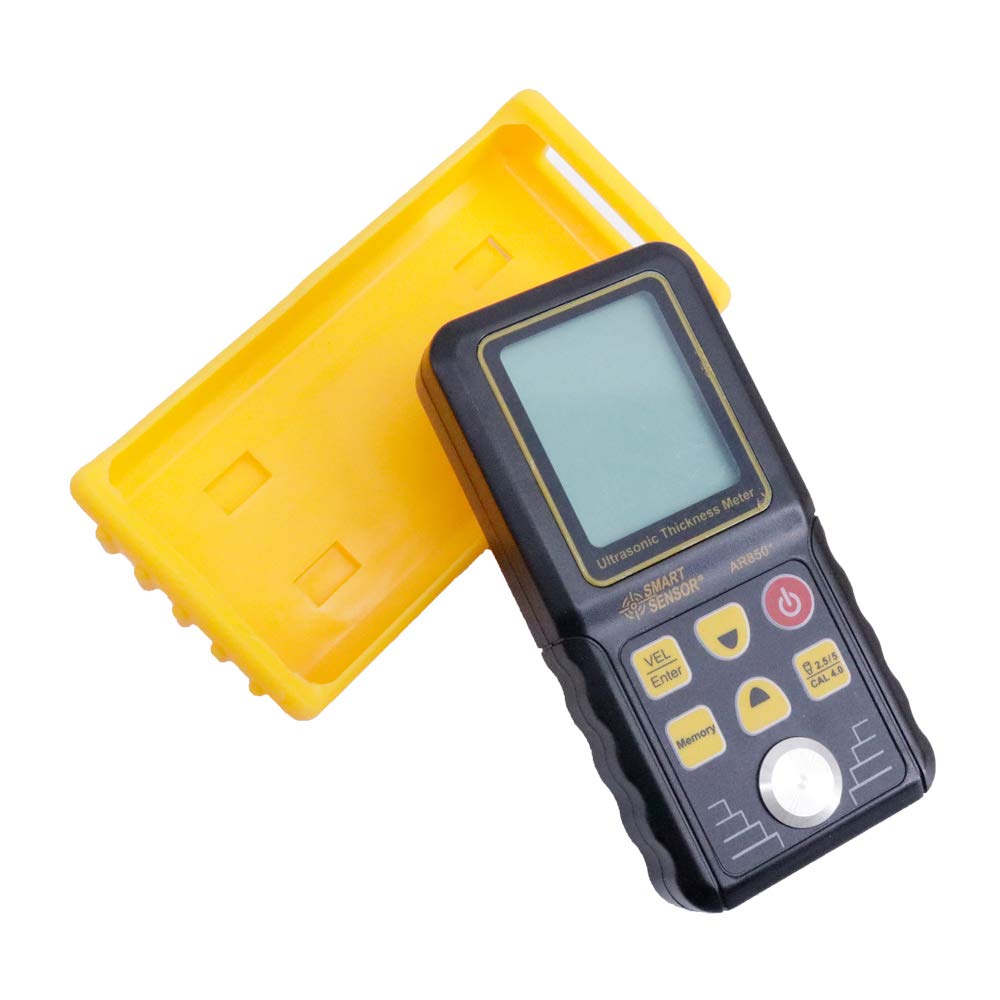

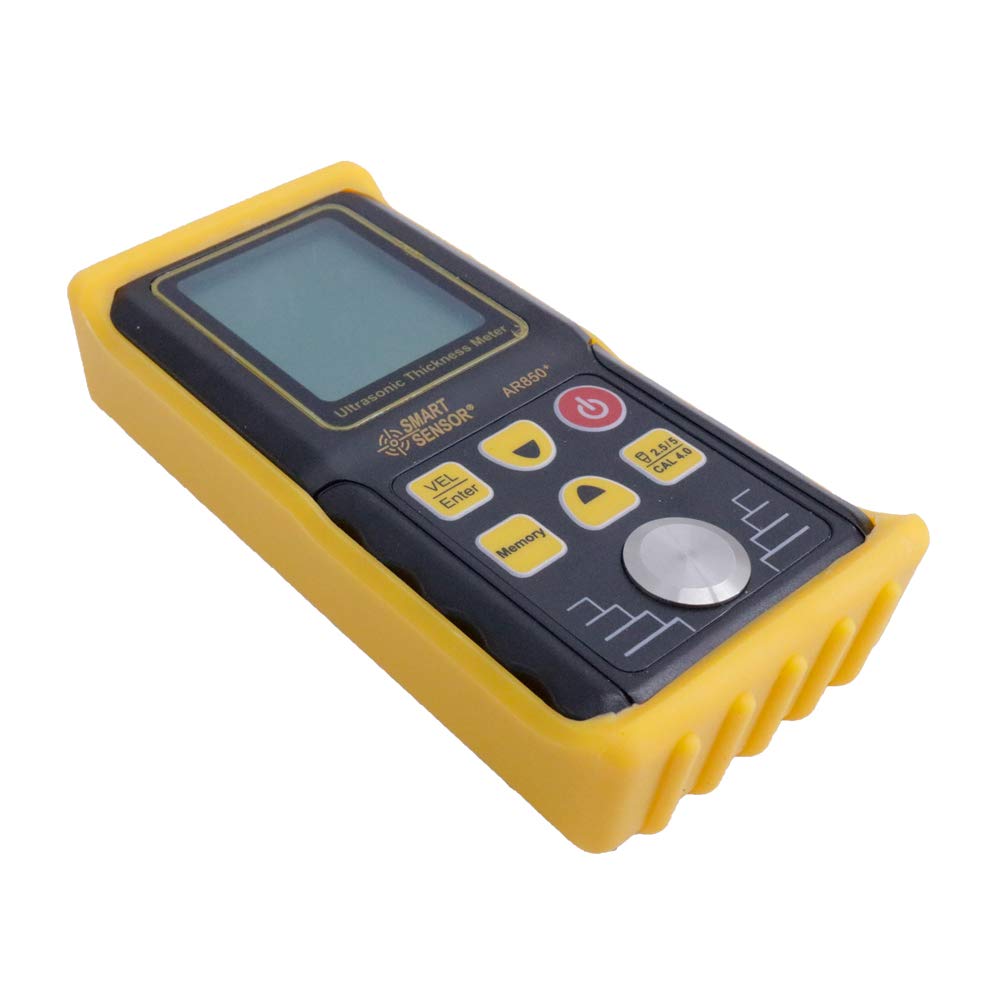

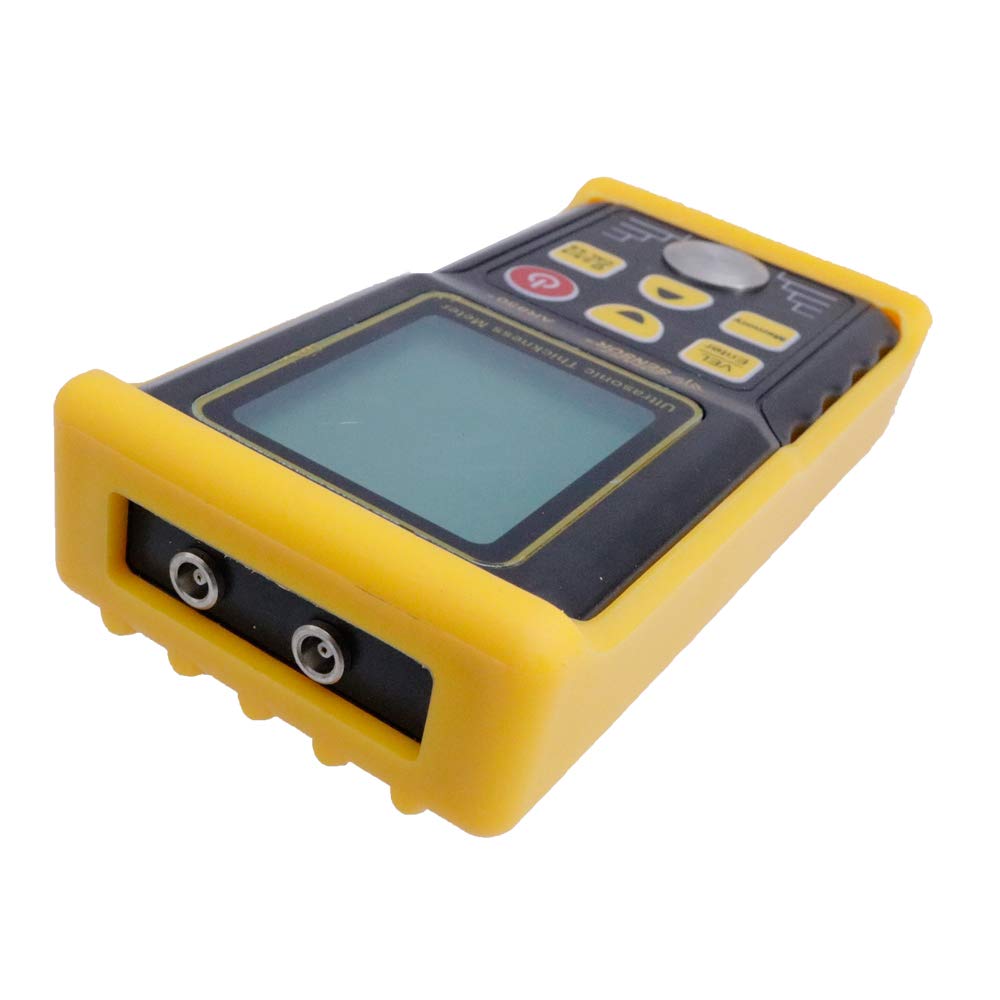

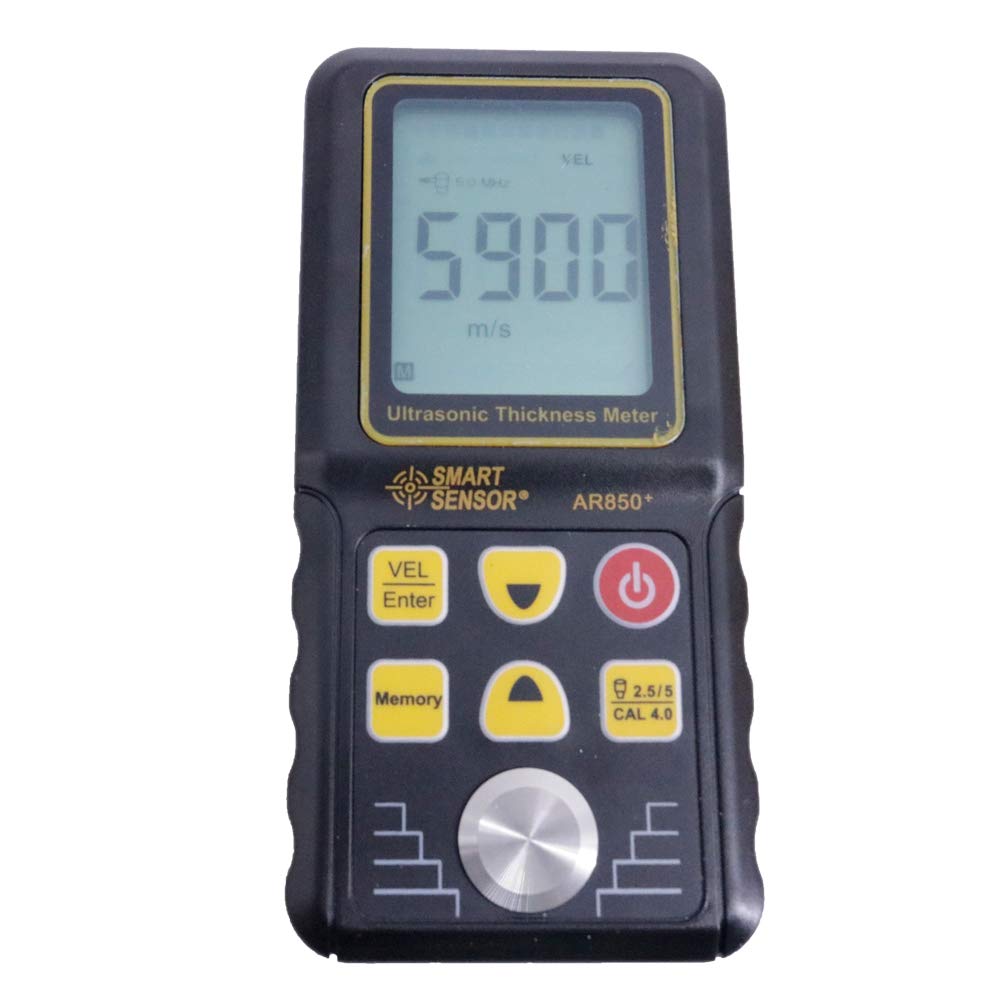

Details: Smart sensor AR850+ ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurem-ent of thickness for most of industrial material.
Specification:
Condition: 100% Brand New
Brand: SMART SENSOR
Model: AR850+
Item Type: Ultrasonic Thickness Gauge
Measuring Range: 1.2-225.0mm (Steel)
Accuracy: +/- (1% + / - 0.1)mm
Minimum Limit for Tube Measuring: 20 * 3mm (Steel)
Sound Speed Range: 1000-9999m/s
Operating Frequency: 5MHz
Operating Temperature Range: 0-40 degrees
Low Battery Indication: 3V +/- 0.2V
Probe operating temperature: 0-60 degrees at normal temperature

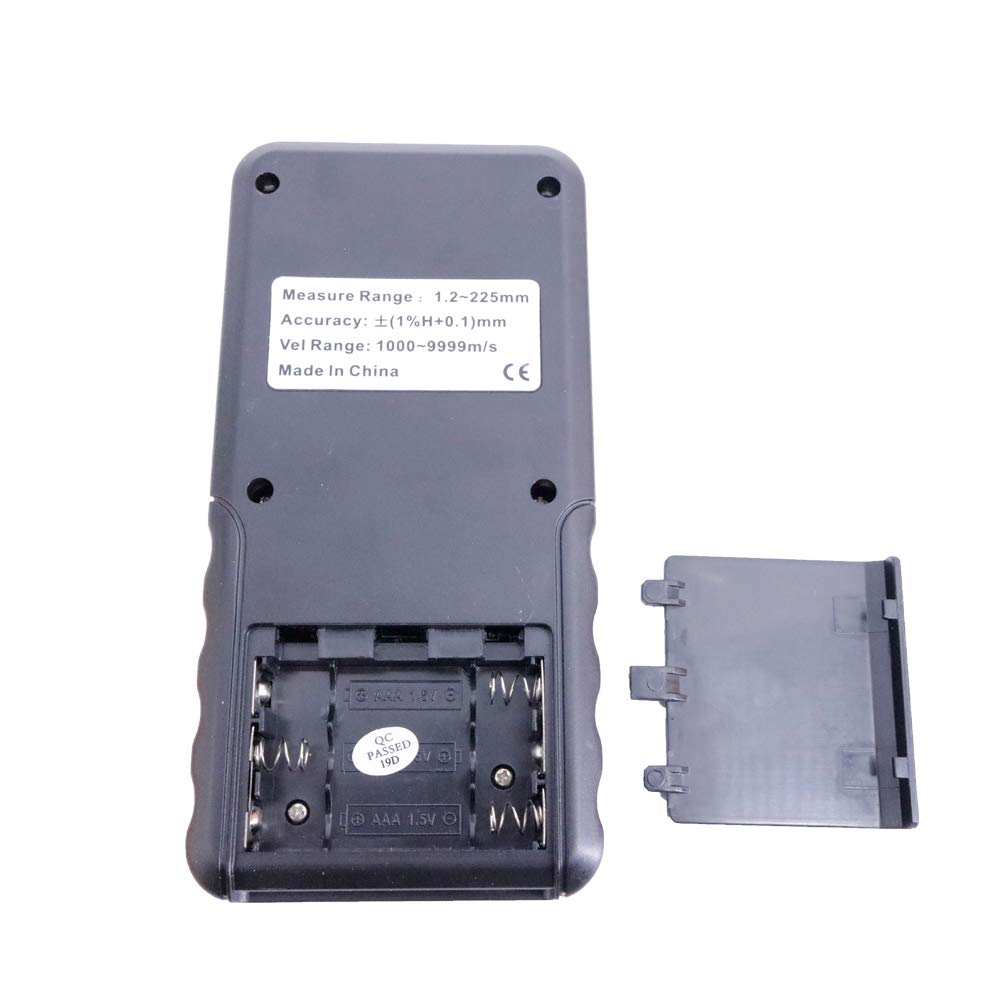

Battery: 3 * 1.5V AAA (Not Included)
Size: Approx. 153 * 75 * 35mm / 6 * 3 * 1.4in

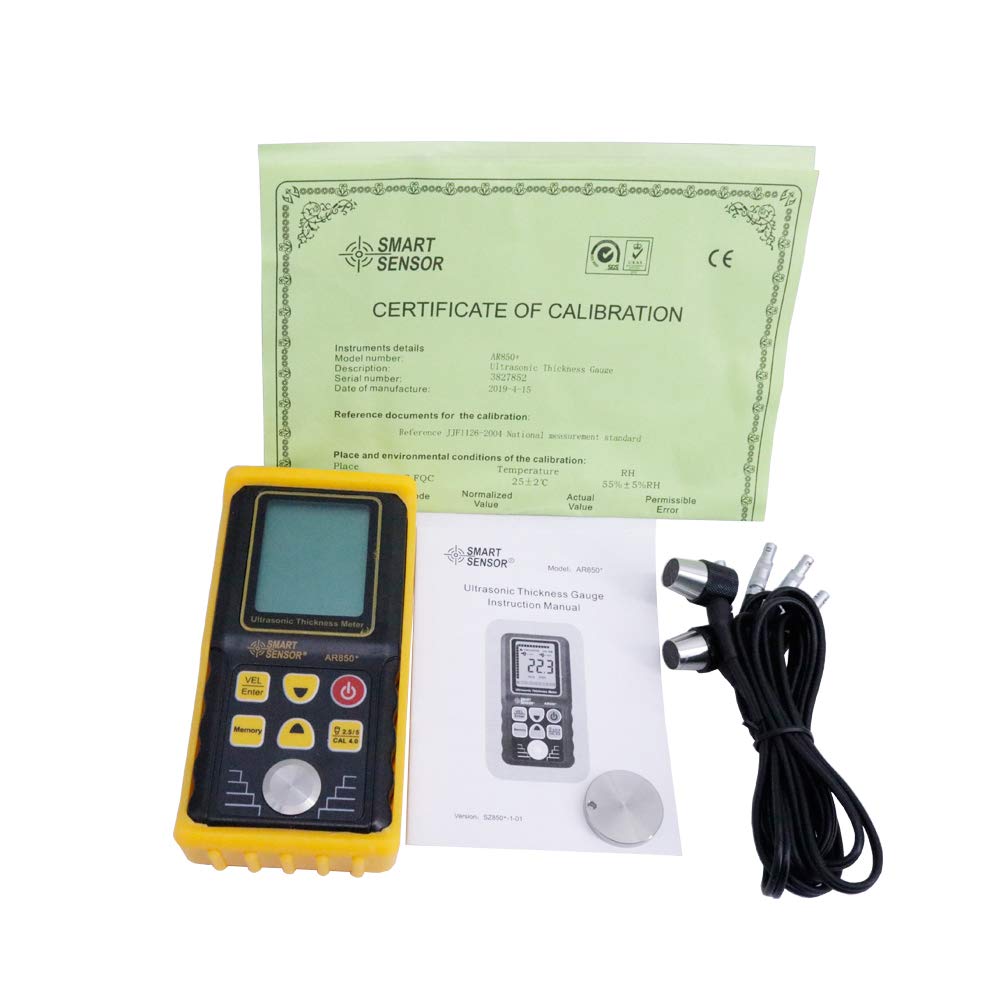

Package List:
1 * Host

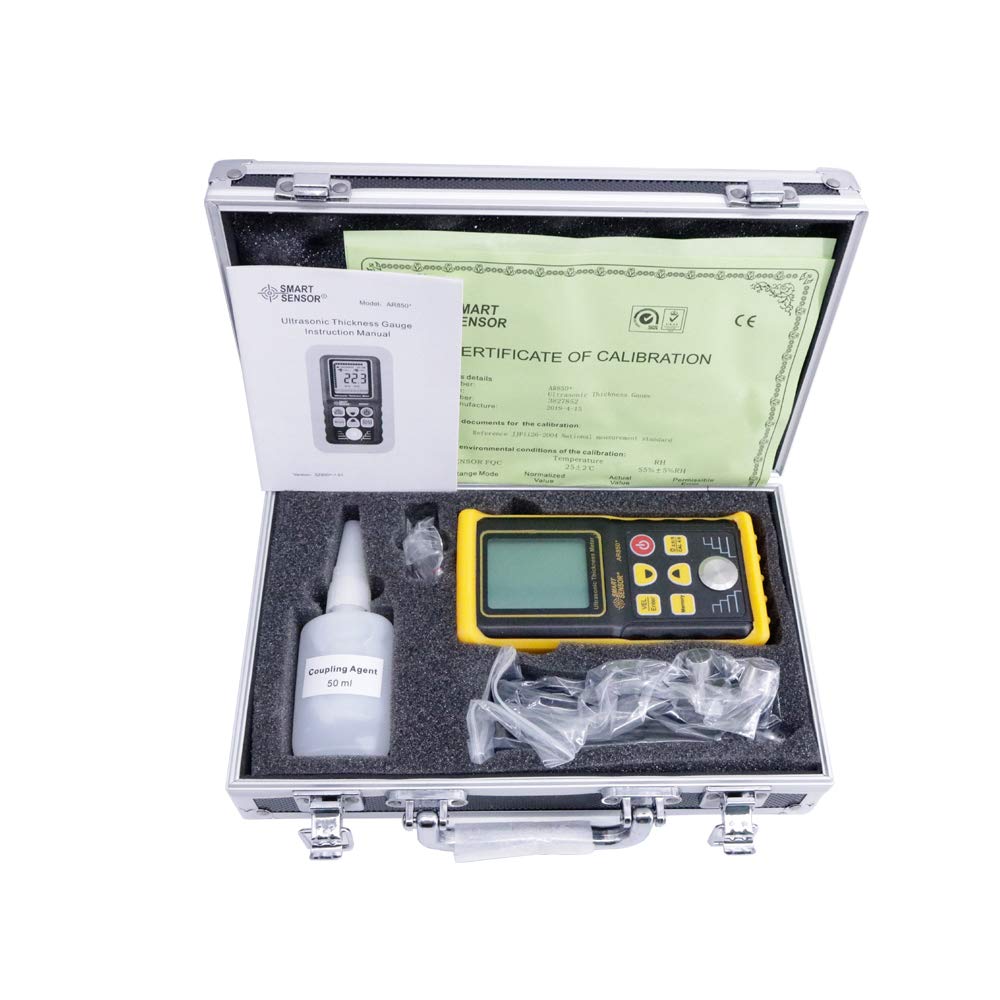

1 * Aluminum box
1 * Instruction manual
1 * Calibration block

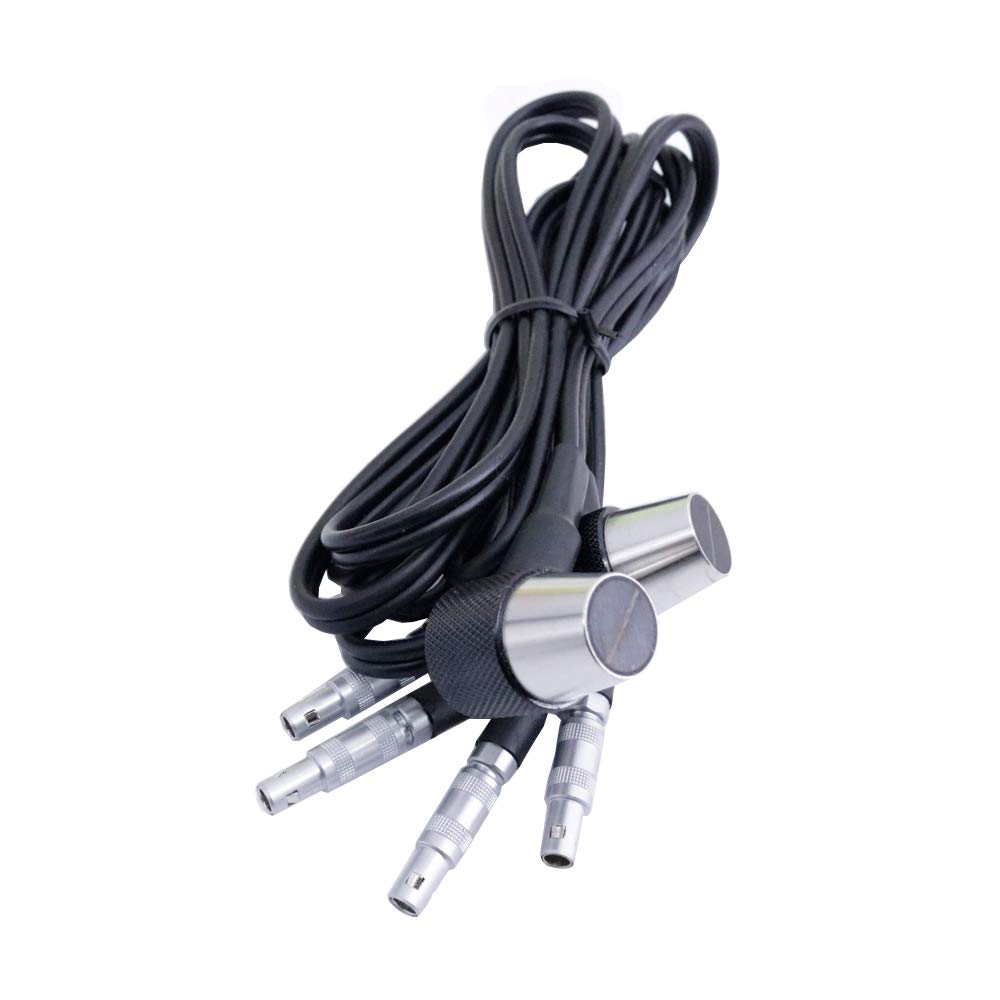

2 * Probe
