Measuring range 0.03'' to 12'',with compensation line for 7 types of Probe/Transducer
Same features as the UM-2, Plus Echo-Echo Mode (Thru Paint & Coatings)

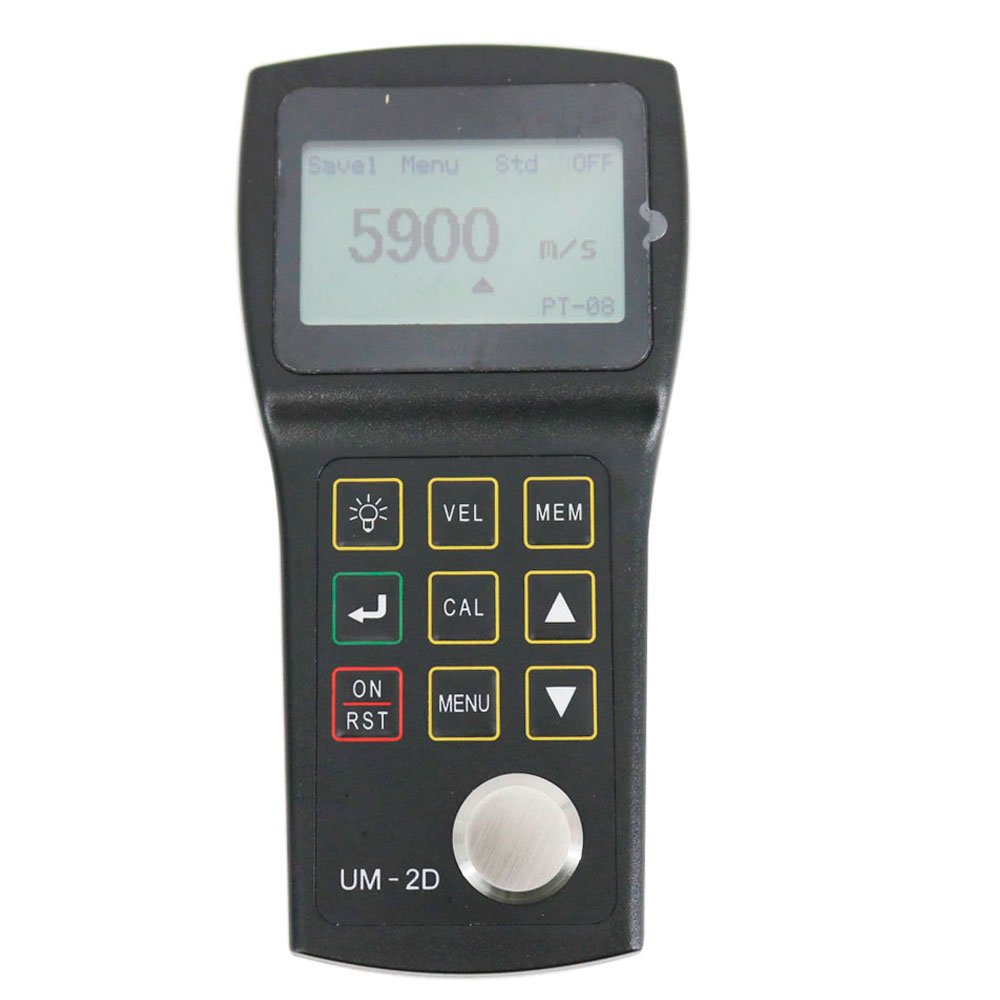

128 x 64 pixel graphical LCD with EL backlight
Up to 200 hours with two 1.5V AA alkaline batteries (without backlight), AUTO-OFF after 5 minutes of inactivity
Stores 500 readings in 5 groups of 100, V- path correction, Alarm Mode and Minimum Capture

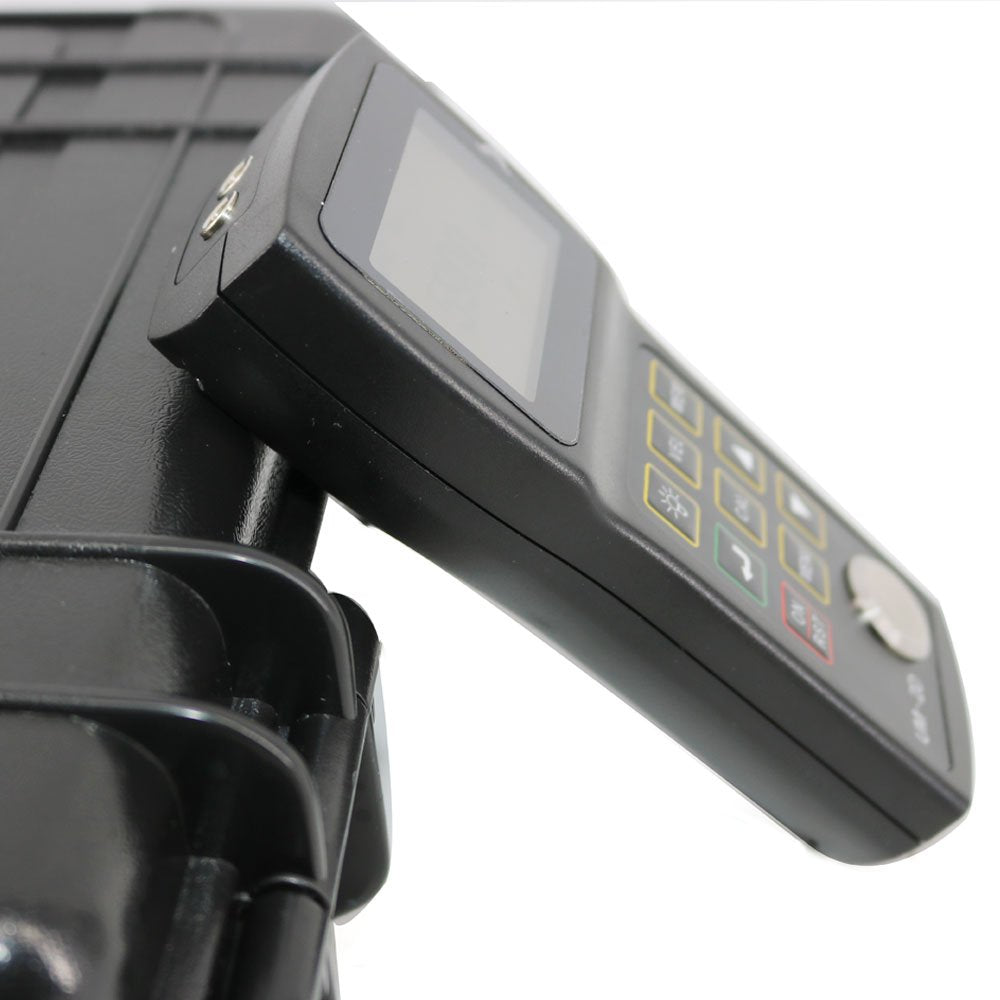

Part Number: UM-2D

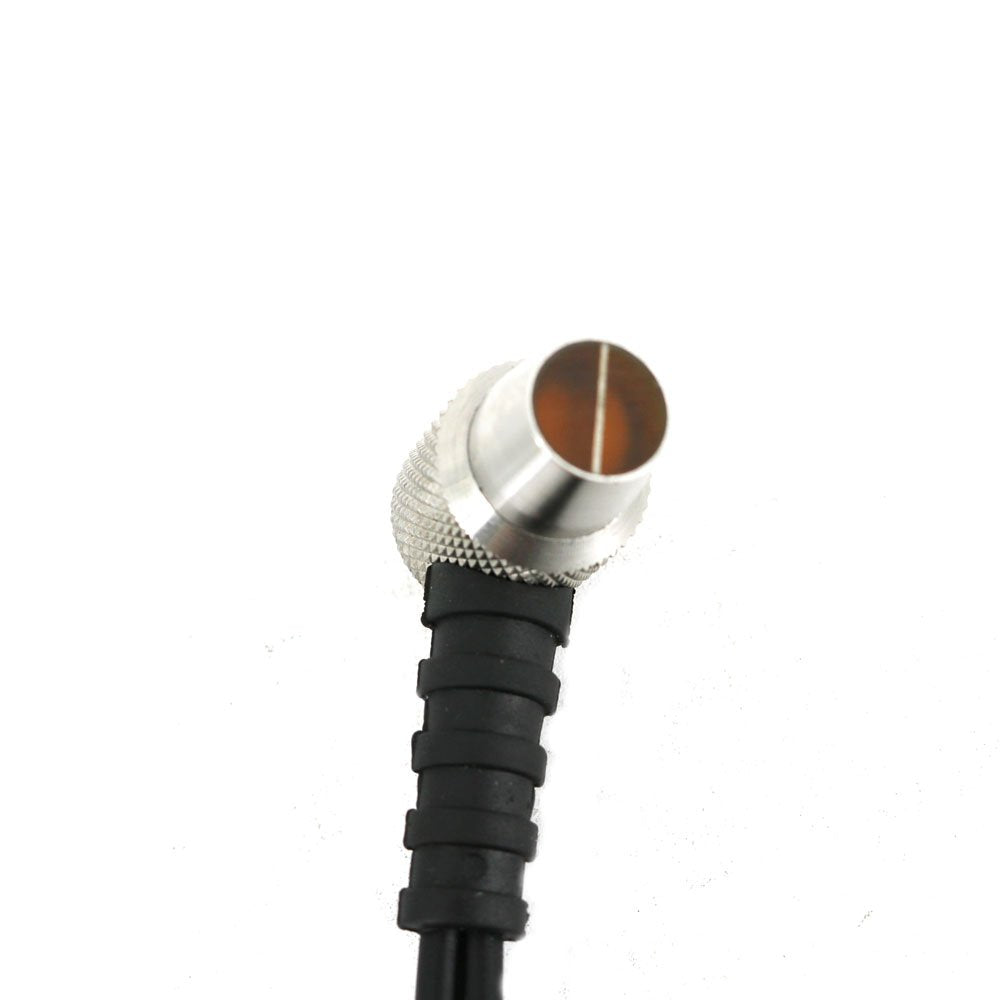

Details: Probes/Transducers Option: PT-08(Standard), PT-12, PT-06, PT-04, ZT-12, GT-12
Operating Principle: P-E (pulse-echo) with dual-crystal probes
Measuring Range: 0.03'' to 12'' in standard mode
Storage: 5 arrays are divided to store 500 thickness values
Repeatability: 0.001''
Display Resolution: 0.001inch
Units: Inch or Millimeter
Update Rate: 4Hz
Material Velocity Range: 0.0394 to 0.3937in/μs
Measuring Limits of Tube(Steel):
Φ20mm × 3.0mm (PT-08 probe)
Φ15mm × 2.0mm (PT-06 probe)
The measuring error is up to ± 0.001''Measuring Error:
Low limit to 0.4'': ±0.004''
0.4'' to high limit: ± ± (1%H+0.1) mm
Note: H is the actual thickness of the testing materialOperating Time:Up to 200 hours with alkaline batteries (without backlight)
Instrument Shut-off: AUTO OFF after 5 minutes of inactivity

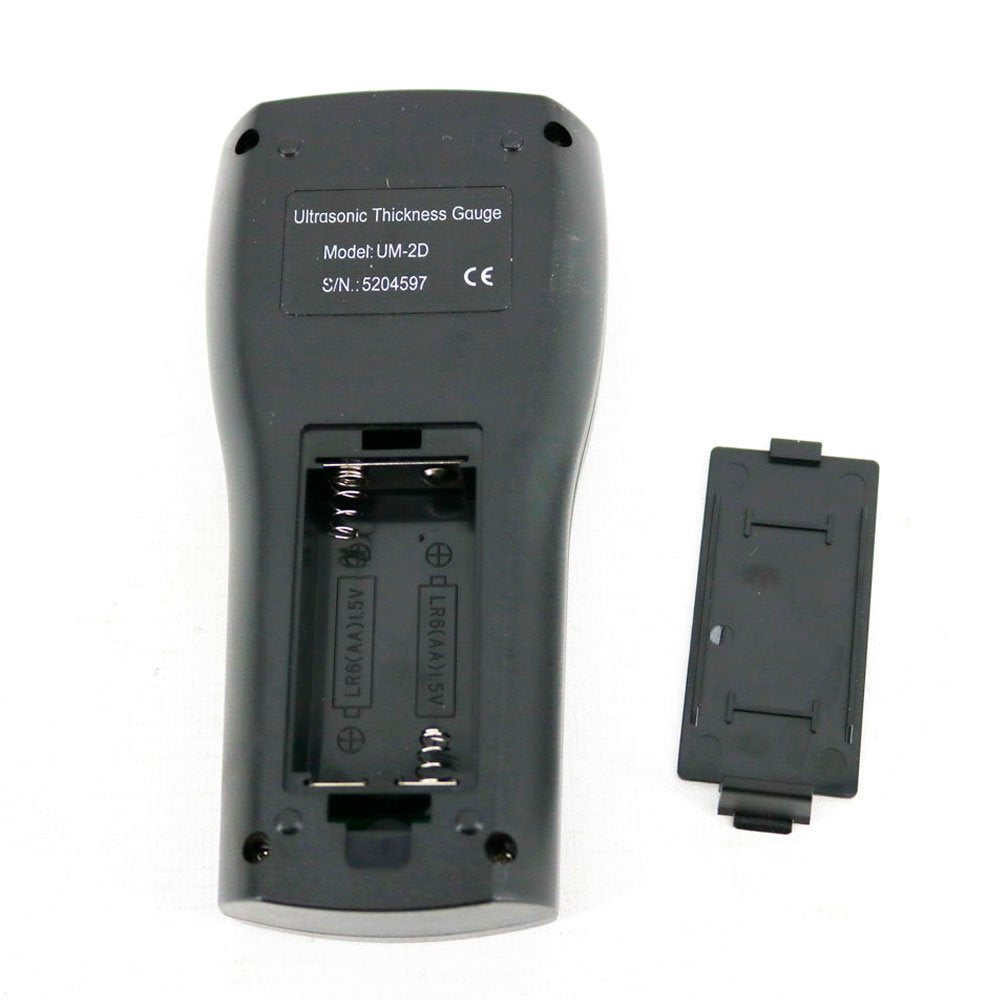

Power Requirements: Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating Temperature: 14°F to 122°F, 4°F in special requirements
Size: 5.8'' X 2.9'' X 1.3''(H X W X D)
Weight: 7.4oz including batteries

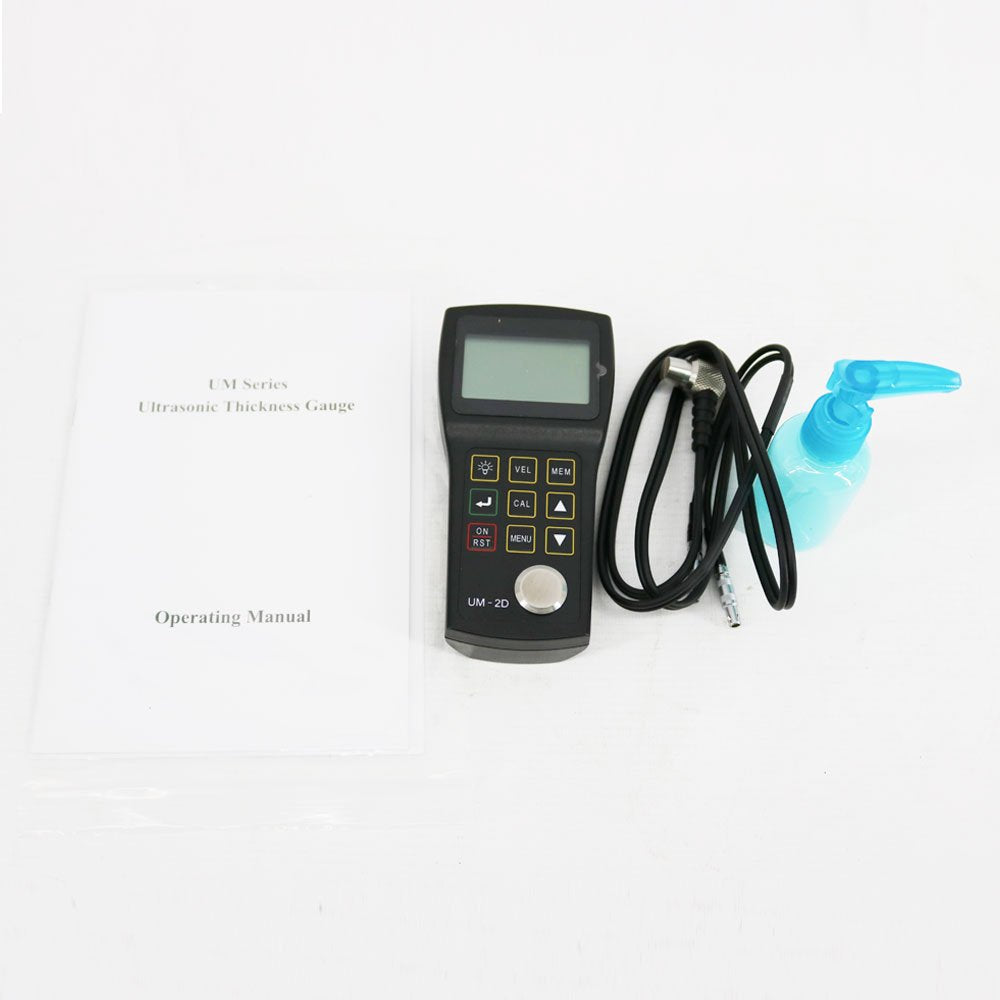

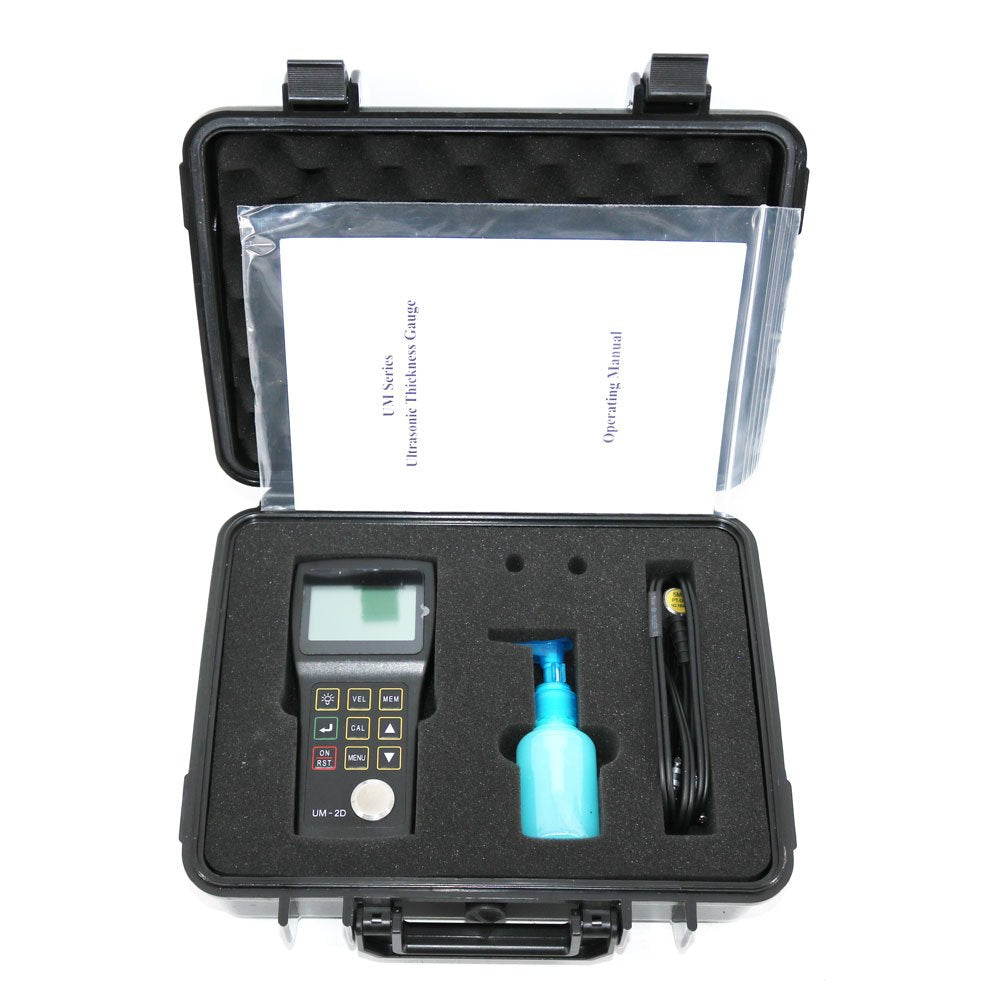

Standard Configuration:

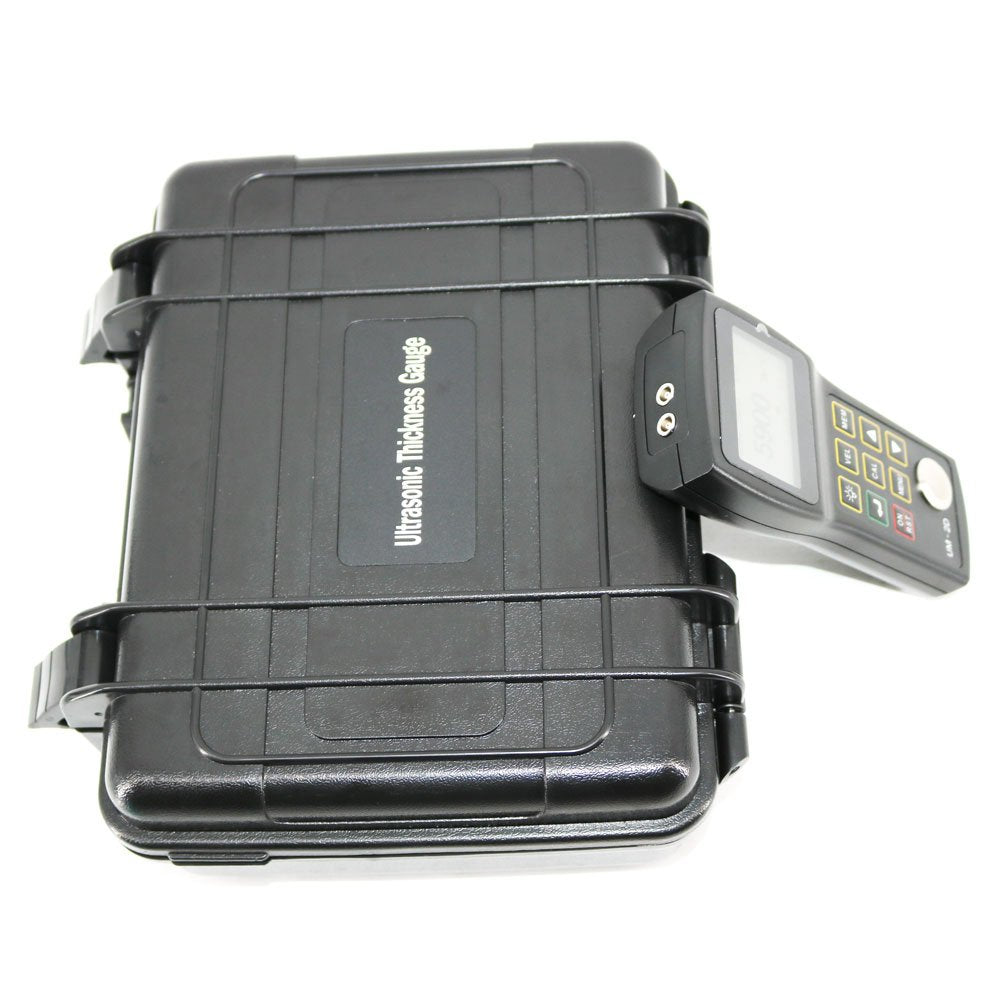

1*Main Unit, 1*PT-08 Probe, 1 * Carrying Case, 1* User Manual
