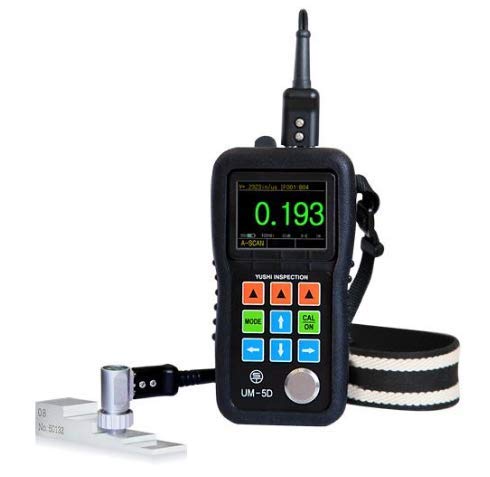

Graigar UM-5D Handheld Portable Ultrasonic Thickness Gauge Paint Thickness Gauge Coating Thickness Gauge 0.02'' to 20'' w/ TC510 Probe, P-E, E-E(Echo to Echo) Through Paint & Coatings

Brand: Graigar

Color: Black

Features:

• Same features as the UM-5, Plus Echo-Echo Mode (Thru Paint & Coatings).
• Utilizing color waveform A-scan and time based B-scan for absolute correctness.
• UM-5D Handheld Portable Ultrasonic Thickness Gauge Measuring range: 0.02'' to 20'' (depends on material, probe and surface condition).
• Up to 40 hours operating time with two AA alkaline batteries, Alternative Auto-Off time.
• Dynamic Waveform and Thickness Color Change on Alarm.

Part Number: UM-5D

Details: This instrument can be widely used in the fields such as manufacturing, metal processing, chemistry and business inspecting for measuring the thickness of all sorts of materials where ultrasonic wave can spread through with a constant speed and get the reflection from the back side
Probes/Transducers Option: PT-08/04/06/12，GT-12，ZT-12，TC110/210/705
Display Type:2.4'' color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle:Pulse echo with dual elements transducers
Measuring Range: 0.02'' to 20.00'' (depends on material, probe and surface condition)
Measuring Resolution:selectable 0.001'', 0.01''
Units:Inch or Millimeter
Rectify Mode:RF+, RF-, HALF+, HALF-, FULL
Display Mode:Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction:Automatic
Update Rate: 4Hz, 8Hz or 16Hz
Material Velocity Range:0.0197 to 0.3939 in/μs
Languages:Chinese, English, Japanese,French, German
Alarm Settings:Minimum and Maximum alarms. Range of 0.010'' to 20.00''. Dynamic waveform color change on alarm
Operating Time:Approximately 40 hours with two AA batteries
Instrument Shut-off: ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature: 14°F to 122°F
Size: 6'' x 3'' x 1.5''
Weight: 270g
What’s in the BOX?
1*Main Unit, 1*Probe, 1 * Carrying Case, 1* User Manual

EAN: 0799649266204
