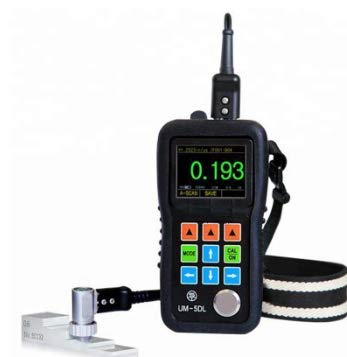

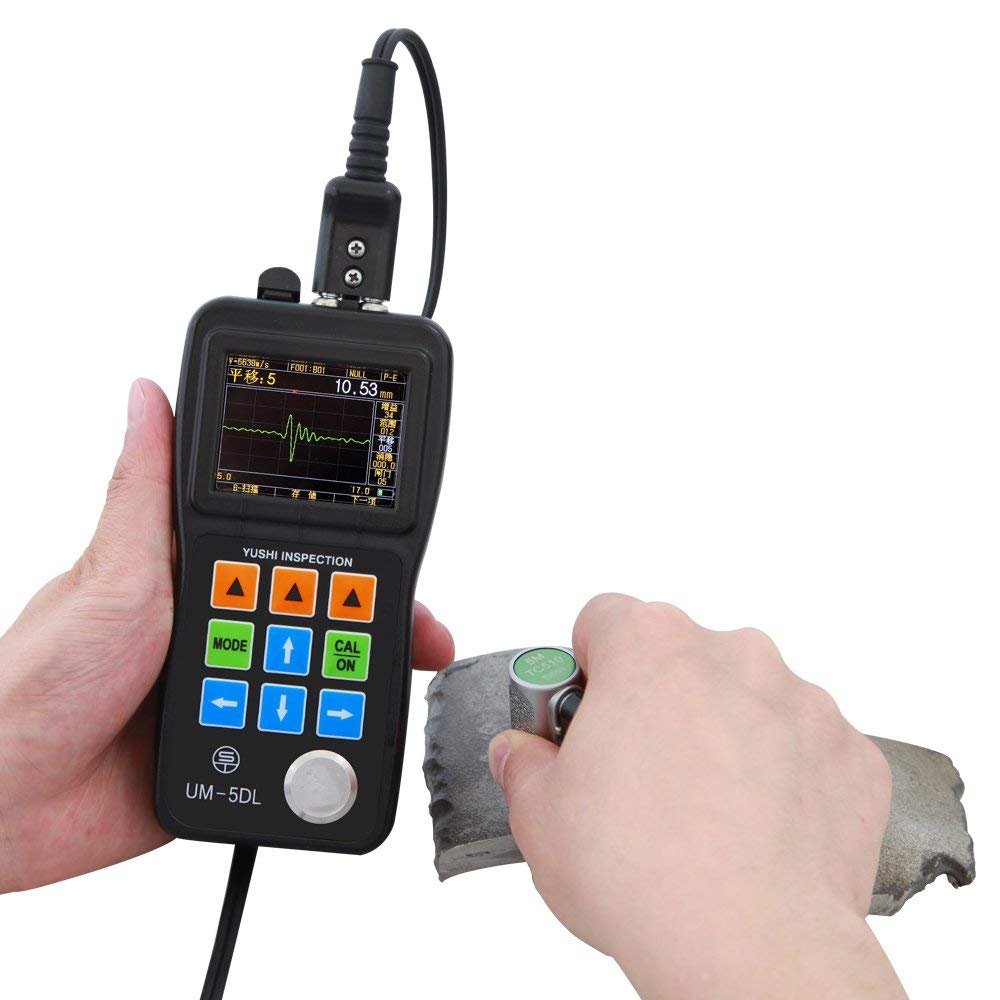

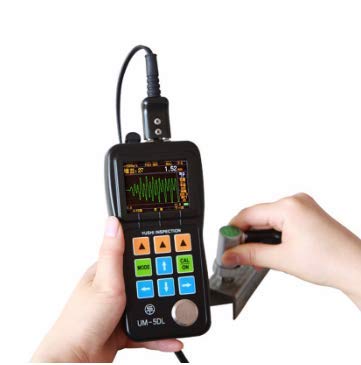

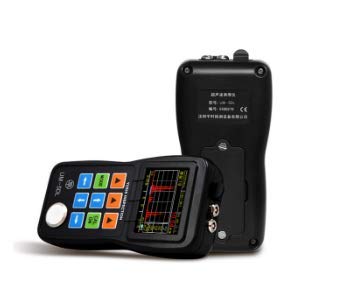

UM-5DL Handheld Portable Ultrasonic Thickness Gauge Tester Meter A&B Scan Portable Thickness Tester Measuring Range 0.50mm to 508mm with TC510 Probe through Paint/Coatings & Data Logger

UM-5DL Handheld Portable Ultrasonic Thickness Gauge Tester Meter A&B Scan Portable Thickness Tester Measuring Range 0.50mm to 508mm with TC510 Probe through Paint/Coatings & Data Logger

$1,990.00 USD
$1,990.00 USD
Sale Sold out

Features:

  • UM-5DL Handheld Portable Ultrasonic Thickness Gauge: Up to 40 hours operating time with two AA alkaline batteries, Alternative Auto-Off time.

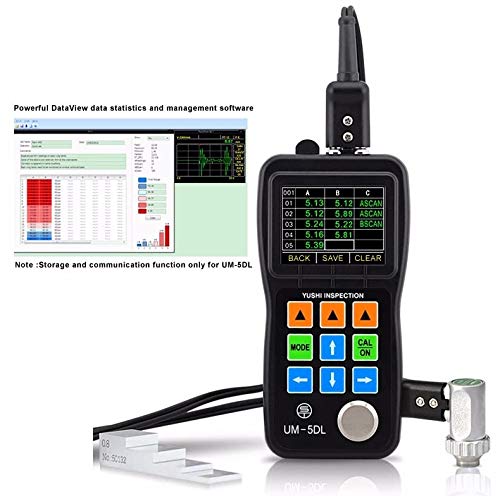

  • Same features as the UM-5D, Plus Data Logger (Stores 100,000 readings & 1000 wave forms),Units includes Transfer Cables & Software.

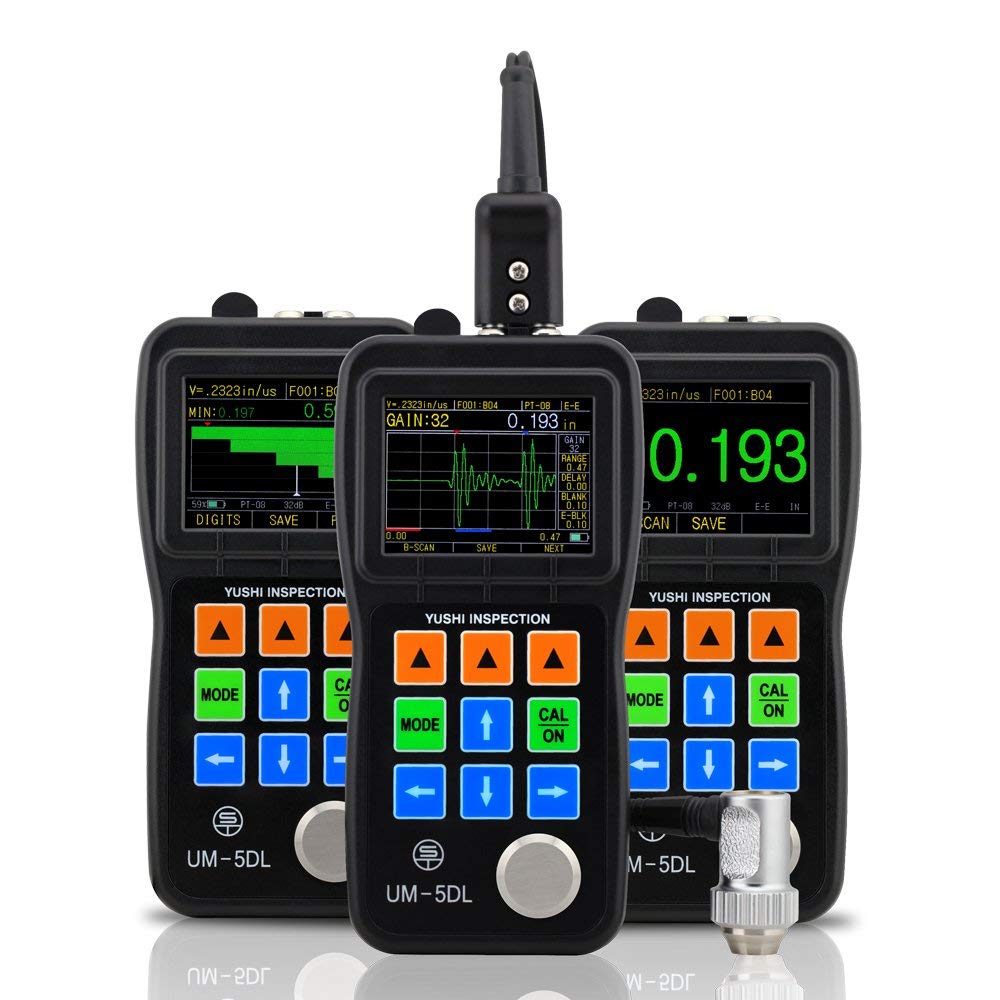

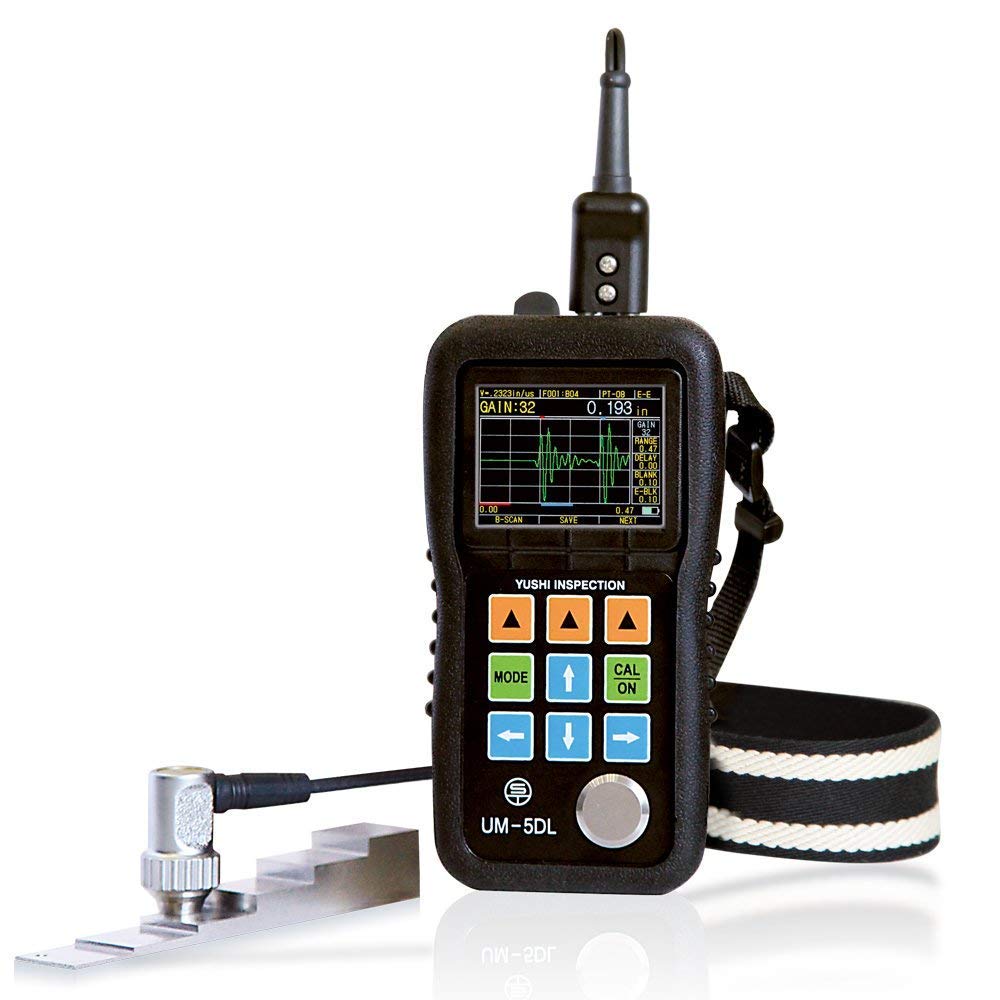

  • Utilizing color waveform A-scan and time based B-scan for absolute correctness.
  • Measuring range: 0.02'' to 20'' (depends on material, probe and surface condition).
  • Dynamic Waveform and Thickness Color Change on Alarm.
Display 2.4" QVGA (320×240) color screen, contrast ratio 10000:1
Operating Principle Ultrasonic Pulse/Echo and Echo/Echo methods using a dual-element probe
P-E Mode Range 0.5 to 508 mm (0.025 to 20.00 inches), depend on probe, material, and surface condition
P-E Mode Range 3 to 50 mm, depend on probe, material, surface condition, and temperature
Resolution 0.01 or 0.1 mm (0.001 or 0.01 inch)
Units Millimeters or Inches
Gain Adjustable in real-time
Calibration Modes One-Point Calibration, Two-Point Calibration
Measurement Error

±0.05 mm (H<10mm)

±(0.5% H + 0.01 mm) (when H≥10mm)

Note: H is the thickness of the material under test.
Update Rate Selectable: 4 Hz, 8 Hz, or 16 Hz per second
Sound Velocity Range 500 - 9999 m/s, 0.0179 - 0.3937 in/µs
Measurement Stability Utilizes zero-crossing measurement technology. Thickness readings are unaffected by echo amplitude, volume attenuation coefficient, gain, or gate height, ensuring high measurement stability and accuracy.
Repeatability ±0.05 mm
Display Modes

Thickness Value Mode

Min/Max Value Capture Mode

Diff./Reduction Rate Mode
V-Path Compensation Compensates for the non-linearity of dual-element probes
Languages Selectable from five languages: Chinese, English, Japanese, German, French
Alarm Settings Max/Min Value Alarm (Dynamically change reading color when alarm occurs)
Power Supply Two 1.5V AA batteries
Operating Time Standby time: 24 hours (with two 1.5V AA batteries)
Auto Power Off Automatic shutdown after 5, 10, or 20 minutes of no operation, or manual shutdown
Operating Temperature -10℃ ~ +50℃ (can reach to -20℃ upon special request)
Dimensions 153mm × 76mm × 37mm (H×W×D)
Weight 280g (including batteries)
Standard Packing

Thickness Gauge Main Unit

Standard Probe TC510

Probe Cable LEMO 00-LEMO 00

Rubber Protective Case

Carrying Case

Couplant Bottle

Operation Manual

Packing List

Data Communication Cable (1 piece)

Software (1 piece)
