Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.

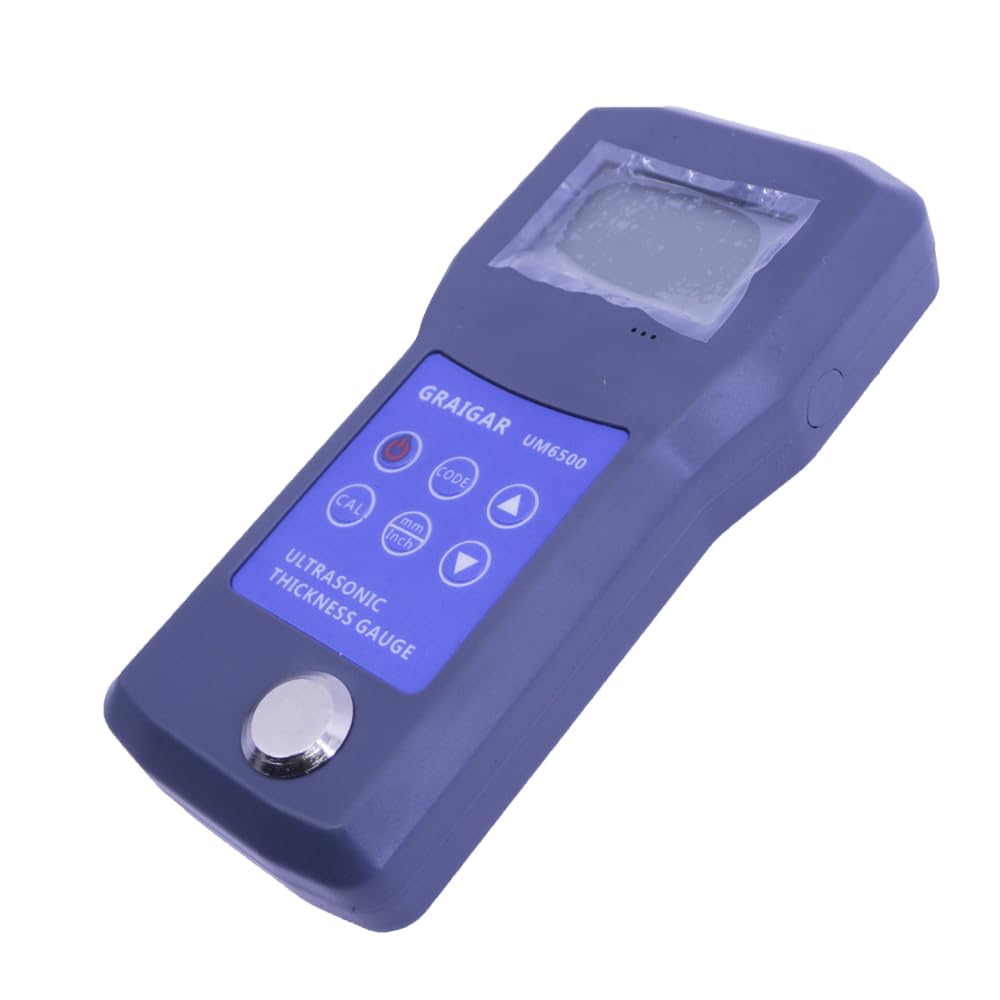

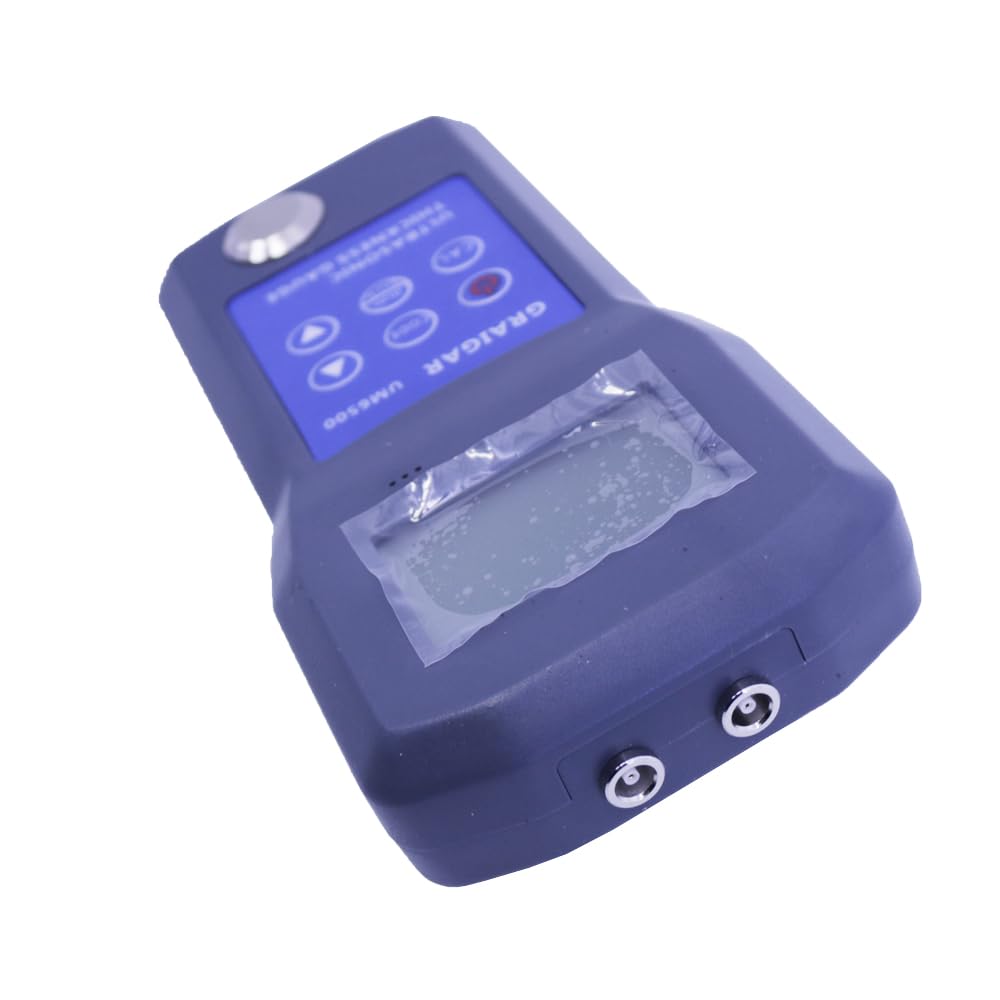

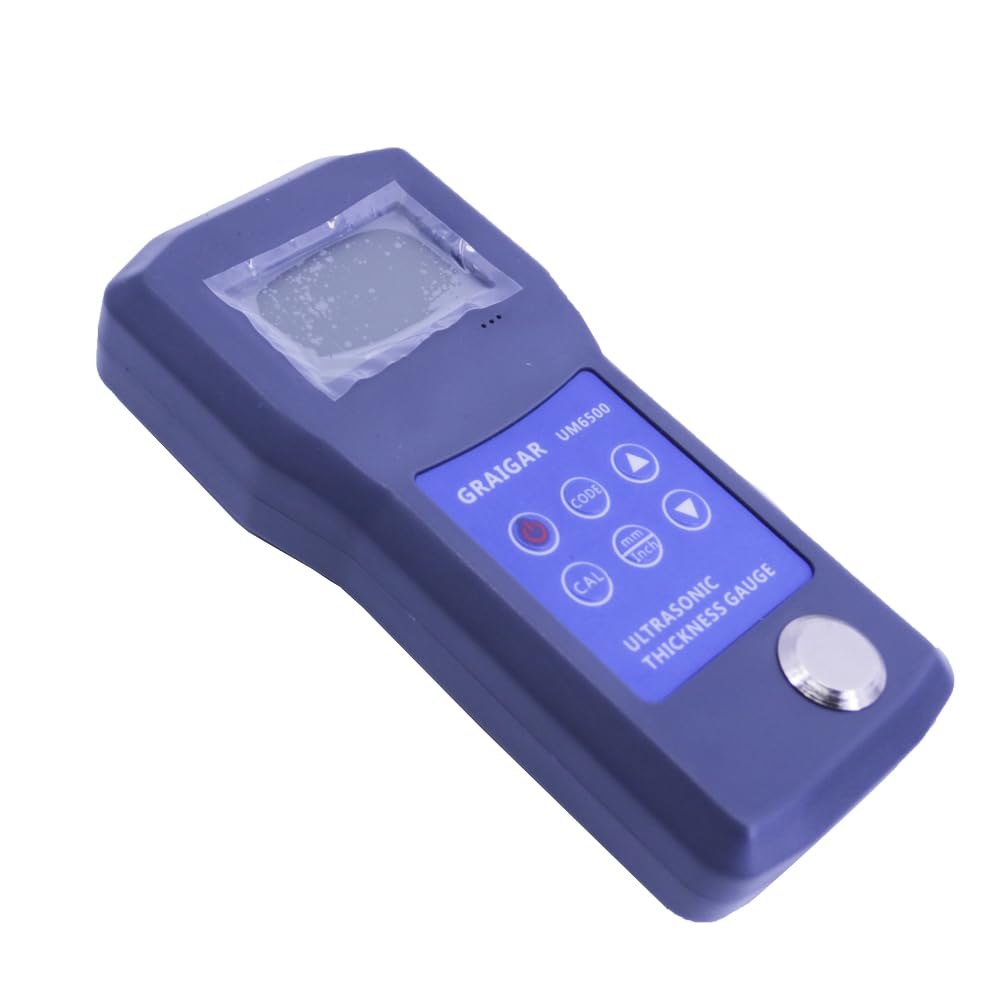

model number: UM6500
Part Number: UM6500
Details: Specifications

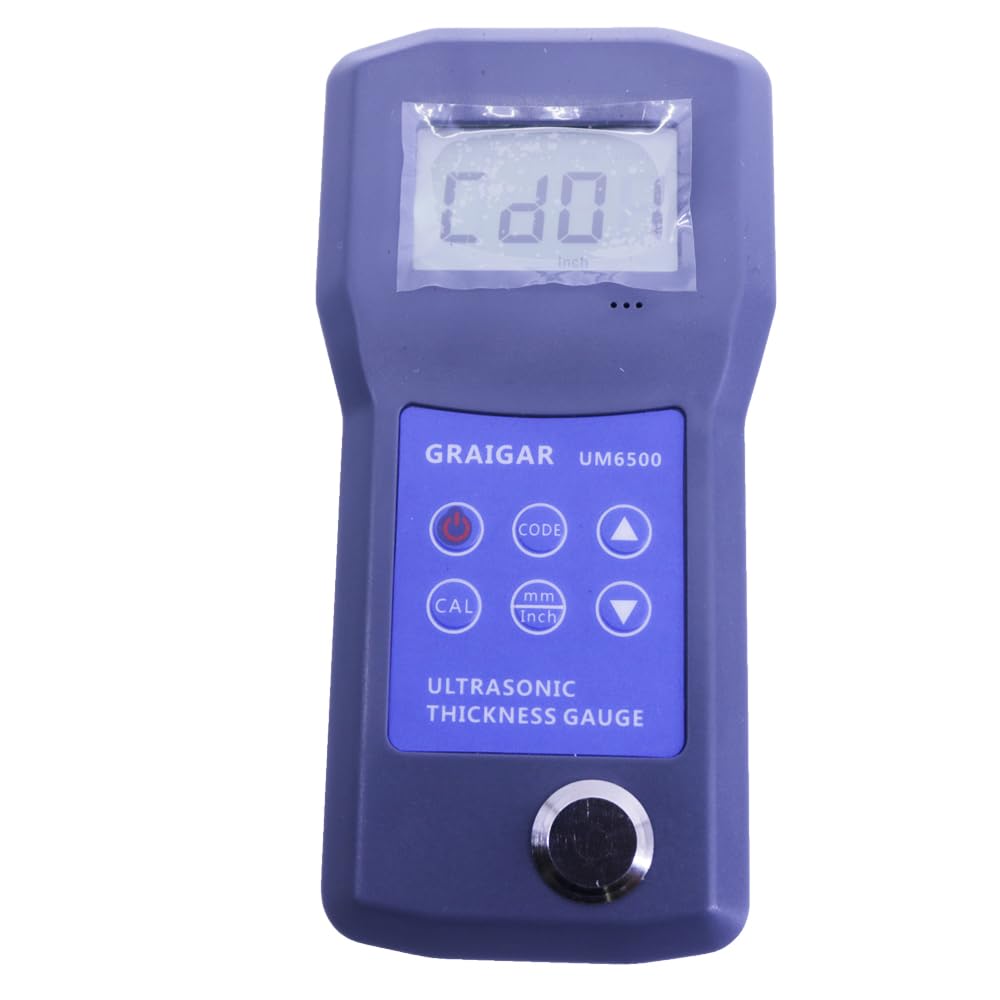

1)Display:4.5 digits LCD with EL backlight.
2)Operating principle:
ULTROSONIC
3)Measuring range (metric/imperial):
1.0-245mm,0.05-8inch (in Steel).
4)Resolution: 0.1mm;
5)Accuracy:
±(0.5%H+0.1)mm, depends on materials and conditions
6)Units: Metric/Imperial unit selectable.

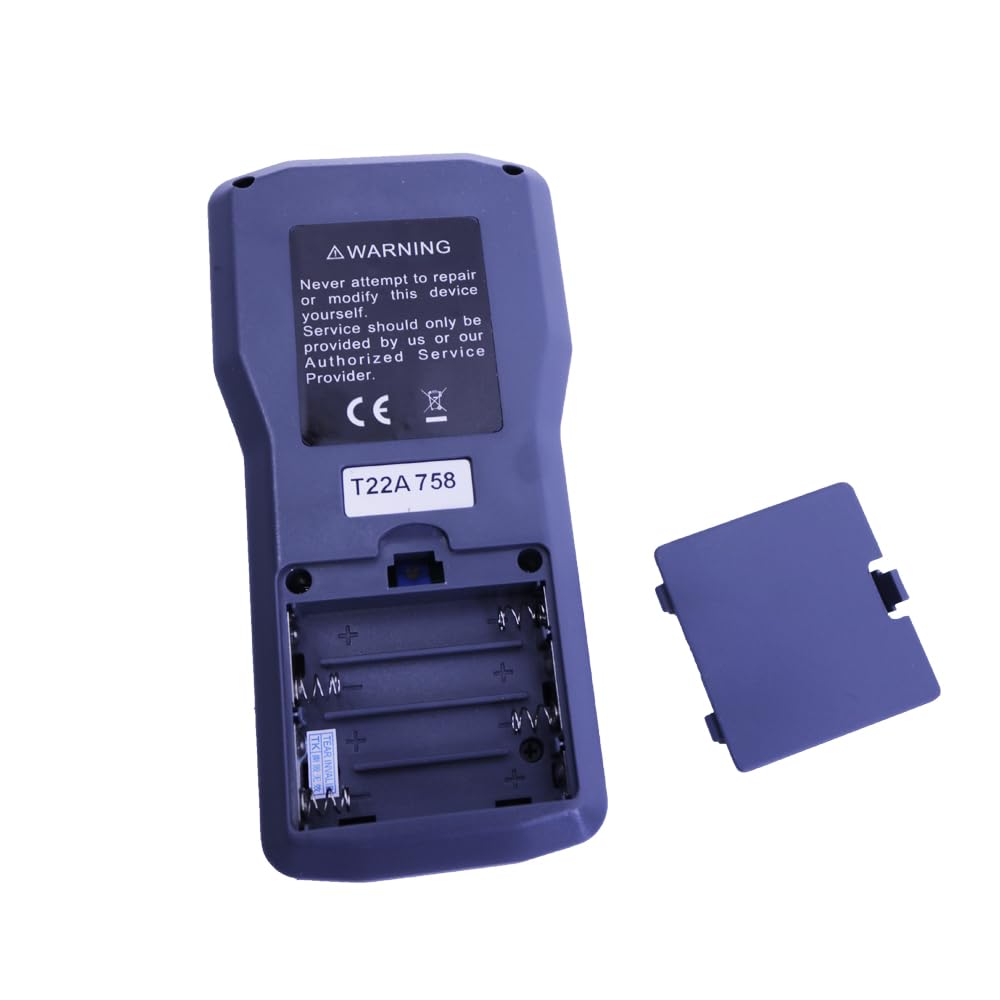

7)Power supply:
4x1.5 AAA size (UM-4) battery(The batteries are not included)
8)Battery indicator: low battery indicator
9)Operating conditions:
0-+45℃(32℉-104℉)
≤90%RH
10)Dimensions:
Main Unit 140mm×60mm×22mm
11)Gloss Weight :1KG

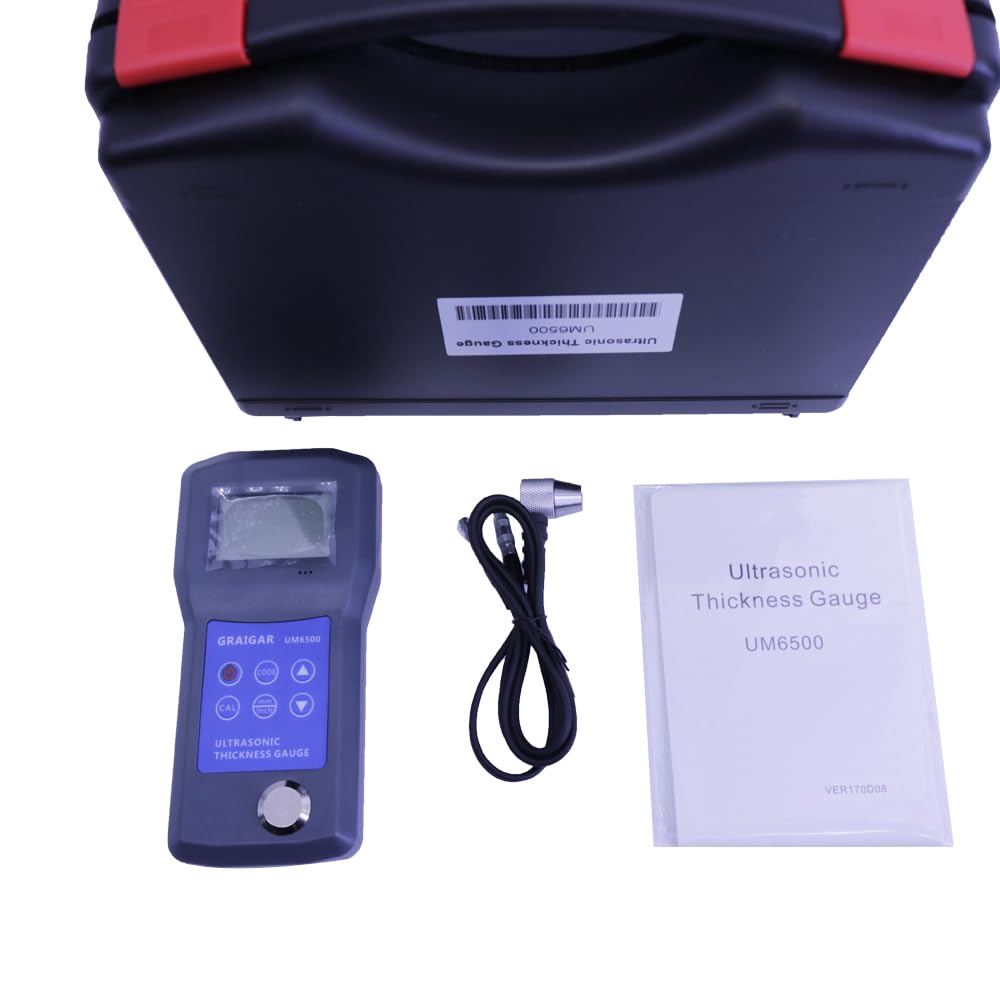

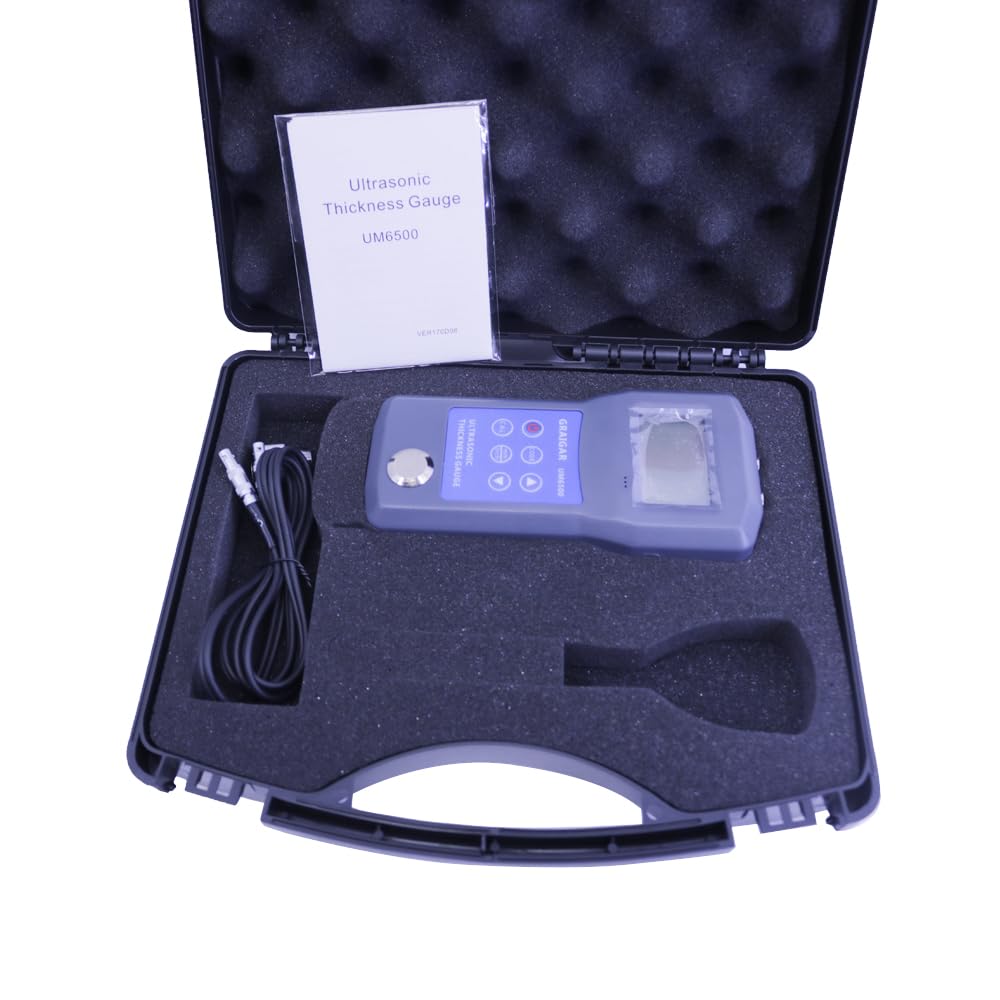

12)Standard:
Main Unit,8mm Probe,
User Manual ,

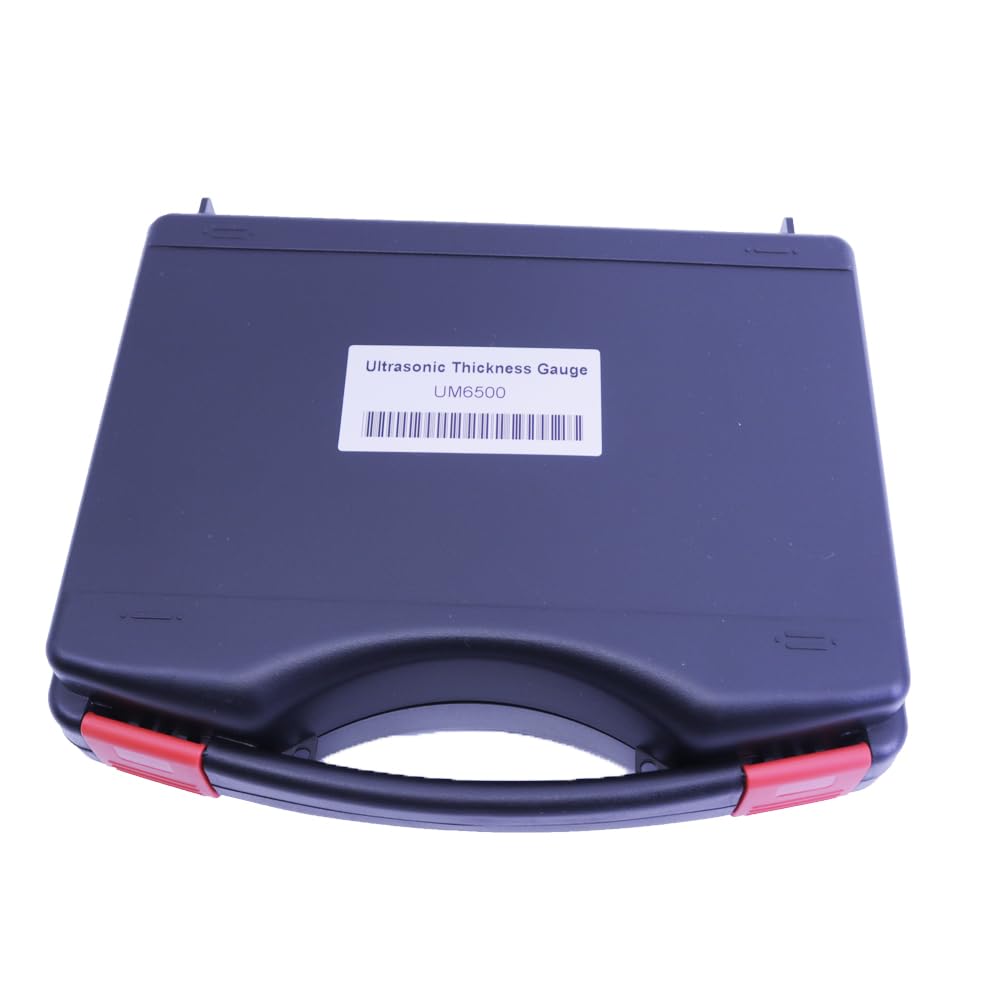

Carrying Case.
