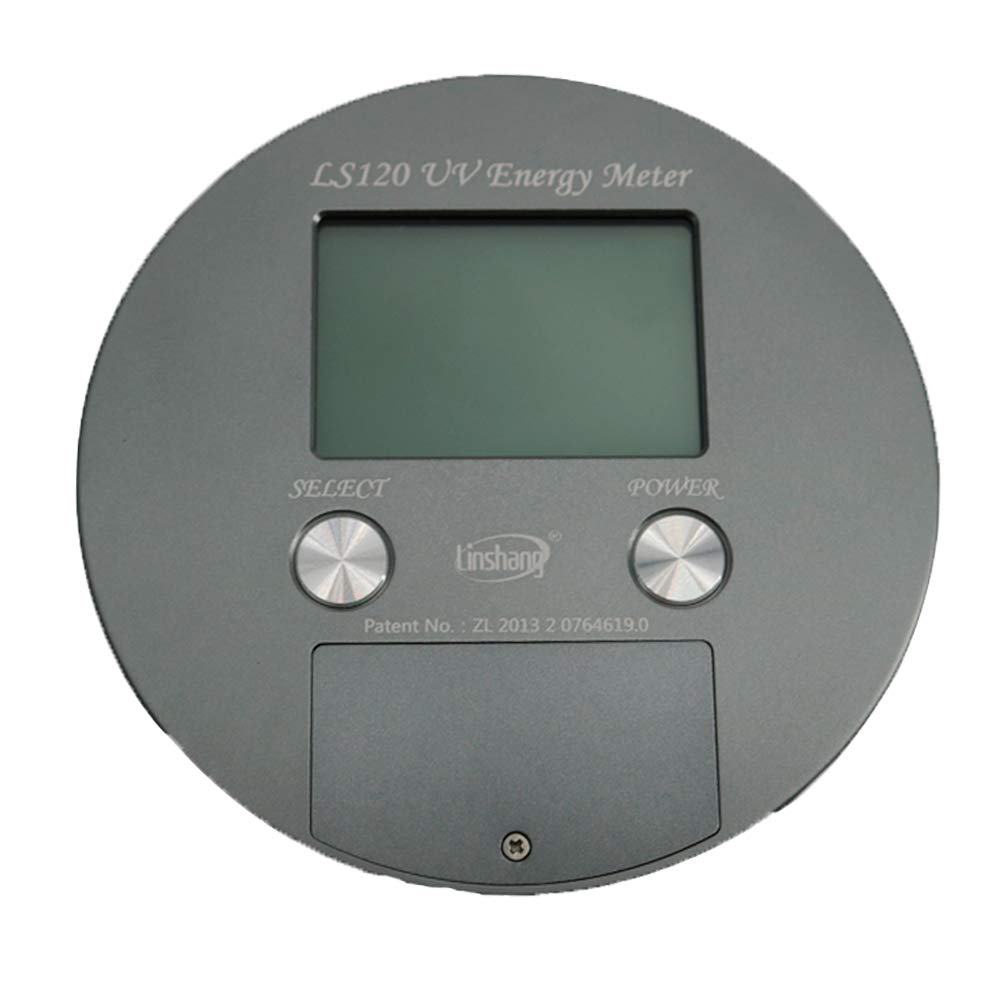

Graigar UV Energy Meter LS120 Test Energy Power Temperature Time Ultraviolet Integrator Radiometer for UV Curing Basic On HPML

Brand: Graigar

Features:

• LS120 UV energy meter is with high accuracy, and has passed many tests of authoritative testing organizations and got certificates.
• It has a high precision fast response temperature sensor and can measure the real temperature in the curing machine dynamically.

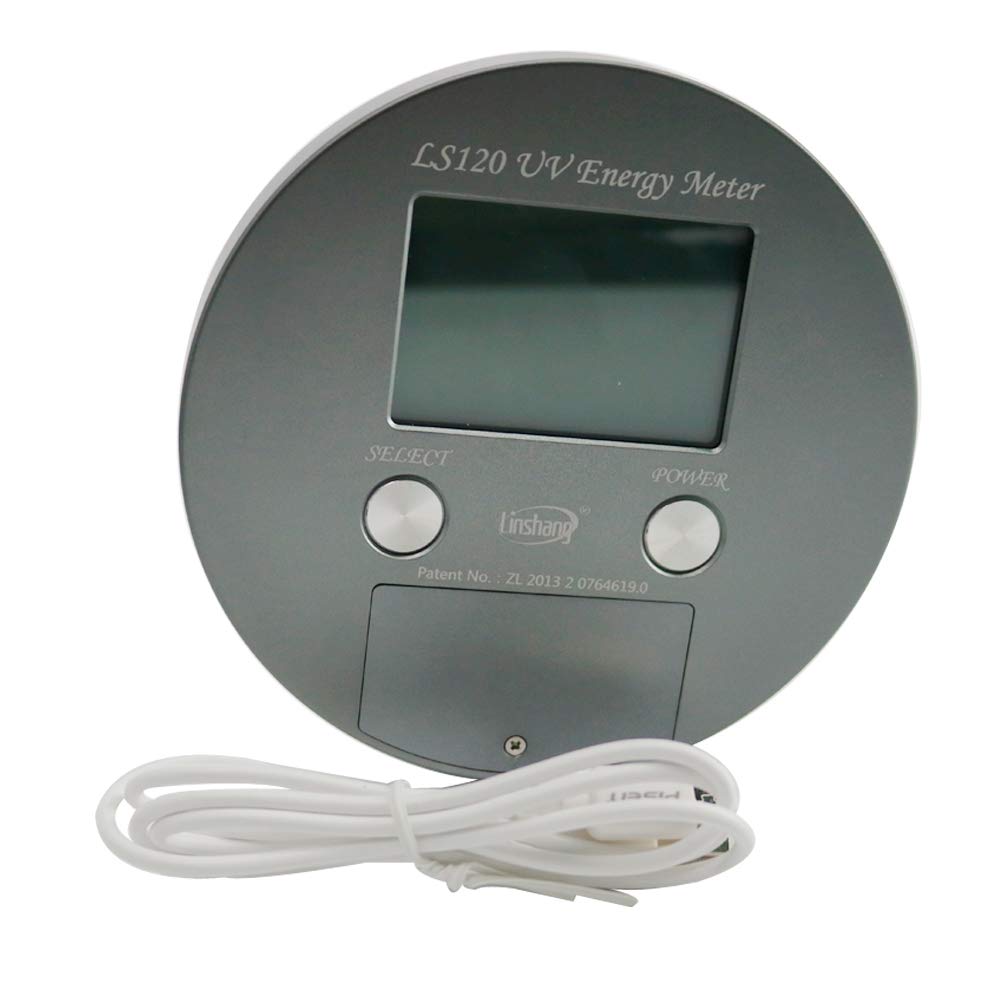

• It is equipped with a USB port, and the computer software can read the record data, drawing curves and print out testing reports.
• It is the real smart UV energy meter with a large LCD to display the temperature and irradiance curve directly.
• The stored data will not be lost when the the power is off and the last testing data will be displayed automatically when power is on; the test data can only be deleted manually.

Part Number: LS120

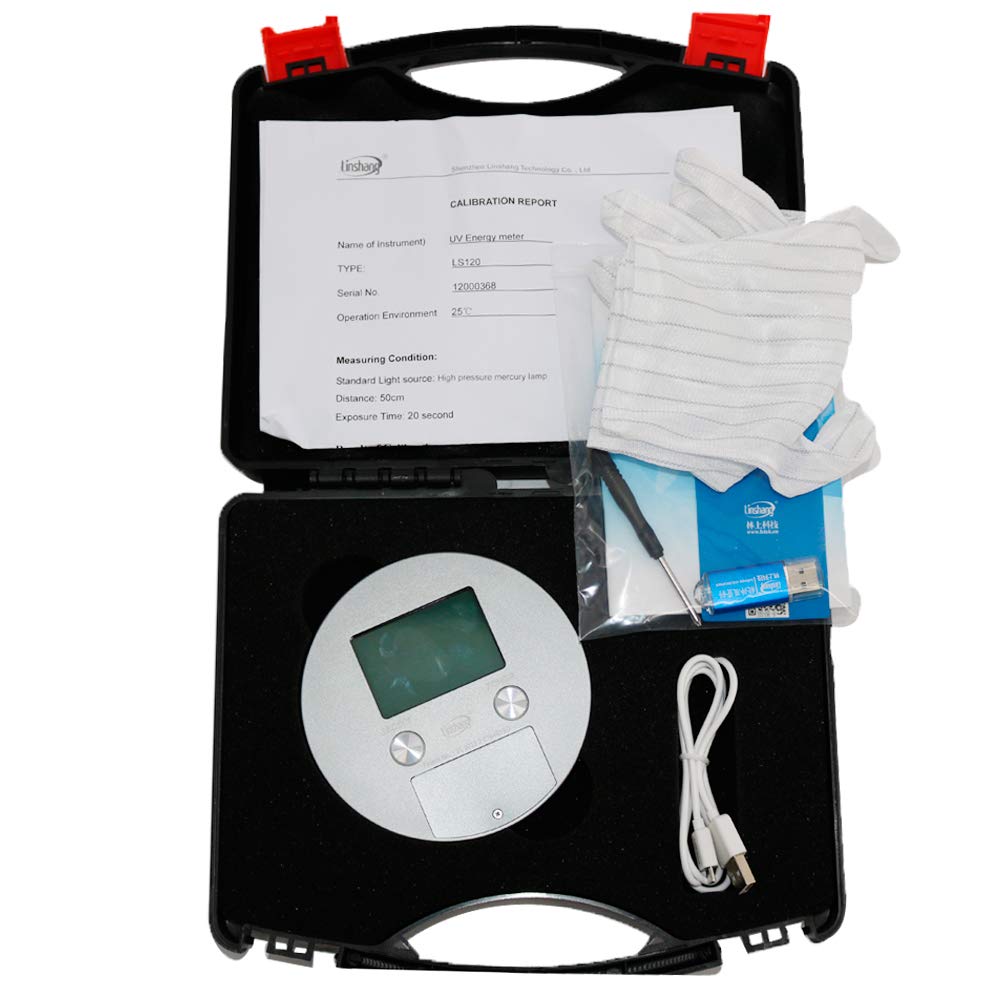

Details: LS120 UV Energy Meter can measure the UV energy density, UV irradiance and temperature at the same time. It can be used to:
1. Detect the UV energy density, UV irradiance and temperature of UV curing machine.
2. Measure the UV irradiance and temperature of machines, such as UV drying machine, exposure machine and printing machine etc.

Characteristics of UV Energy Meter LS120:
1.It is the real smart UV energy meter with a large LCD to display the temperature and irradiance curve directly.
2. It is equipped with a USB port, and the computer software can read the record data, drawing curves and print out testing reports.
3. It has a high precision fast response temperature sensor and can measure the real temperature in the curing machine dynamically.
4. It has a built-in heat resisting sheet, can resist high temperature and operate at 100℃ for long time.
5. A built-in large memory and can record irradiance data up to 60,000 and temperature data up to 3800.

Parameters of UV Energy Meter LS120 :
1. Spectral range: 320nm --- 390nm Peak Weavelength = 365nm
2. Irradiance measuring range: 0 --- 2000mW/cm2
3. Irradiance resolution: 0.1 mW/cm2
4. Energy measuring range: 0 --- 999999mJ/cm2
5. Energy measuring accuracy: +/- 10%, +/- 5% (typical)
6. Temperature measuring range: -550C --- +1250C
7. Sampling speed: 2048 times/second
8. Irradiance data storage interval: 32 times/second
9. Temperature data storage interval: 16 times/second
10. Recording period: 32 times
11. Power supply: 2 AAA alkaline dry batteries

EAN: 0799649263517
