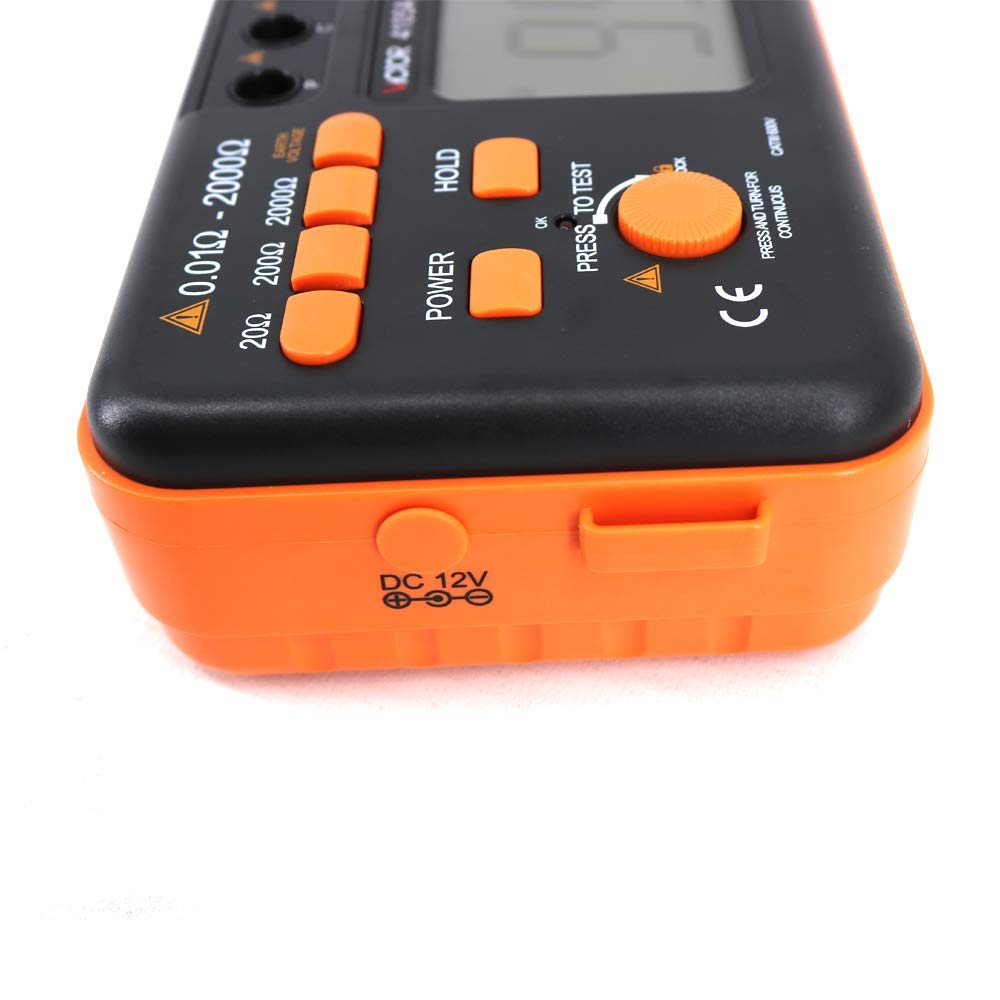

Graigar Victor 4105A Digital LCD Ground Earth Resistance Tester Meter Current 200V Tester VC4105A Digital Earth Ground Resistance Tester Meter Resistivity Tester Earth Electrical Meter 20Ω-2000Ω

Brand: Graigar

Color: Black&orange

Features:

• Victor 4105A digital LCD ground earth resistance tester is a new generation of electrical test instruments, beautiful and practical style
• Victor 4105A can be used to measure a variety of power systems, electrical equipment, lightning protection equipment grounding system grounding resistance value, it can also measure AC voltage
• Full-featured, high accuracy, convenient and reliable operation, dustproof moisture-proof structure, better suited to field use
• 20Ω: 0.01Ω/±(2%+0.1Ω)
• 200Ω: 0.1Ω/±(2%+3dgt)

Part Number: Victor 4105A

Details: Specification:
Ground resistance
Range: Resolution/Accuracy
20Ω: 0.01Ω/±(2%+0.1Ω)
200Ω: 0.1Ω/±(2%+3dgt)
2000Ω: 1Ω/±(2%+3dgt)
Ground current ( AC current)
200V: 0.1V/±(2.0%+6dgt)
Display: 84.8×59.8mm LCD display, max display “1999”.
Over range presentation: it will display “1”on the top number when it is over range
Power: alkalescence battery LR (1.5V)×8(can contact with power adapter)when the battery is low, it will display a low battery sign
Power Dissipation: Electricity cost during test<800mw
Work environment: Teperature 0-40 ; relative humidity 30%-80%RH
Product size: 175(L)×110(W)×70(D)mm
Weight: Approx : 680g

EAN: 0799649265894
