Graigar VM-6360 Digital Vibration Meter Tester Vibrometer Gauge VM6360 with RS232 Software and USB Cable

Brand: Graigar

Color: Black

Features:

• Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
• Individual high quality accelerometer for accurate and repeatable measurements.
• Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface.
• In accordance with ISO 2372, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
• Automatic power shut off to conserve power.

model number: VM-6360

Part Number: VM-6360

Details: Features:

1. In accordance with ISO 2372, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
2. Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
3. Individual high quality accelerometer for accurate and repeatable measurements.
4. LCD digital display.
5. Lightweight and easy to use
6. Automatic power shut off to conserve power.
7. Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface.

Specifications:
Filter baud: D P
Acceleration: 10Hz-1KHz 0.1-200m/s⊃2; 20.1-400m/s⊃2;
10Hz-10KHz 0.3-200ft/s⊃2; 0.3-1312ft/s⊃2;
Velocity: 10Hz-1KHz 0.1-8.0inch/s 0.1-400mm/s, 0.004-16.0inch
Displacement 10Hz-1KHz 0.001-2.0mm/0.04-80mil 0.001-4.0mm /0.04-160 mil
Accuracy: <5%
Auto power off
RPM (revolution): 5-100000r/min
Frequency: 0.1 to 10KHz
Metric/imperial conversion
With RS232C interface
Max hold
Operating conditions: 0-+45C(32F-104F), =90%RH

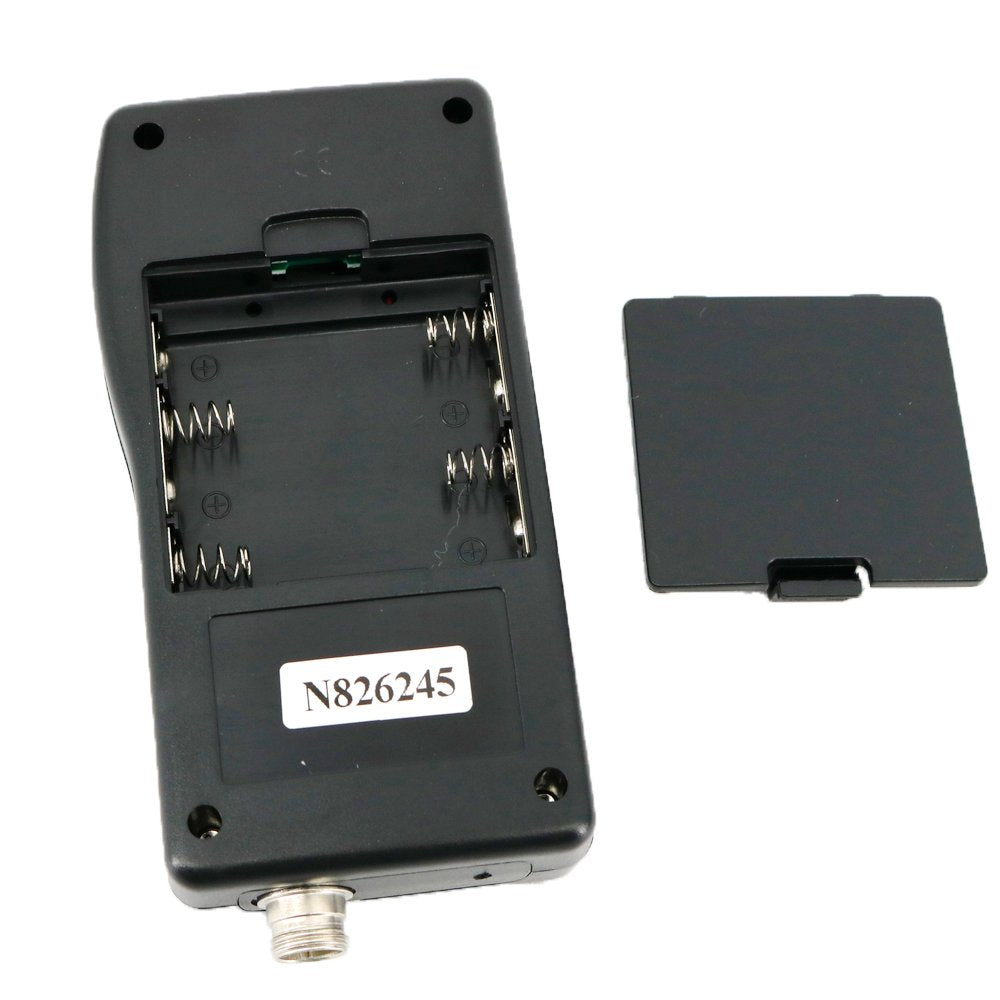

Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Dimensions: 124x62x30mm (4.88x2.44x1.18 inch)
Weight: 120g / 0.26lb (not including battery)

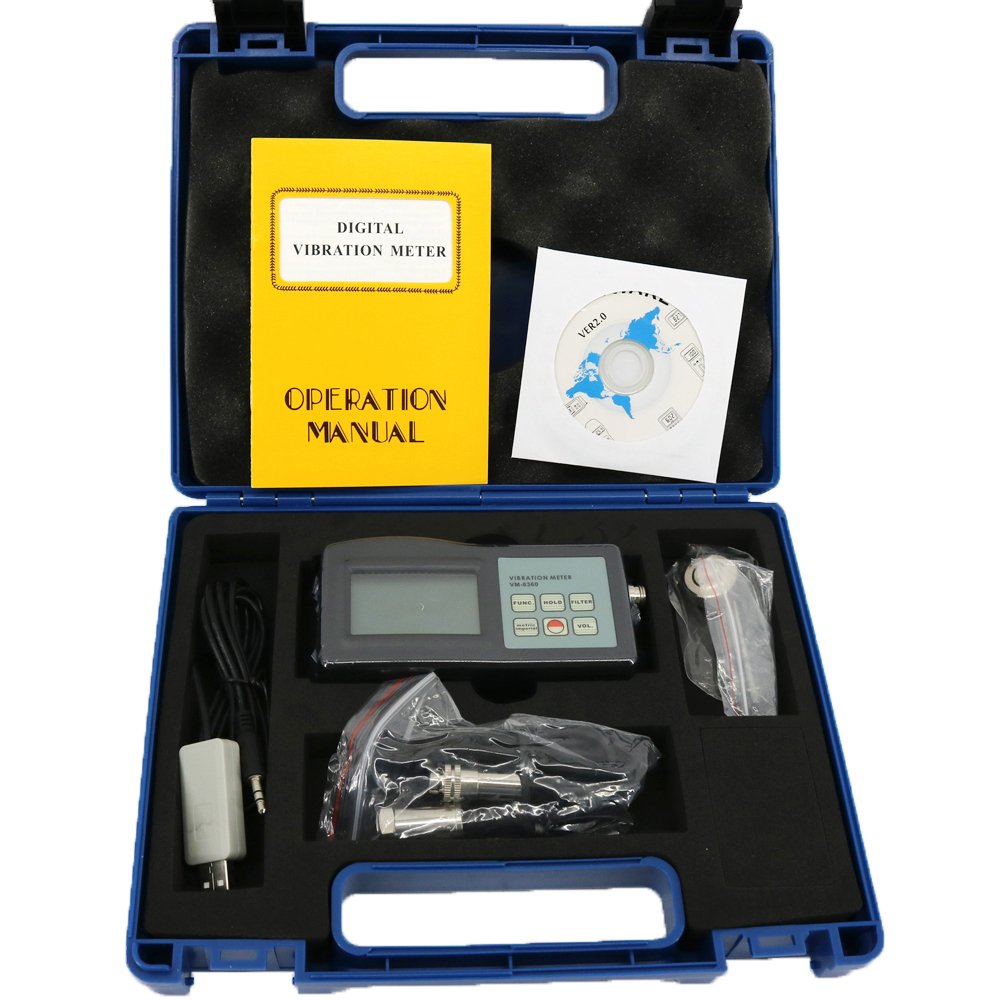

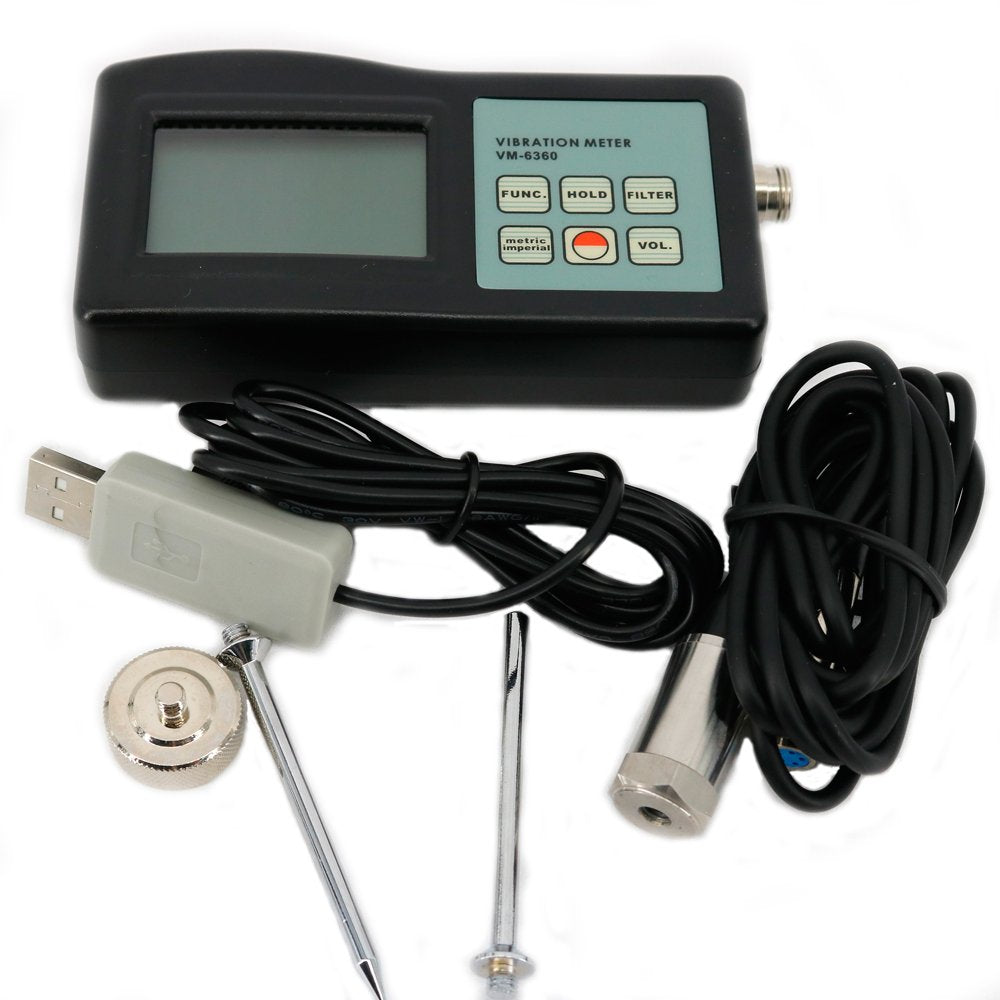

Standard Accessories:

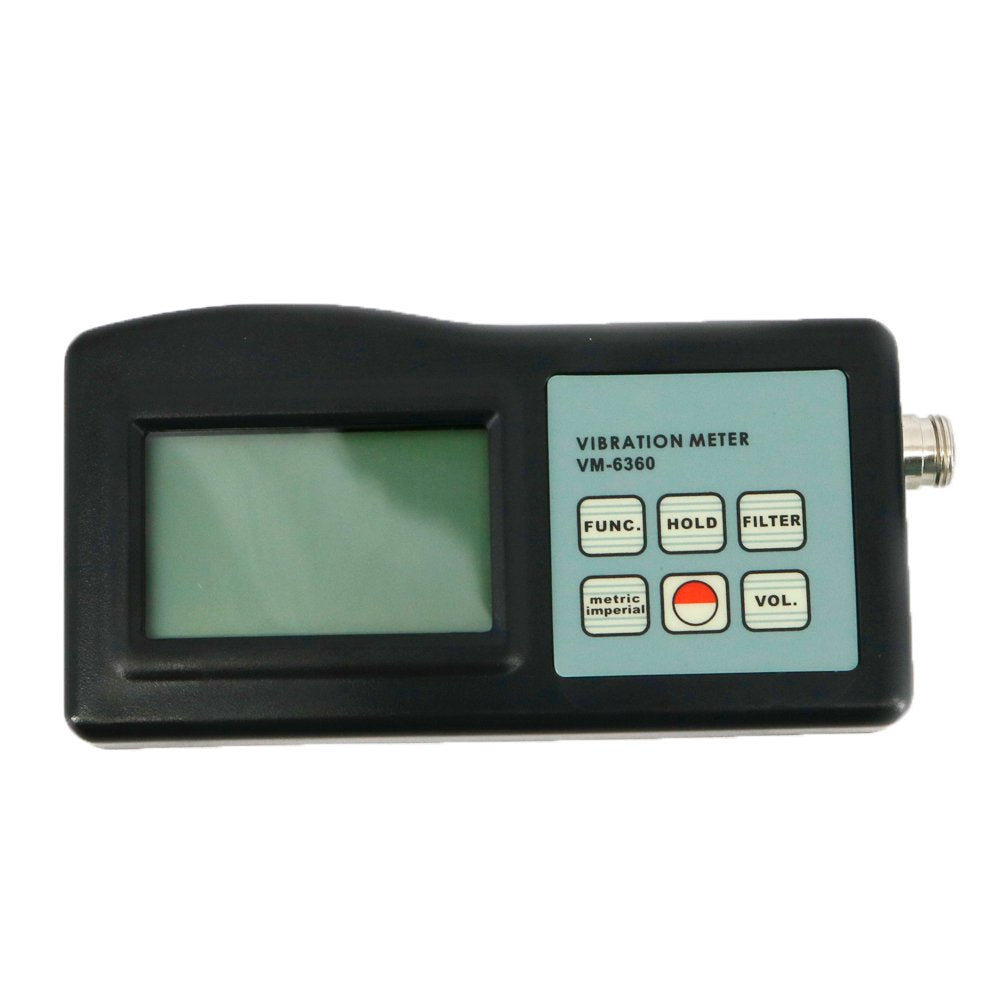

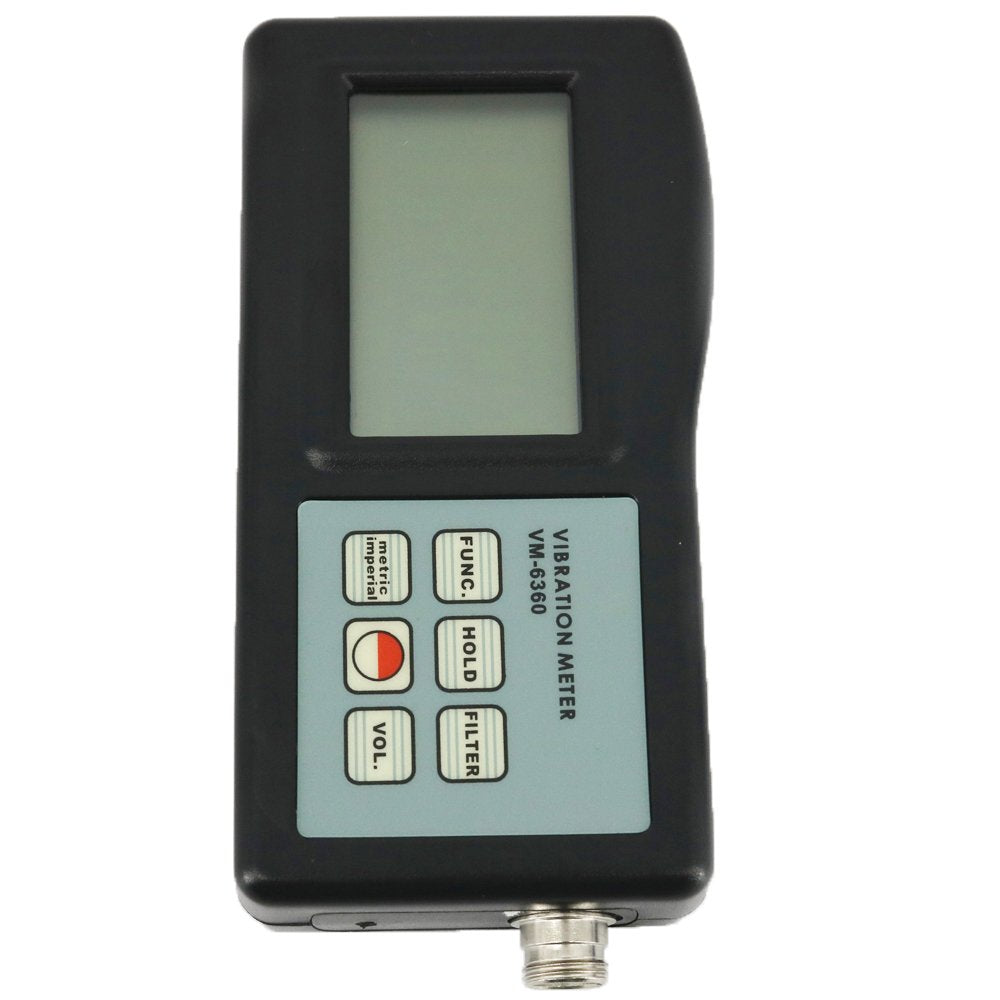

1. Main Unit
2. Magnetic Suction Seat

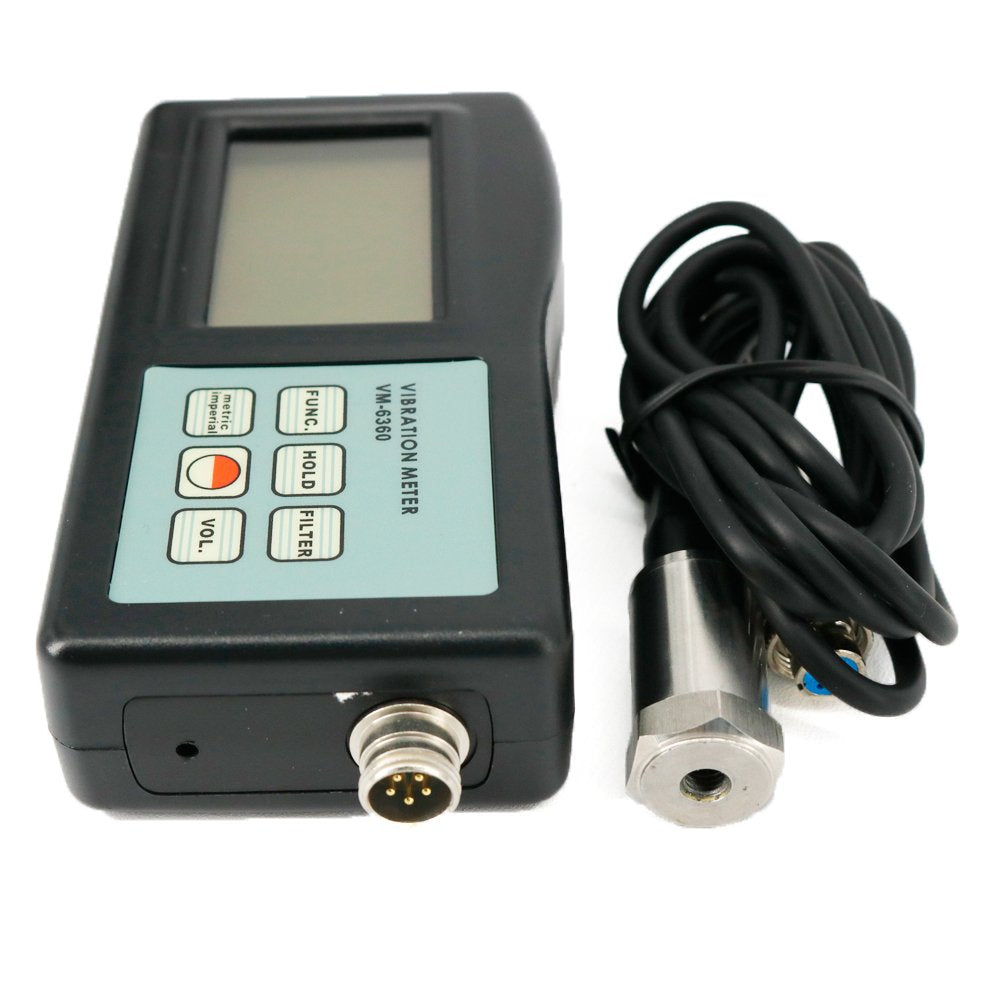

3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)

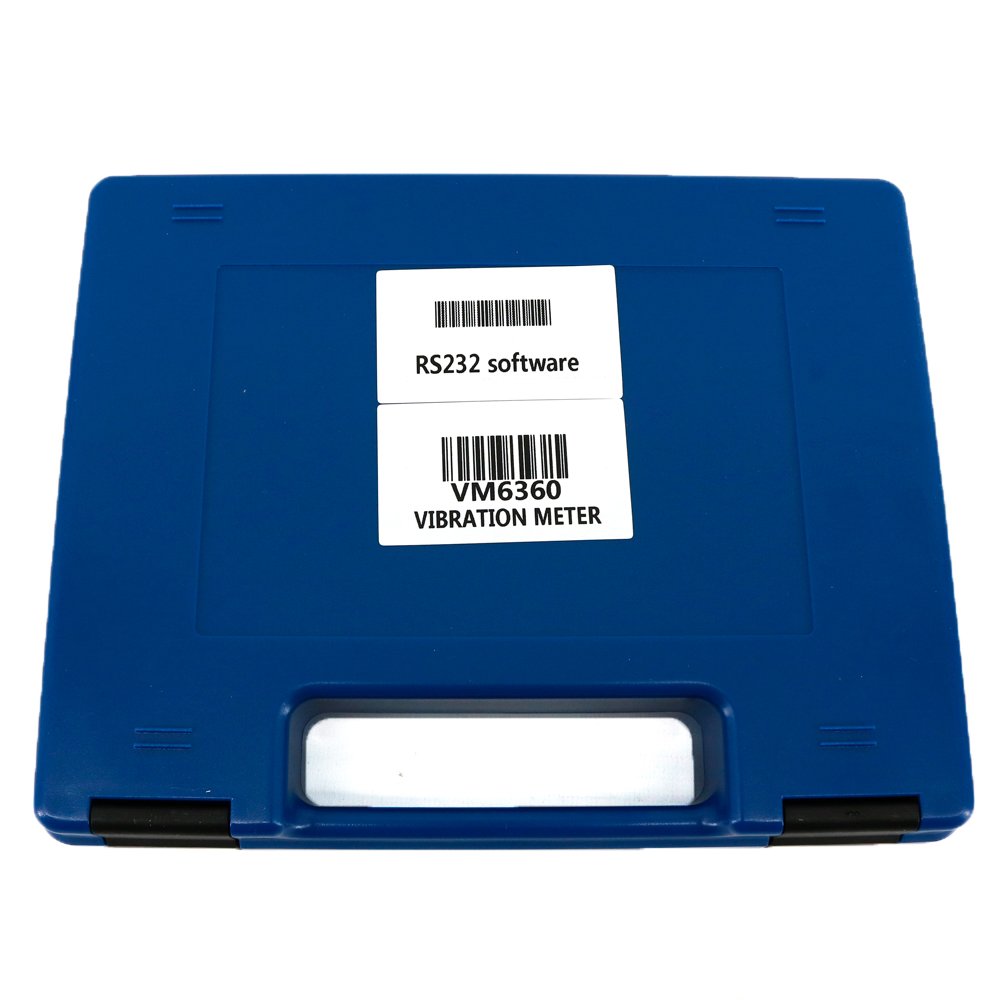

6. Carrying Case
7. Manual Book

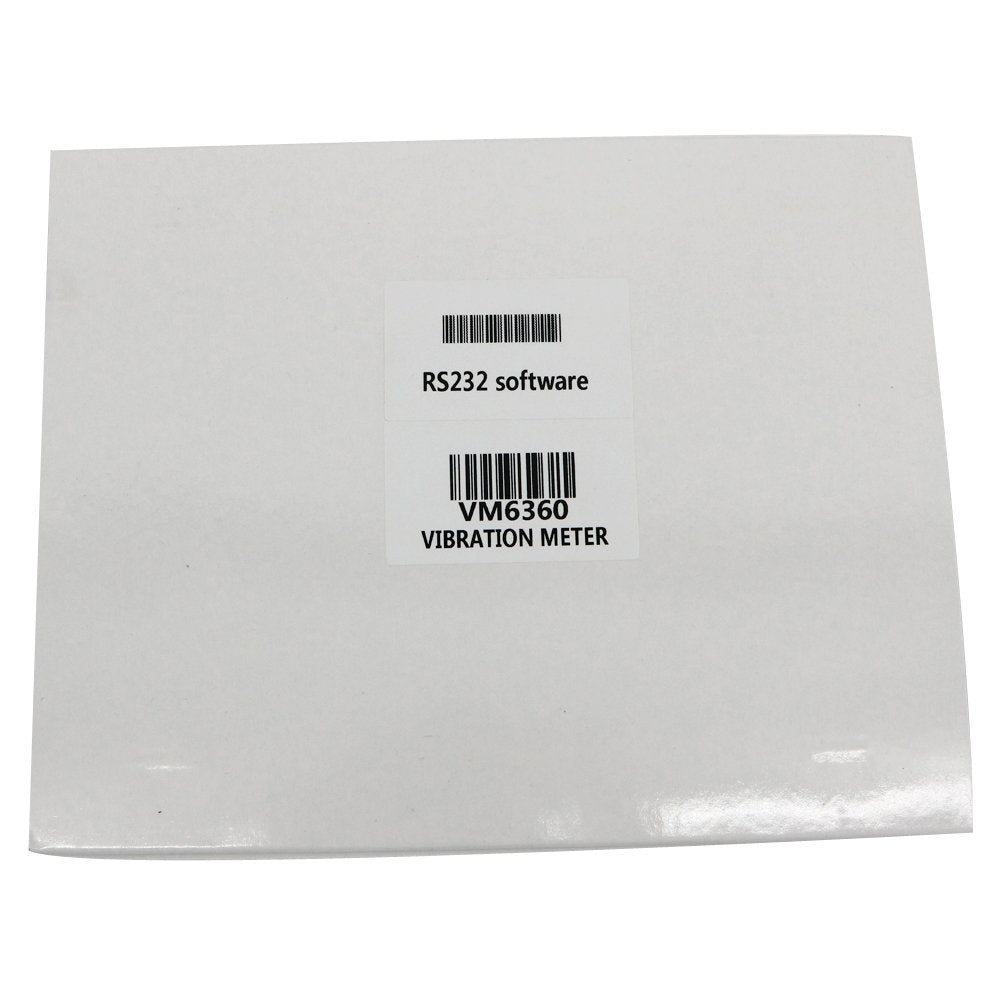

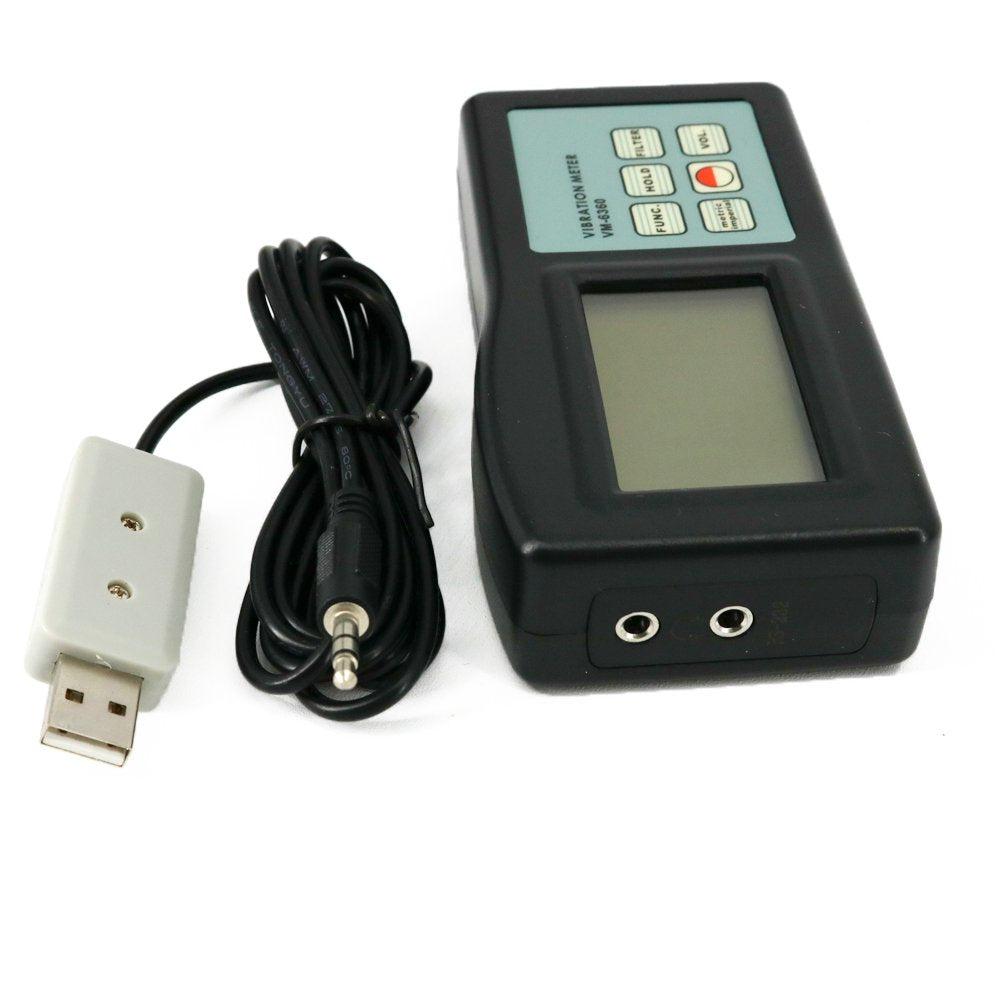

8. USB Cable & RS232 Software

EAN: 0725370410784
