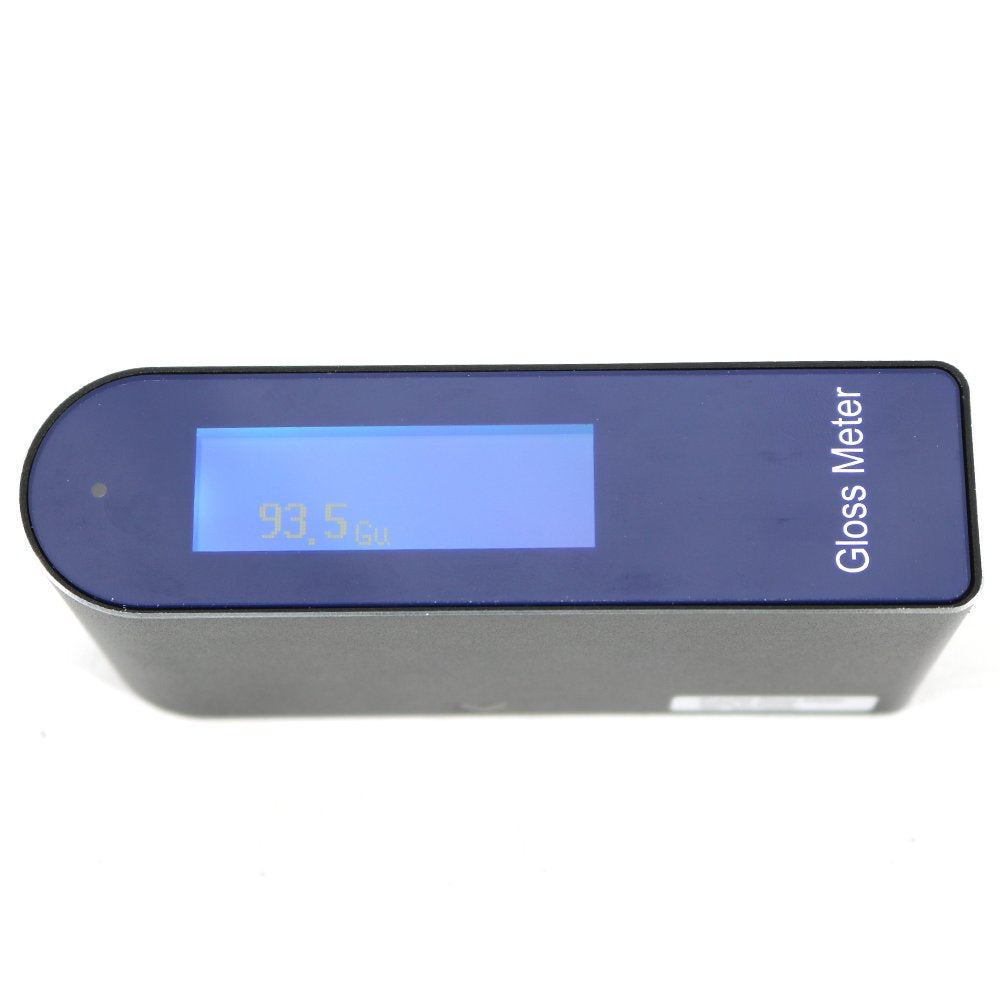

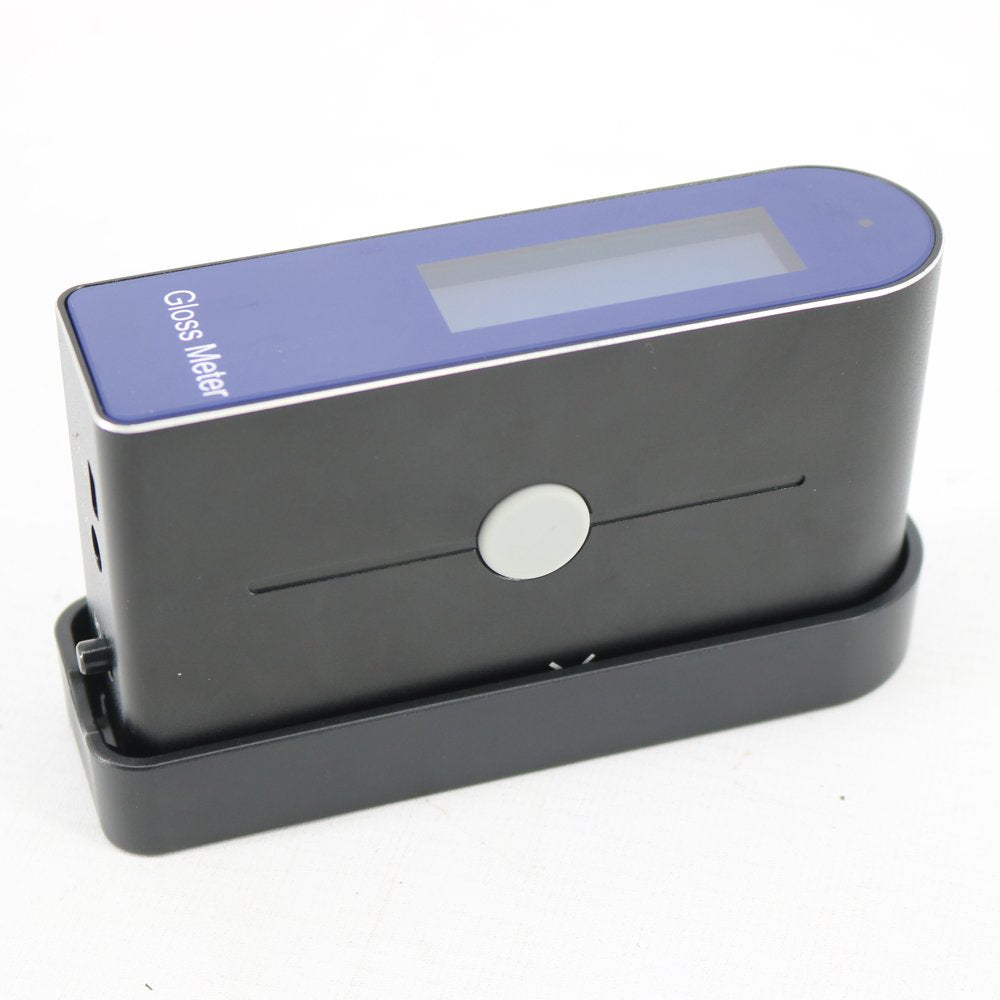

Graigar WG60 Gloss Meter Projection Angle 60 Degree Glossmeter Range 0-200Gu

Brand: Graigar

Color: Black

Features:

• WG60 gloss meter precison measurement performance with core technological competence. Large Data Storage:100 groups
• Portable: One button operation, easy-to-use operation. English operating system.
• Stable: More conductive to keeping the instrument stable when using. The best repeatability ≤ 0.02
• More Function Expansion: Coneect the micro printer to realize real-time output of measured data. Using High Capacity Li-ion Battery:Li-ion battery will save cost and charge to ensure the stability of long time measurement
• Innovative Technologies: Core technological configuration with a number of innovative technologies. Self calibrate, Direct positioning,Fastest to 0.5s, Set tolerance etc. This gloss meter is designed and manufactured with the reference to the international standard ISO 2813 and China national standard GB/T9754.

Part Number: WG60

Details: Specification:
Model: WG60
Measurement Range: 0-200Gu
Application:Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
Instrument Dimensions: 122x34x60mm
Projection Angle: 60°
Measuring Spot ellipse: long axis*minor axis 8mm*4mm
Measuring Mode Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode
Standard Sample Setting:Manually setting/bring out stored data for setting/manually setting tolerance
Data Storage: 500 groups/set standard sample in any stored data, user-define the tolerance range
Language: Chinese/English
Output: connect the micro printer to realize real-time output of measured data
Division Value: 0.1Gu
Repeatability: 0.2Gu
Reproducibility:0.4Gu
Indication Error: 1.0Gu
International Standard 60°: ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60
National Standard 60°: GB 9754、GB 9966、GB 8807

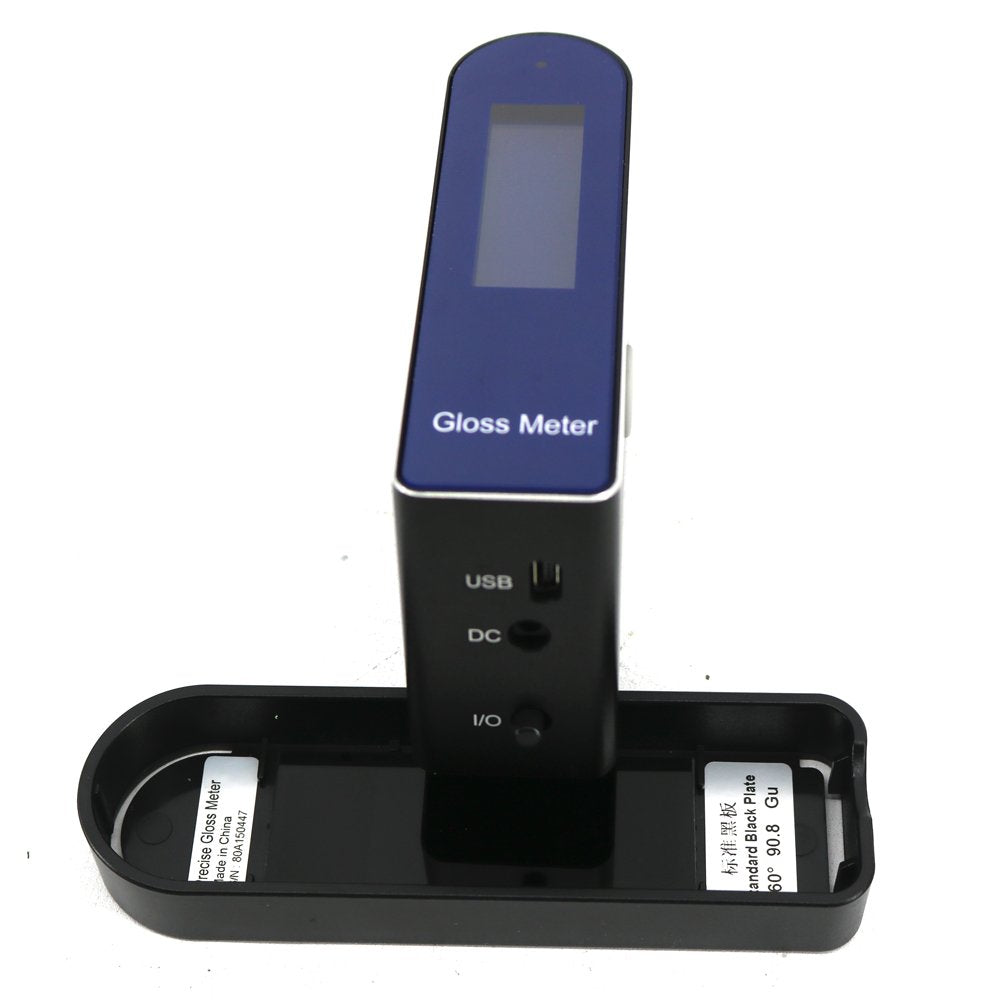

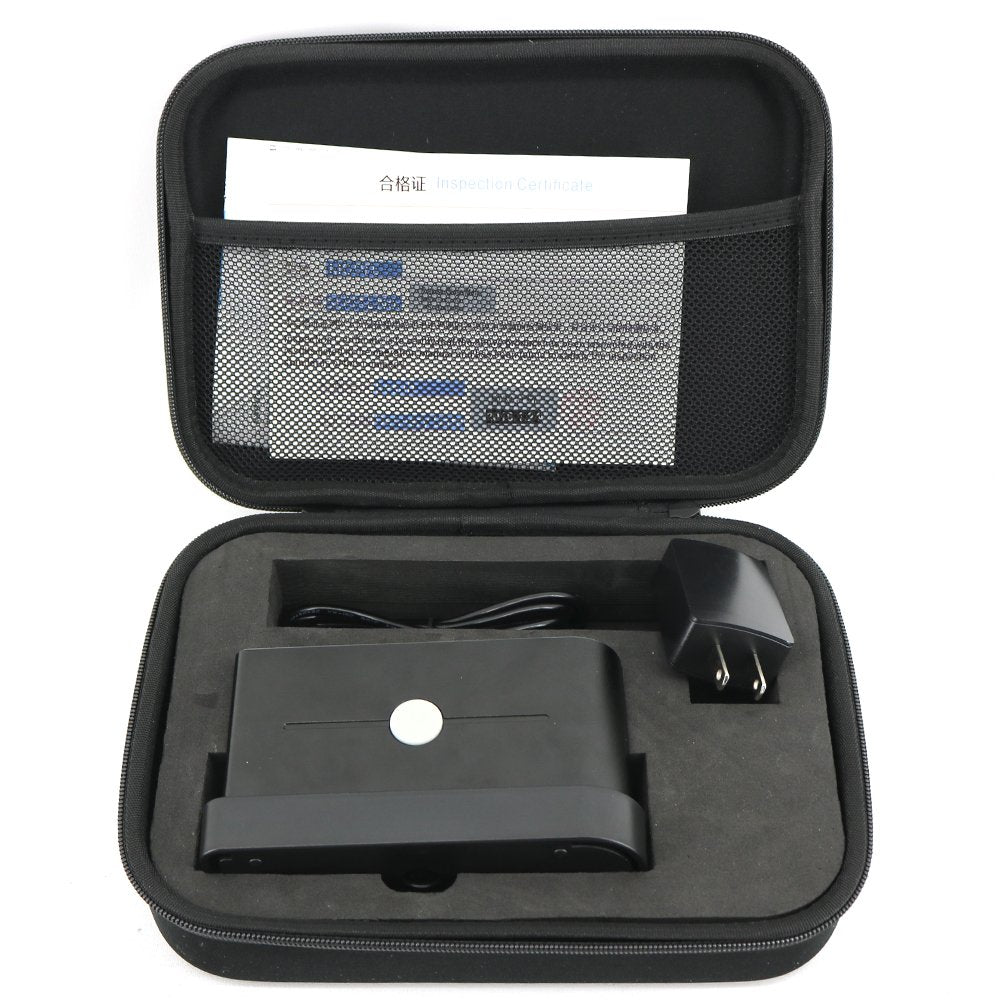

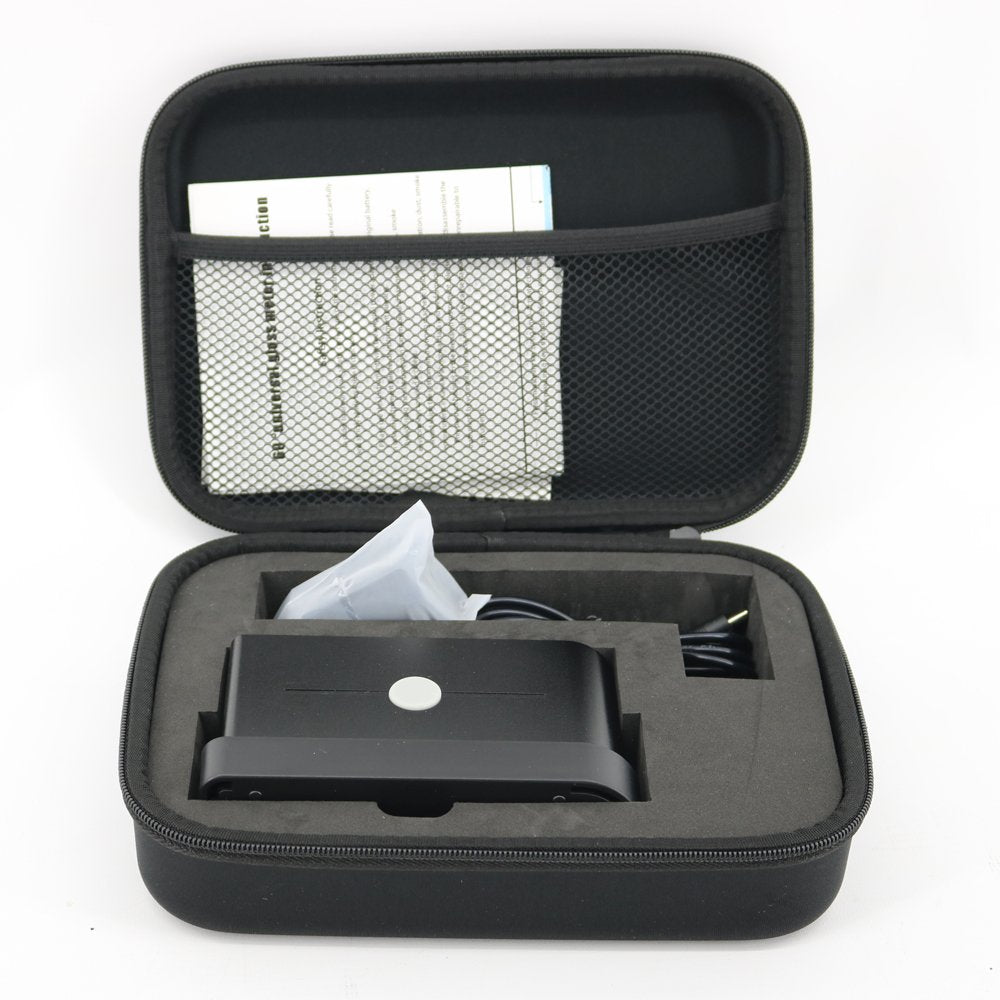

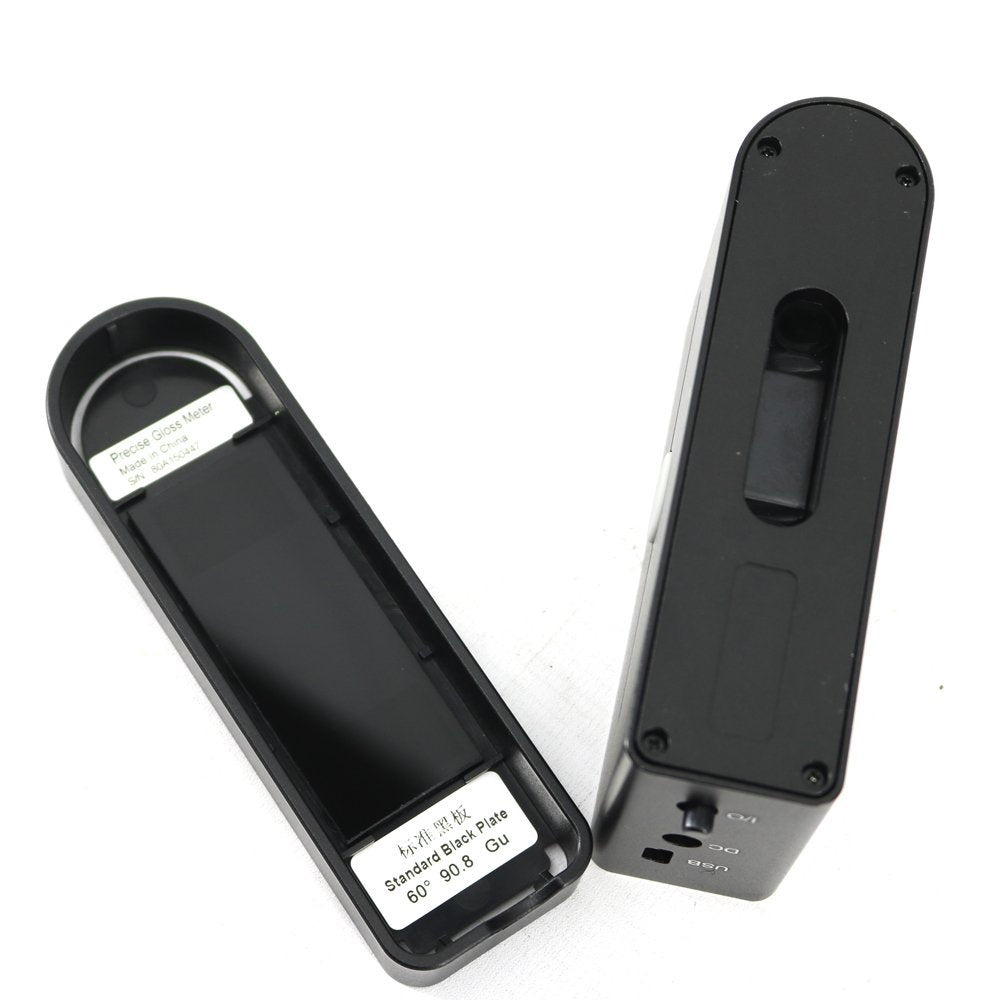

Standard Accessories: Main unit/Power adapter/user manual/warranty certification/standard board
Optional Accessories: micro-printer

EAN: 0725370414935
