AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use
Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery
Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance
Configured with output port of measured values, possible to connect with recording meter
Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability

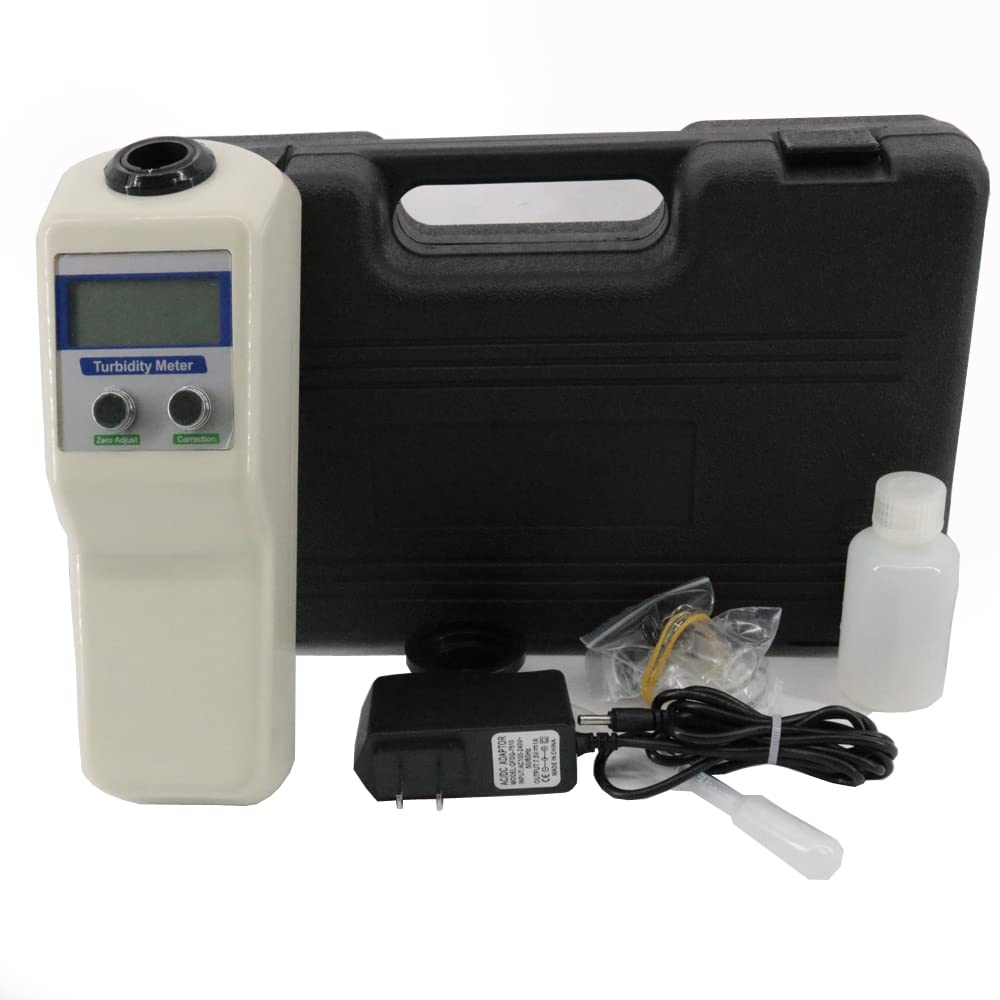

Part Number: WGZ-1B
Details: Overview
For measuring the light scattering from the insoluble particles suspended in water or transparent liquid, and to quantitatively characterize the content of the suspended particulate matter. Can be widely used in power plant, pure water, water plant, sewage treatment plant, beverage plants, environmental protection departments, industrial water, the wine industry and the pharmaceutical industry, epidemic prevention departments, hospitals and other departments of the turbidity measurements.
Specification
Minimum Principle 90 ° scattered light
Minimum readout (NTU) 0.1
Measuring range (NTU) 0 ~ 200
Basic error F.S ± 2.5% F.S
Repeatability ≤1.5%
Zero draft (NTU) 0.2

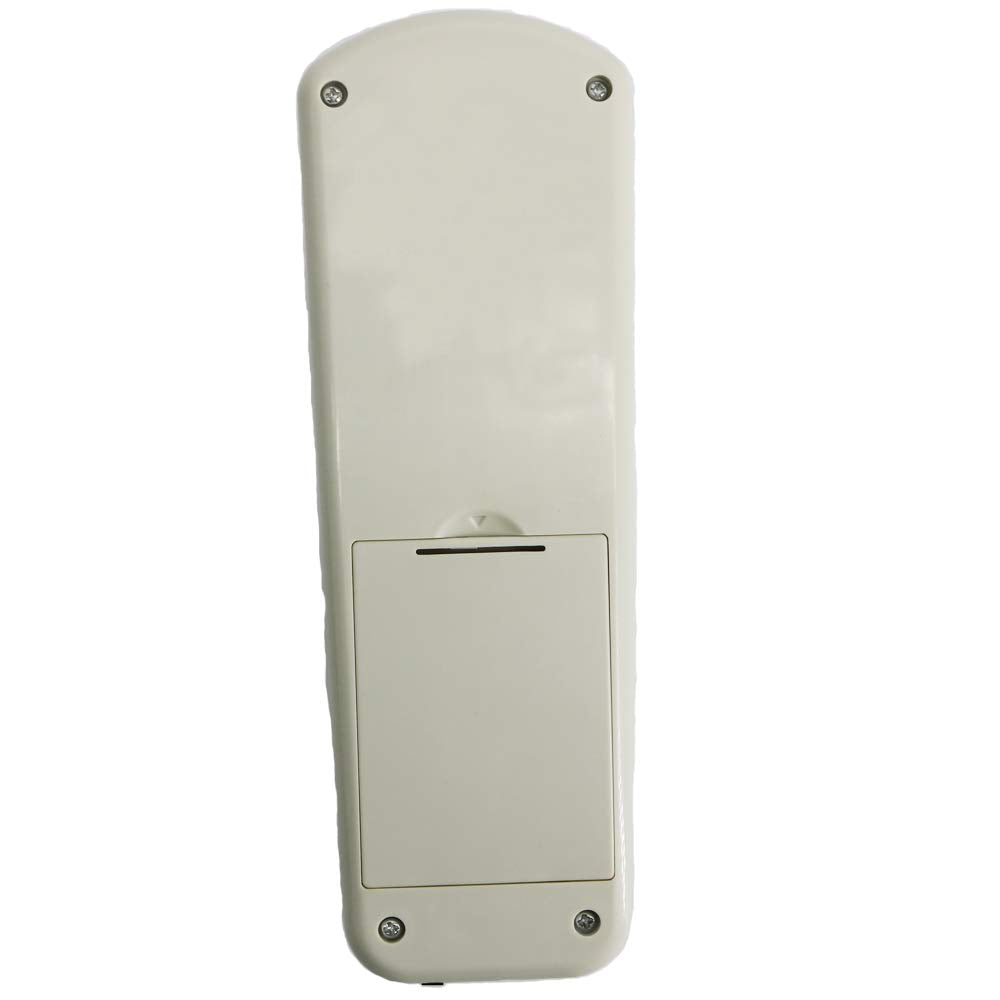

Power supply DC 1.5V × 5 AA alkaline batteries

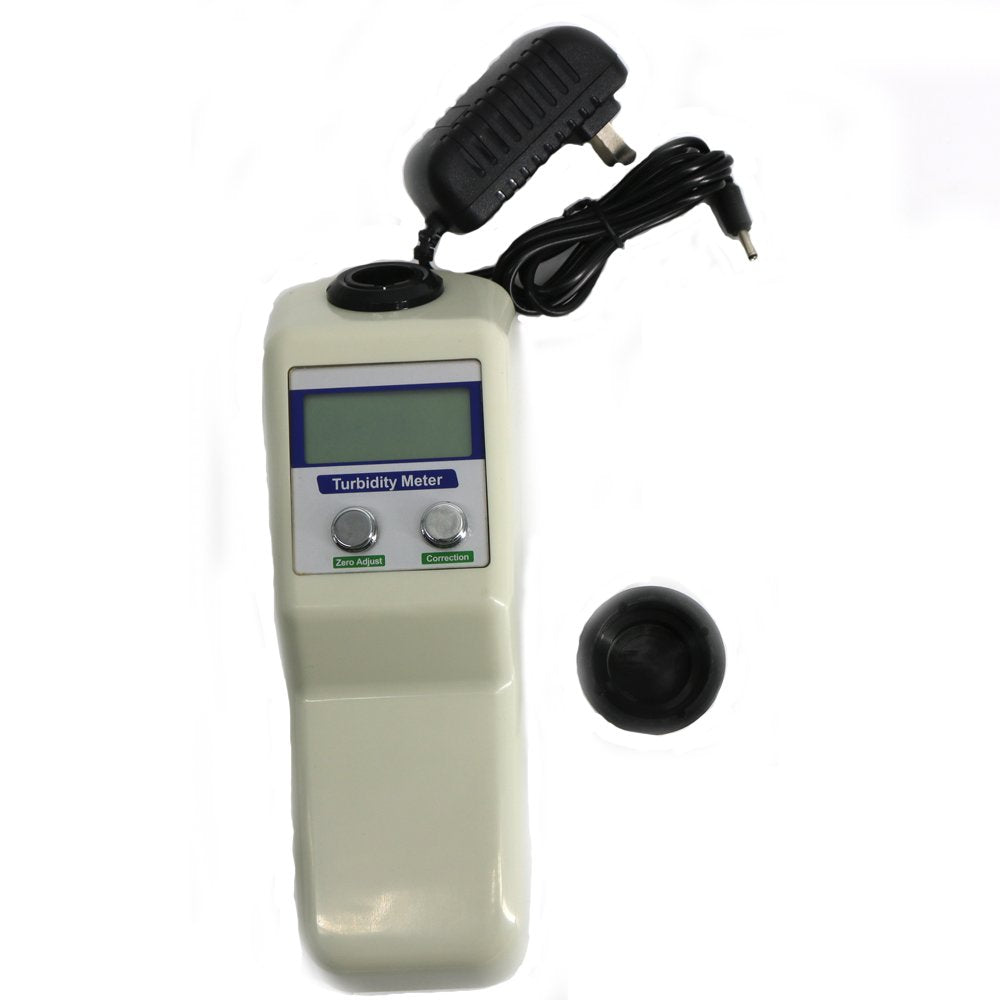

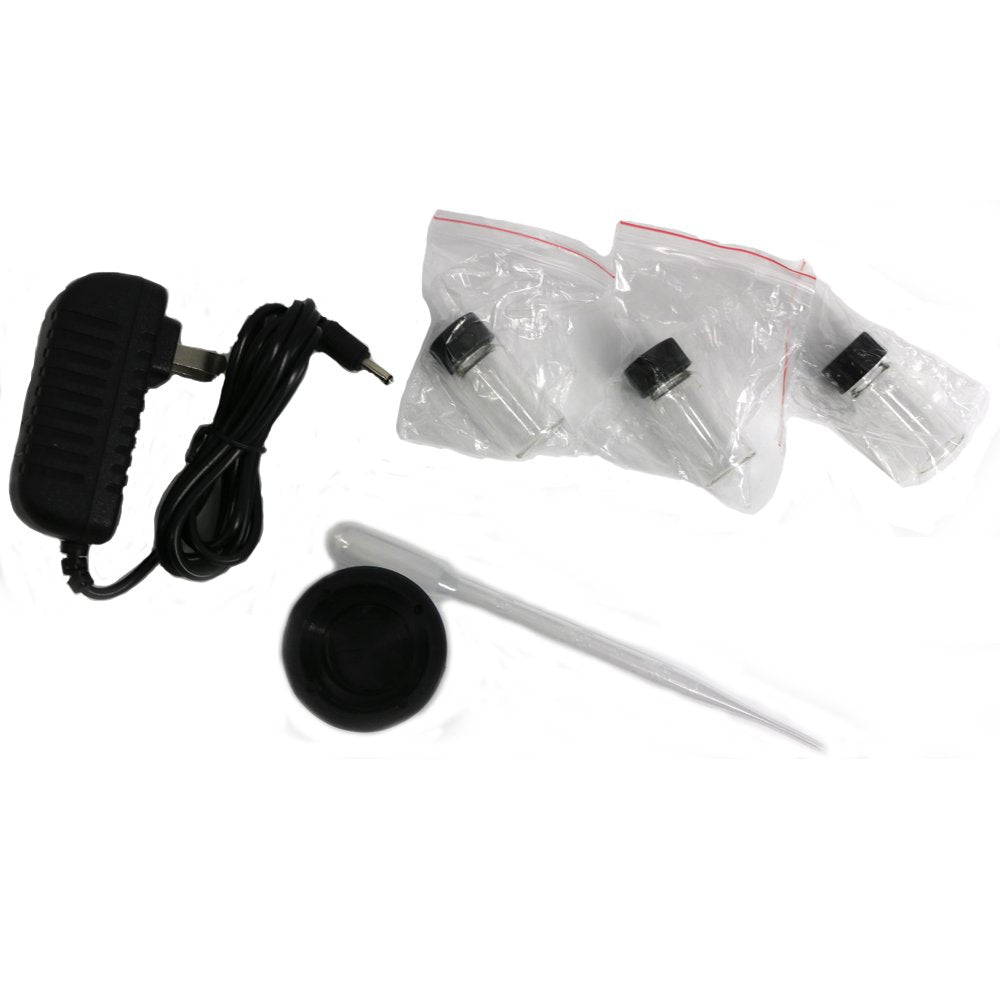

AC 220V / 50Hz / DC7.5V / 0.2A power adapter
External dimension 235 × 75 × 65mm
Characteristics

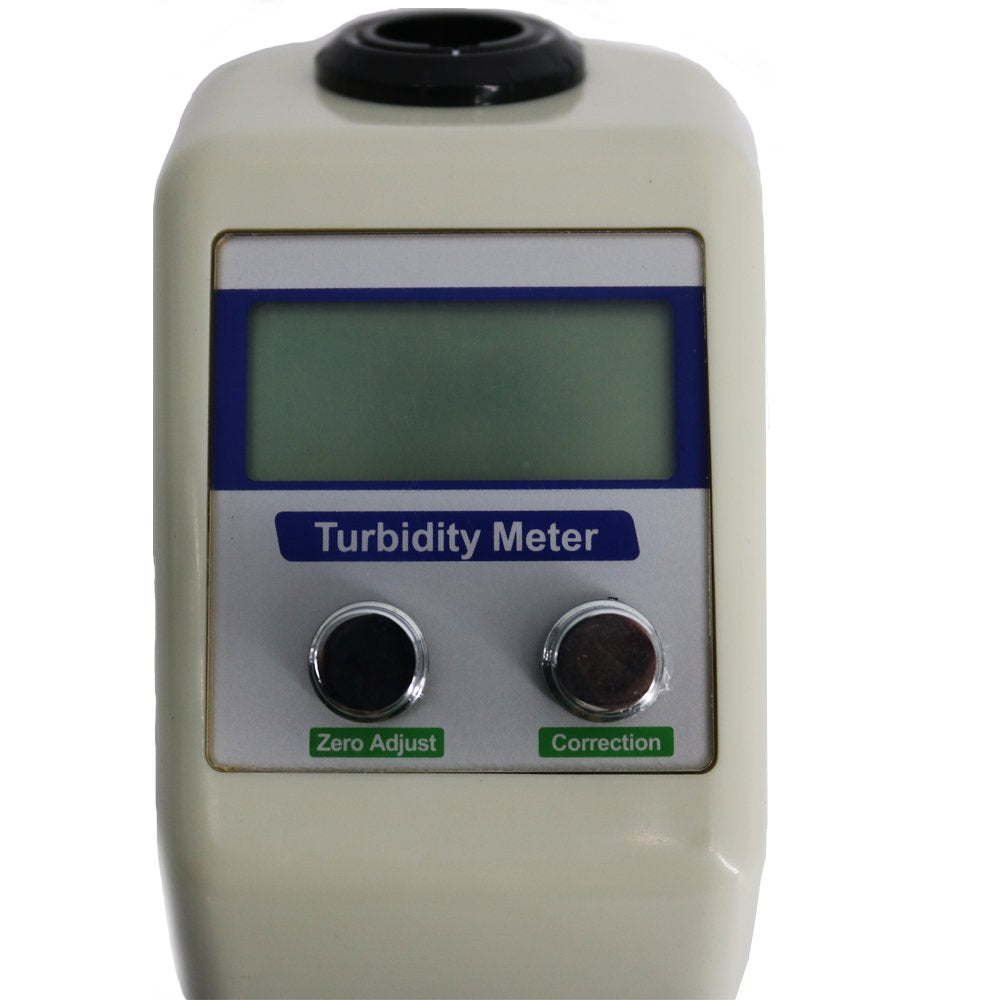

LCD liquid crystal display,
LED light source,
Automatic shut-down,
AC and DC with two,

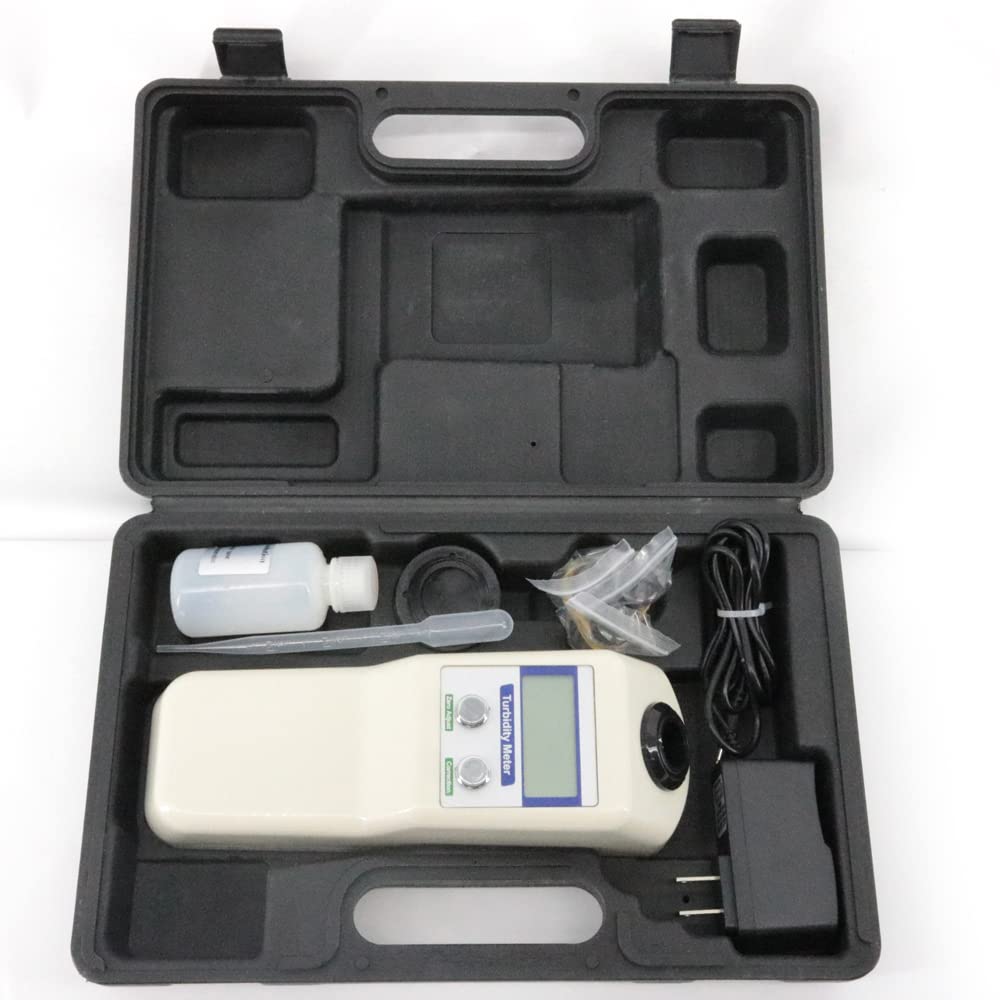

With case
