Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
Digital display, wide measurement range, high resolution.
One key calibration, easy to use. Continuous measuring mode.
Solid structure, small volume, light weight, exquisite, easy to carry.

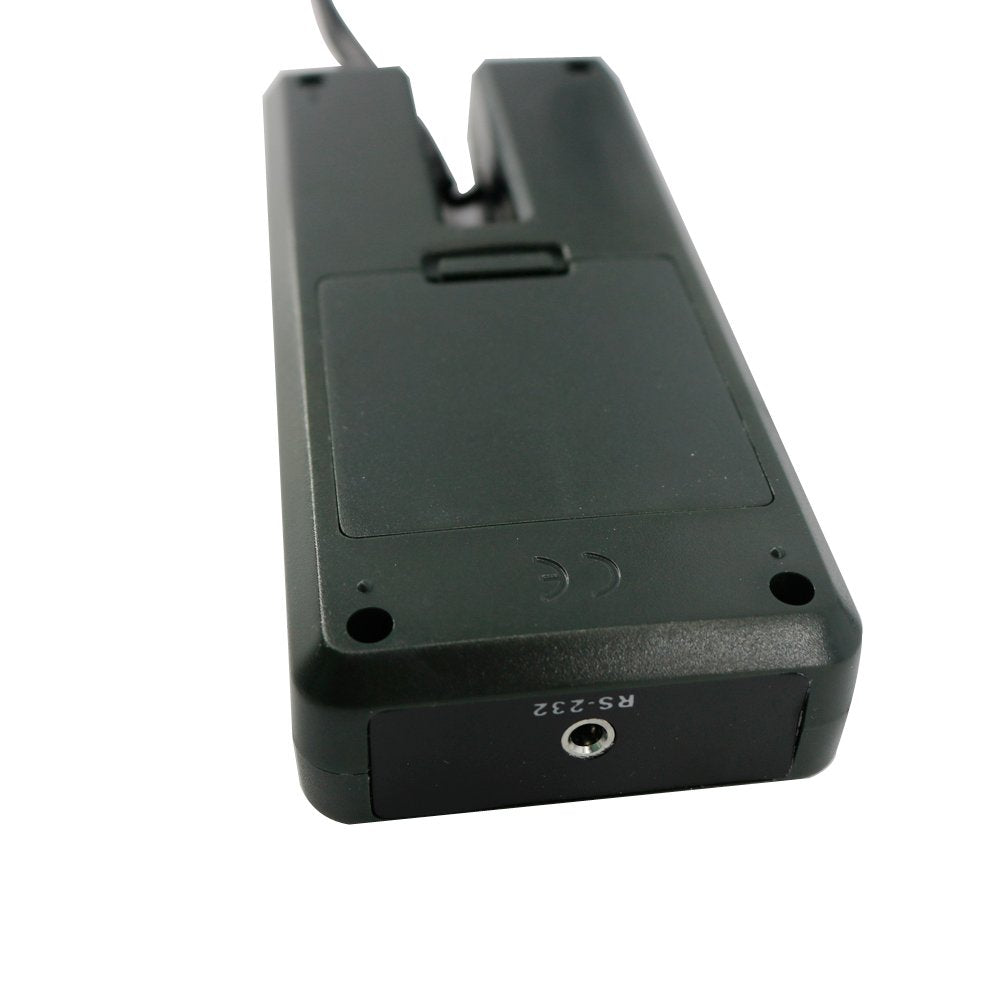

Use “USB data output” and “RS-232 data output” to connect with PC.

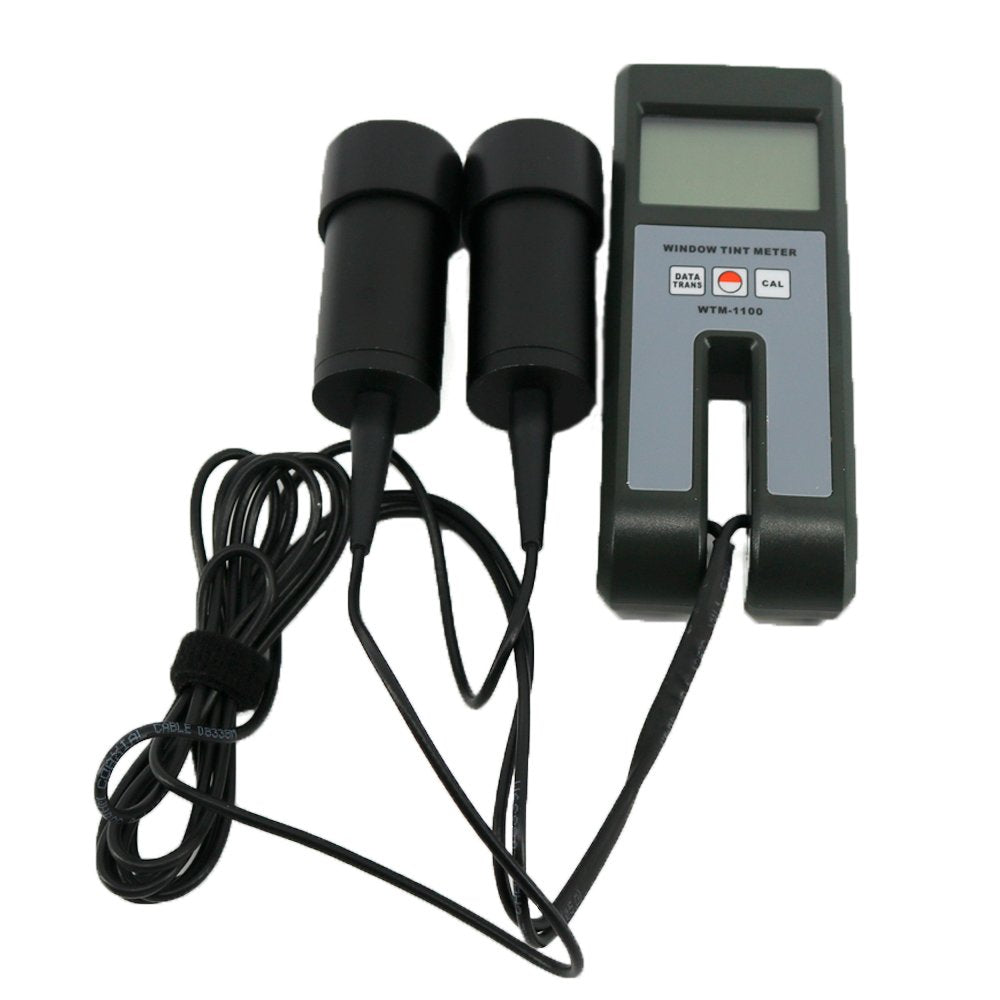

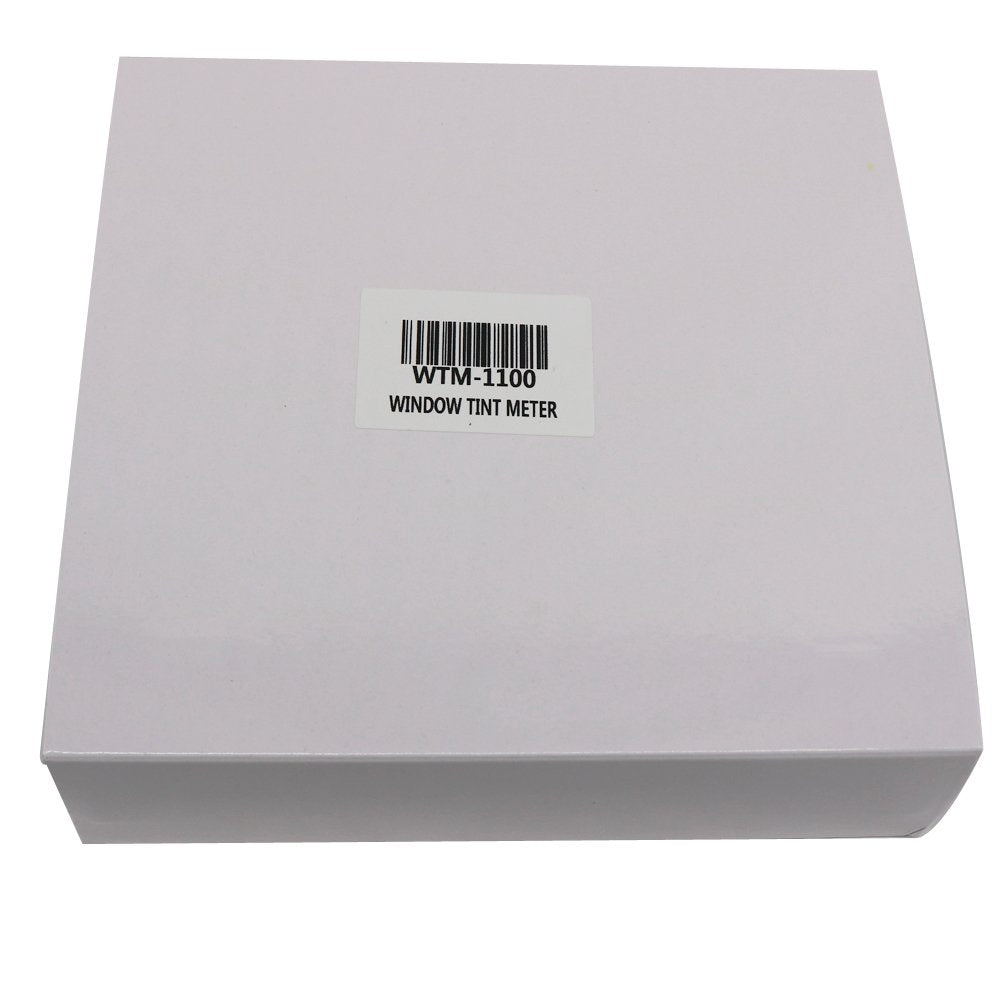

Part Number: WTM-1100
Details: Application:
Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).
Specifications:

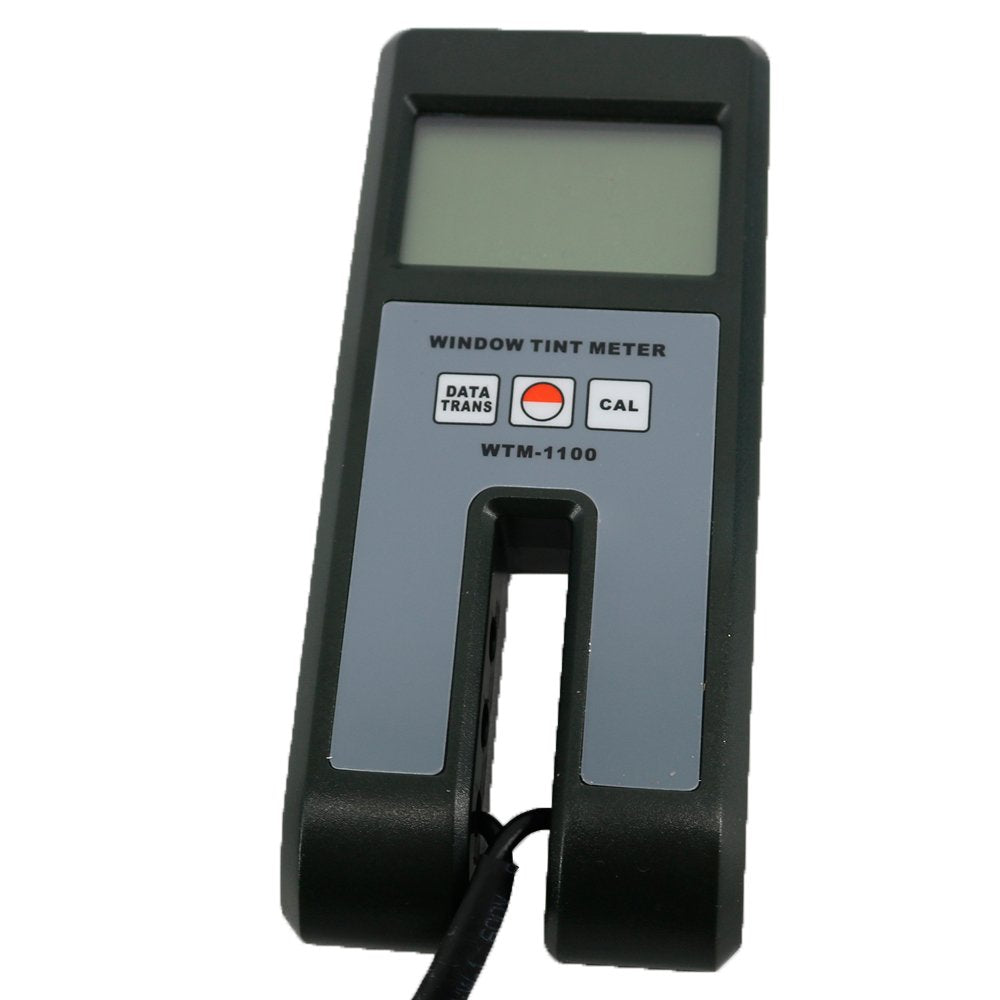

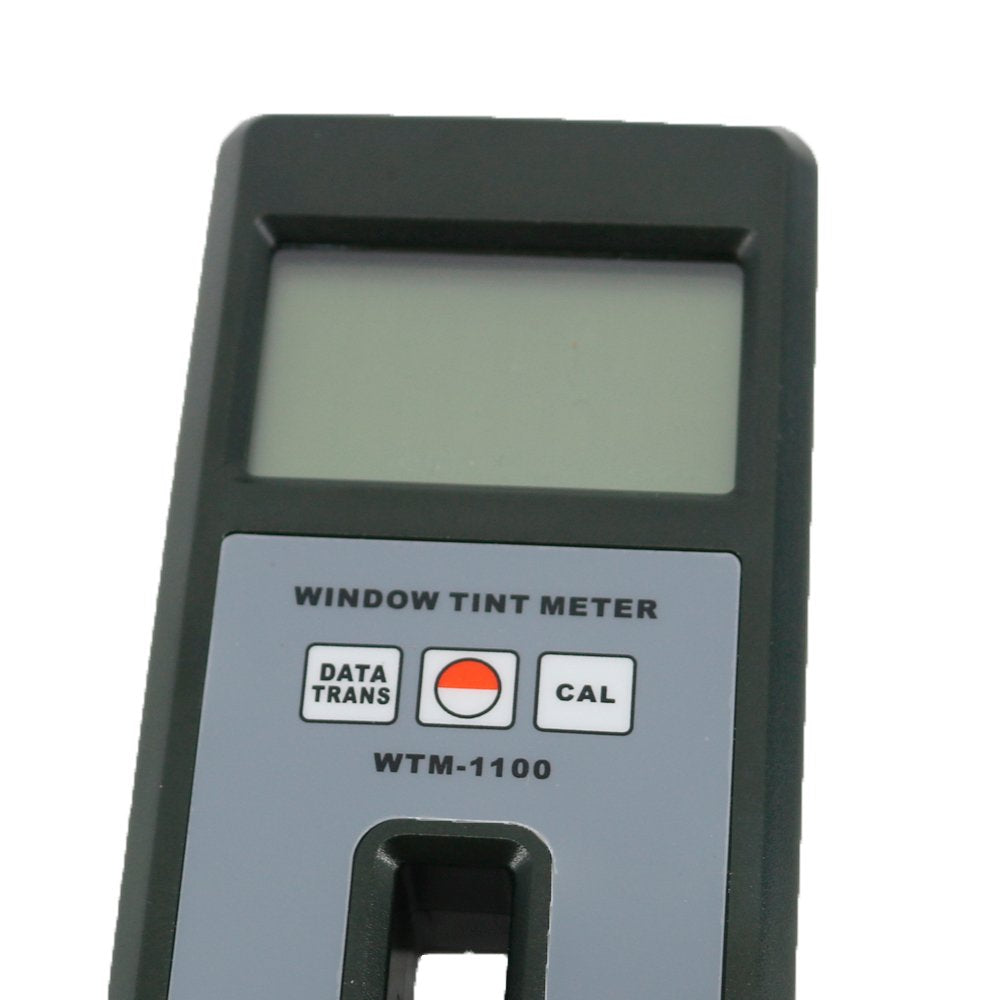

Display: 10mm LCD
Measurement Range: 0 to 100% Light Transmission
Resolution 0. 1
Accuracy ± 2 %
Sample Thickness: Less Than 18mm / 0.7inch
Light Source: LED
Measuring Mode: Single / Continuous
Operating conditions: Temperature: 0 ~ 50 ºC Humidity: < 90 %

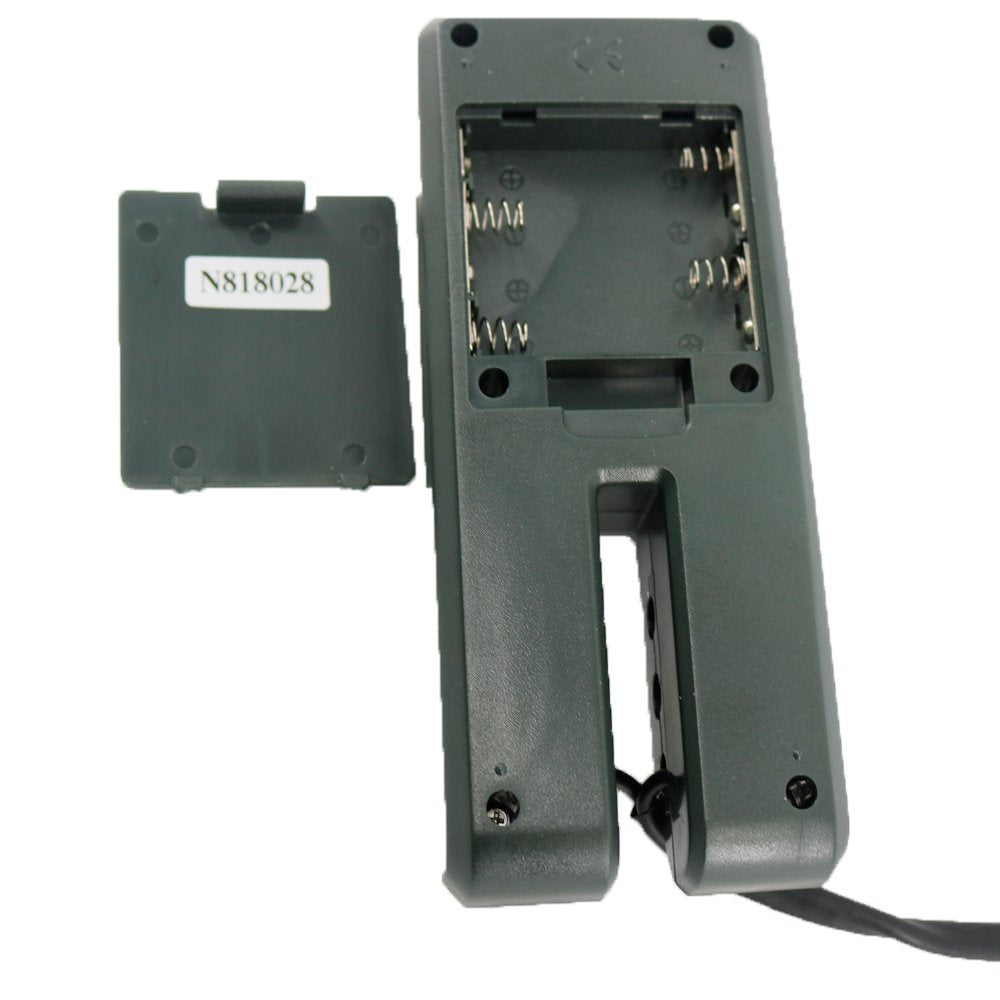

Power Supply: 4 x 1.5 V AAA Size (UM-4) Battery
Dimensions:
Unit: 126 x 65 x 27 mm (5.0 x 2.6 x 1.1 inch)

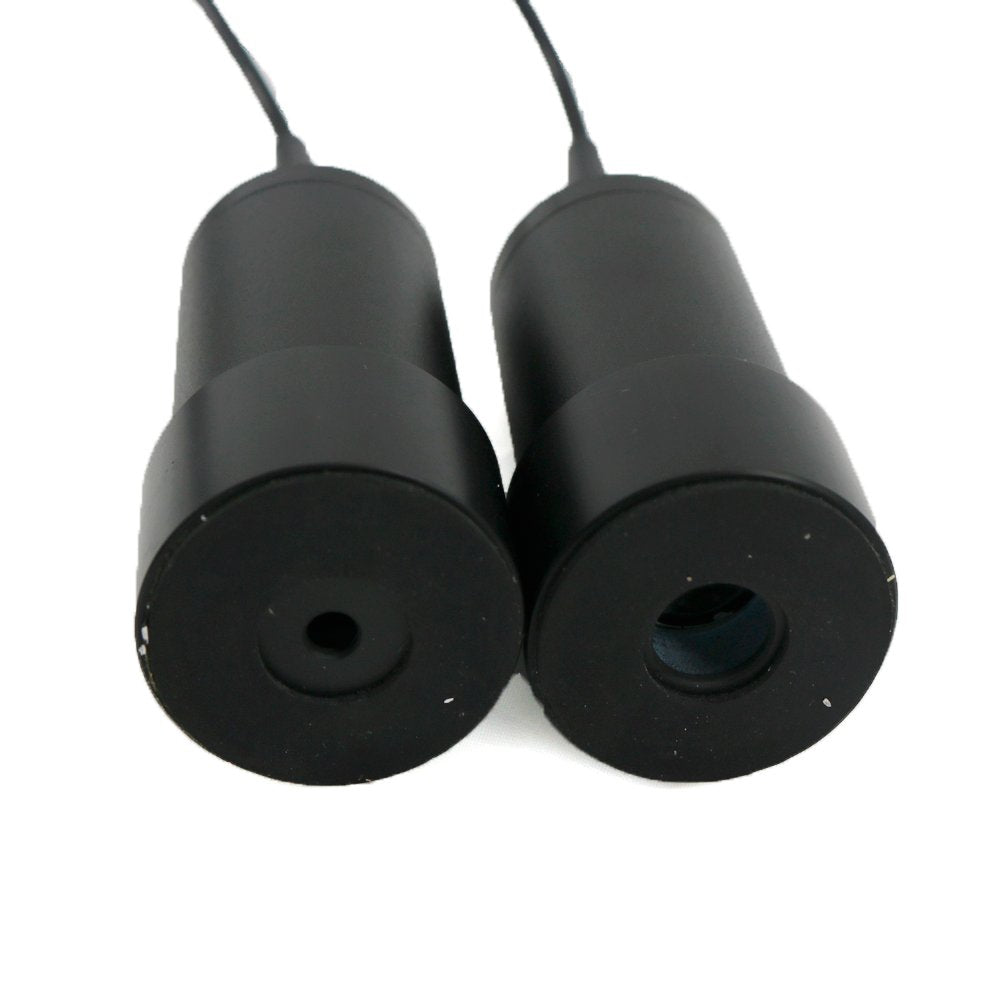

Sensor: 125 x 38 x 38 mm
Weight: 100 g (Not Including Batteries)
Accessories:
Standard Accessories:
1. Main Unit

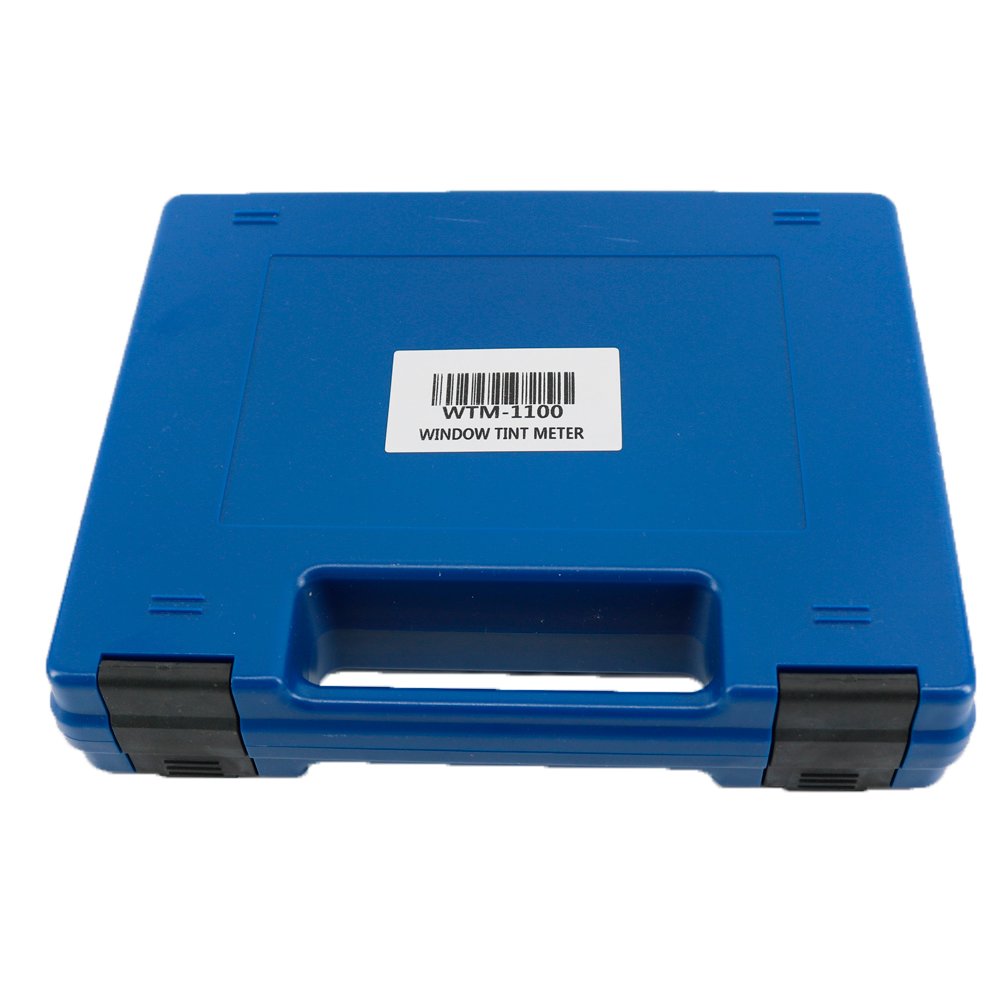

2. Carrying Case
3. Operation Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
