Small, exquisite, accurate and portable instrument.
Large Data Storage: Saving more than10000 sample data.
Comfortable observation with real color screen display
Environmental, low energy consumption instrument, high capacity lithium battery
The most convenient colorimeter: automatic correction when starting up (national patent)
Part Number: WR10
Details: Feature:
1.Through the SCM test
2.Simple, accurate, easy-to-use, convenient
3. Design in line with industry norms, good feel, easy to grasp, Steady body.

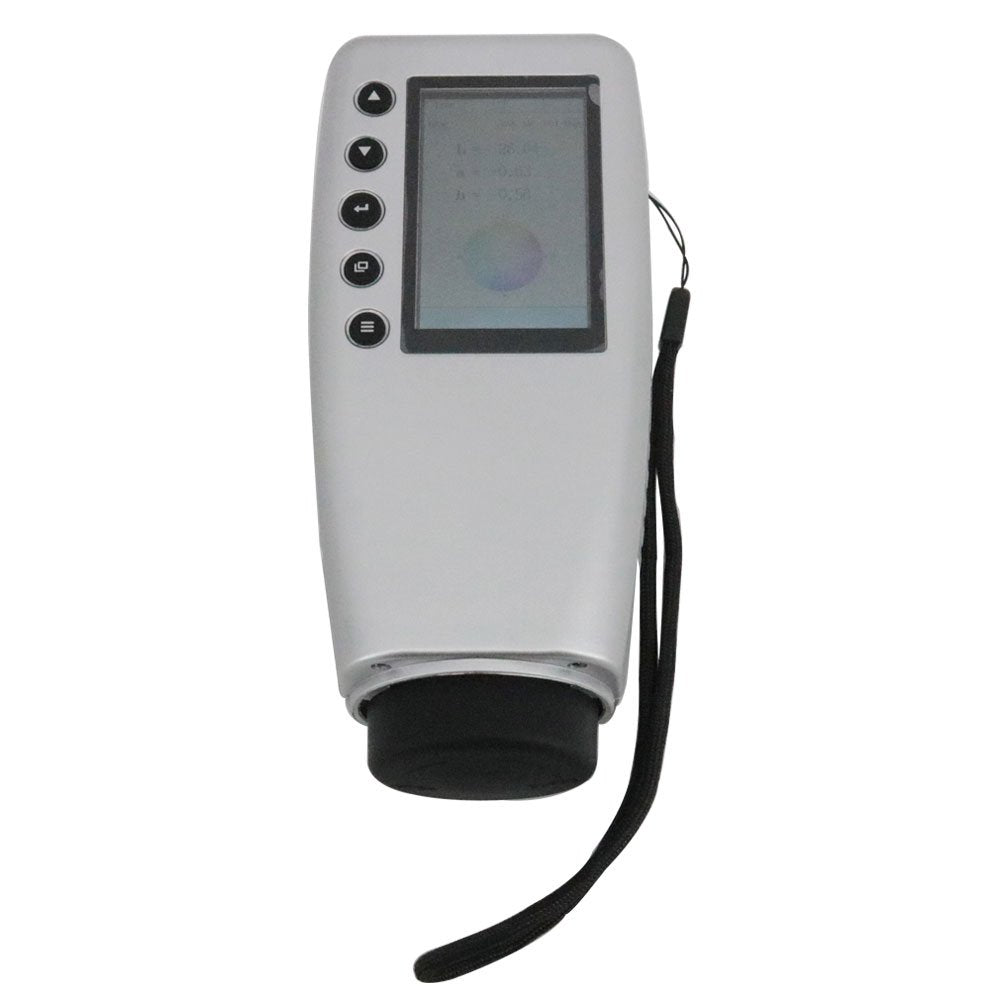

4. Clear and bright screen, large font display, intuitive chromaticity diagram
color difference bias figure shows color simulation.
5. Advanced Power Management
Technical Specifications
Display mode: CIELAB
Color difference formula: ΔE *ab
Illumination Condition: CIE Recommendation:8/d
Light Source: D65
Sensor: Photodiode array
Measuring Aperture: Φ8mm
Measuring Condition: Observer:CIE 10° Standard observer
Measuring Range: L:0-100
Repeated Accuracy: ΔE<0.08
Table Difference: ΔE <0.2
Measurement Time: 1 second
Storage Capacity: 100 standard samples and10000 test sample
Battery Power supply: Li-ion battery, 5000 times Measurement
Lifetime of Bulb: 5years more than 160 million measuring
Display screen: TFT true color 2.8inch@(16:9)
Interface of External: USB2.0 (USB-B), RS-232 (115200bps)
Working Temperature Range: 0°C-40°C (32°F-104°F)
Storage Temperature Range: -20°C-50°C (-4°F-122°F)
Humidity Range: Relative humidity less than 85%,without condensation
Net Weight: 700g
Dimension: 199x68x90mm

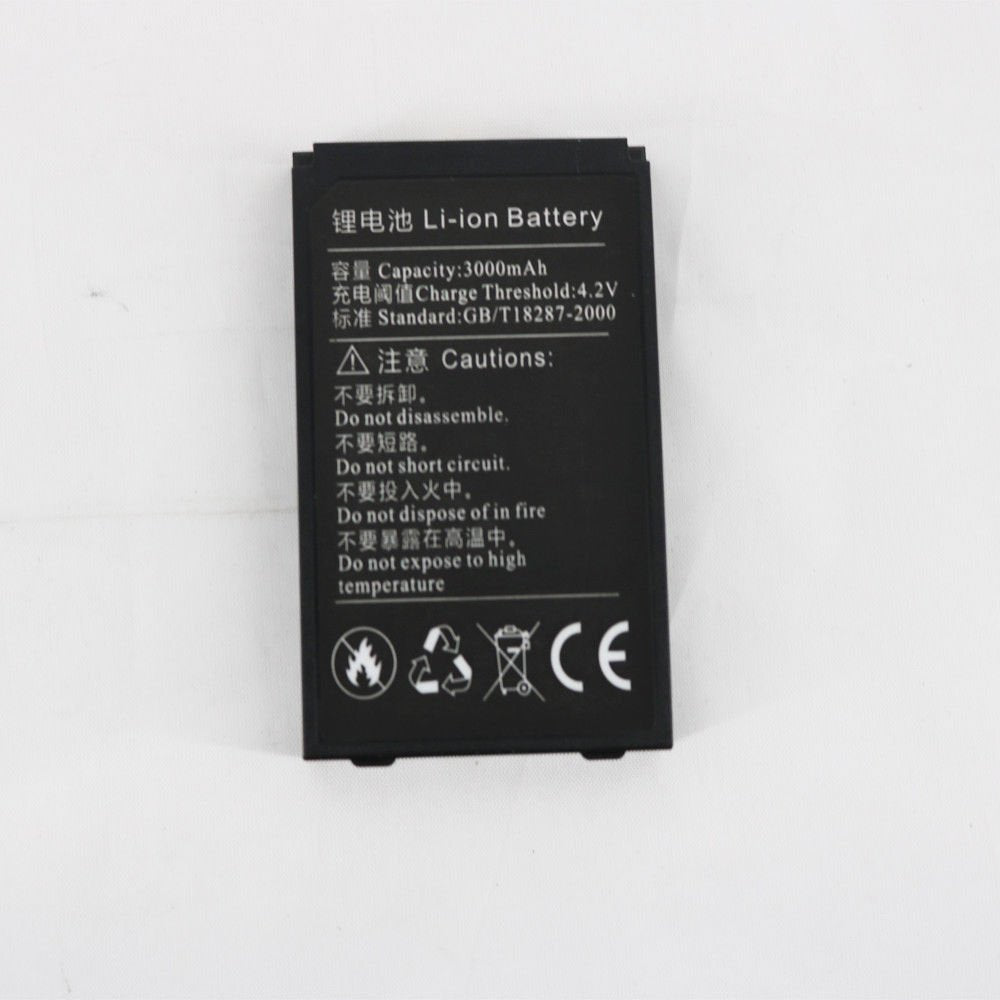

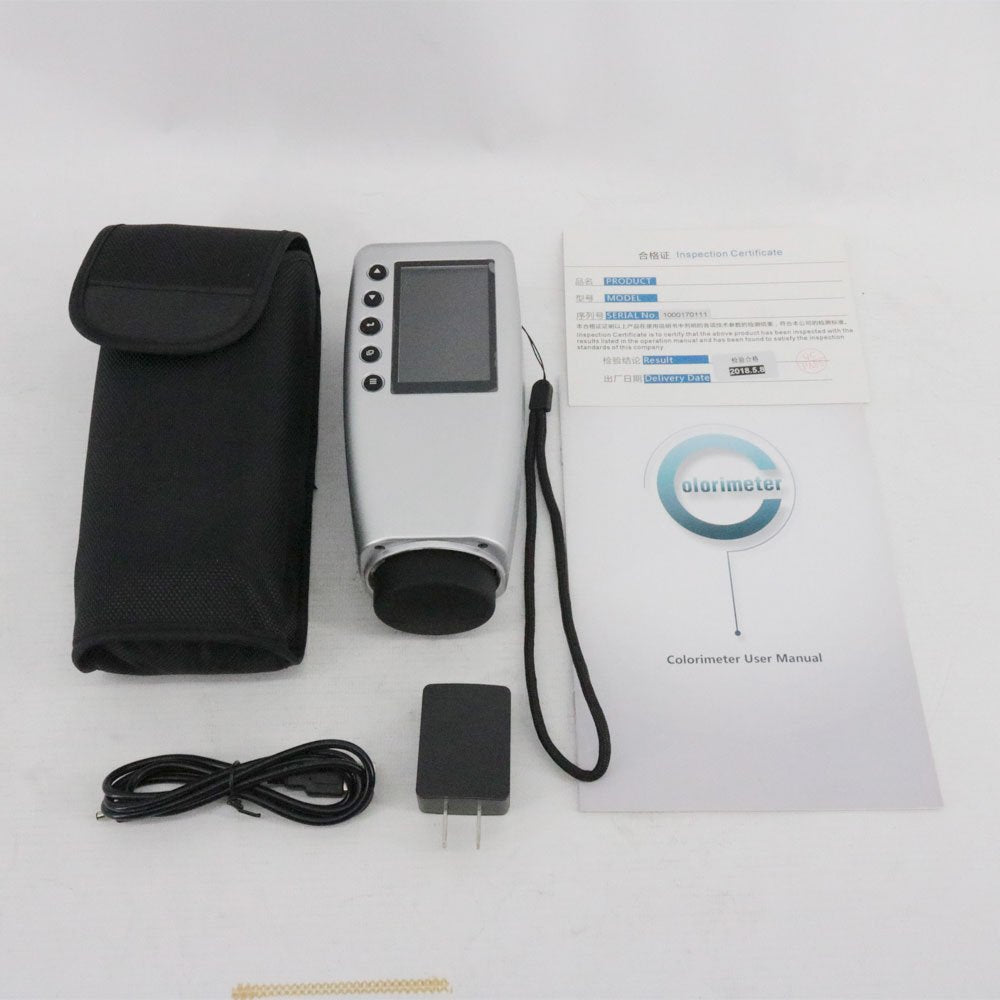

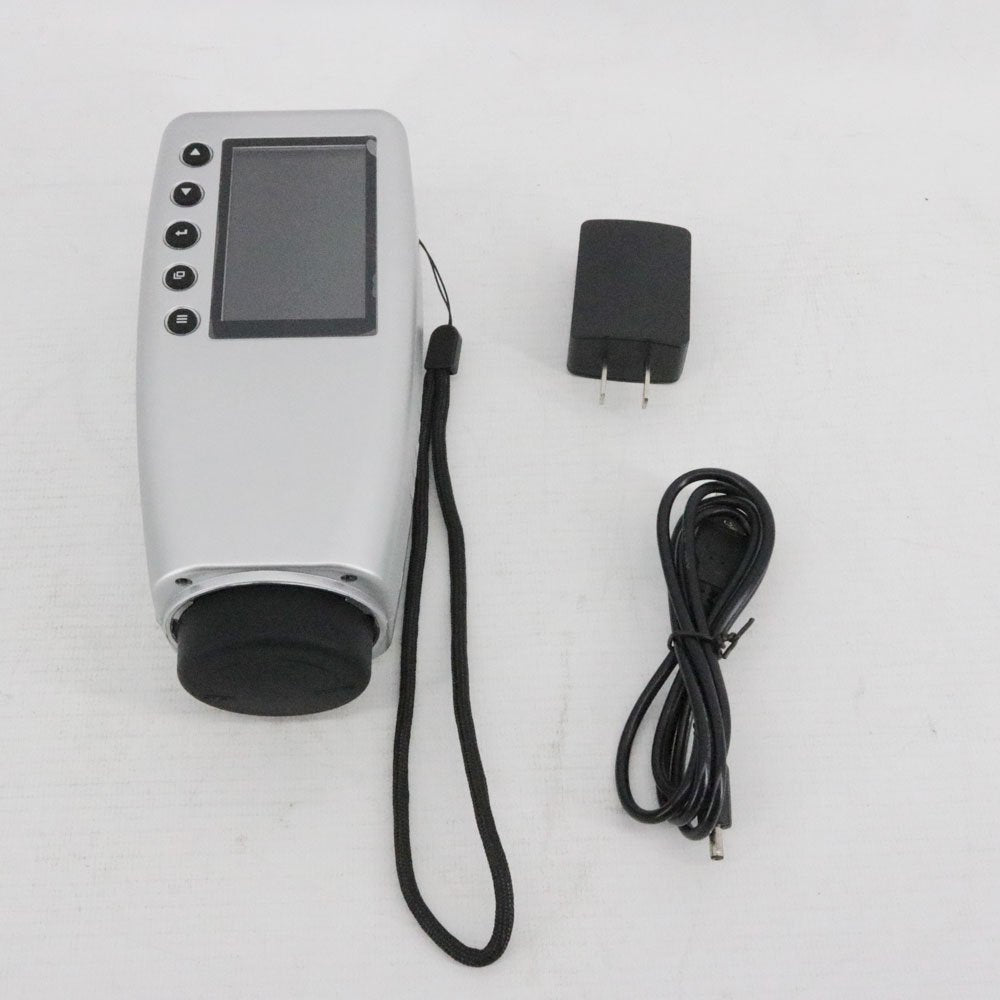

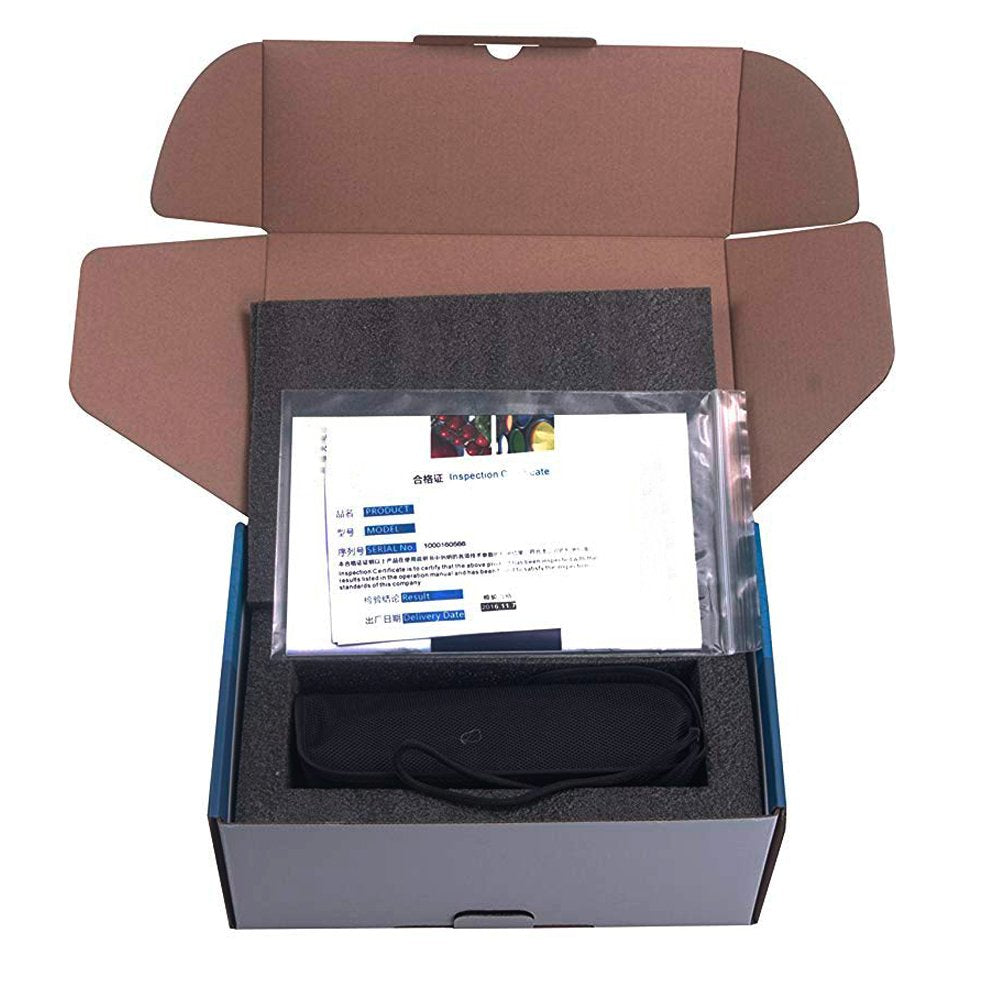

Standard Accessory: AC adapter/ 3000mAH Li-ion battery
Optional Accessory: Flour measuring device/Micro printer
