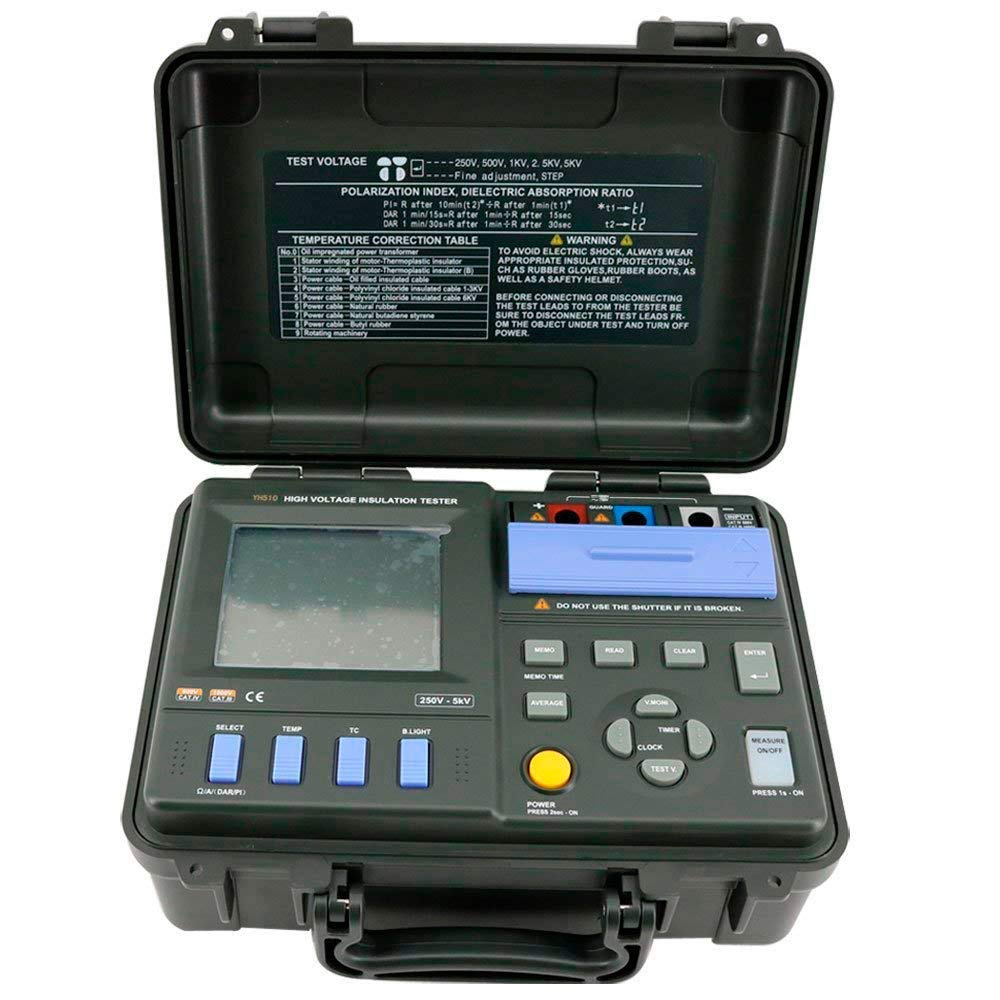

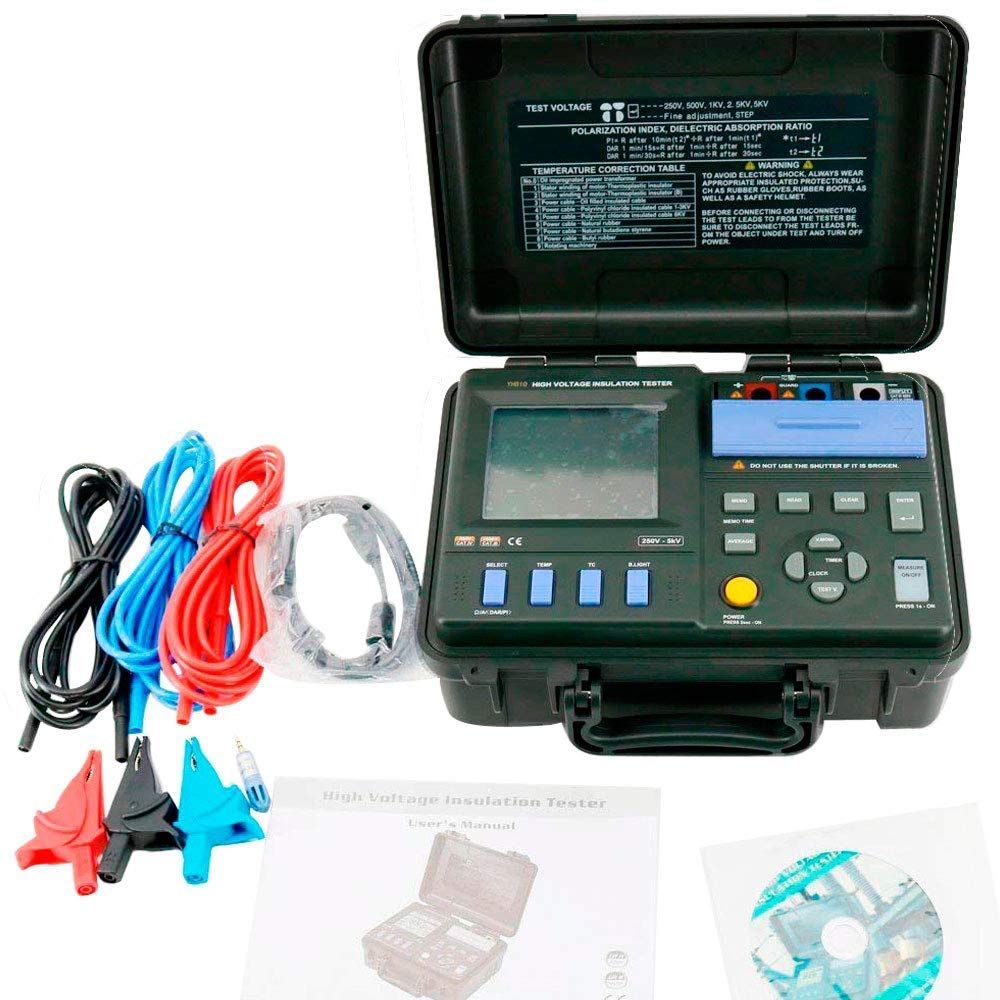

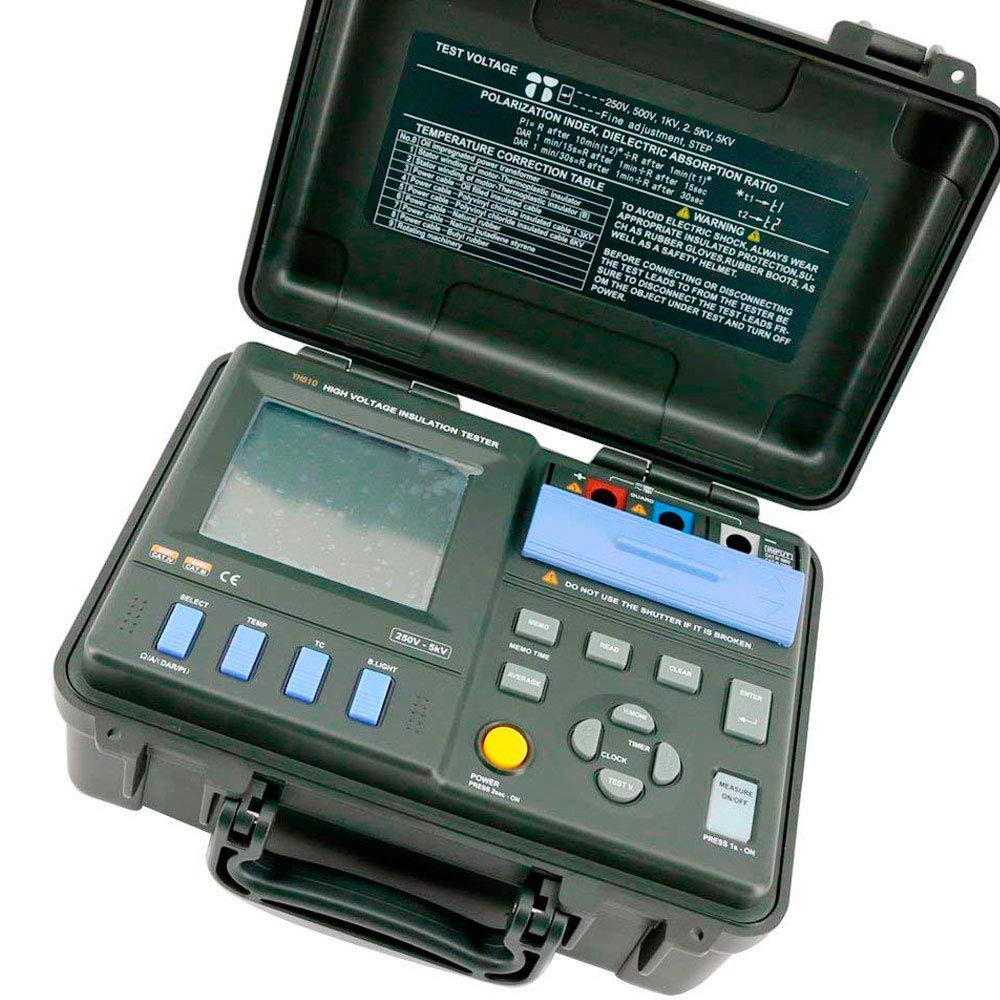

YH510 High Voltage Insulation Tester is checking the insulation of high-voltage electrical equipment.
Data Storage function and uploading to PC by USB2.0 interface.
Auto Calculate PI(Polarization Index) and DAR(Dielectric absorption ratio).
Power Supply LR6 Battery×6/ rechargeable battery Ni~MH 7.2V.
Test Voltage from 250V~5000V.
Part Number: YH-510

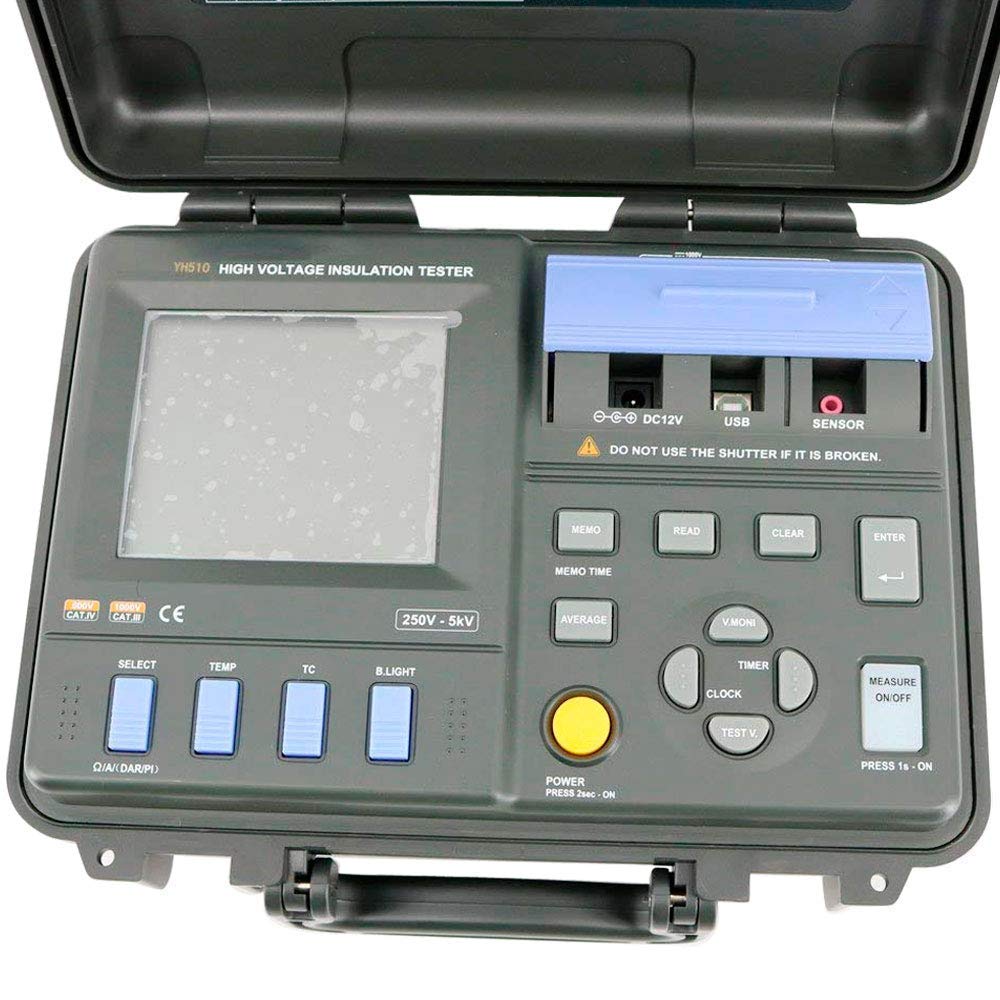

Details: Features
. Checking the insulation of high-voltage electrical equipment
(electric motor, transformer, and cable, etc)
.Test Voltage from 250V~5000V
.Insulation Resistance up to 5Tohm
. Short Current up to 3mA
. Auto Calculate PI(Polarization Index) and DAR(Dielectric absorption ratio)
. Step-Voltage Measurement
. Temperature measurement
. Temperature compensation for insulation Test
. Leakage Current measurement
. Data Storage function and uploading to PC by USB2.0 interface
. Power Supply:LR6 Battery×6/ rechargeable battery Ni~MH 7.2V
(Charger;Input Voltage 100V~240V ; Frequency 50Hz~60Hz, Output Voltage 12V DC 3A)
. Timer Function
.Weight 2.5kg (not including Battery)
.Size 284mm(L)×230mm(w)×125mm(H)
Test Voltage
. Test Voltage Range; DC250V~ DC 5.00kv
. Voltage Set:
. Wide adjust;(250V; 500V; 1000V; 2.5kv; 5kv)
. Fine adjust (250V~1KV; Step 25V; 1KV~5KV, Step 100V)
. Accuracy; 5%
. Step mode:500V, 1.0KV, 1.5KV, 2.0KV, 2.5KV
. Test Current 1nA~3mA
Temperature compensation
For obtaining the insulation resistance under a temperature other than current ambient temperature.
Converts the measured value of resistance to the insulation resistance under a reference temperature, and displays the result.
Depending on the different properties of test objects, there are 10 modes of compensation.
