Graigar YS3010 High Precise Portable Handheld Grating Spectrophotometer with 8mm Measuring Aperture Color Matching

Brand: Graigar

Color: Gray

Features:

• YS3010 handheld spectrophotometer features only 8mm single aperture
• It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed
• High accuracy let 3nh spectrophotometer better suitable for color matching system for better color measurement and color formula use
• Both SCI and SCE mode makes it widely use in many applications
• 4 Illuminants, 8mm Aperture, good precision

Part Number: YS3010

Details: Introduction
A.Perfect combination of beautiful appearance and the human body mechanics structural design
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source
D.Single 8mm aperture, support both SCI and SCE at the same time
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor

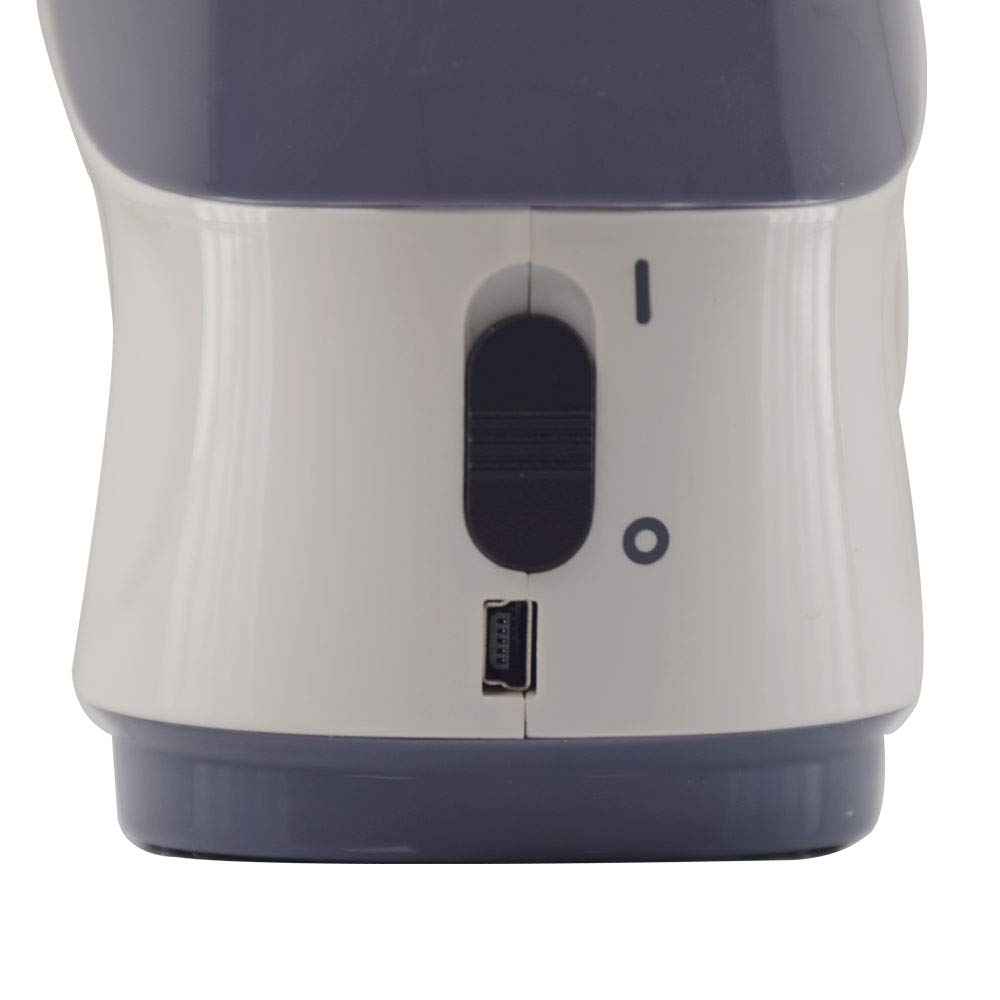

G.USB port, widely useful

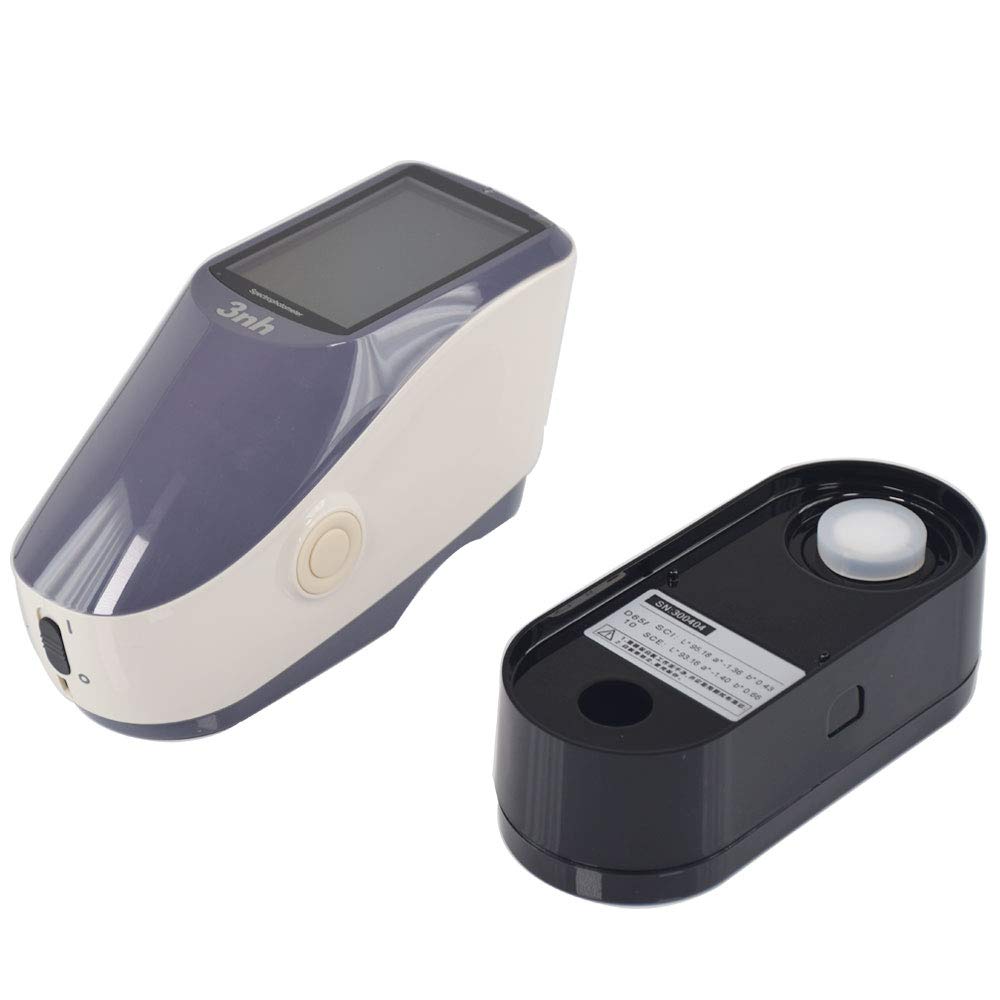

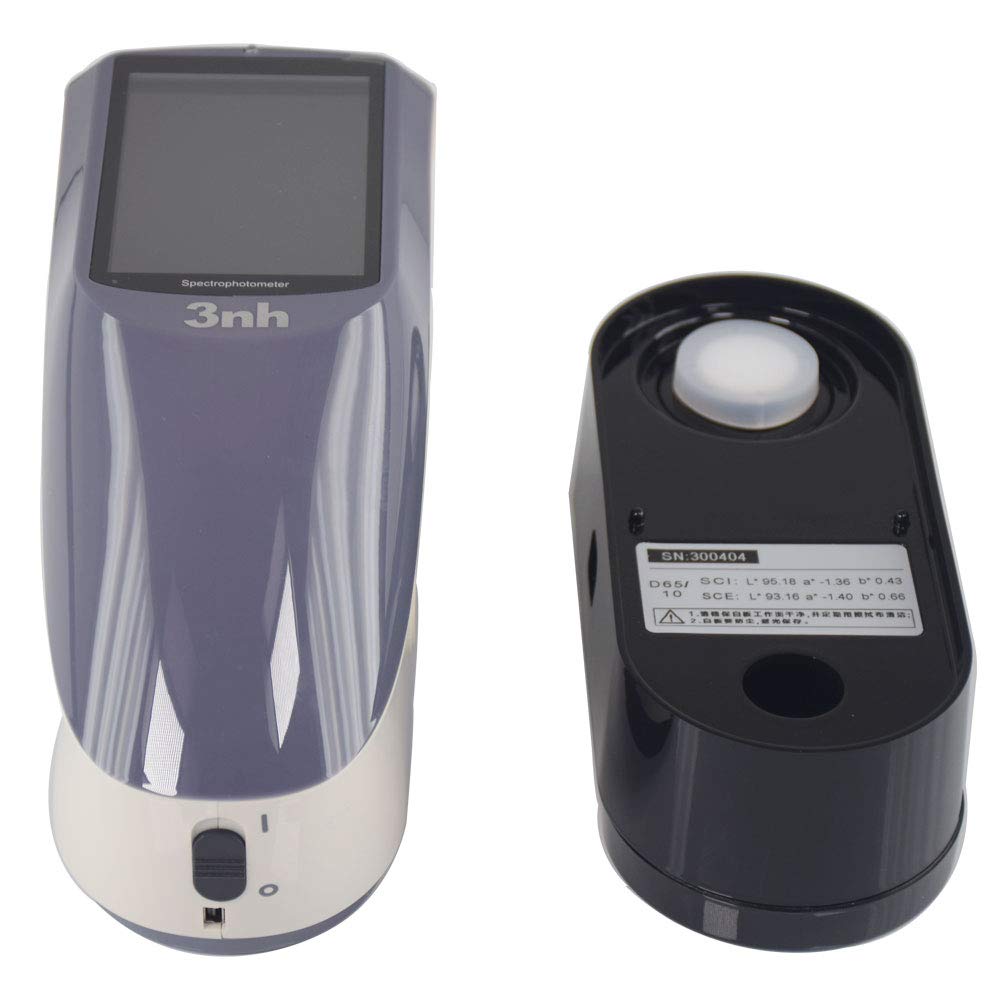

H.Super stain-resistant and stable standard white calibration plate
I.Large capacity storage space, over 20,000 measurement data
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement
K.Camera Locating Function, better position

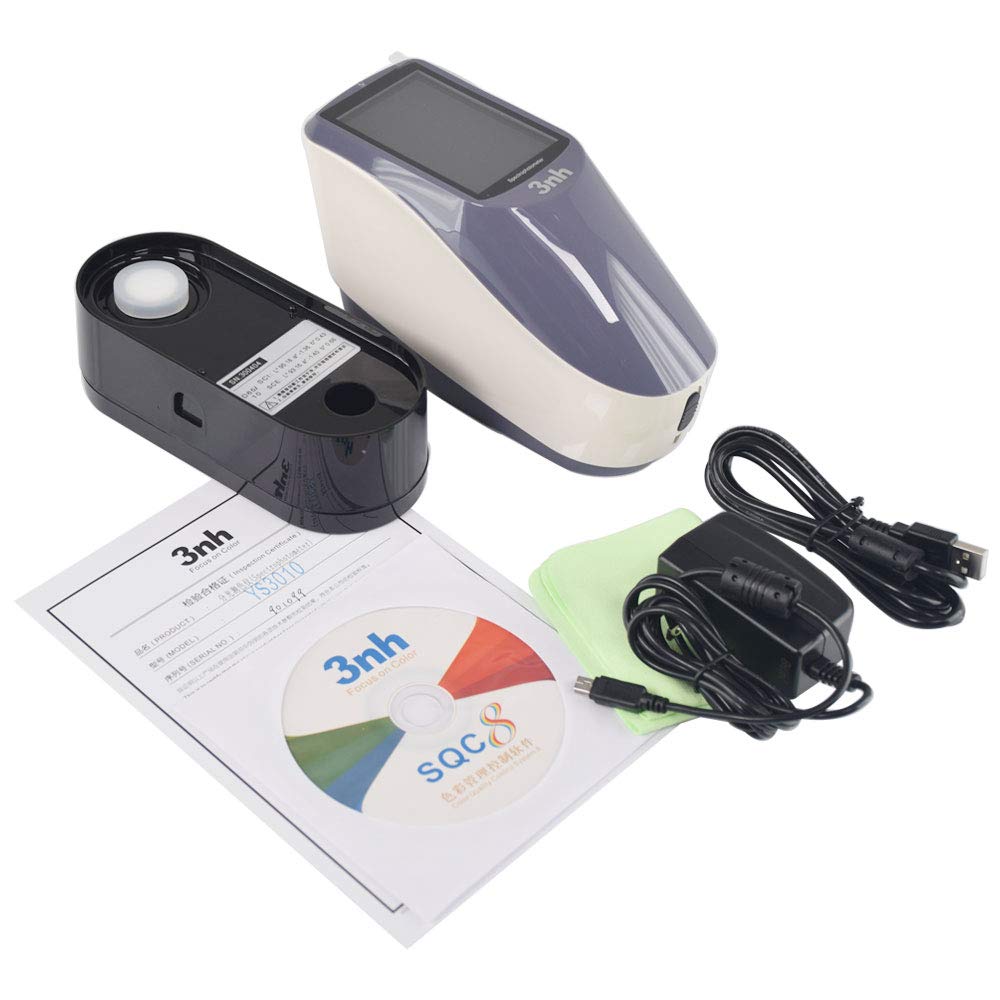

l.PC software has a powerful function extension

Specification
Brand Name:3nh
Interface:USB
WorkingTemperature:-20~50C
Colorimeter Style:Handheld
Color Difference Formula:See description
Measurement Caliber:8mm
Model Number:YS3010
Integrating Sphere Size :48mm
Light Source:Combined LED Light
Spectrophotometric Mode:Concave Grating
Sensor :256 Image Element Double Array CMOS Image Sensor
Wavelength Range :400-700nm
Measured Reflectance Range :0-200%
Measuring Time :2.6s
Observer Angle :2/10
Display :Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Storage:Standard 2000 Pcs, Sample 20000 Pcs

EAN: 0705419446738
