ZC3-A Concrete test hammer generally applied to test the strength of concrete components, such as building, panels, beams, columns, bridges
The hammer tester is the first choice applicable for on-the-spot NDT
Concrete rebound hammer whose button applies stretching techniques and is not easy to fall off
Length of pointer: 20.0±0.2 (mm), Friction of pointer: 0.65±0.15 (N)
It features light weight and power-free. It is flexible and easy to master
Part Number: ZC3-A
Details: Features:

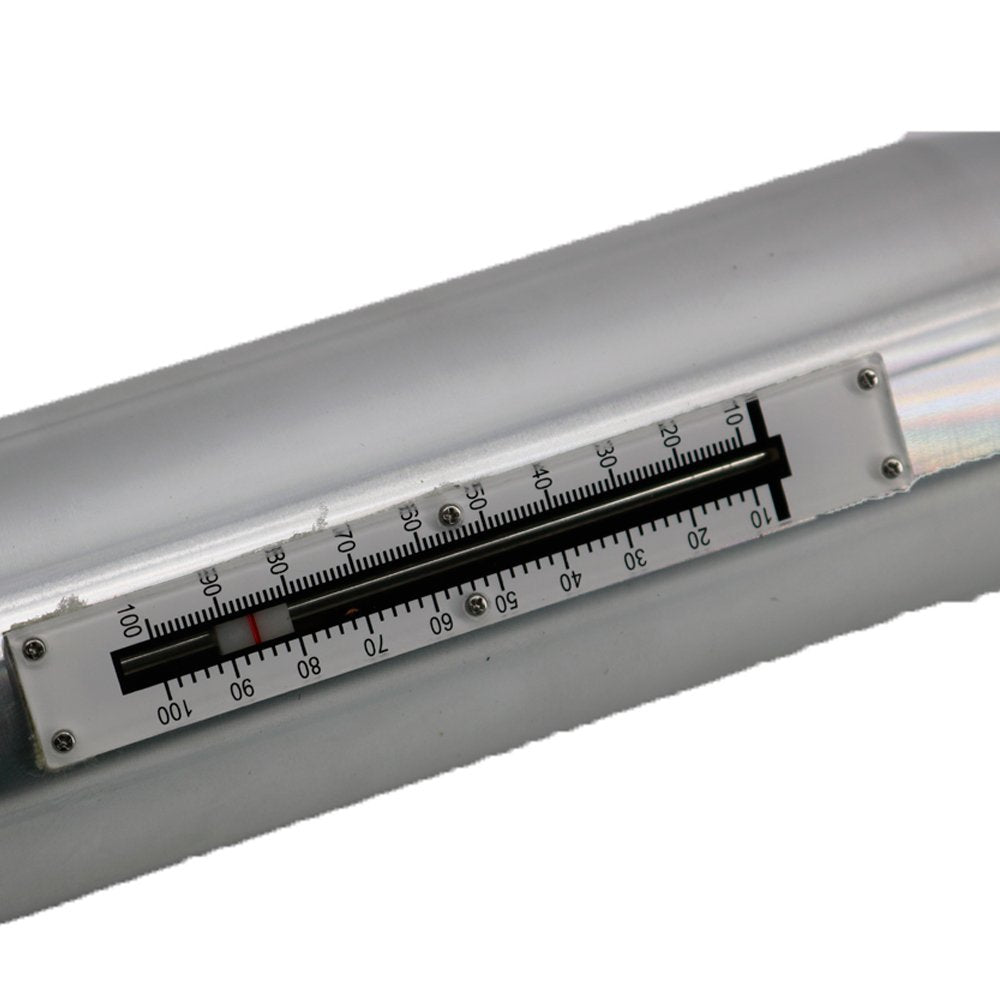

The meter is in accordance with technical regulation of JGJ/T23-2001, used for testing of concrete compressive strength within the scope of 10-60Mpa, with the system standard energy of 2.207J, and value indicating system of pointer direct reading. Our concrete resiliometer has been approved as Recommended Product for Engineering Construction By the Ministry of construction.
Specifications:
Length of pointer: 20.0±0.2 (mm)
Friction of pointer: 0.65±0.15 (N)
Sphere semi diameter at the end of the flip rod: 25±1.0 (mm)
Rigidity of flip tensioned spring: 785.0±40.0 (N/m)
Location of flip hammer's hook release: "100" at the scale mark
Work length of flip tensioned spring: 61.5.0± 0.3(mm)
Strike length of flip hammer: 75±0.3(mm)
Hop location of the flip hammer: "0" at the graduated scale
Fixed value of steel anvil: 80±2 (our products are controlled between 80-81)

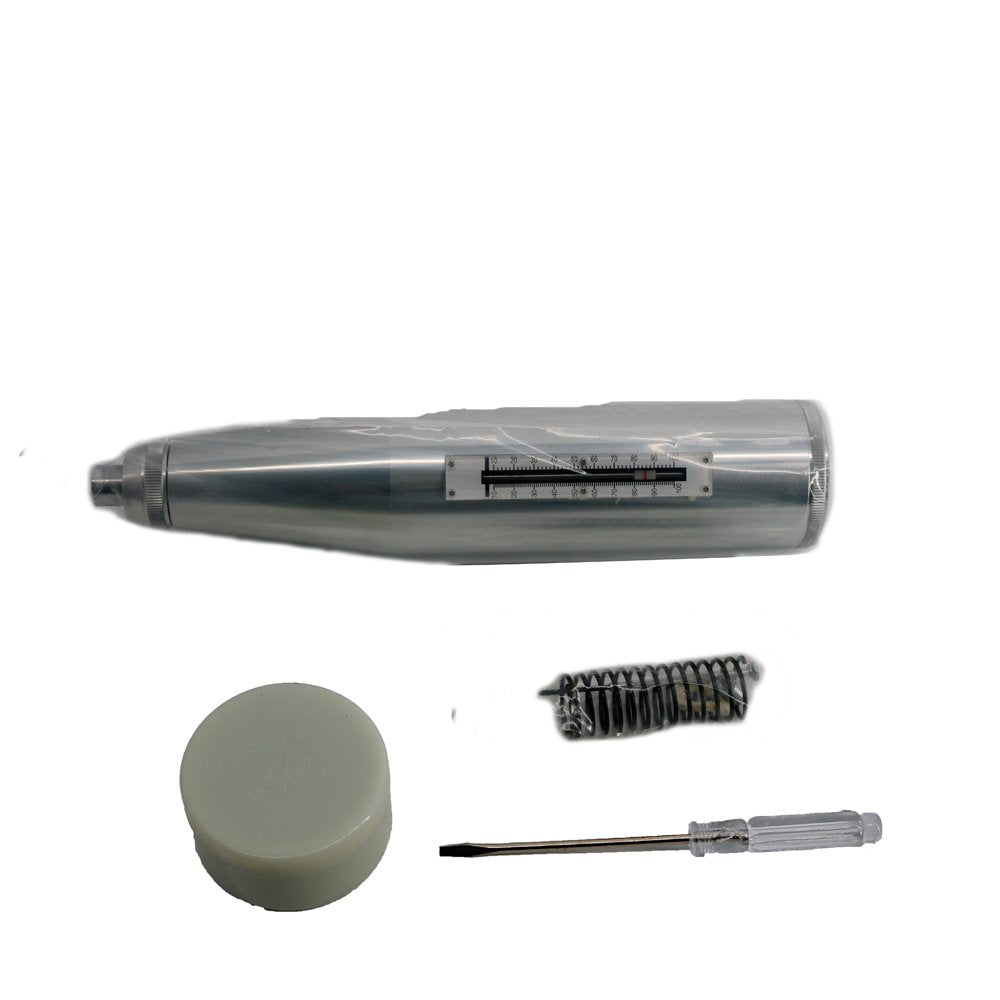

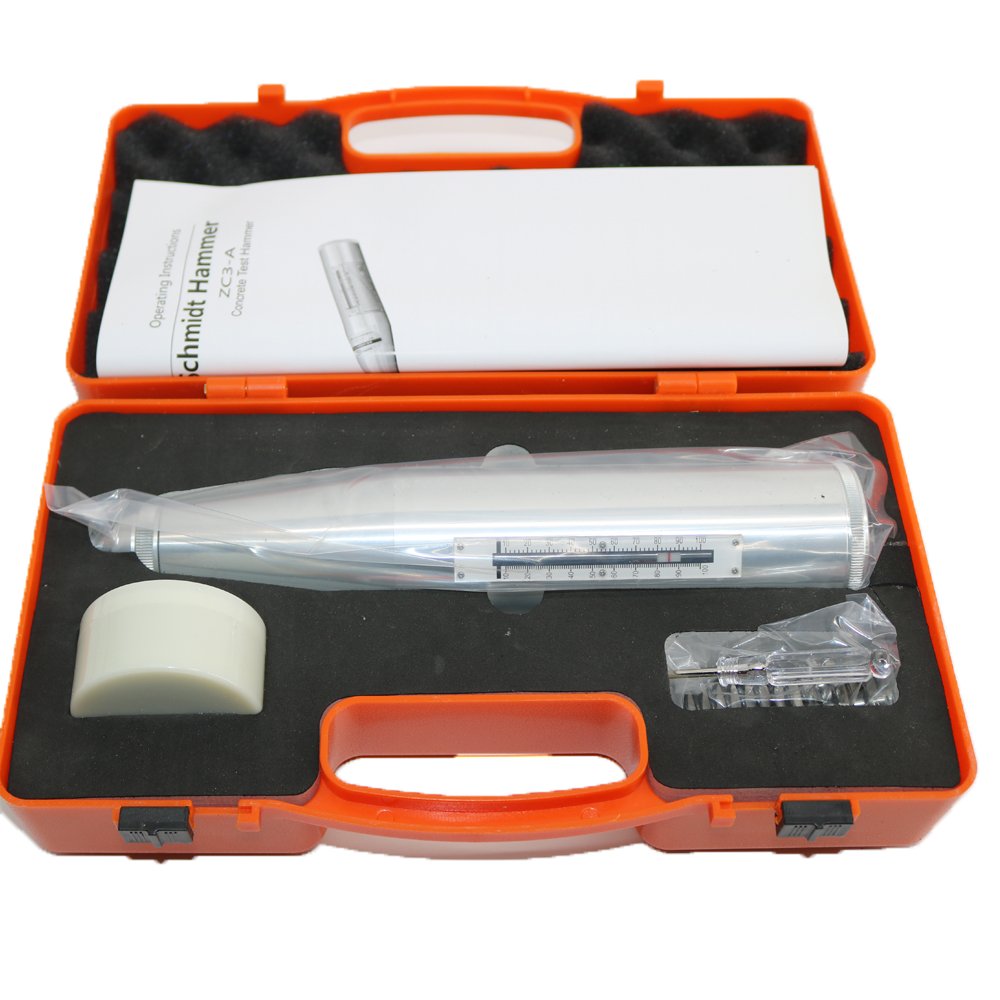

Standard Configuration:

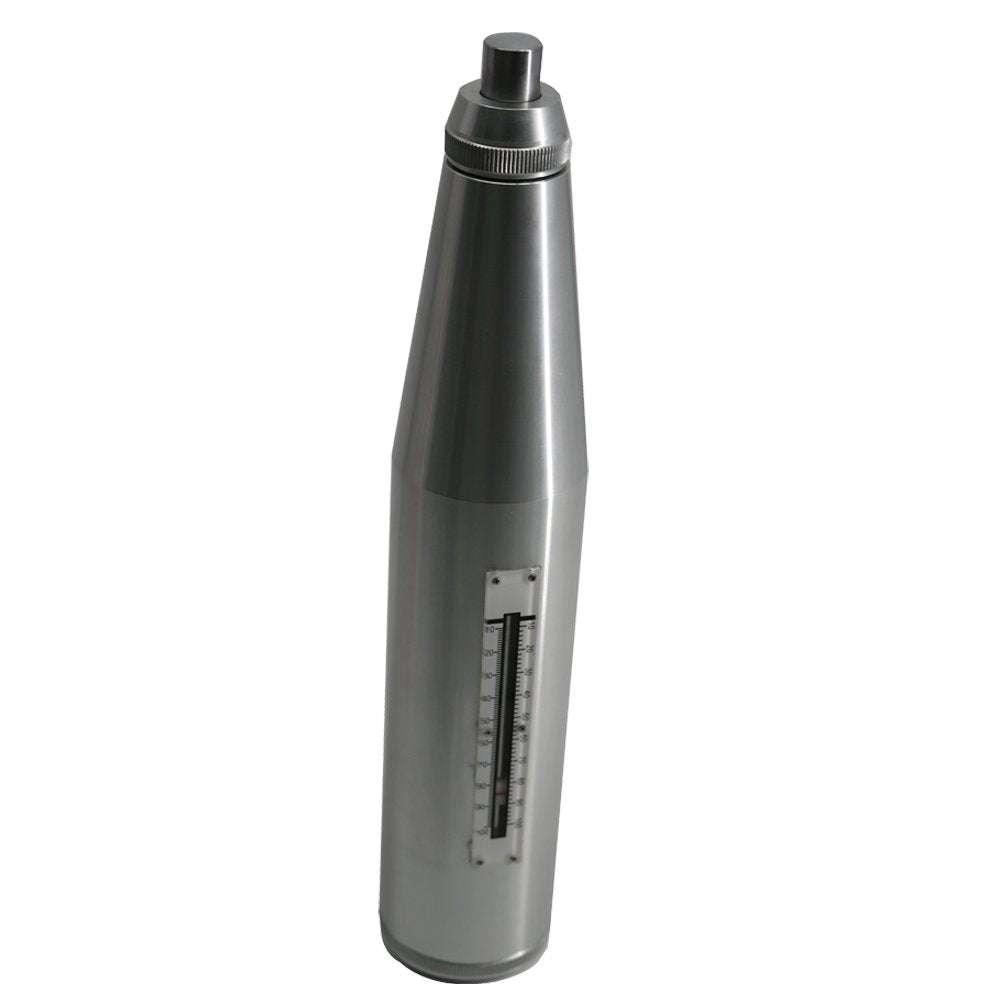

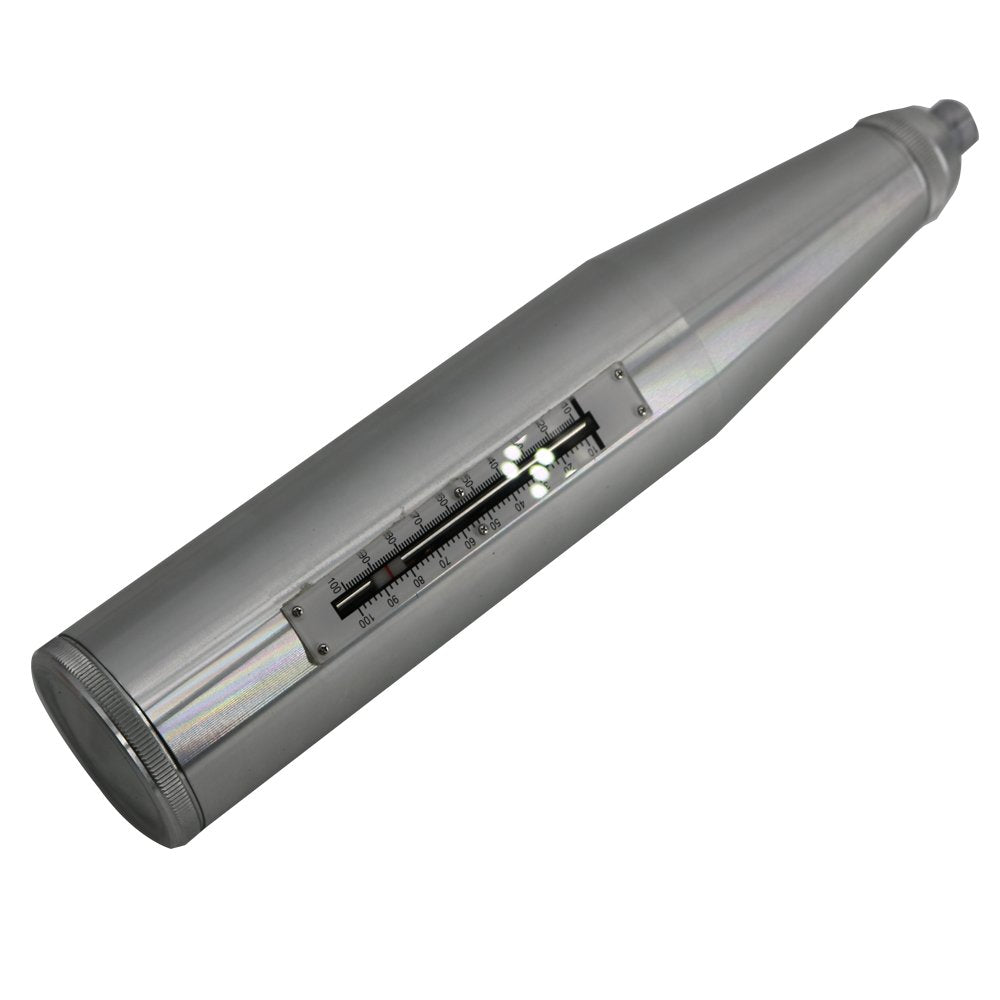

Concrete Rebound Hammer Tester

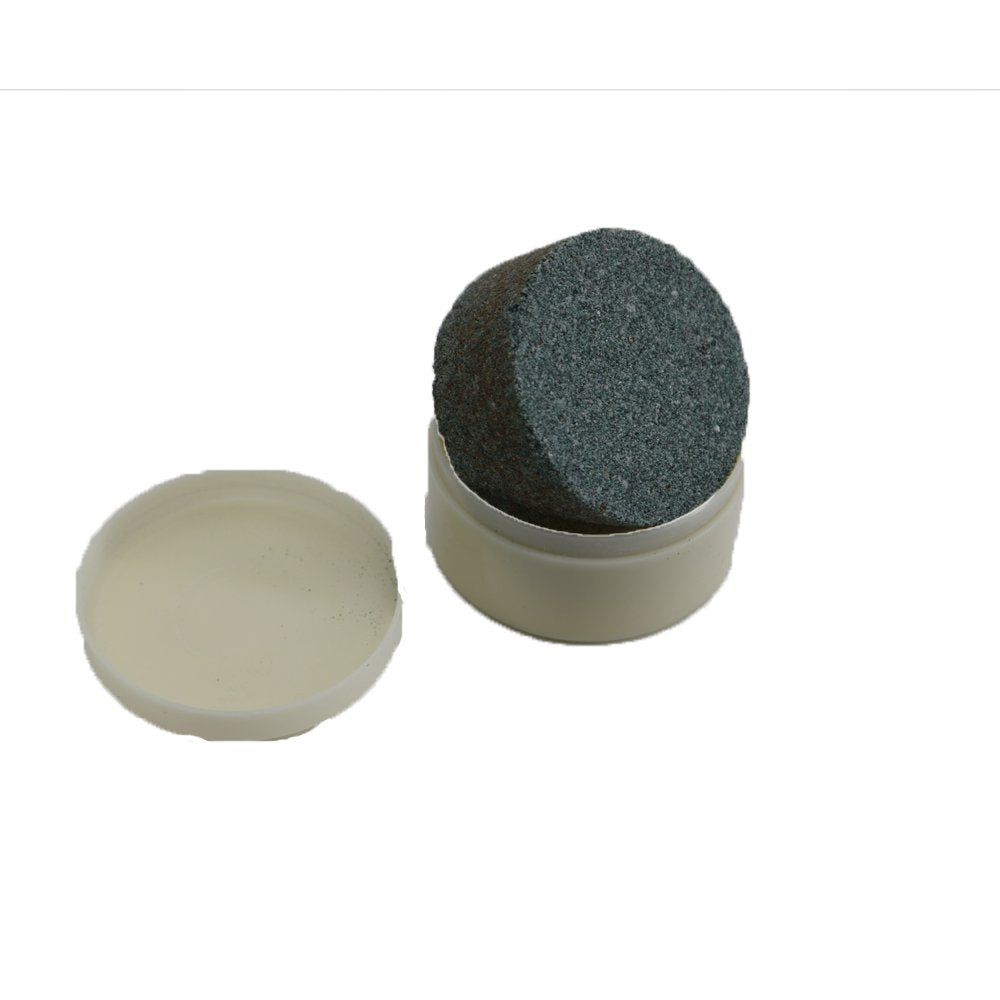

Grindstone

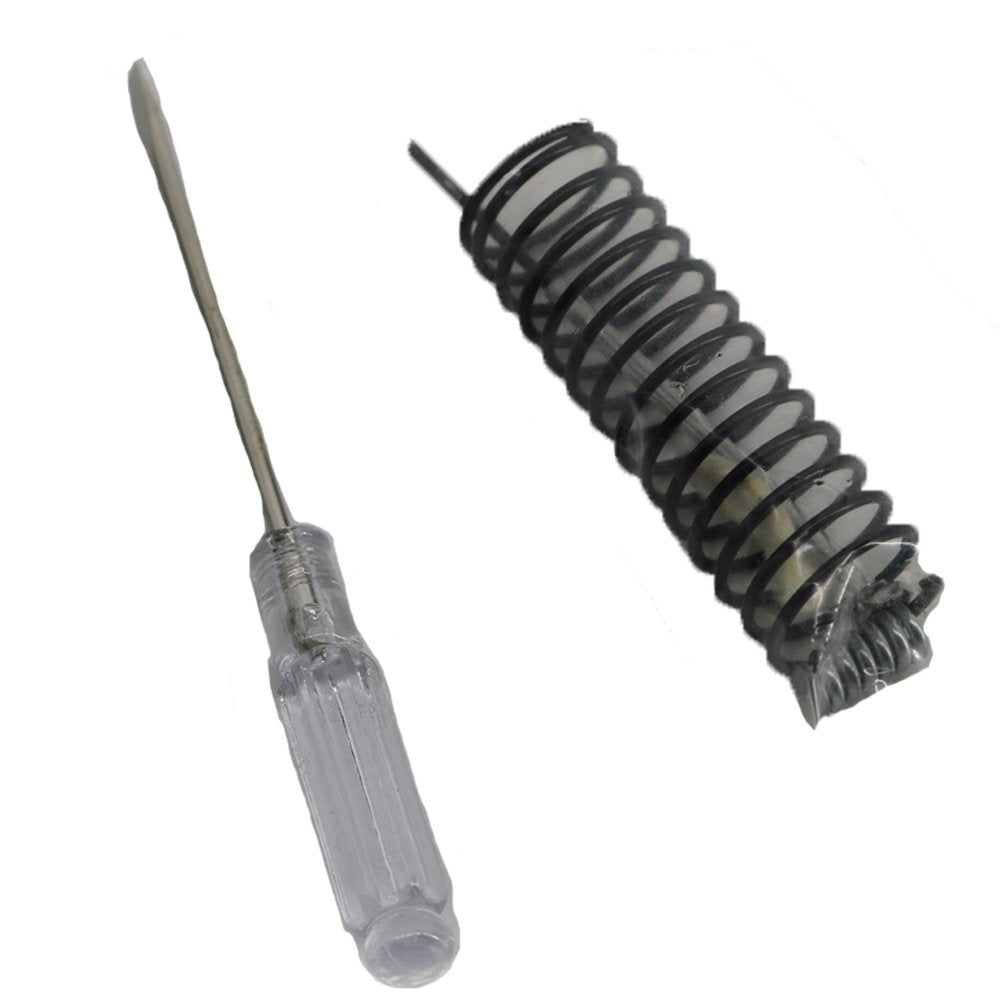

Flip tension spring
Buffer spring
Screwdriver
Instruction Manual
