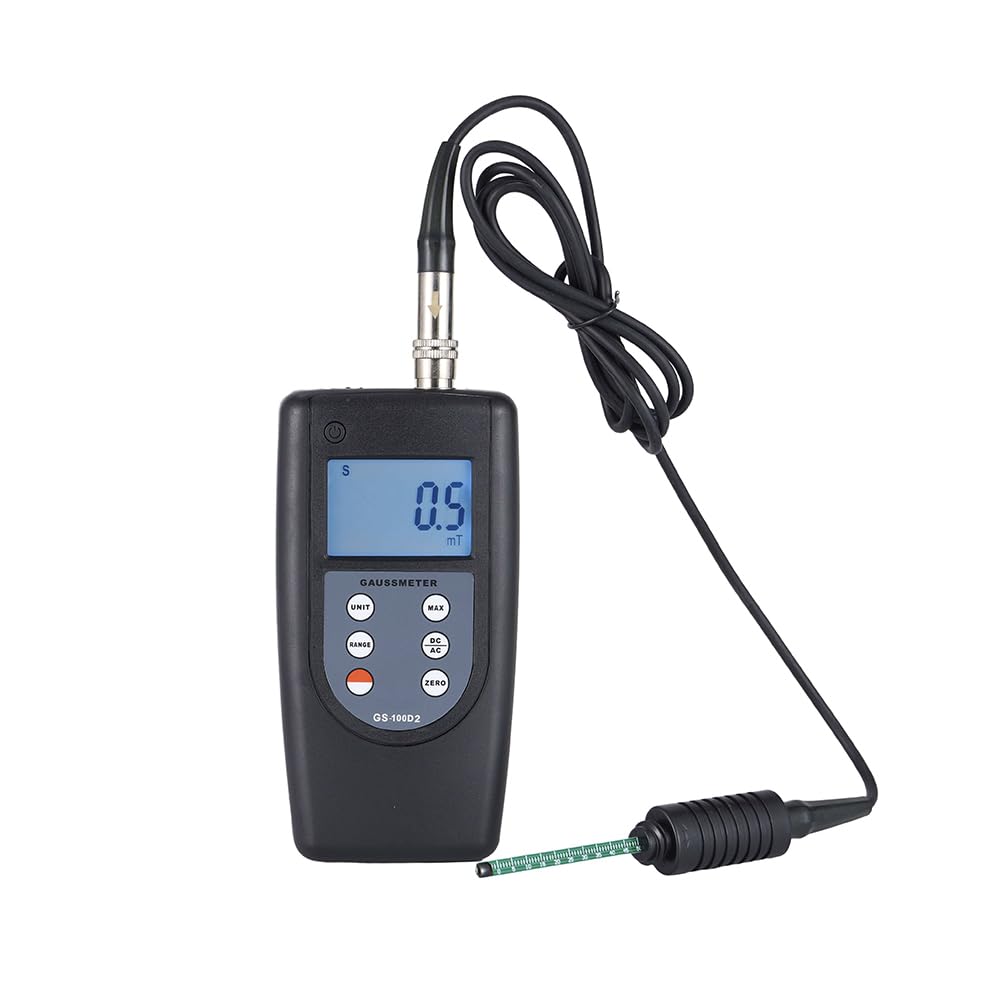

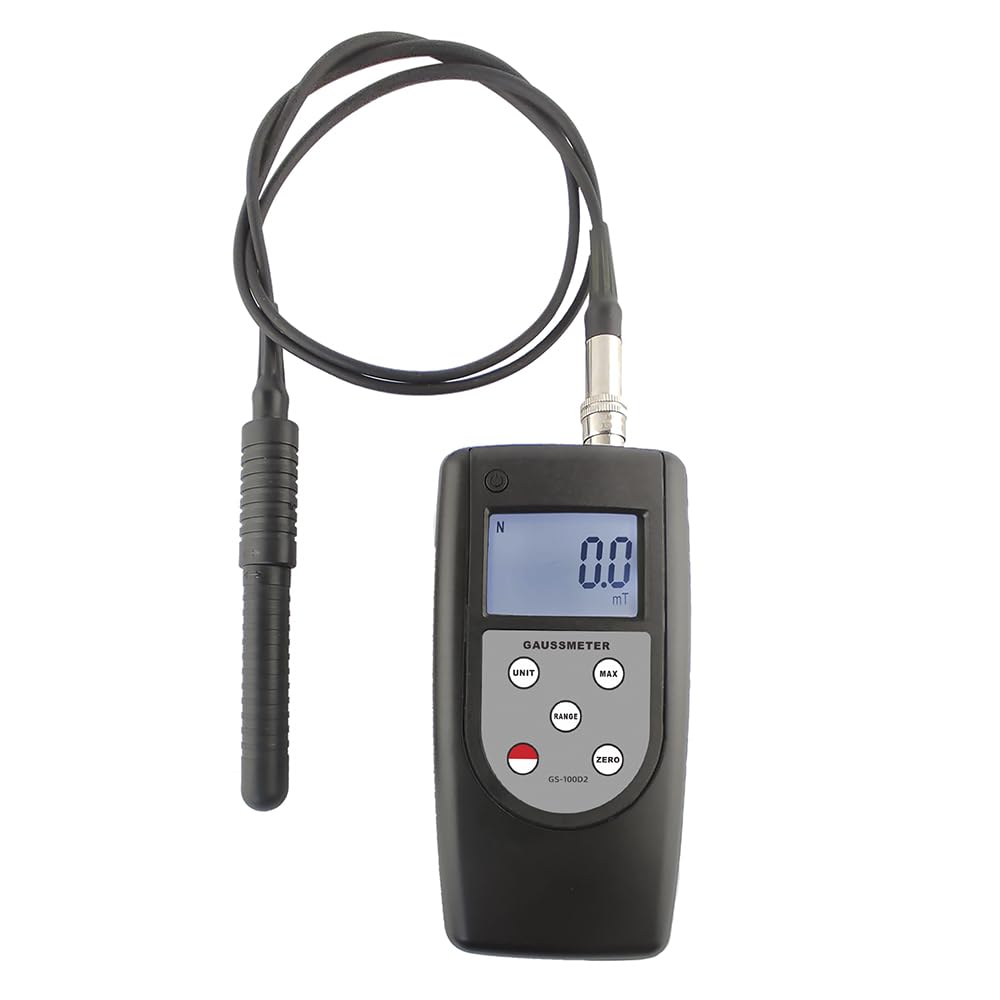

GS-100D2 Gauss Meter Radiation Magnetic Field Tester Induction Intensity Meter Measuring Range 0mT~200mT~2000mT

Brand: Graigar

Features:

• Used for measuring the magnetic induction intensity of DC magnetic field, AC magnetic field, radiation magnetic field, remanence magnetic field, earth magnetic field, and other magnetic fields.
• Portable, wide range.
• Easy to operate, clear LIQUID crystal display.
• There are measurement/peak retention, mT/Gs unit conversion.
• 200mT/2000mT range conversion, etc.

model number: GS-100D2

Part Number: GS-100D2

Details: Specification
Measuring range:0mT~200mT~2000mT
Frequency range:10Hz~200Hz
The accuracy of:DC,5%/AC,5%,10-200HZ(measured in a uniform magnetic field)
Resolution:DC×1:0.00mT~200.00mT 0.01mT/DC×10:0.0mT~2000.00mT 0.1mT/AC×1:0.00mT~200.00mT 0.01mT/AC×10:0.0mT~2000.00mT 0.1mT
Magnetic field under test:Dc magnetic field (static magnetic field)/Ac magnetic field (dynamic magnetic field)
Functional specifications:Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely
Dc polarity of measurement:N for positive, S for negative
Operating Conditions:5℃~40℃
Relative humidity :20%~80%（There is no dew）
Power supply:4x1.5v AAA (UM-4) Battery
Overall dimensions:140mm (L) X73mm (W) X 30mm (H)
Instrument weight:180g
Display mode:41/2LCD
According to the unit:mT/Gs

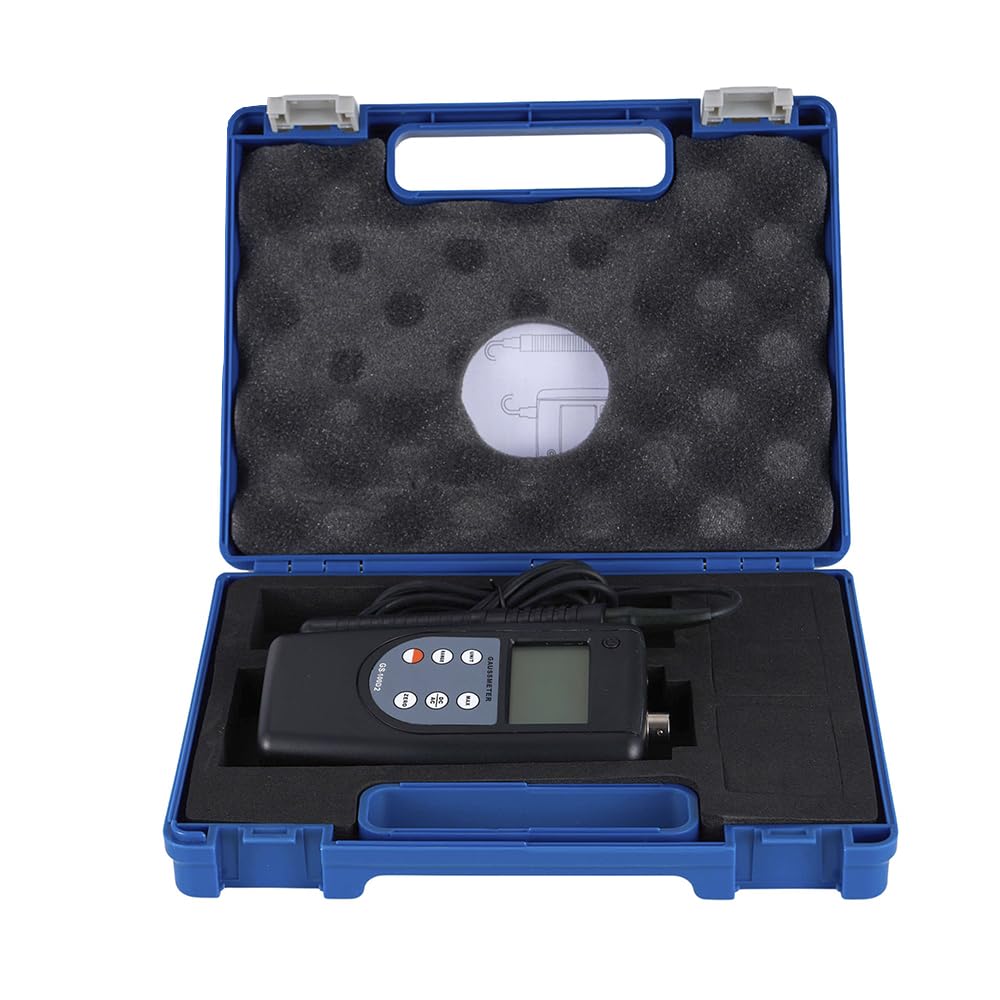

Standard Accessories
Main engine (one)

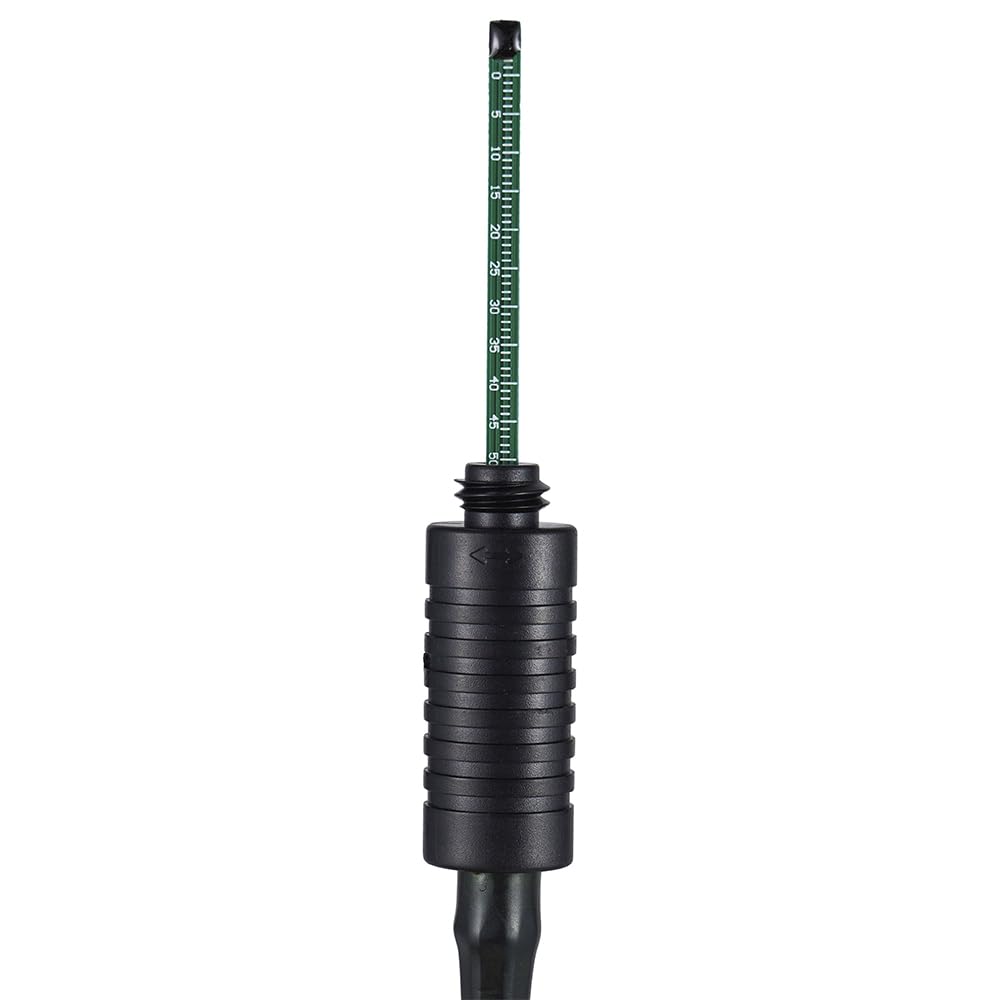

Hall sensor (one)
Operating Instructions (one copy)

EAN: 0707457451675
