* There are measurement/peak retention, mT/Gs unit conversion.
* 200mT/2000mT range conversion, etc.
Used for measuring the magnetic induction intensity of DC magnetic field, AC magnetic field, radiation magnetic field, remanence magnetic field, earth magnetic field, and other magnetic fields.
model number: GS-100DA
Part Number: GS-100DA
Details: Specifications
Measuring range:0mT~200mT~2000mT
Frequency range:10Hz~200Hz
The accuracy of:0~100mT 2%, above 100mT 5% (measured in a uniform magnetic field)
Resolution:DC×1:0.00mT~200.00mT 0.01mT/DC×10:0.0mT~2000.00mT 0.1mT/AC×1:0.00mT~200.00mT 0.01mT/AC×10:0.0mT~2000.00mT 0.1mT
Magnetic field under test:Dc magnetic field (static magnetic field)/Ac magnetic field (dynamic magnetic field)
Functional specifications:Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely
Dc polarity of measurement:N for positive, S for negative
Operating Conditions:5℃~40℃
Relative humidity :20%~80%（There is no dew）

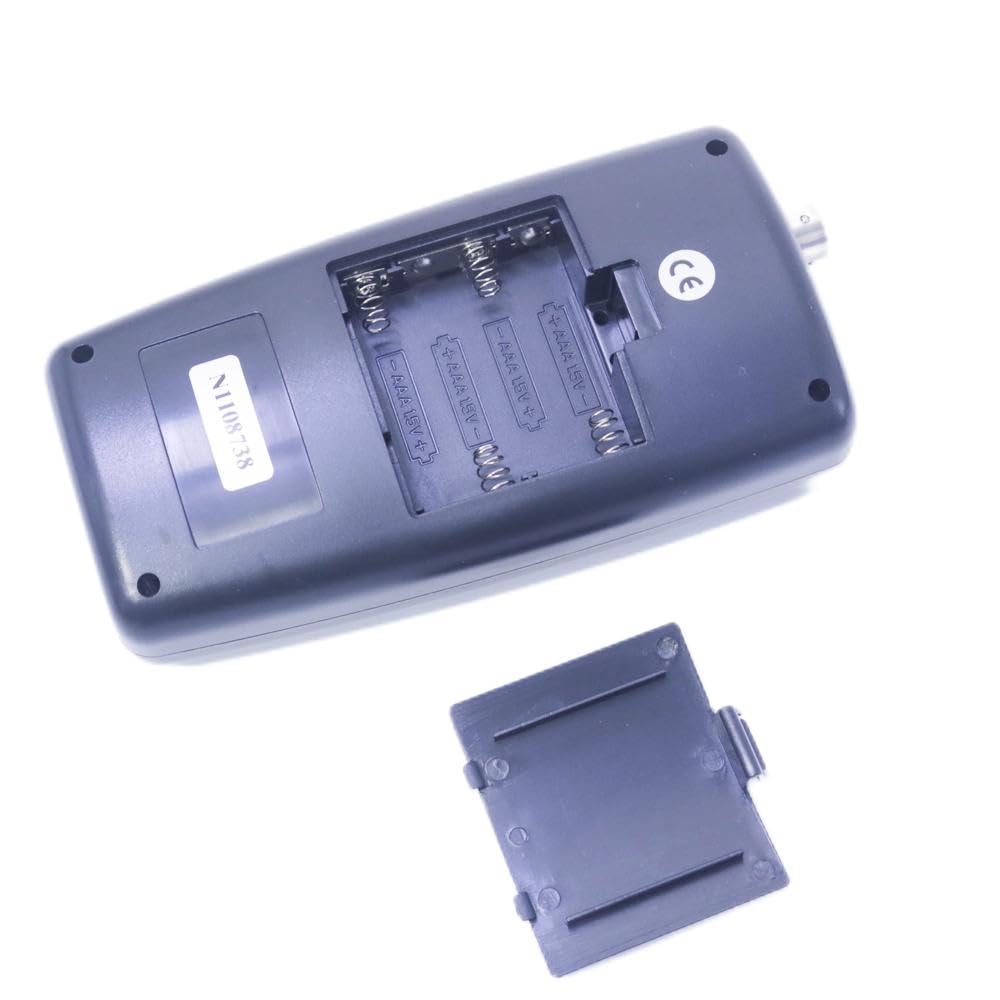

Power supply:Four no. 5 batteries can be externally connected to a 5V stabilized voltage supply
Overall dimensions:140mm (L) X73mm (W) X 30mm (H)
Instrument weight:180g
Display mode:41/2LCD
According to the unit:mT/Gs

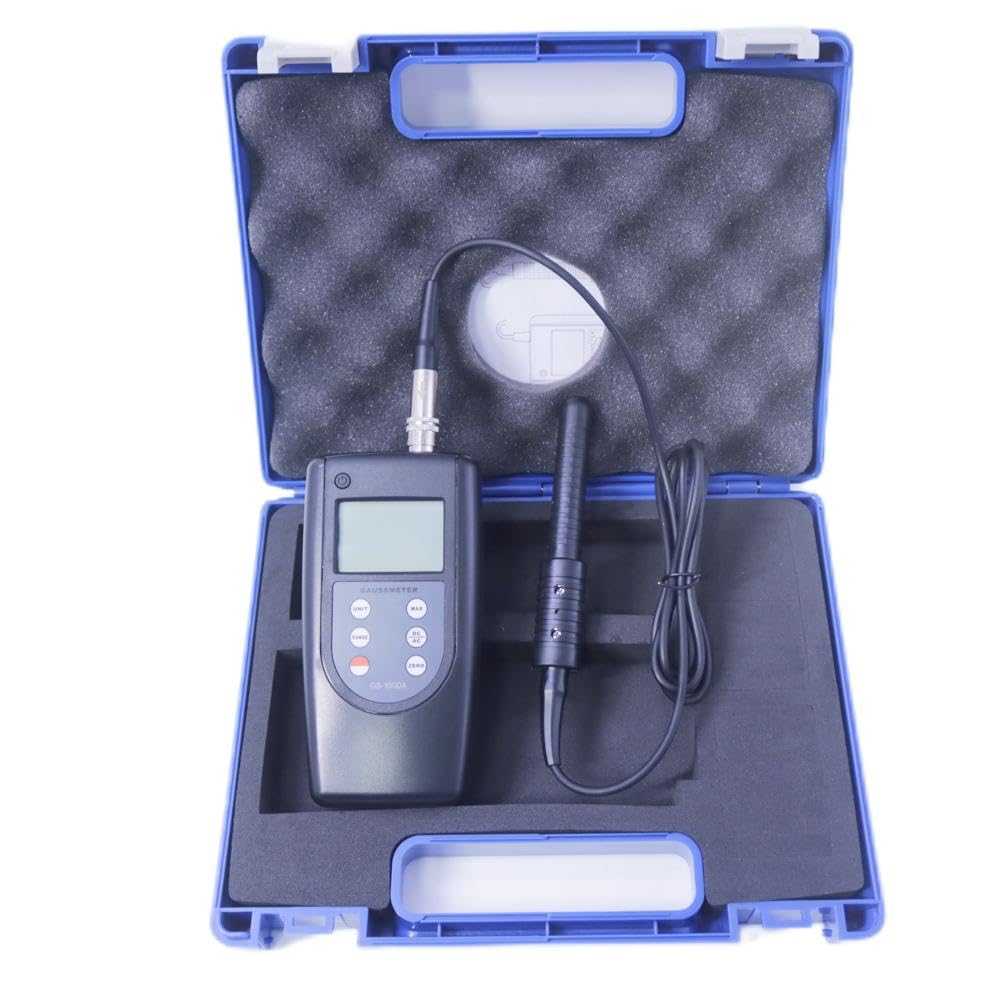

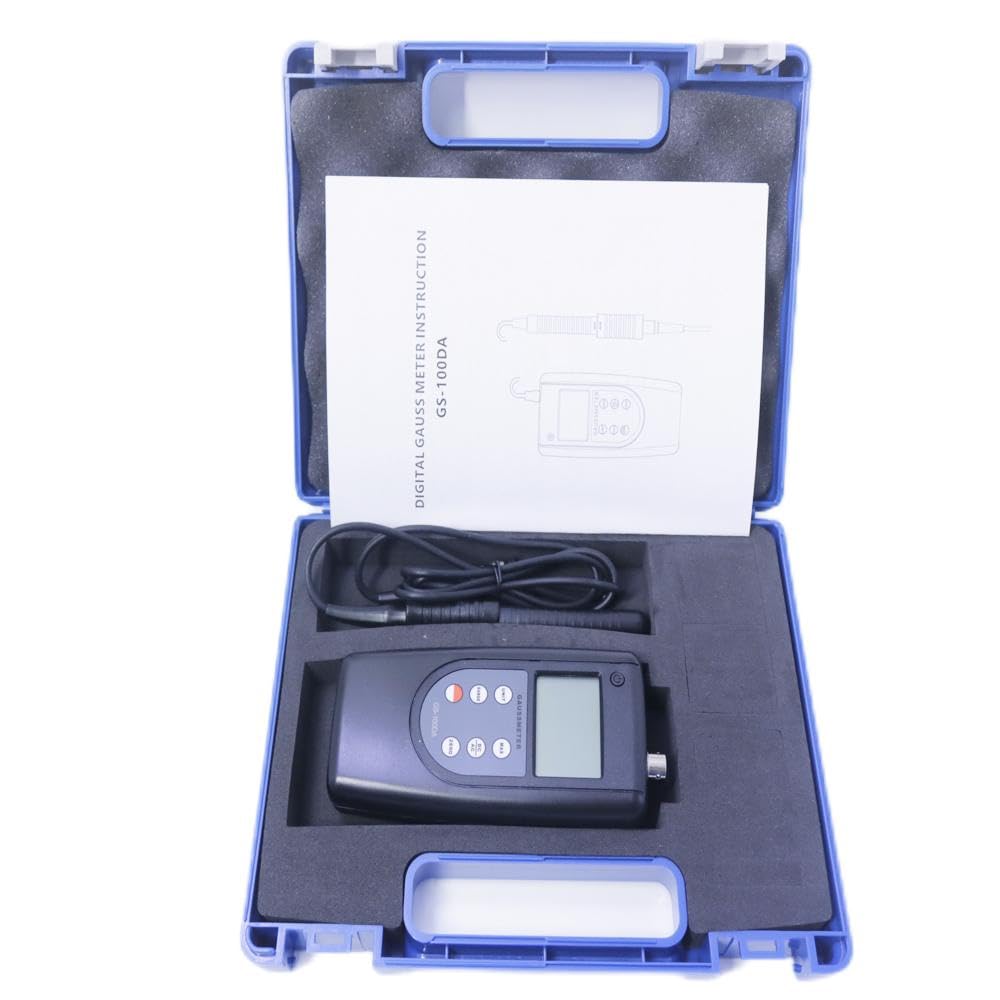

Standard Accessories

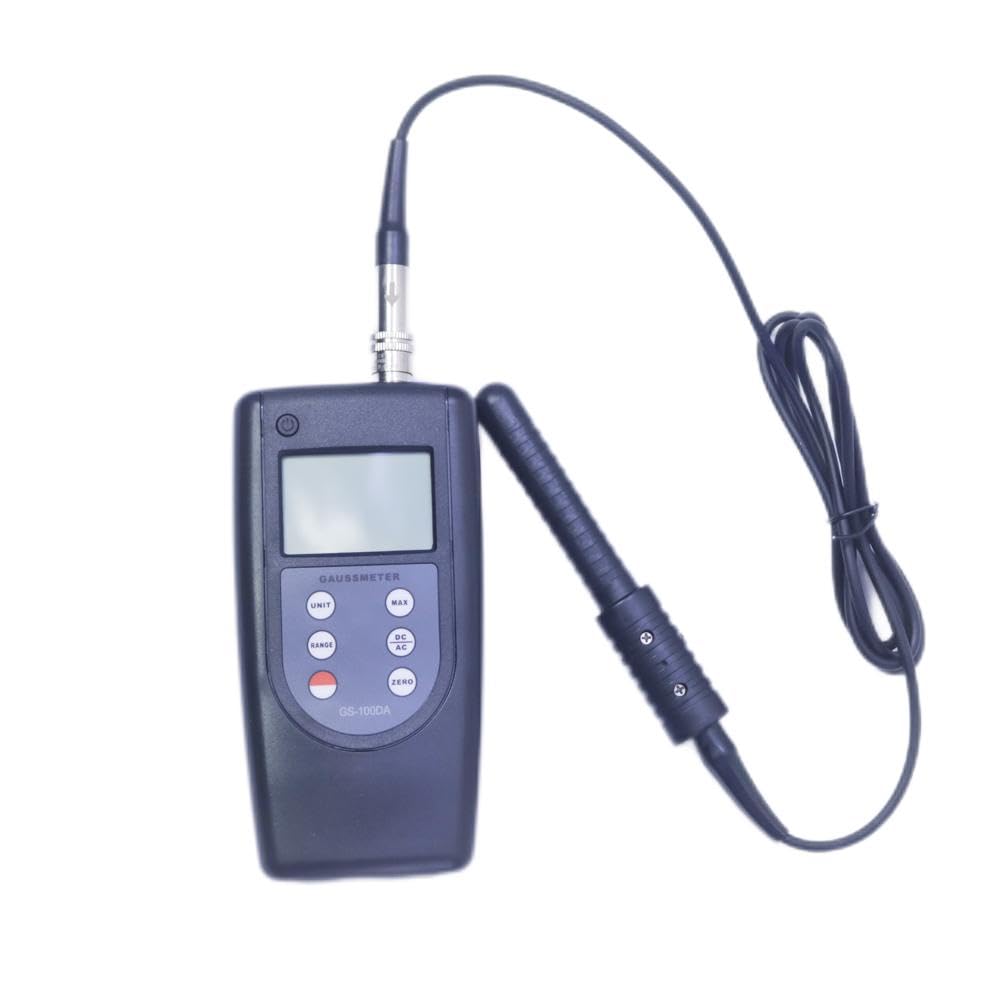

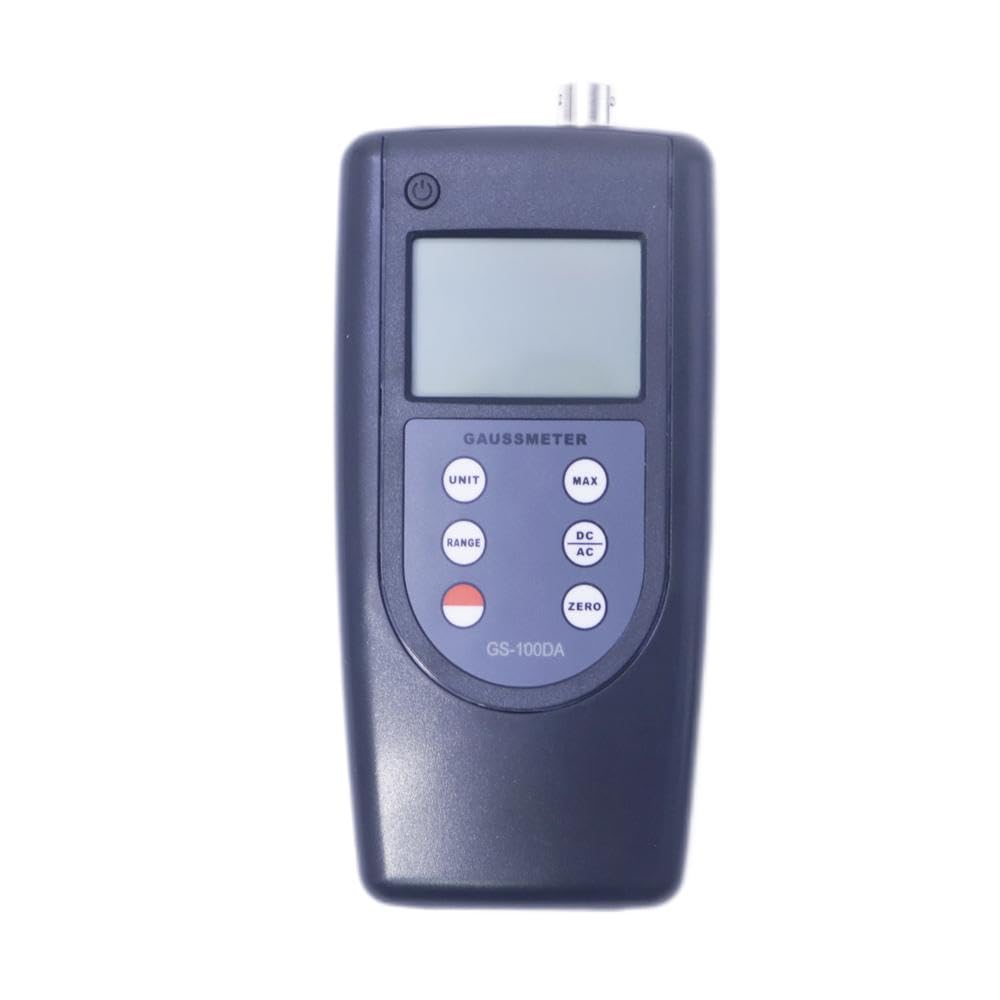

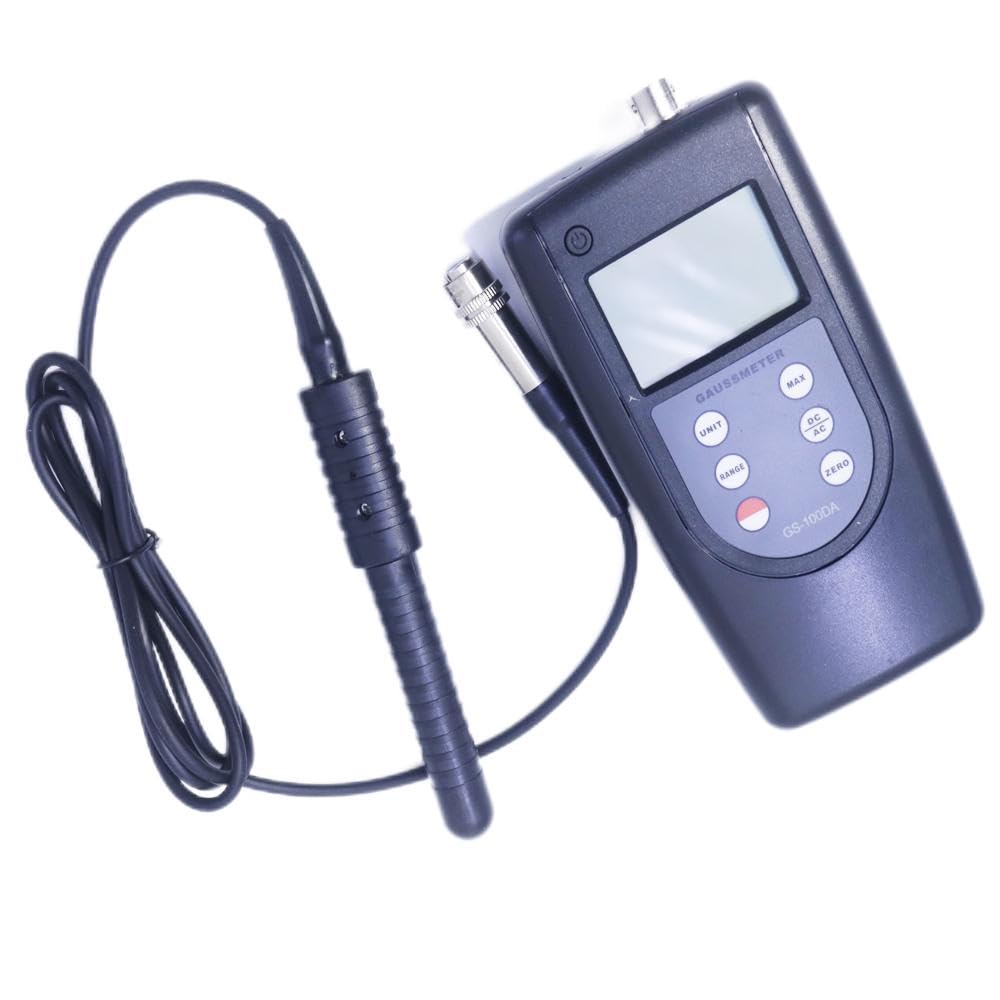

Main engine (one)

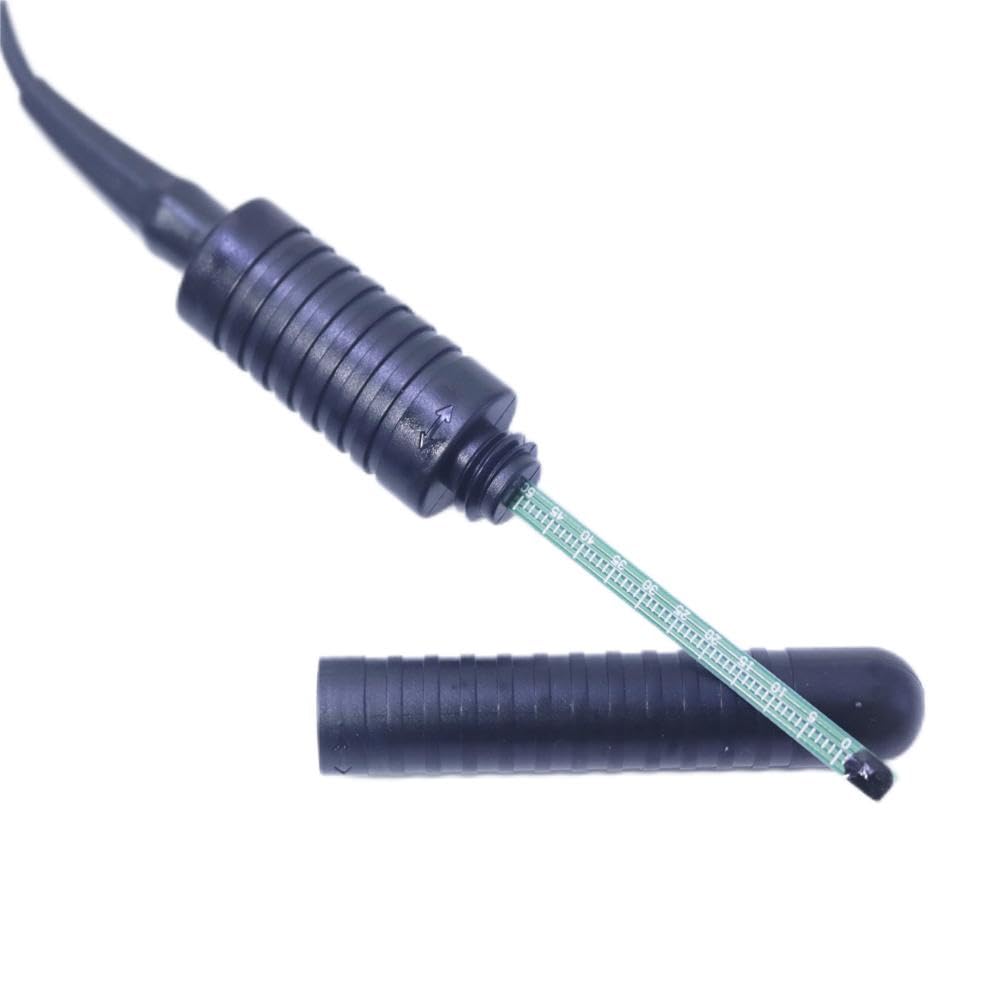

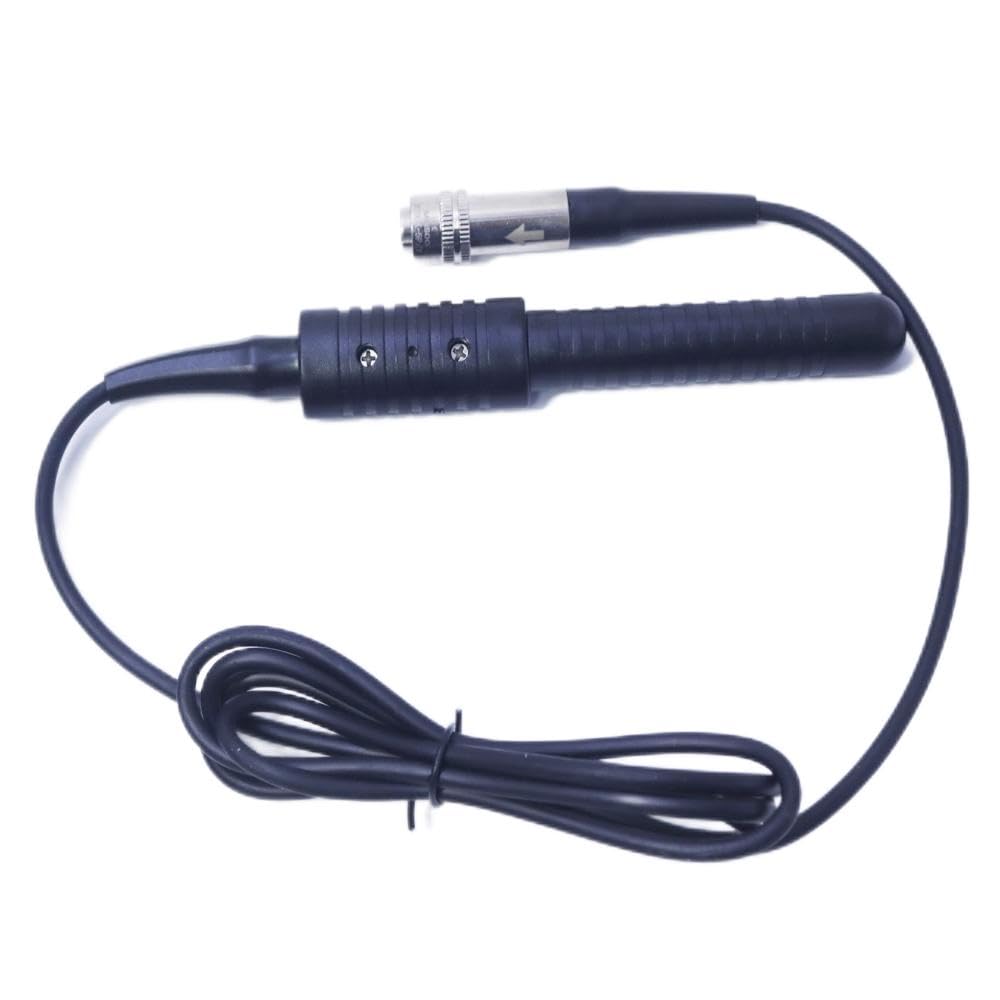

Hall sensor (one)
Operating Instructions (one copy)
