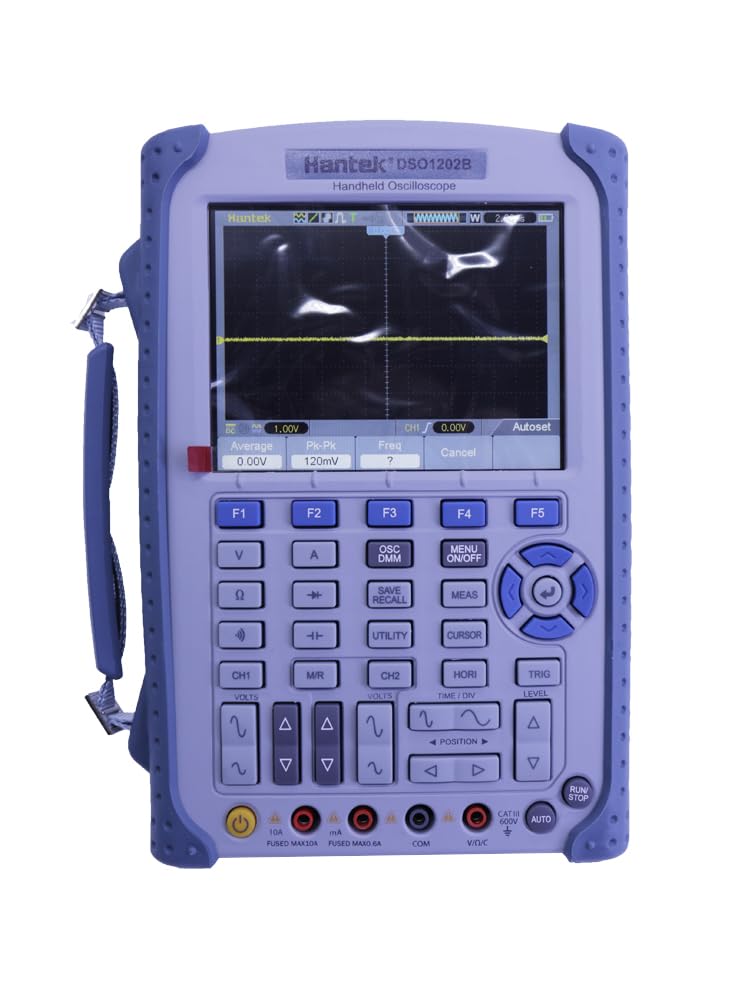

High bandwidth 60MHz-200MHz Oscilloscope,1GS/s sample rate, and 6000 counts DMM with analog bargraph 1M memory depth High refresh rate (2500 frames) Large 5 6 inch TFT color LCD display High resolution(640*480, dual-window design --More clear, more detailed
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform Easy-to-use pop-up menu with built-in multi-language help system 23 automatic measurements
Waveform math: add, subtract, multiply, and divide Store and recall over Automatic cursor tracking measurements XY Mode
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems Waveform recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
Pass-Fail function compares a stored waveform to an unknown input Average mode for smoothing waveforms Square wave output (2V, 1kHz) for probe adjustment
USB host/device 2 0 full-speed interface ,support removeable disk, LAN Optional ,easy to control by PC or long-distance Dimensions (mm):240(L)x165(W)x50(H), be carried easily LabviewVBVC second design instance
