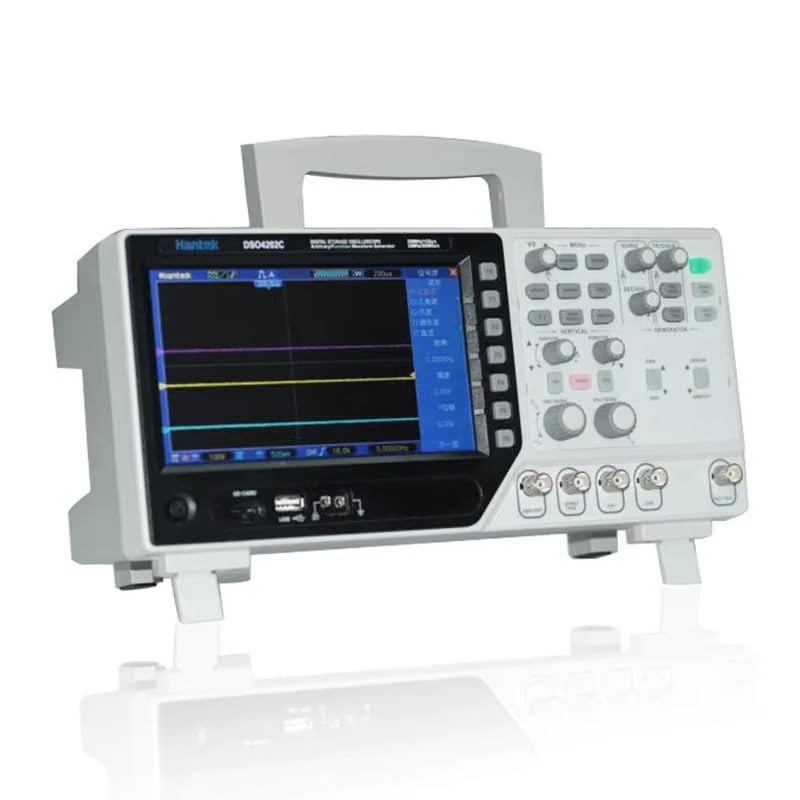

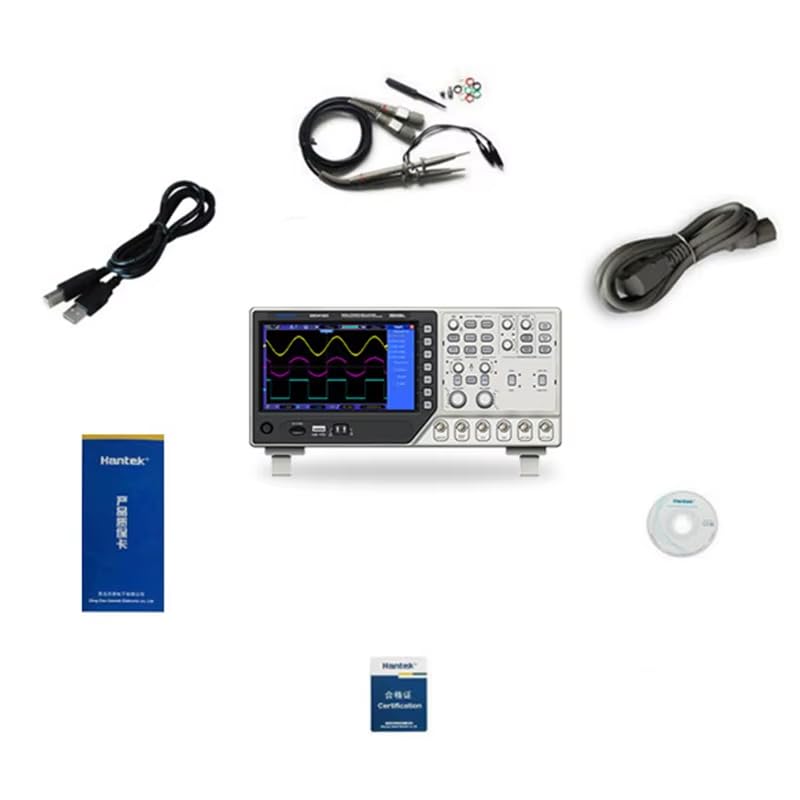

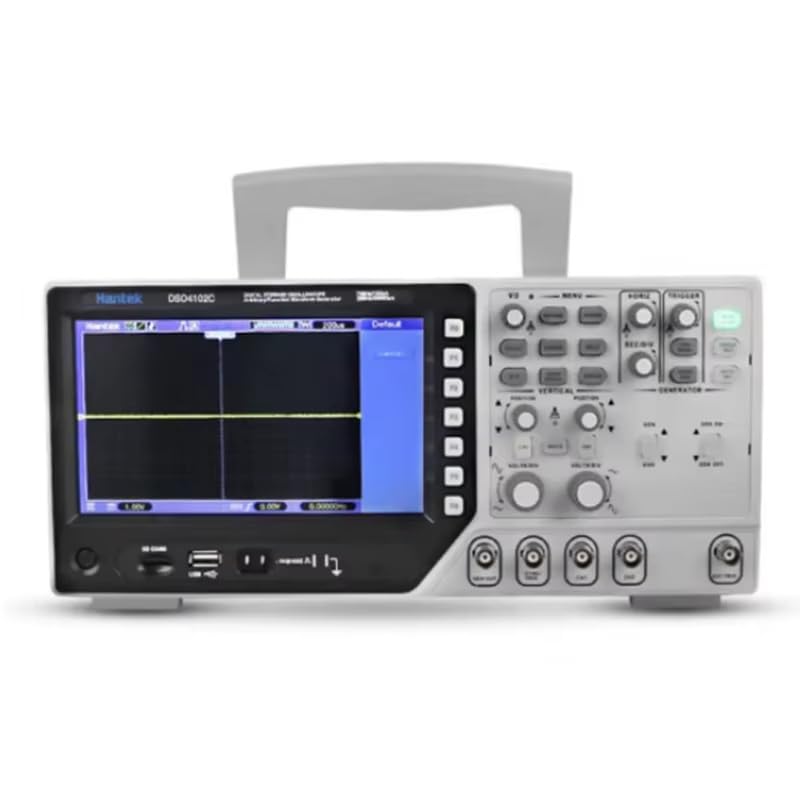

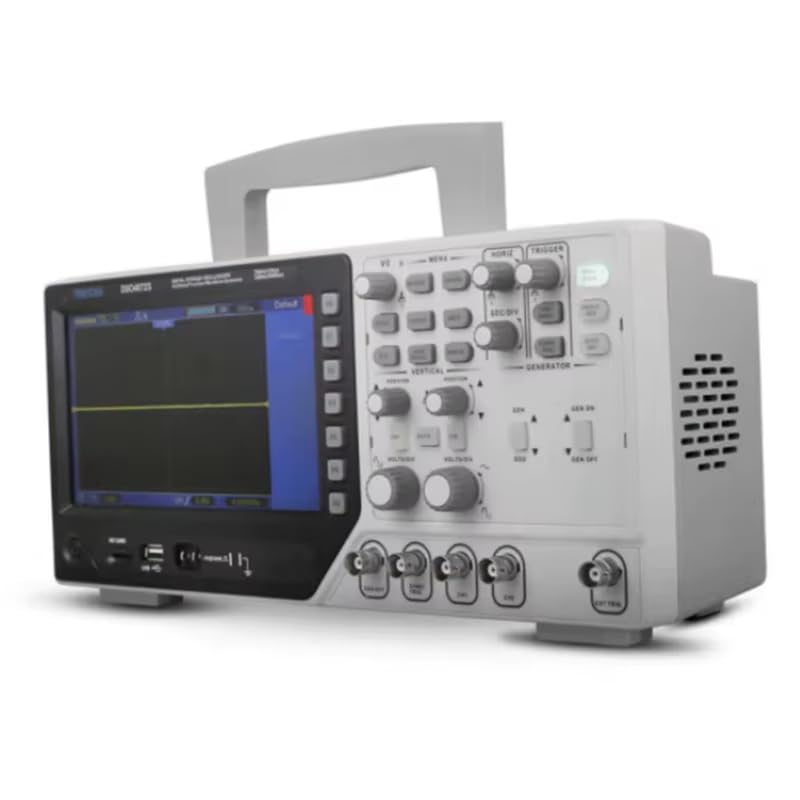

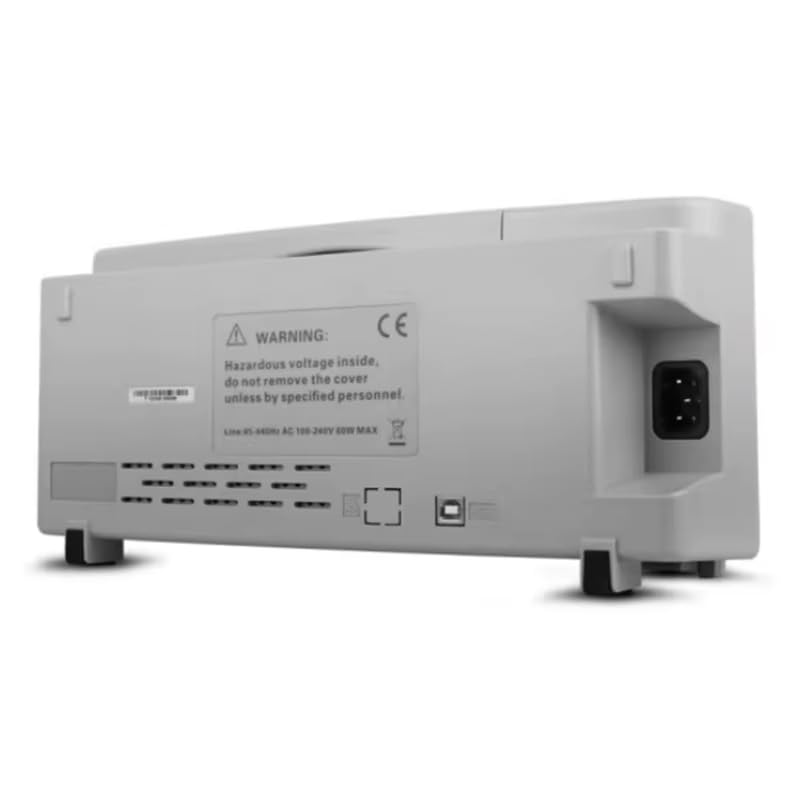

Hantek DSO4202C Digital Oscilloscope 2 Channel 1 Channel Arbitrary/Function Waveform Generator 1GSa/s Sample Rate

Model

DSO4202C

DSO4102C

DSO4072C

Oscilloscope

Sample Rate

Sampling Rate Range: 1GSa/s

Equivalent Sample Rate: 25GSa/s

Acquisition Modes

Normal

Normal data only

Peak Detect

High-frequency and randon glith capture

Average

Wavefom Average, selectable 4,8,16,32,64,128

Inputs

Inputs Coupling

AC, DC, GND

Inpits Impendance

1MΩ±2%  20pF±3pF

Probe Attenuation

1X, 10X

Supported Probe Attenuation Factor

1X, 10X, 100X, 1000X

Maximum Input Voltage

CAT I and CAT II: 300VRMS (10×)

CAT III: 150VRMS(1×);

Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.

Horizontal

Sample Rate Range

1GS/s

Waveform Interpolation

(sin x)/x

Record Length

40K

SEC/DIV Range

2ns/div to 40s/div

Sample Rate and

±50ppm(at over any ≥1ms time interval)

Delay Time Accuracy

Position Range

2ns/div to 8ns/div;

(-8div x s/div) to 20ms;

20ns/div to 80us/div; (-8div x s/div) to 40ms;

200us/div to 40s/div; (-8div x s/div) to 400s

Delta Time Measurement Accuracy
(Full Bandwidth)

Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200

Vertical

Vertical Resolution

8-bit resolution, all channel sampled simultaneously

Position Range

2mV/div to 10V/div

Bandwidth

200MHz

100MHz

70MHz

Rise Time at BNC( typical)

1.8ns

 3.5ns

5ns

Offset Range

2mV/div to 20mV/div, ±400mV;  50mV/div to 200mV/div, ±1V

500mV/div to 2V/div, ±40V; 5V/div to 10V/div, ±50V

Math

+, -, *, /, FFT

FFT

Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman;

1024 sample point

Bandwidth Limit

20MHz

Low Frequency Response (-3db)

≤10Hz at BNC

DC Gain Accuracy

±3% for Normal or Average acquisition mode, 10V/div to 10mV/div;

±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

DC Measurement Accuracy,
Average Acquisition Mode

When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected;
When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 10V/div

Volts Measurement Repeatability, Average Acquisition Mode

Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions

Trigger System

Trigger Types

Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source

CH1, CH2, EXT, EXT/5, AC Line

Trigger Modes

Auto, Normal, Single

Coupling Type

DC, AC, Noise Reject, HF Reject, LF Reject

Trigger Sensitivity
(Edge Trigger Type)

DC(CH1,CH2):

1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;

DC(EXT):

200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;

DC(EXT/5):

1V from DC to 100MHz;1.75V from 100MHz to 200MHz;

AC: Attenuates signals below 10Hz;

HF Reject: Attenuates signals above 80kHz;

LF Reject: Same as the DC-coupled limits for frequencies above 150kHz;

attenuates signals below 150kHz

Trigger Level Range

CH1/CH2: ±8 divisions from center of screen;

EXT: ±1.2V;

EXT/5:±6V
