Hantek HDP4424B Programmable Linear DC Regulated Power Supply, 4.3 Inch Color LCD Display

Hantek HDP4424B Programmable Linear DC Regulated Power Supply, 4.3 Inch Color LCD Display

$799.00 USD
$799.00 USD
促销 售罄

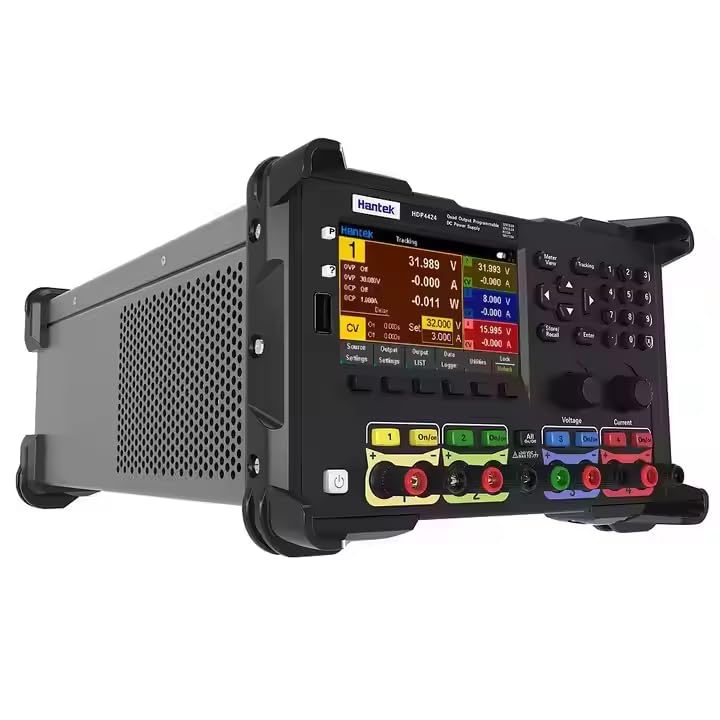

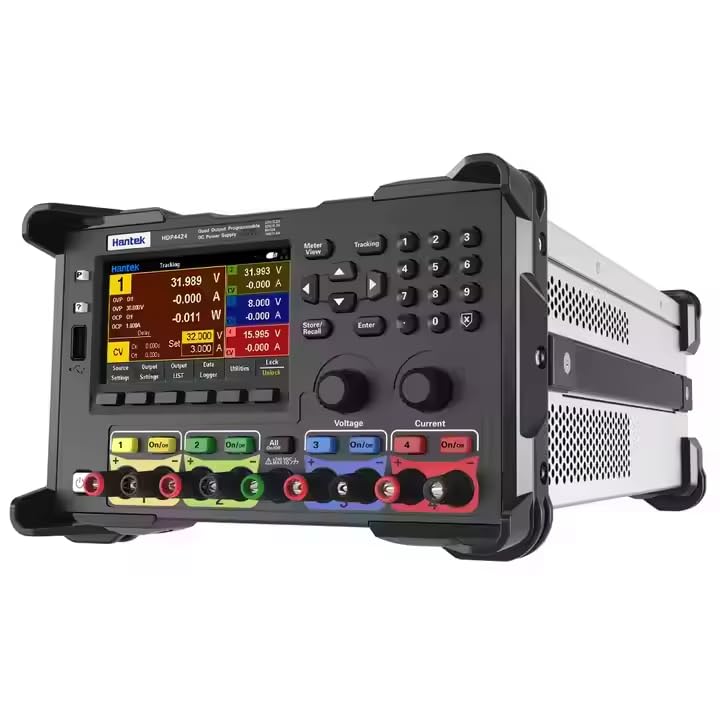

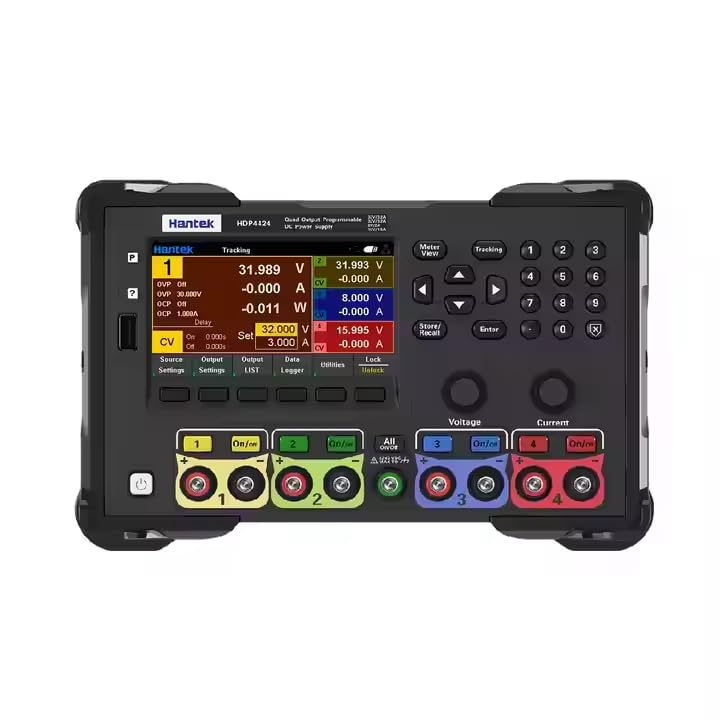

Hantek HDP4424B DC Power Supply High Performance Four-channel Programmable Linear DC Regulated Power Supply



Overview

*Four-channel programmable linear DC regulated power supply, 245W output power, electrical isolation between channels, four channels continuously adjustable.

*4.3-inch color display, real-time display voltage/current/power values and waveform, which makes the output status and trend clear at a glance.

*High resolution: 1 mV, 1 mA.

*Low ripple noise: < 350 μVrms / 2 mVpp.

*Transient response time: ≤50μs.

*Over voltage/over current/over temperature/short circuit protection functions. The over voltage and over current parameters can be flexibly set to achieve effective load protection.

*Intelligent temperature control fan automatically adjusts the speed, effectively reducing fan noise.

*The use of color and numeric identifiers makes it easy for users to identify information relevant to the output of a particular channel.

*Provide 10 groups of storage for sequence/delay/record/panel condition settings.

*List function. By editing the single-step voltage, current, time, list function can generate a variety of complex sequences to meet the complicated test requirements.

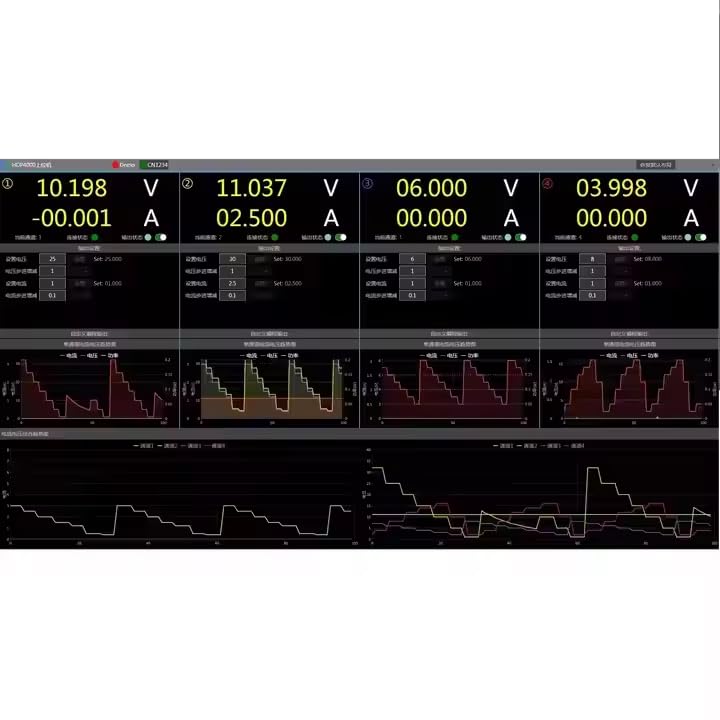

*Recorder function. The recorder can record the output voltage, current and power, and display them by graph.

*Keyboard lock function to prevent misoperation.

*Support SCPI remote command control.

*Support U disk (FAT32 format, Flash) storage, one-click screenshot and data recording function.

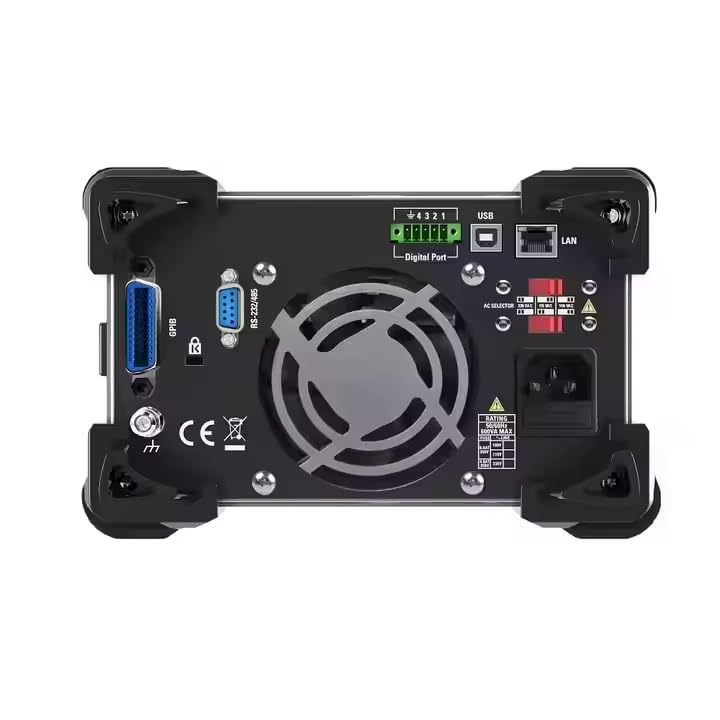

*Standard configuration ports: USB HOST, USB DEVICE, LAN, digital I/O interface, RS232/RS485 (HDP4324B/HDP4424B), GPIB (HDP4324H/HDP4424H).



Comparison

Model Channel Output Load regulation rate Power regulation rate Standard interface
HDP4324 3CH 32V/ 3.2A, 32V/3.2A, 8V/5A Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA;		 Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA;		 USB HOST, USB DEVICE, Digital I/O, LAN
HDP4324B 3CH 32V/ 3.2A, 32V/3.2A, 8V/5A Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA;		 Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA;		 USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485
HDP4424 4CH 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA;		 Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA;		 USB HOST, USB DEVICE, Digital I/O, LAN
HDP4424B 4CH 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA;		 Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA;		 USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485





Parameter

Dc output (0℃ ~ 40℃)
Channel voltage current
HDP43XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 5A
HDP44XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 2A
CH4 16V 1.5 A
Series-parallel output
Channel Series parallel
HDP43XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
HDP44XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
CH4 - -
Load regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Linear regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Ripple and noise (20Hz ~ 20MHz)
Norm voltage < 350 μVrms/ 2 mVpp
Accuracy (25℃±5℃) ± (output percentage + bias)
Channel programming read-back
voltage current voltage current
HDP43XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
HDP44XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
CH4
Transient response time
The time for the output current changing from full load to half load, or from half load to full load, and the output voltage returning to 15mV is less than 50μs.
Machinery
Size 232*153*392 mm
Weight HDP43XX 9.15 Kg
HDP44XX 9.45 Kg
Power supply
Ac input (50Hz to 60Hz) 100Vac±10%, 115Vac±10%, 230Vac±10% (Max. 250Vac)
Maximum input power 600VA
Environment
Cooling method Air cooling
Working temperature 0 ℃ to 50 ℃
Storage temperature - 40 ℃ ~ 70 ℃
Humidity 0℃ to 30℃ : ≤95% relative humidity
30℃ to 40℃ : ≤75% relative humidity
40 ° C to 50 ° C: ≤45% relative humidity
Altitude Below 3000 metres

Brand: Hantek

Features:

  • Four-channel programmable linear DC regulated power supply, 245W output power, electrical isolation between channels, four channels continuously adjustable. 4.3-inch color display, real-time display voltage/current/power values and waveform, which makes the output status and trend clear at a glance.
  • High resolution: 1 mV, 1 mA. Low ripple noise: < 350 μVrms / 2 mVpp. Transient response time: ≤50μs. Over voltage/over current/over temperature/short circuit protection functions. The over voltage and over current parameters can be flexibly set to achieve effective load protection.
  • Intelligent temperature control fan automatically adjusts the speed, effectively reducing fan noise. The use of color and numeric identifiers makes it easy for users to identify information relevant to the output of a particular channel. Provide 10 groups of storage for sequence/delay/record/panel condition settings.
  • List function. By editing the single-step voltage, current, time, list function can generate a variety of complex sequences to meet the complicated test requirements. Recorder function. The recorder can record the output voltage, current and power, and display them by graph.
  • Keyboard lock function to prevent misoperation. Support SCPI remote command control. Support U disk (FAT32 format, Flash) storage, one-click screenshot and data recording function. Standard configuration ports: USB HOST, USB DEVICE, LAN, digital I/O interface, RS232/RS485 (HDP4324B/HDP4424B), GPIB (HDP4324H/HDP4424H).

model number: HDP4424B
