| Manufacturer | Hantek |
|---|---|
| Part Number | Hantek 6074BE |
| Item Weight | 3.3 pounds |
| Product Dimensions | 12.2 x 9.06 x 3.94 inches |
| Item model number | TO1202C |
| Material | Plastic |
| Power Source | ac_dc |
| Item Package Quantity | 1 |

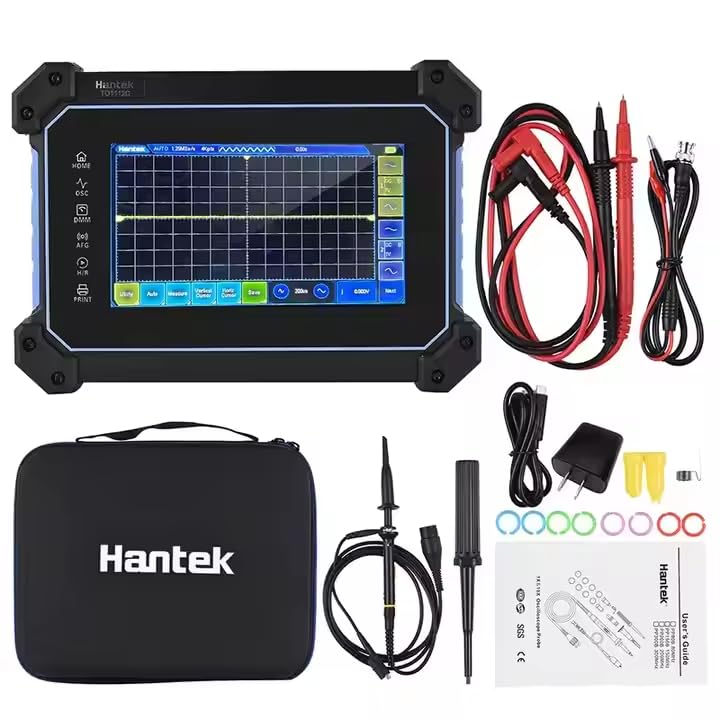

| Included Components | Oscilloscope,Probe,Cable,User Manual |
1
/
/
6

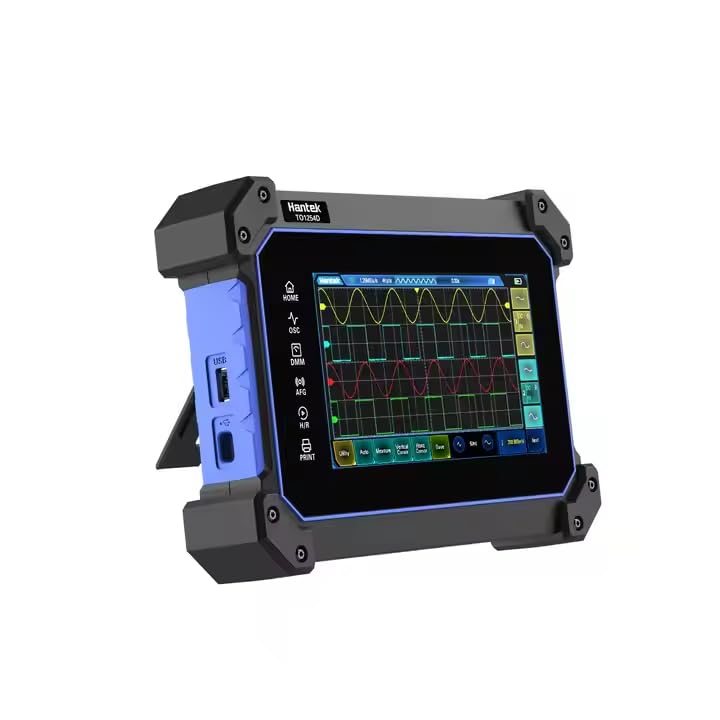

Hantek TO1202C Multi-function Touch Control Digital Flat-panel Oscilloscope Dual Channel 200M
Hantek TO1202C Multi-function Touch Control Digital Flat-panel Oscilloscope Dual Channel 200M
常规价格
$399.00 USD
常规价格
促销价
$399.00 USD
单价
/
单价
无法加载取货服务可用情况
Brand: Hantek
Product Description
SeriesTO1000 Series (1G Sampling)
Level
Horizontal Scale Range2ns/div~100s/div1、2、5 sequence
Incremental Time Measurement Accuracy(Full Bandwidth)Single, "Sampling" modeSingle
± (1 sampling interval +100ppm× reading +0.6ns)
＞16 times on average
±(1 sampling interval +100ppm× reading +0.4ns)
Sampling interval = seconds/grid ÷200
Vertical
A/D Converter8-bit resolution,each channel sampled simultaneously
Vertical Cale Range2mV/div~10V/div at input BNC
Vertical Resolution8bit8bit
Vertical Sensitivity Range2mV/div~10V/div
Offset Range±1V（2mV/div~100mV/div）
±10V（200mV/div~1V/div）
±50V（2V/div~10V/div）
Dynamic Range±5div（8bit）
Optional Analog Bandwidth Limitation, Typical20MHz,Each channel is independently selectable
DC Gain Accuracy±3% FullScale
Isolation Between Channels40dB，DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range1GSa/s
Acquisition ModesNormal, Average, Peak, High resolution
Waveform Interpolation（sinx）/x
Product information
Technical Details
Features:

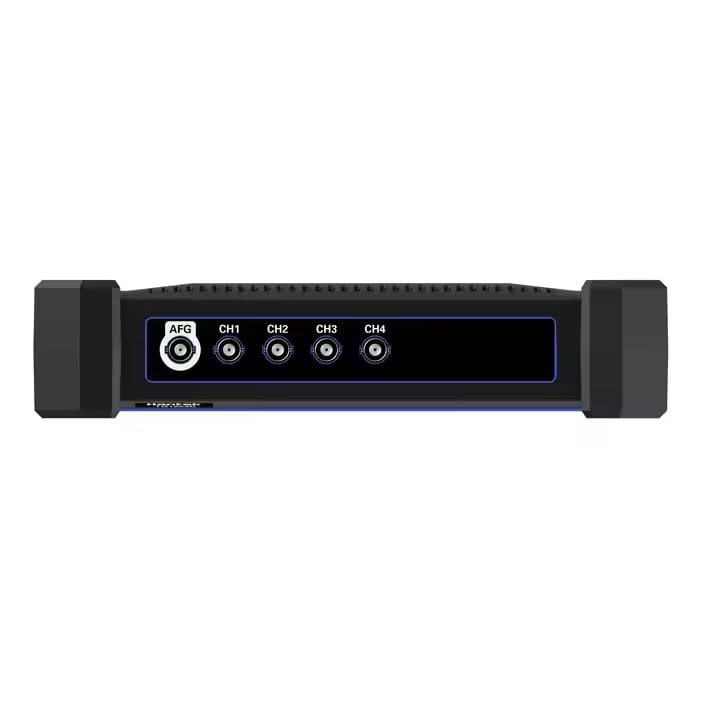

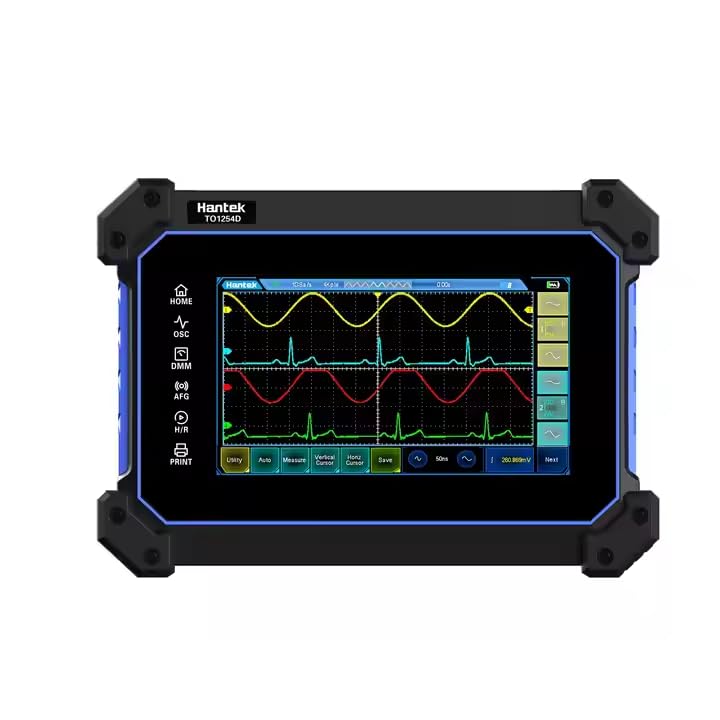

- * Multi touch large screen, resolution up to 800 * 480, friendly and easy-to-use UI, good interaction experience. * Standard configuration of 4 or 2-channel oscilloscope, maximum bandwidth of 250MHz, maximum sampling rate of 1GSa/s, 8M large storage.

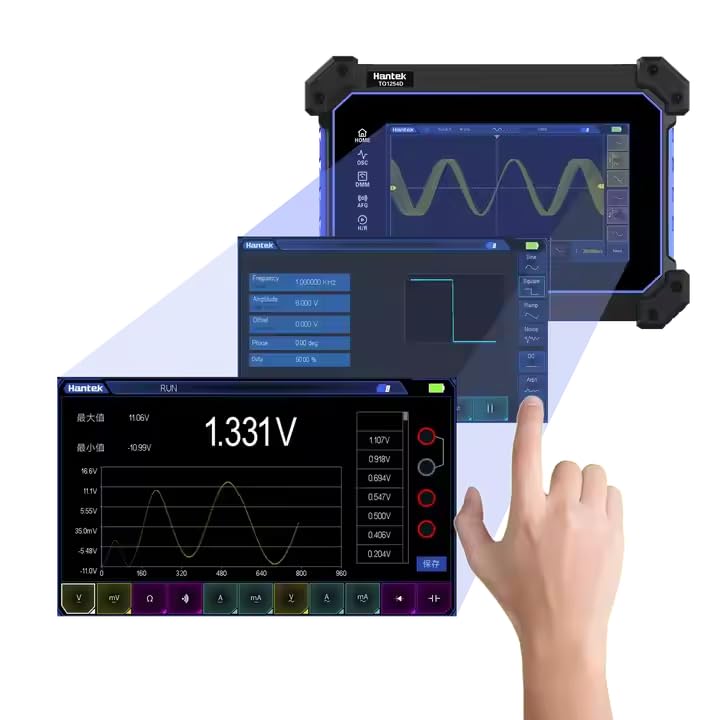

- * Provide high-precision multimeter with data recording, storage, trend chart, statistical analysis and other functions.
- * A variety of arbitrary waveforms are built into the signal generator, and the highest output frequency is 25MHz.
- * One key waveform storage, convenient and fast. * Suspension foot design, multi angle adjustment, anti falling and anti-seismic, put it on the go.

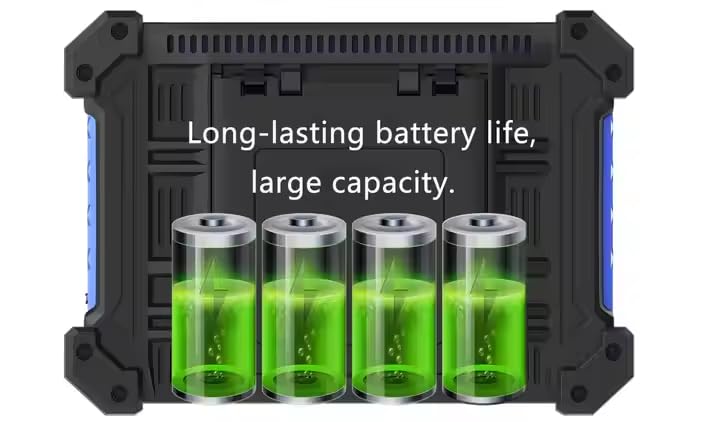

- * Built in super large capacity lithium battery, full power, long endurance, standby for up to half a year. * The standard 18W charger supports type-C fast charging, and can also share a set of charging equipment with mobile phones.
model number: TO1202C
