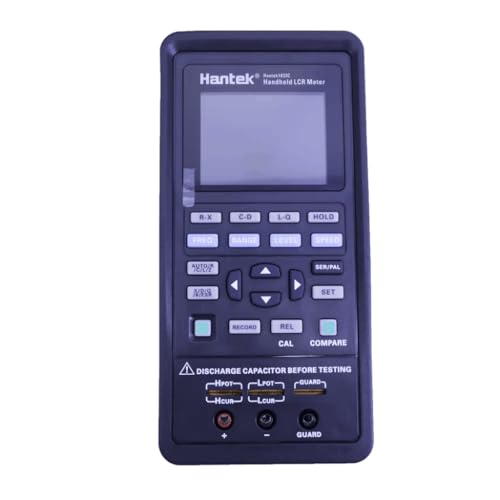

Hantek1833C Handheld Digital LCR Meter Mobile Inductance Capacitance Resistance Meter
Products Introduction:
Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.
Feature:
1.100Hz,120Hz,400Hz,1kHz,4kHz,10kHz,40kHz,50kHz,75kHz,100kHz 10 typical test frequency(Hantek1832C)7 typical test frequency

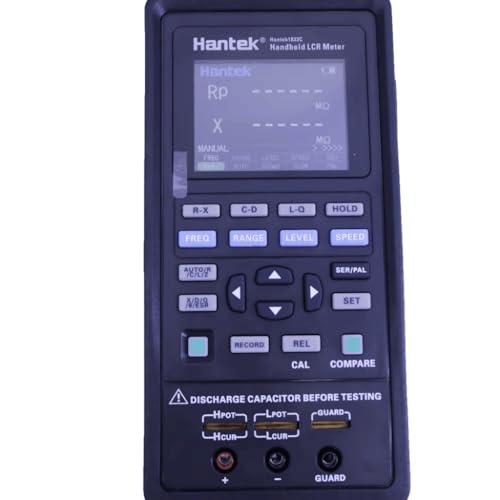

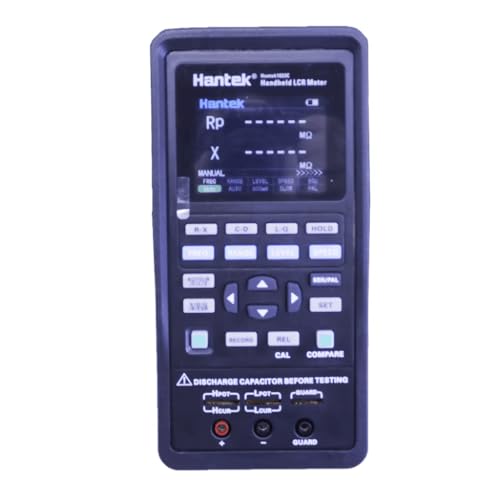

2.2.8 inch TFT LCD,Switch between Chinese and English
3.HD display,dual display of measurement data,the result is clear
4.Support data record analysis
5.Support PC upper computer,easy to control and measure remotely
6.Test lead:3 end/5 end switch
7.Measuring speed:high speed/intermediate speed/low speed switch
8.Range:support manual/auto switch,easy to do quick measurement
9.LCR adopted rechargeable design,Large capacity lithium battery,super standby

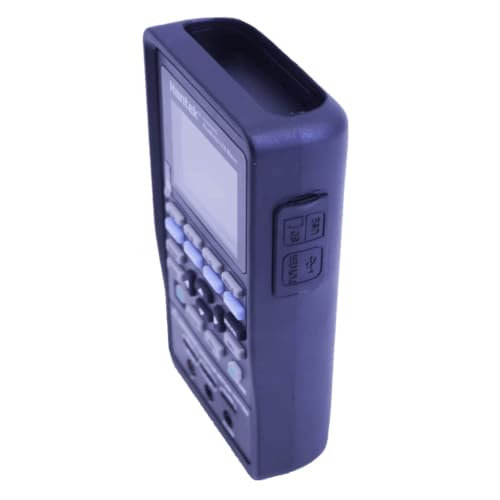

10.Double shock protection sleeve,all-round protection,shakeproof,fall-arrest,protect
11.The machine from damage,longer use time, more comfortable measurement

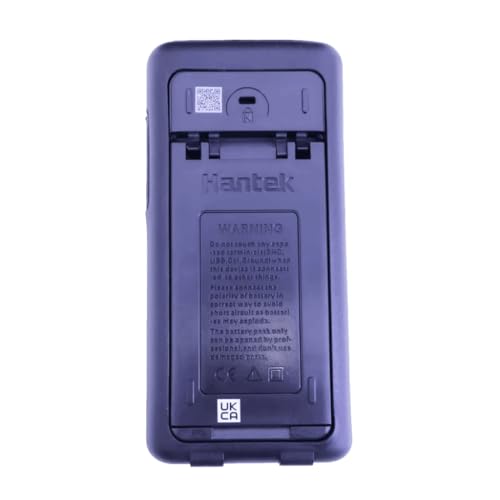

12.Bracket design,easy to put and measure
Specification:
| Model | Hantek1832C | Hantek1833C |
| Test frequency |
100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz |
100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz |
| Accuracy | 0.30% | |
| Equivalent Circuit | series, parallel | |
| Test level | 0.6Vrms | 0.6Vrms, 0.3Vrms |
| Measurement way | manual, auto | |
| Display screen | 2.8 inch TFT LCD | |
| Measurement parameters | principle parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR | |
| Principle parameter | L/C/R/Z | |
| Deputy parameter | X/D/Q/θ/ESR | |
| Inductance Measurement range | (L) 0-2000H | |
| Capacitance Measurement range | (C) 0-20mF | |
| Resistance Measurement range | (R) 0-20MΩ | |
| Measurement speed | high speed(4 times/s), intermediate speed(twice/s), low speed(once/s) | |
| Reset function | open circuit calibration, short-circuit calibration | |
| Test terminal configuration | 3 termianl, 5 terminal | |

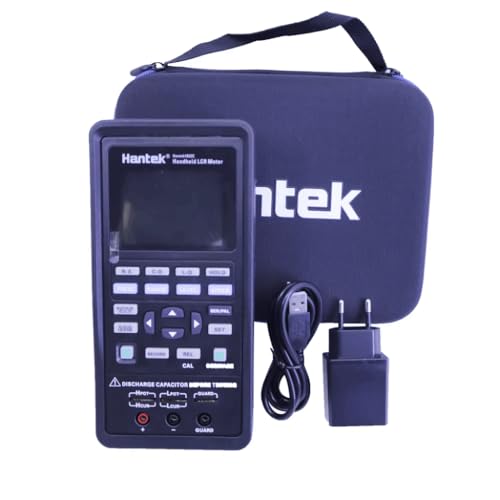

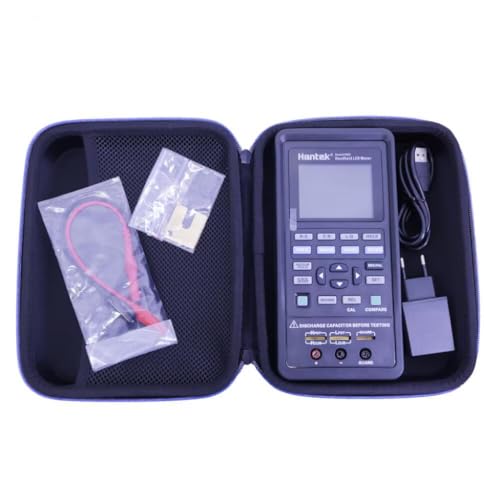

| General feature | standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery | |
Brand: Hantek
Color: Black
model number: 1833C
