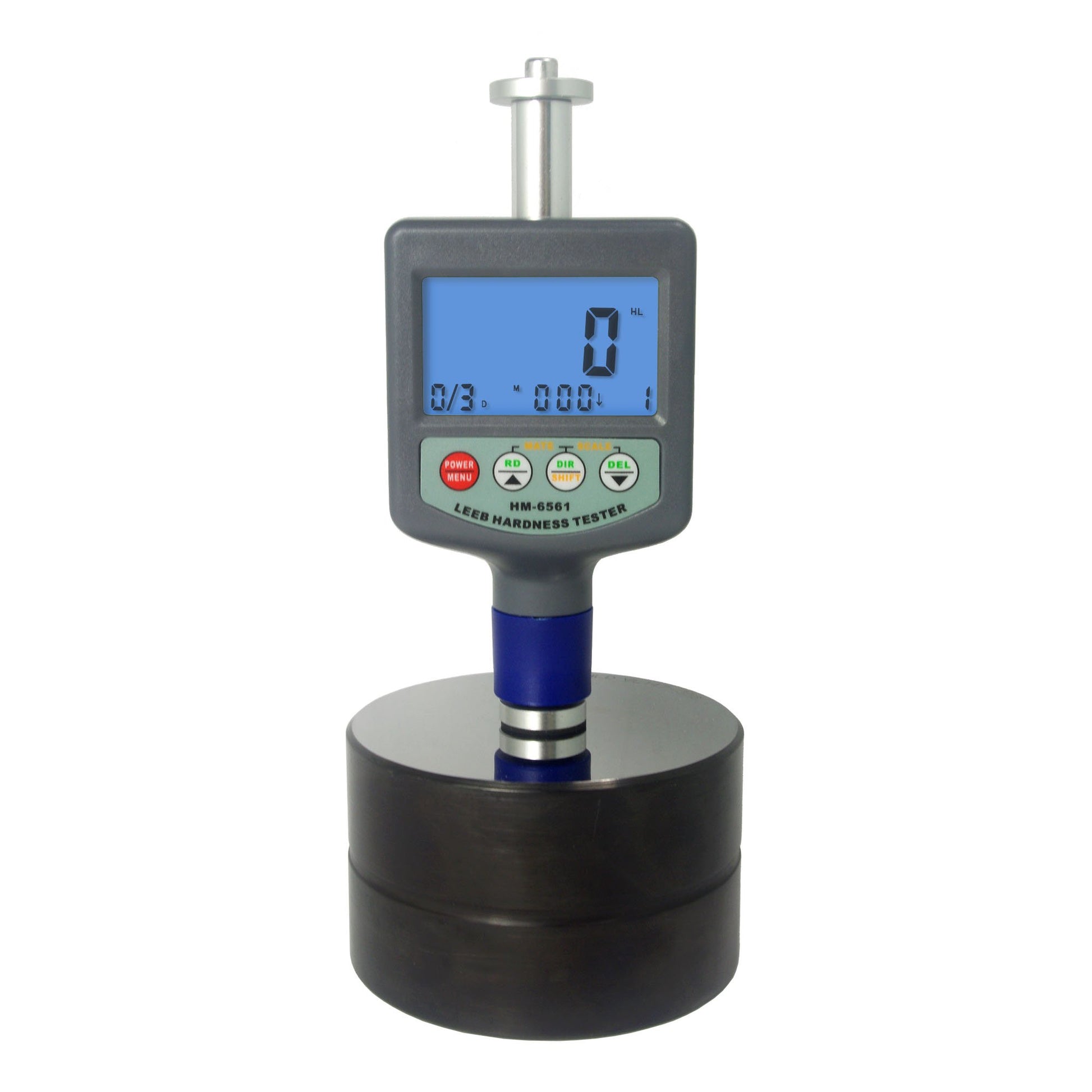

Graigar HM-6561 Integrated Leeb Hardness Tester HRB, HRC, HV, HB, HS,HL Metal Hardness Tester
Graigar HM-6561 Integrated Leeb Hardness Tester HRB, HRC, HV, HB, HS,HL Metal Hardness Tester
Regular price
$385.00 USD
Regular price
Sale price
$385.00 USD
Unit price
/
per
Couldn't load pickup availability
Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Manual or automatic shut down.
* Low battery indication.
* Use USB/RS-232 data output to connect with PC.(Optional)
* Provide Bluetooth data output choice.(Optional)
Material Selection
| Material |
Converting Ranges |
||||||
| HL |
HRC |
HRB |
HB |
HS |
HV |
||
| 30D² |
10D² |
||||||
| Steel & Cast St. |
300~900 |
20.0~68.0 |
38.4~99.5 |
80~647 |
32.5~99.5 |
80~940 |
|
| C.W.Tool Steel |
300~840 |
20.4~67.1 |
80~898 |
||||
| ST.Steel |
300~800 |
19.6~62.4 |
46.5~101.7 |
85~655 |
80~802 |
||
| Gray Cast Iron |
360~650 |
93~334 |
|||||
| Nodular Cast Iron |
400~660 |
131~387 |
|||||
| Cast Aluminum |
174~560 |
20~159 |
|||||
| Brass |
200~550 |
13.5~95.3 |
40~173 |
||||
| Bronze |
300~700 |
60~290 |
|||||
| Copper |
200~690 |
45~315 |
|||||
Specifications
|
Display
|
LCD
|
|
|
Materials
|
9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper)
|
|
|
Measuring Range
|
200(HLD)~900(HLD)
|
|
|
Accuracy
|
Display Error±12
|
|
|
Repeatability
|
±12
|
|
|
Conversion
|
HL-HRC-HRB-HB-HV-HSD
|
|
|
Memory
|
50Data Can Be Stored And Re-readable
|
|
|
Impact device
|
Probe D,Weight:75g
|
|
|
Storage Temperature
|
-30ºC~60ºC
|
|
|
Operating Conditions
|
Temperature
|
-10ºC~50ºC
|
|
Humidity
|
<90%RH
|
|
|
Power Supply
|
2X1.5V AAA(UM-4)Battery
|
|
|
Dimensions
|
146mmx65mmx36mm
|
|
|
Weight
|
130g(Not Including Batteries)
|
|
