Graigar HT-6510OO Digital Shore OO Hardness Tester Rigid Plastic Hardness Gauge 10~90HOO Sponge Hardness Meter
Graigar HT-6510OO Digital Shore OO Hardness Tester Rigid Plastic Hardness Gauge 10~90HOO Sponge Hardness Meter
无法加载取货服务可用情况
Spec:Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.
Features
* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
|
Model |
Indenter |
Tested Materials |
Hardness Value |
|
A |
0.79 Truncated Cone |
Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc. |
20 ~ 90 A |
|
B |
R 0.1 Cone |
Middle Hard Rubber Materials, Typewriter Rollers, etc. |
Above 90 A, Below 20 D |
|
C |
0.79 Truncated (Frustum) Cone |
Plastics and Middle Hard Rubber Materials |
Above 90 B, Below 20 D |
|
D |
R 0.1 Cone |
Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc. |
Above 90 A |
|
DO |
R 1.2 Spherical Radius |
Plastics and Middle Hard up to Hard Rubber Materials |
Above 90 C, Below 20 D |
|
O |
R 1.2 Spherical Radius |
Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon |
Below 20 DO |
|
OO |
R 1.2 Spherical Radius |
Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials |
Below 20 O |
|
E |
R 2.5 Spherical Radius |
Hard Sponge, EVA |
Above 90 DO, Below 20 D |
|
Model |
HT-6510OO |
|
Parameters |
Tested Result/Mean Value/Max.Value |
|
Unit |
HOO |
|
Display Range |
0~100HOO |
|
Measurement Range |
10~90HOO |
|
Accuracy |
≤±1H |
|
Resolution |
0.1H |
|
Battery Indicator |
Low Battery Indicator |
|
Auto Switch Off |
√ |
|
Operating |
Temperature:0~50ºC Humidity:<80%RH |
|
Power Supply |
4x1.5V AAA(UM-4)Battery |
|
2x1.5V AAA(UM-4)Battery(Stand Available) |
|
|
Dimensions |
162x65x28 mm |
|
Weight |
170g |
|

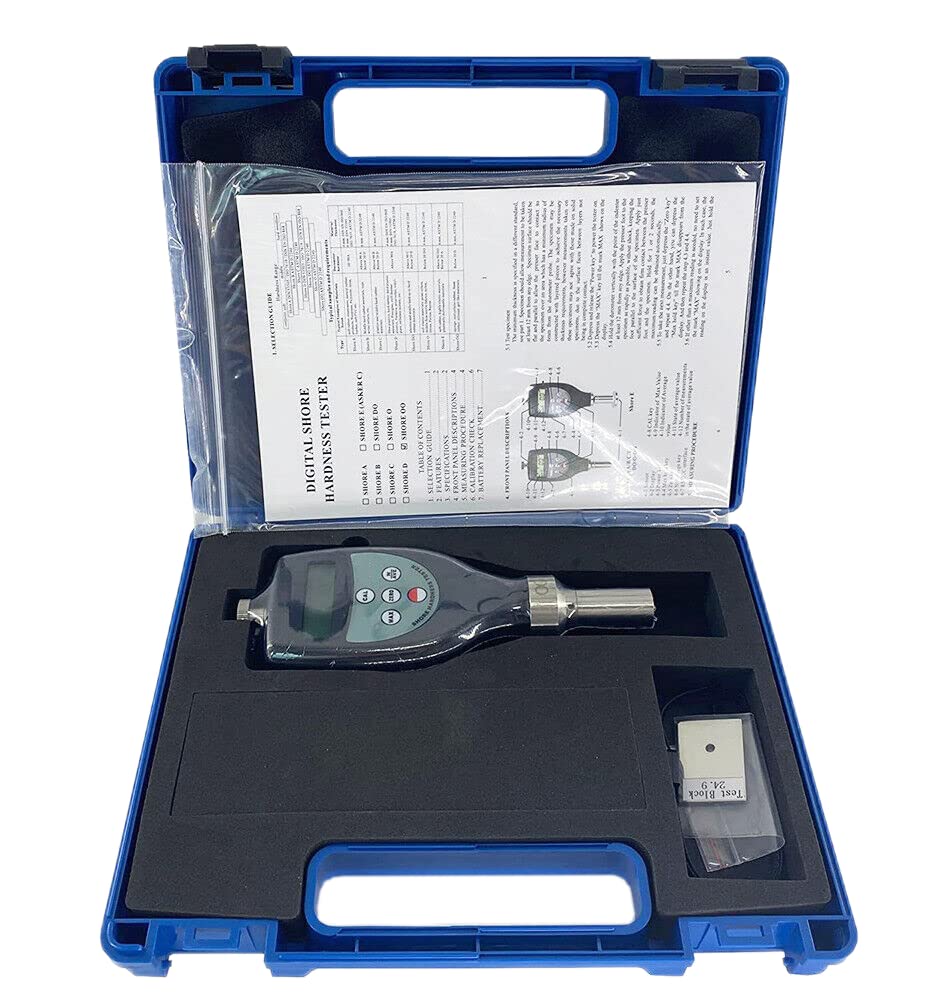

Standard Accessories |
Main Unit |
|
Pin Length Teat Block |
|
|

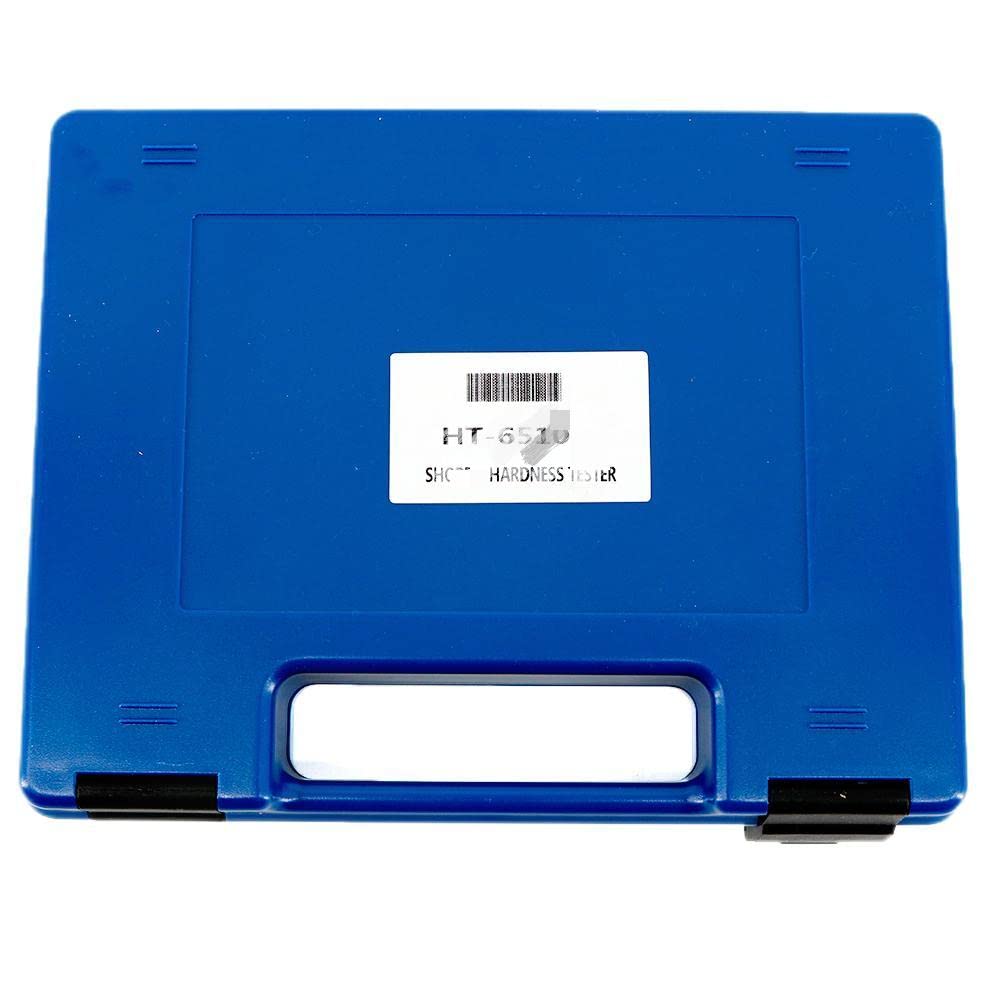

Carrying Case(B04) |
|
|
Operation Manual |
