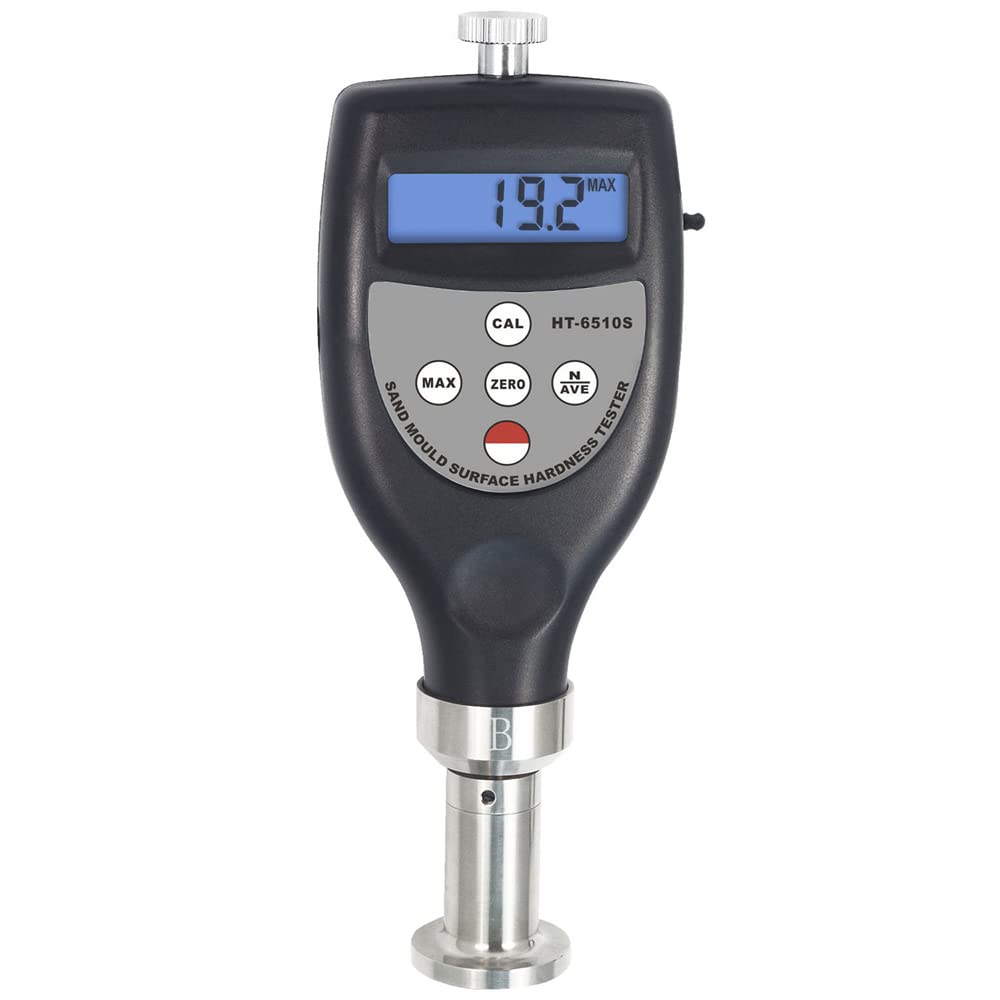

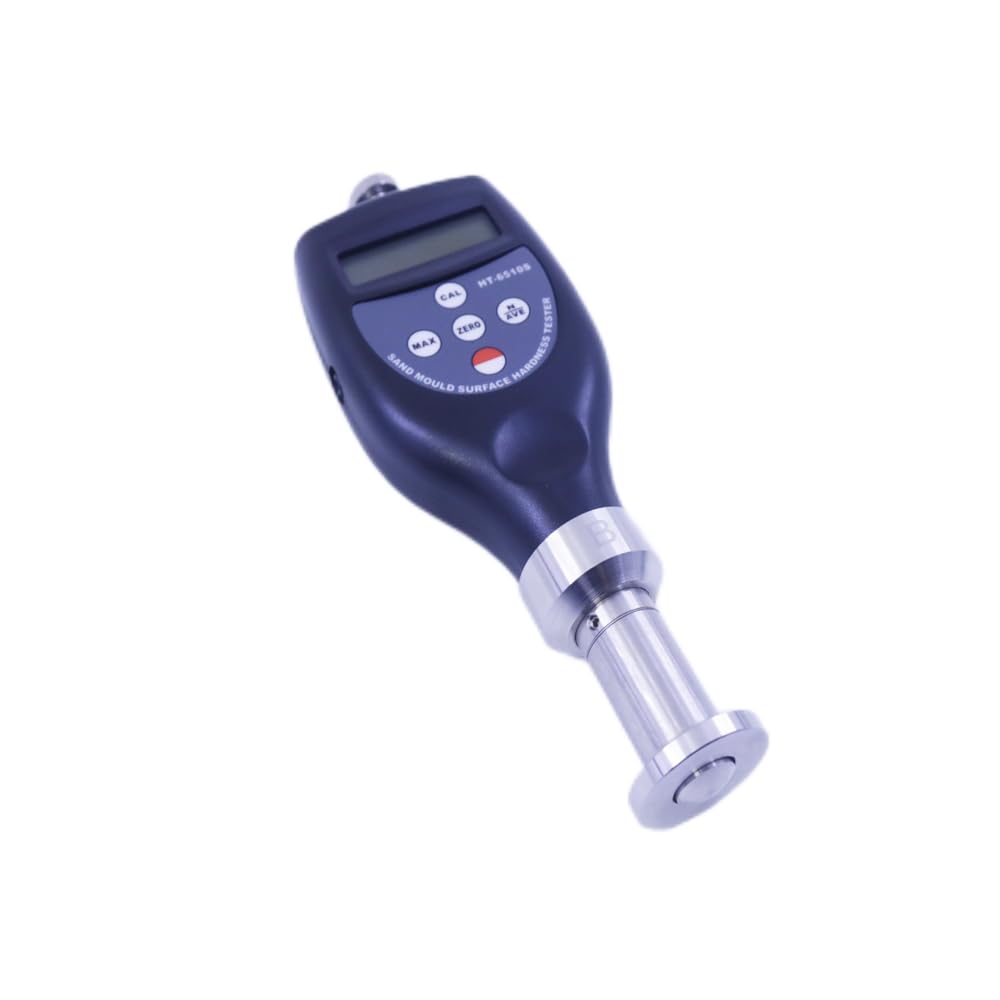

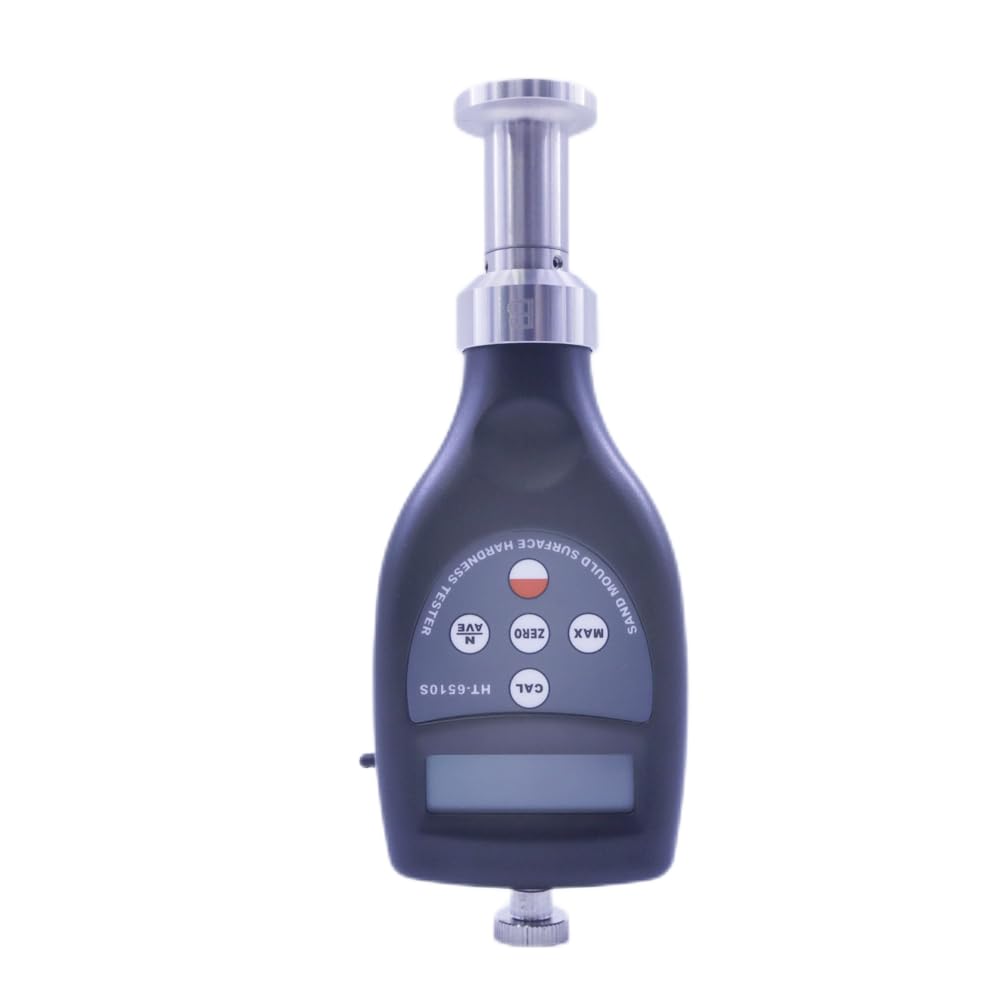

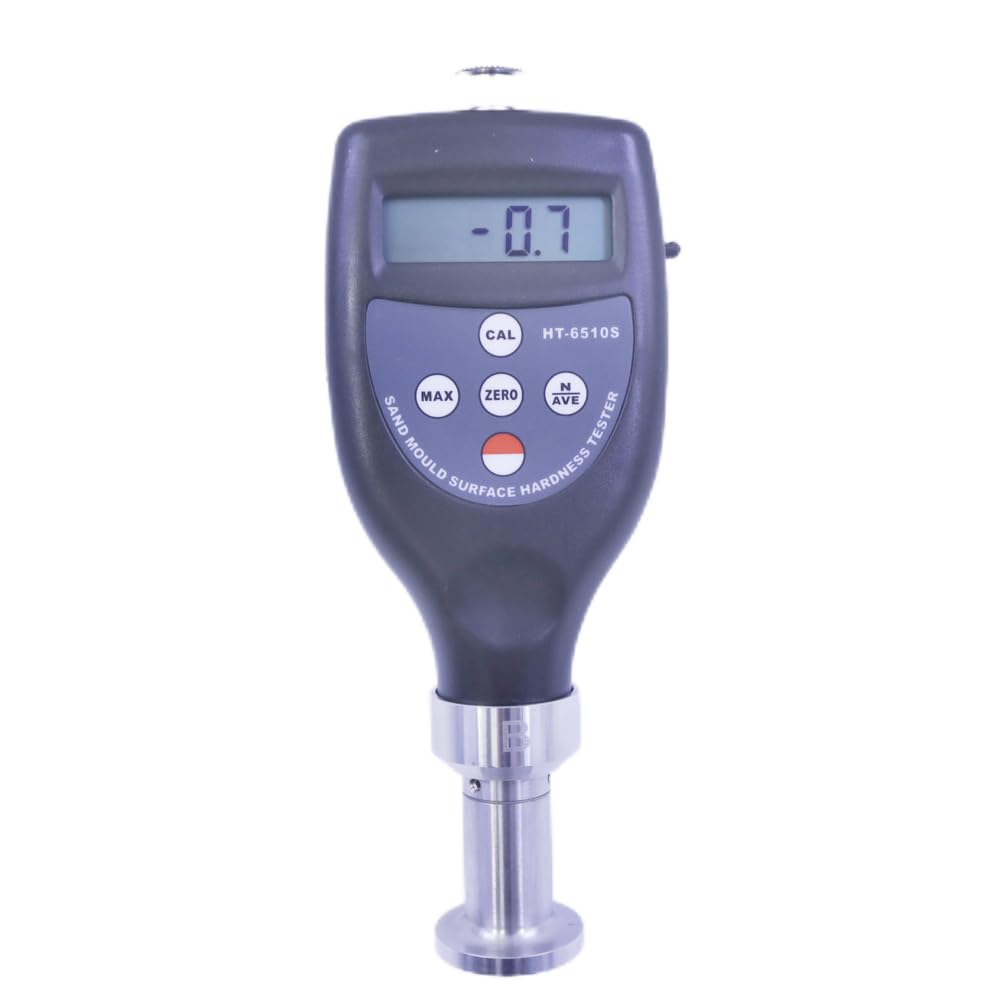

The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.
Type B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
The unit of type B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
With average calculate function. Peak value deposit function. Under-voltage alarm function.
It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
model number: HT-6510S-B
Part Number: HT-6510S-B
Details: Model :HT-6510S-B
Stroke :2.50mm
Load:980g
Pressure Load :50g

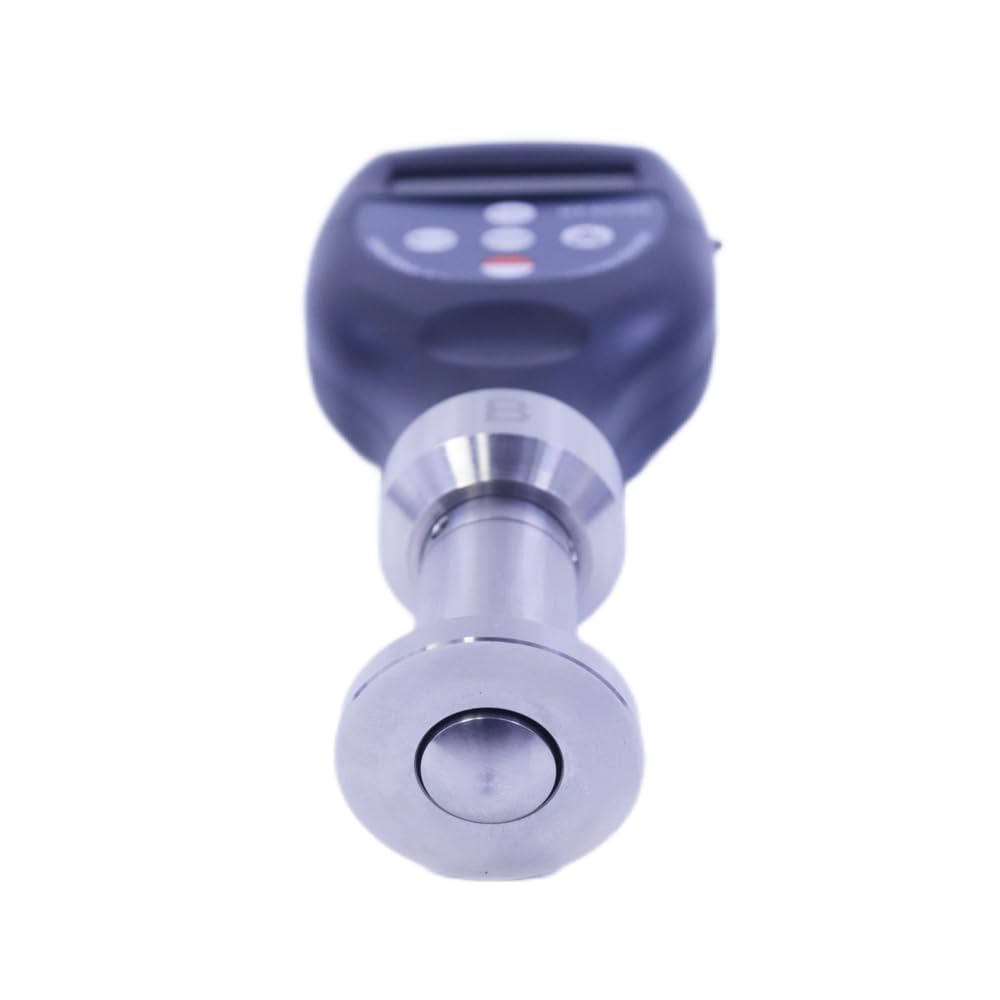

Shape and size of indenter:Spherical R12.70
Unit:HB
Display:4 digits, 10mm LCD
Parameters:Tested Result / Mean Value / Max. Value
Display Range:0~100H(A/B/C)
Testing Range:10~90H(A/B/C)
Accuracy:≤±1H(A/B/C)
Resolution:0.1H(A/B/C)
Battery Indicator:Low Battery Indicator
Auto Switch Off:√
OperatingTemperature: 0~40°C Humidity: <80%RH

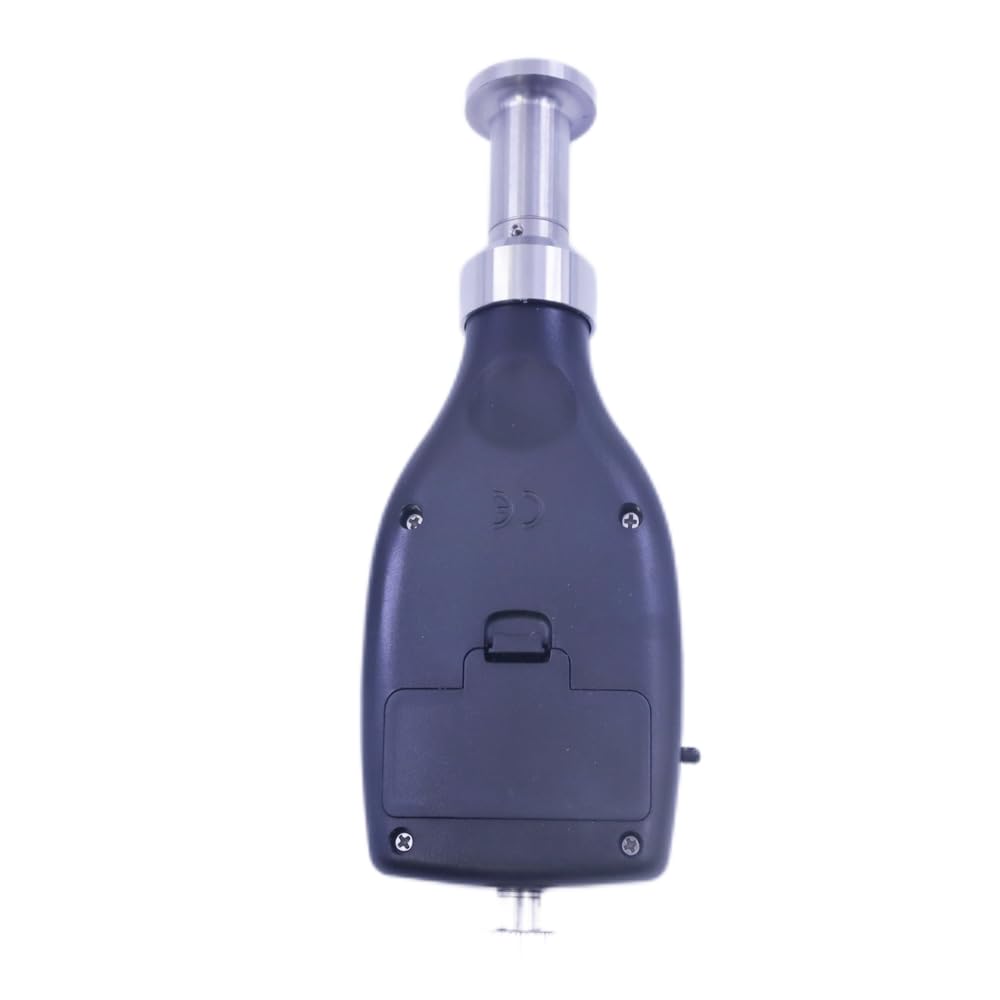

Power Supply:2x1.5V AAA (UM-4) Battery
Dimensions:162x65x28mm
Weight:170g

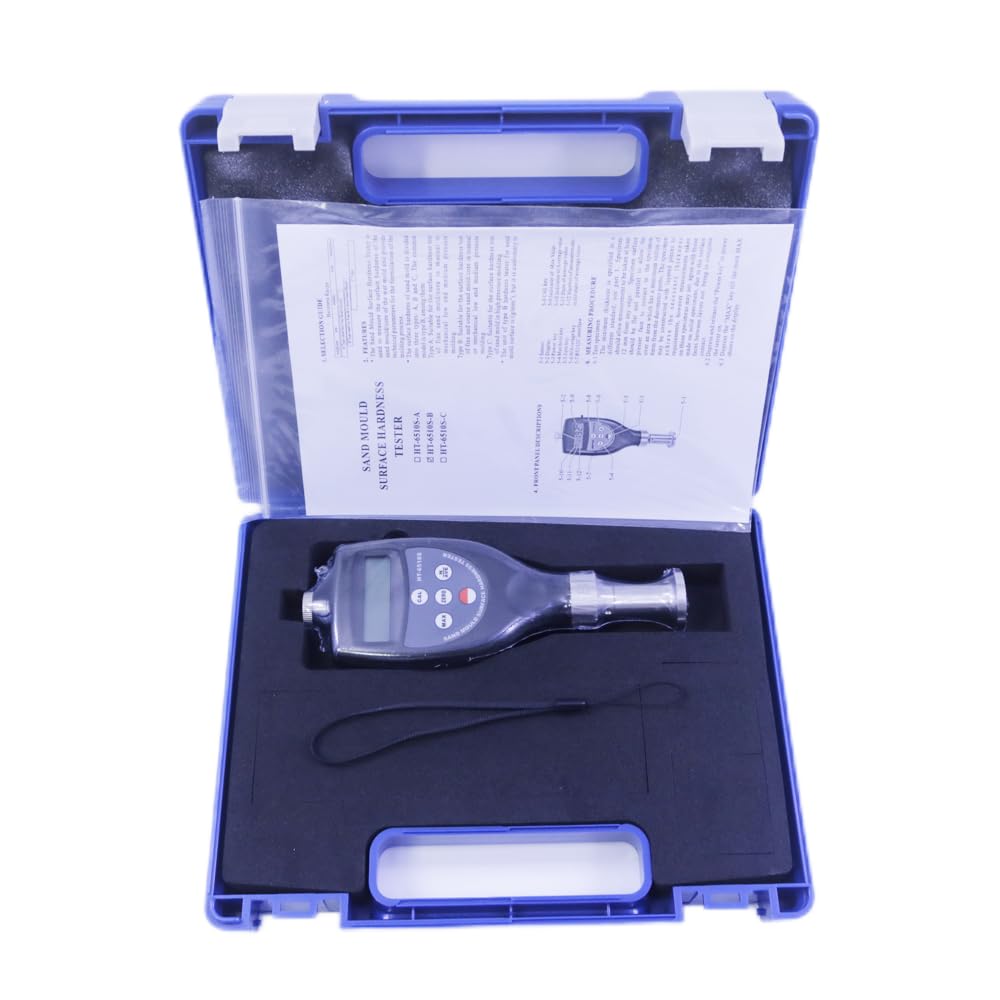

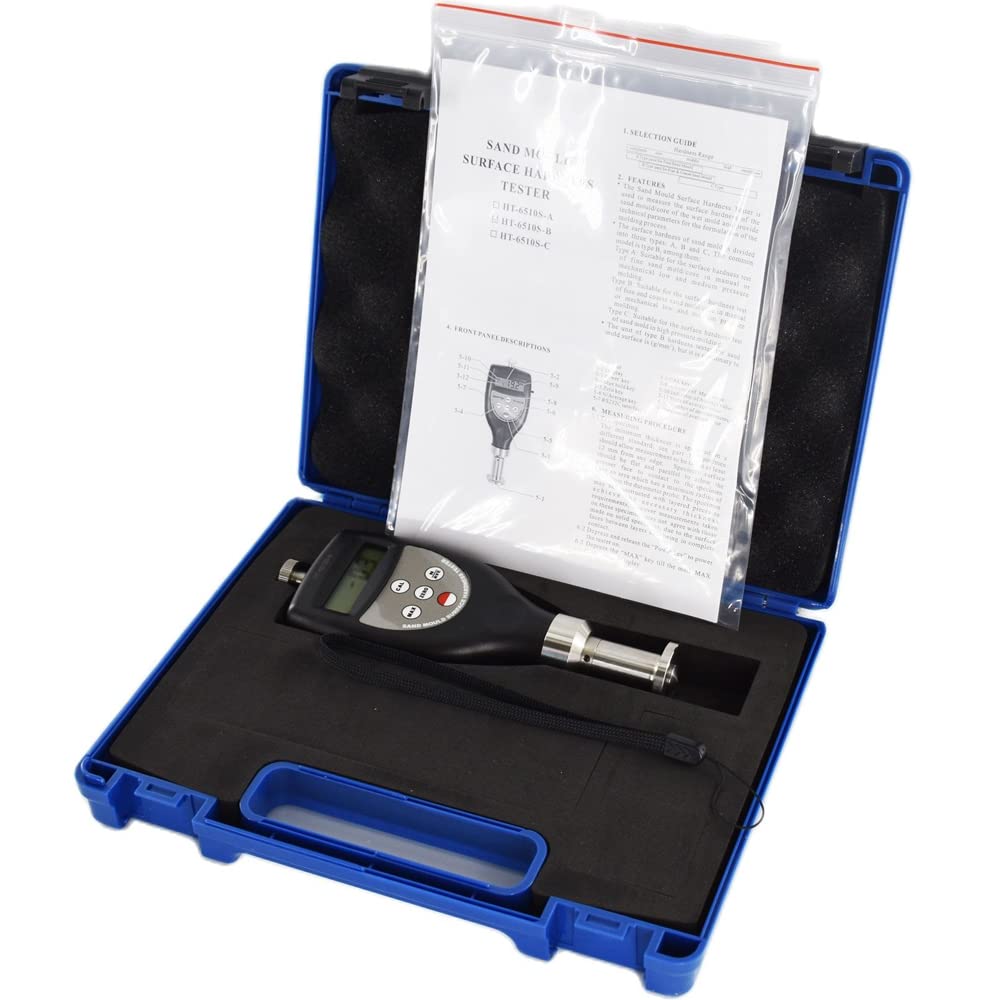

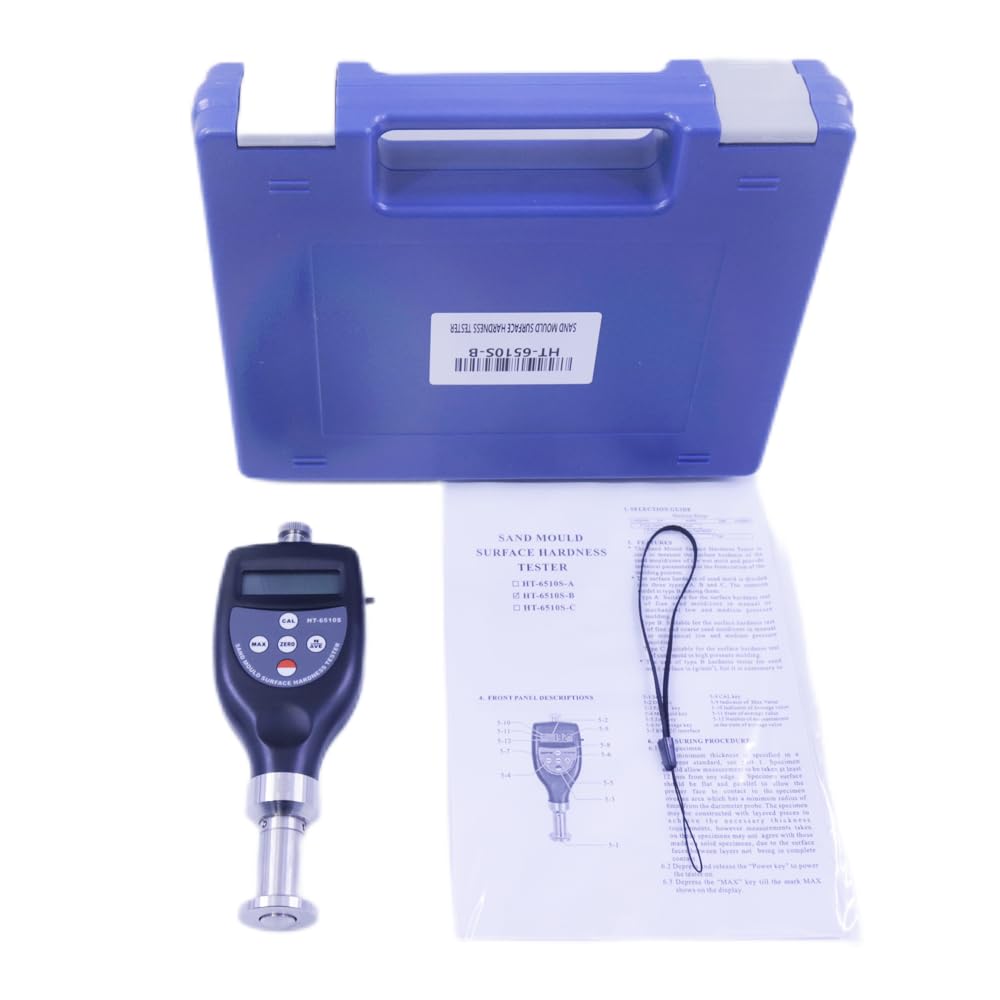

Standard Accessories:
Main Unit
Carrying Case (B04)
Operation Manual
