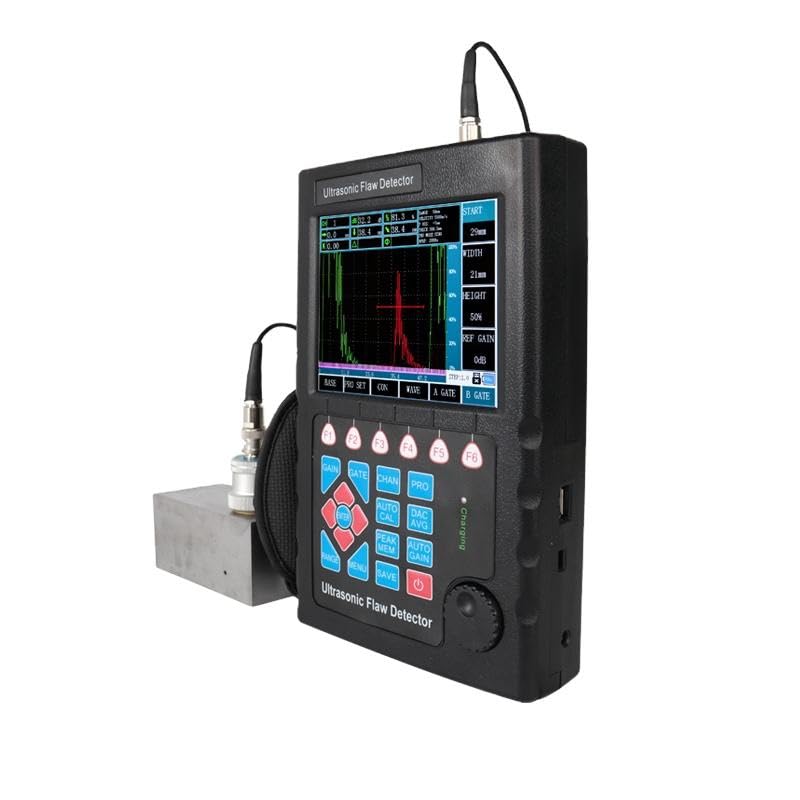

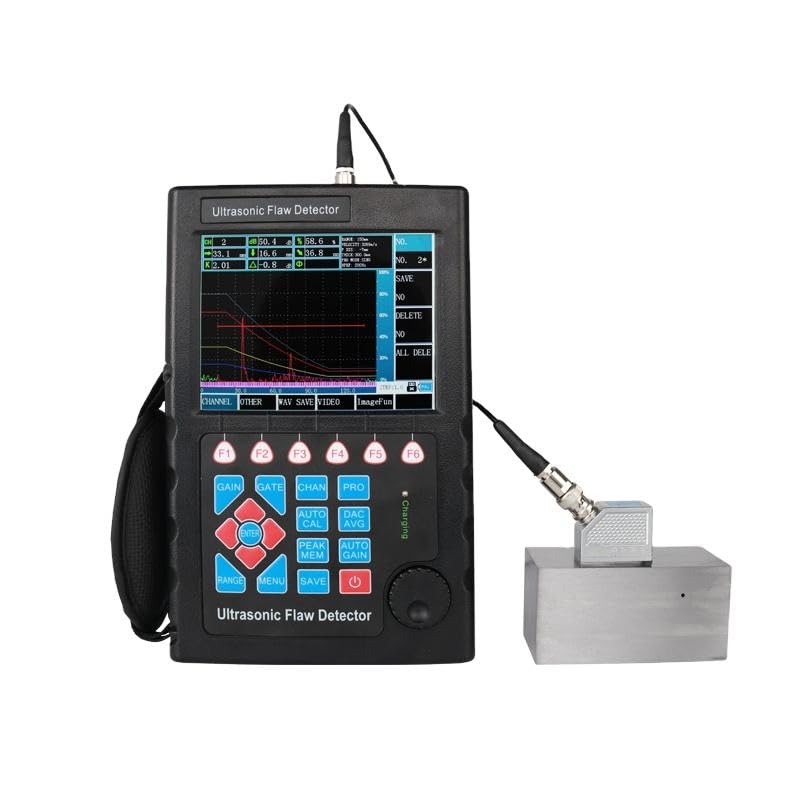

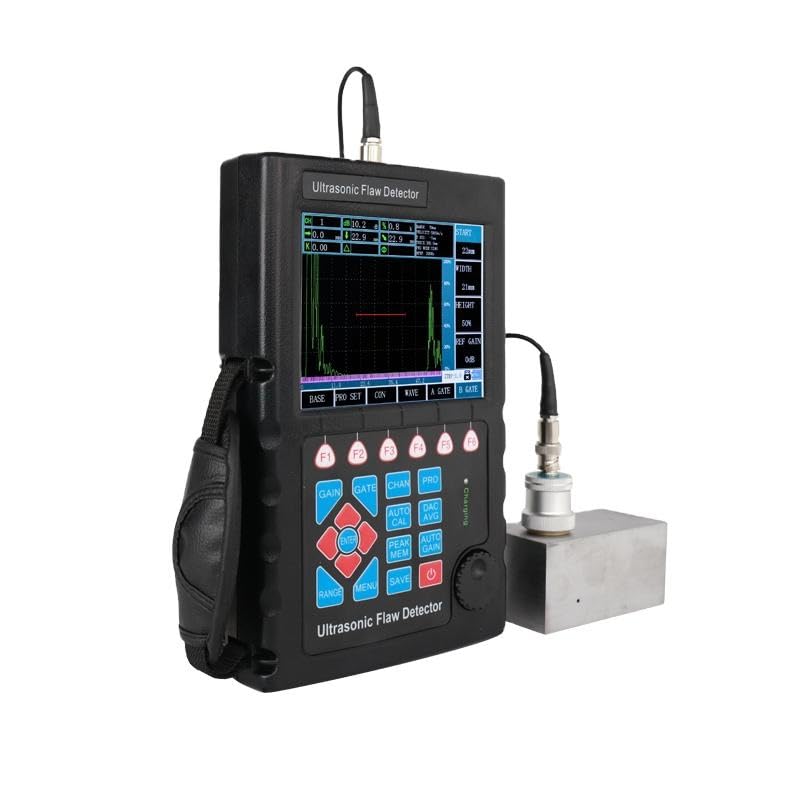

JITAI9101 Ultrasonic Flaw Detector NDT Digital Ultrasonic Flaw Detector Measuring Range 0~10000mm

JITAI9101 Ultrasonic Flaw Detector NDT Digital Ultrasonic Flaw Detector Measuring Range 0~10000mm

$1,479.00 USD
$1,479.00 USD
促销 售罄

Features:

*Automated calibration,Automated gain

*DAC,AVG,TCG,B scan,B color scan,AWS

*High-speed capture and very low noise

*High contrast viewing of the waveform from bright

*Powerful pc software and reports can be export to excel

Functions:

*Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Φ);

*Automated switch three staff gauge ((Depth d,level  p,distance s);

*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

*Convenient to make and use DAC,TCG and AVG to evaluate the echo, the curve can be modified and compensated

*6dB DAC functions;

*500 independence setup, any criterion can be input freely, we can work in the scene without test block;

*Big memory of 500 A graph;

*Automated gain and gain scan;

*Peak Hold and Peak Memory;

*B scan;

*AWS D1.1

*Automated make video of test process and play; use upan,the length of video is unlimited.

*Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 12 hours;

*The embeded software can be online updated;

Other assistant function:

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*Gate and DAC alarm;

Specifications:

*Measuring Range (mm):0 ~10000mm
*Channels: 300
*Frequency Range (MHz):0.5 ~20MHz
*Material Velocity (m/s): 1000 ~9999m/s
*Vertical Linearity Error: ≤3%
*Horizontal Linearity Error: ≤0.1%
*Sensitivity Leavings: ≥62dB
*Dynamic range: ≥32dB
*Resolving Power: ≥36dB
*Gain (dB): 0 ~110dB
*Measurement Mode: Single,Dual,Thru
*Reject: 0~80%
*Pulse Displacement (μs): -20 ~+3400
*Zero (μs): 0.0 ~99.99
*Port Type:  Lemo 00(C5)
*Operating Temperature (℃): -20~70
*H*W*D(mm): 245*155*55
*Weight (kg):1.18(with battery)

 Standard Configration:

*Main Body                           1

*Straight Beam Probe            1

*Angle Probe                         1

*Machine-probe Cable          2

*Power Adapter (Charger)      1

*Data proceeding Software    1

*USB communication Cable   1

*Manual                                1

*Instrument Case                  1

*Guarantee Card                   1

*Packing List                         1

Brand: Graigar

Color: Black

Features:

  • *Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Φ); *Automated switch three staff gauge ((Depth d,level p,distance s); *Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity; *Convenient to make and use DAC,TCG and AVG to evaluate the echo, the curve can be modified and compensated
  • *6dB DAC functions; *500 independence setup, any criterion can be input freely, we can work in the scene without test block; *Big memory of 500 A graph; *Automated gain and gain scan;
  • *Peak Hold and Peak Memory; *B scan; *AWS D1.1 *Automated make video of test process and play; use upan,the length of video is unlimited.
  • *Powerful pc software and reports can be export to excel; *Li battery, continue working time up to 12 hours; *The embeded software can be online updated; *Display freeze;
  • *Automated echo degree; *Angles and K-value; *Lock and unlock function of system parameters; *Electronic clock calendar ; *Two gates setting and alarm indication; *Gate and DAC alarm;

model number: JITAI9101

Package Dimensions: 17.3 x 15.0 x 6.7 inches
