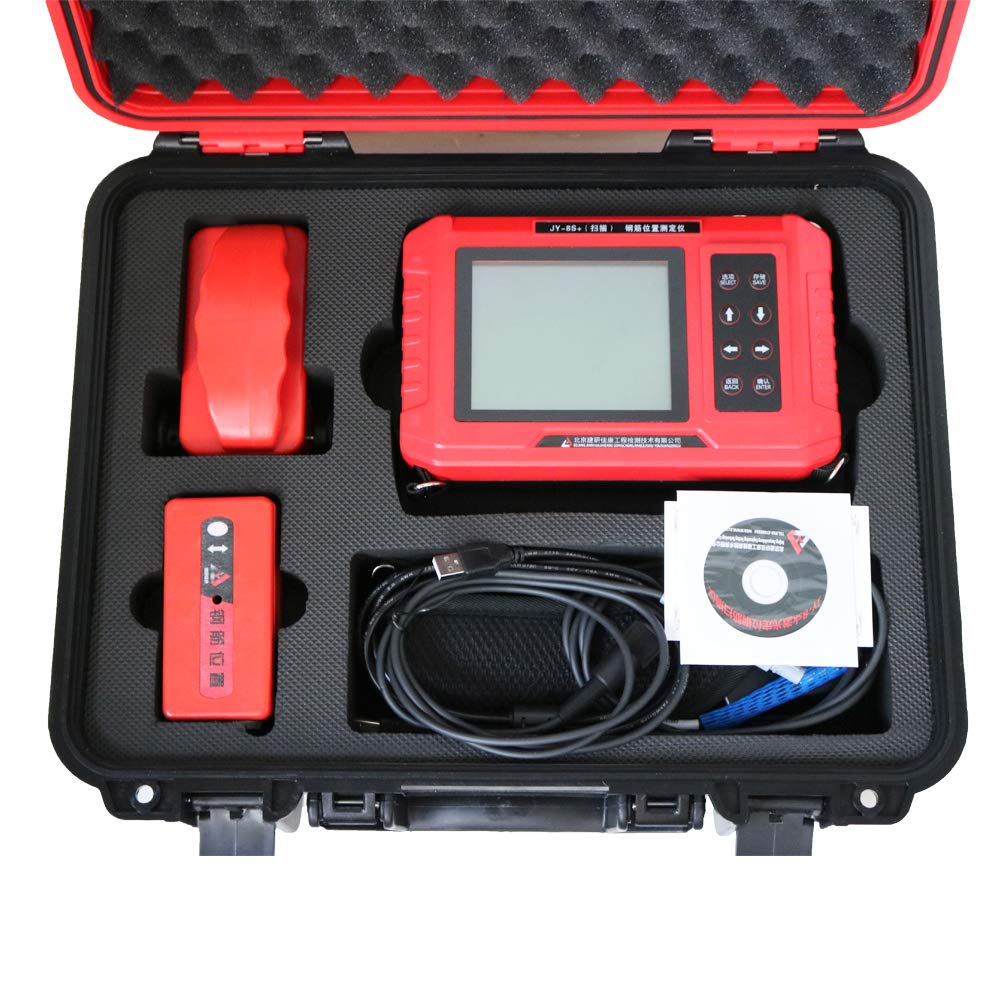

1.With a portable scanning car

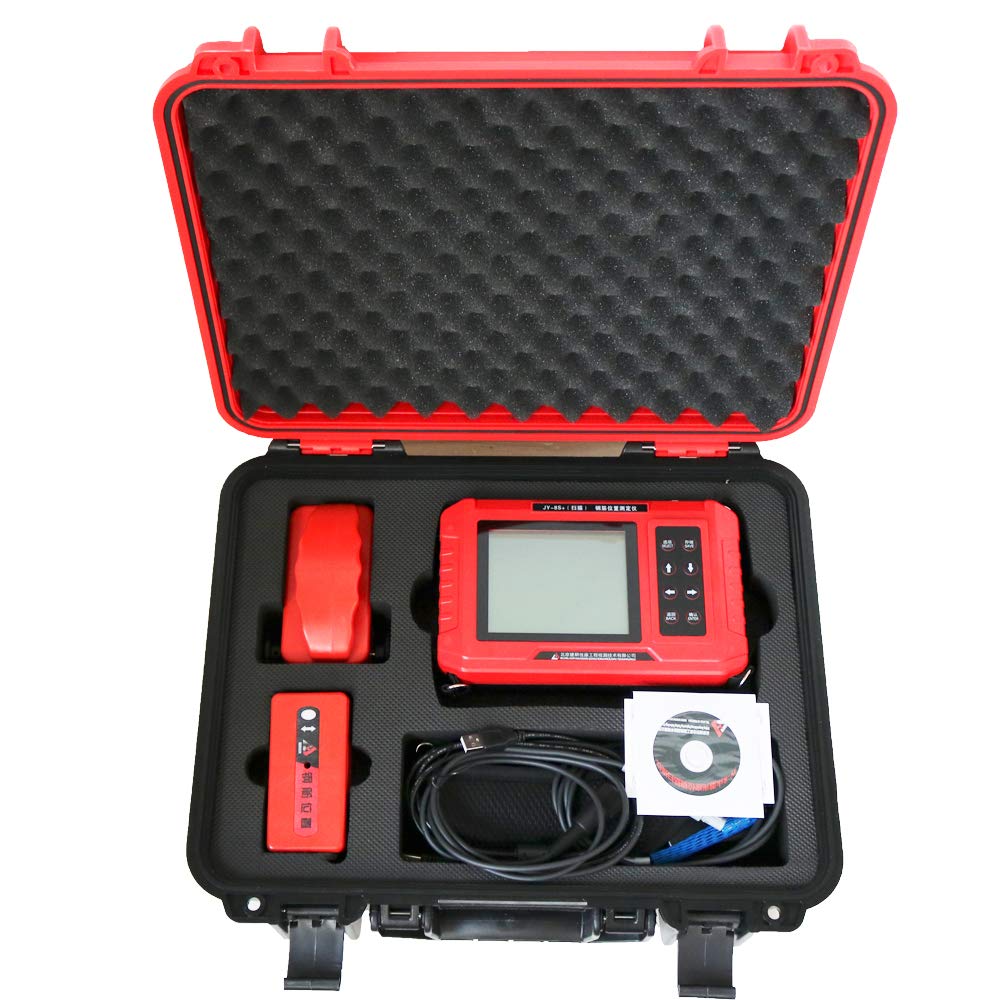

2.With English manual in the package
3.Automatic calculation of reinforcement mesh distance
4.Grid correction function
5.Integrated probe, no need to replace in testing, fast test and calculation; detection depth up to 200mm
|
1.2 main functions
1.detect the location and reinforcement of reinforcement in concrete structure.
2. Estimate the diameter of the steel bar and the thickness of the protective layer at the same time
3. Detect the thickness of the protective layer of the reinforcement (known diameter);
4. Detect the thickness of the protective layer of the steel bar under a measuring surface and display the grid.
5. Detect the thickness of the protective layer of the reinforcing bar under a certain survey line and show the sectional reinforcement.
6. The self correcting function of the probe;

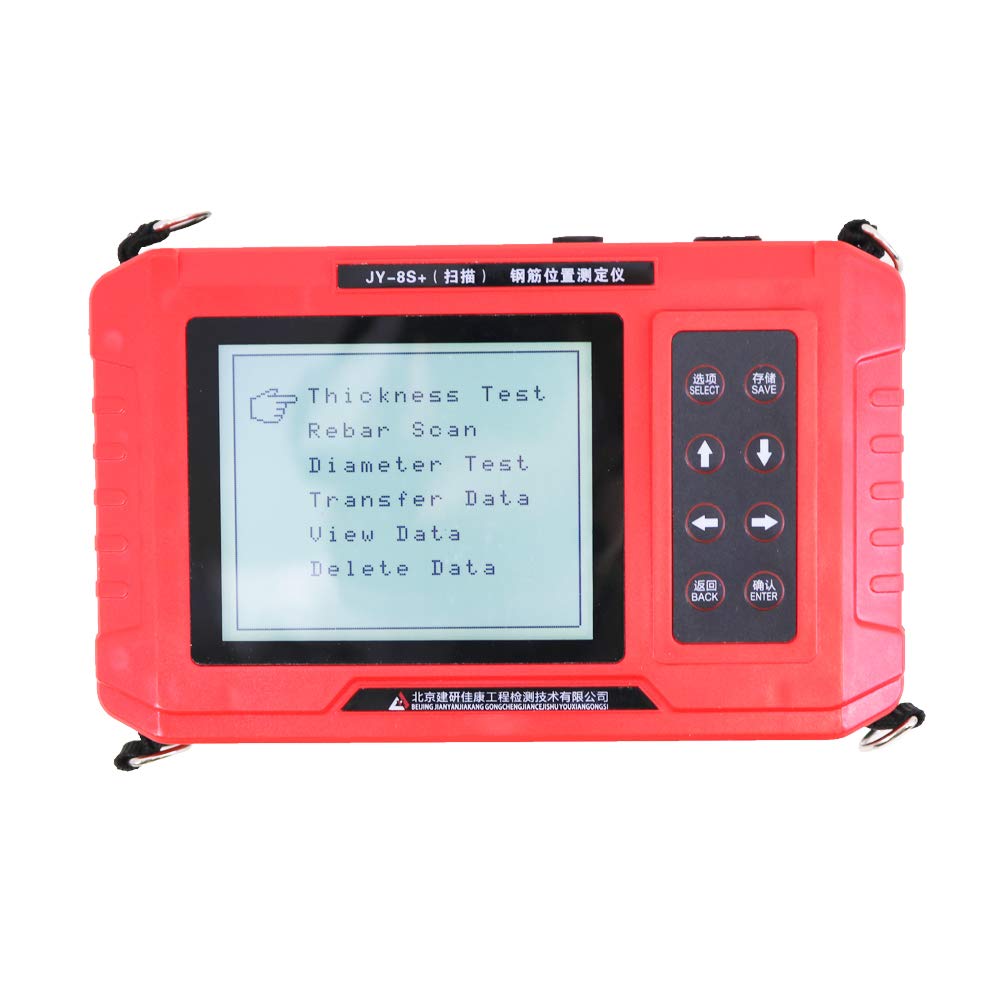

7. Check the storage and view function of the data.
8. Transmit data function.
1.3 main features
1. Accurate positioning of steel bars, detection of reinforcement diameter and protective layer thickness;
2, the instrument has grid and profile scanning function to accurately detect the thickness of reinforcement cover.
3. At the same time, the sensor can detect the diameter of steel bar and the thickness of the protective layer without exchanging the detection attitude. It can detect the diameter of the steel bar and the thickness of the protective layer quickly.
4, the detection accuracy of steel bar diameter and protective layer thickness is high.
5. It can visually display the grid and section images of reinforcing bars.
6. The software interface is simple, and the operation is simple
1.4 main technical indicators
1. The range of adjustment of diameter of steel bar: 6mm ~ 50mm
The commonly used steel bar diameters are 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 20, respectively.
