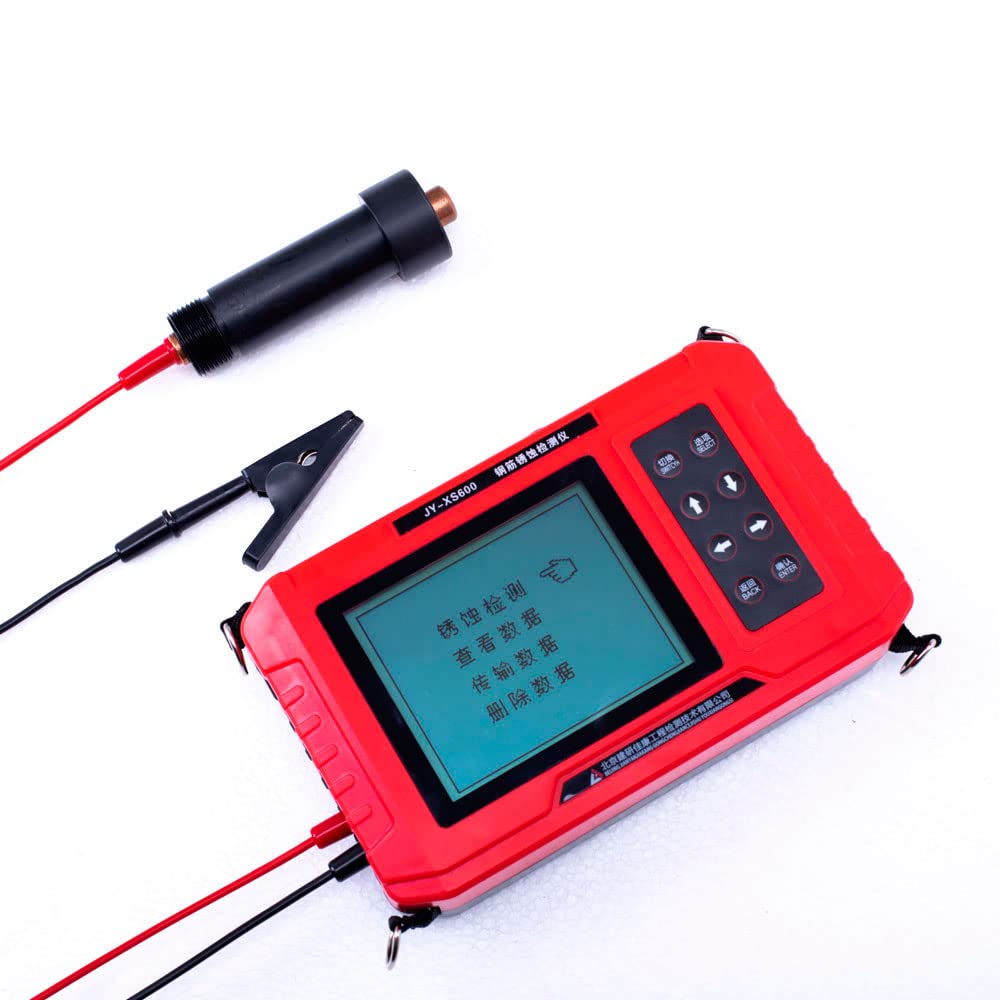

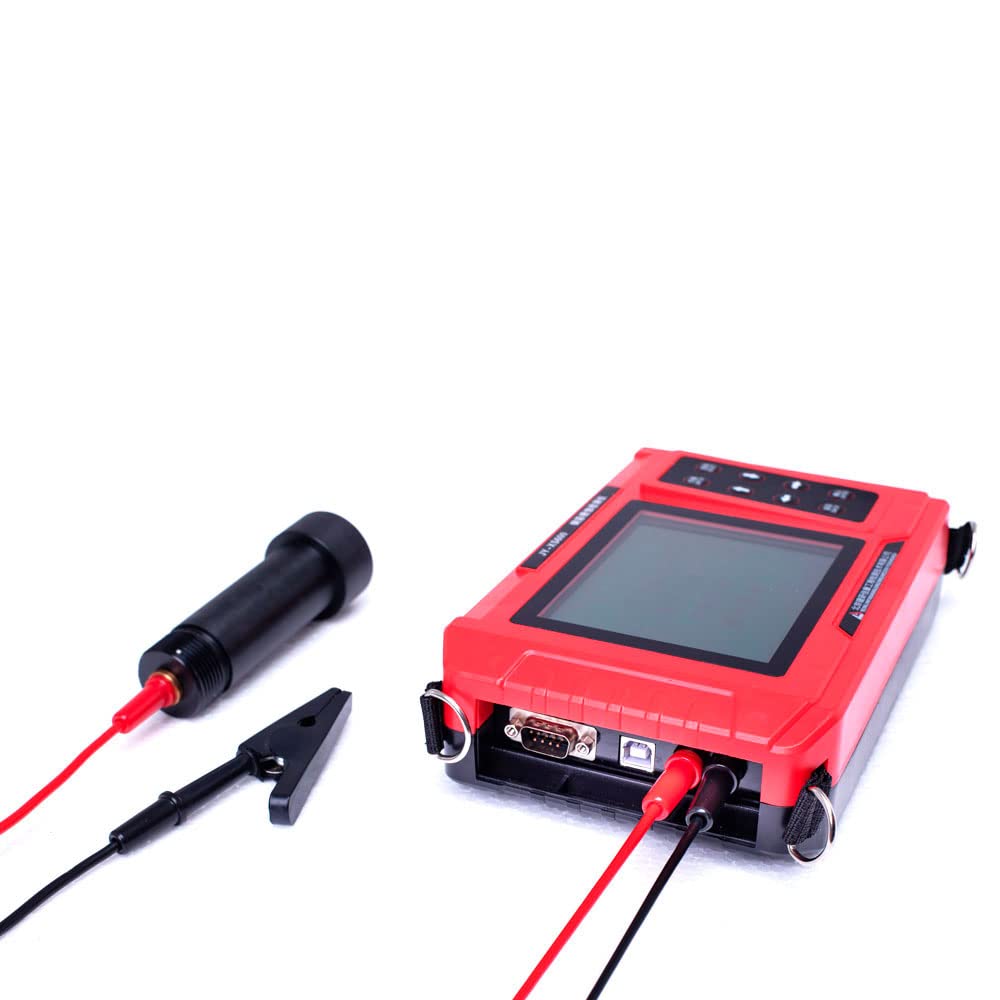

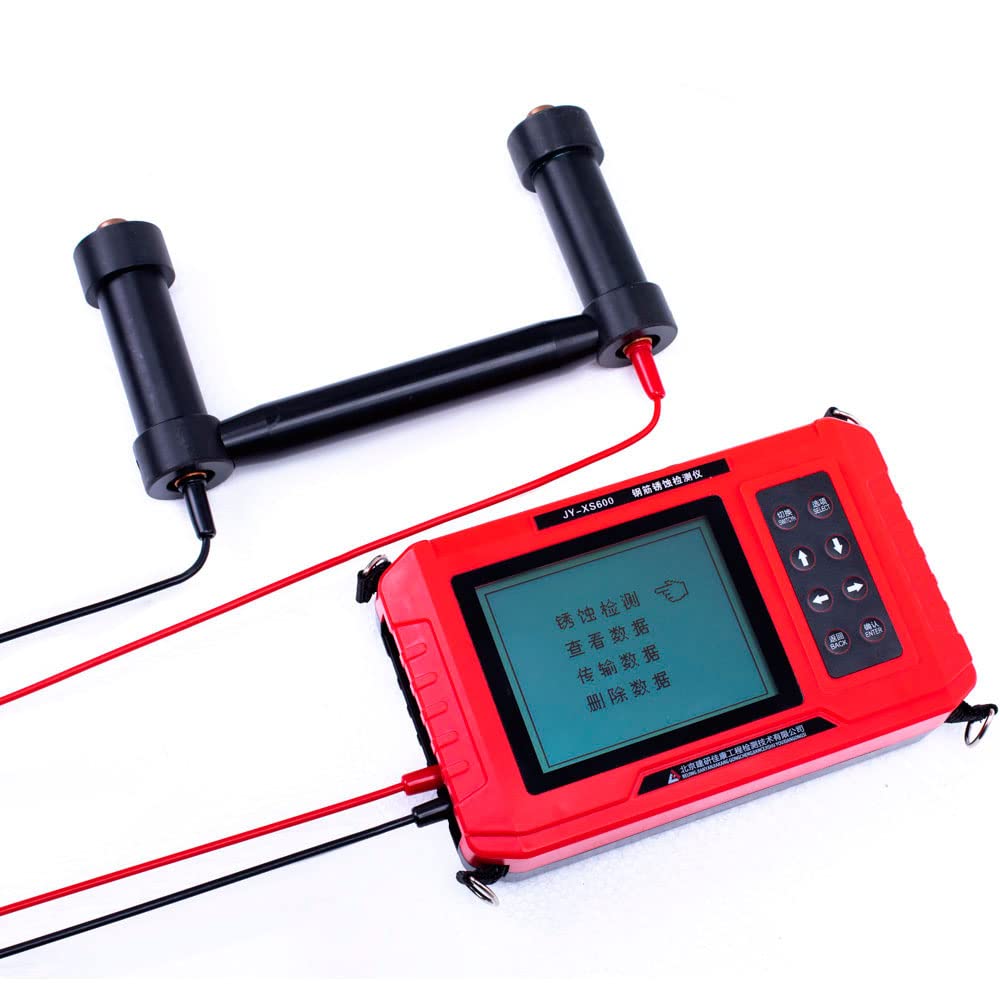

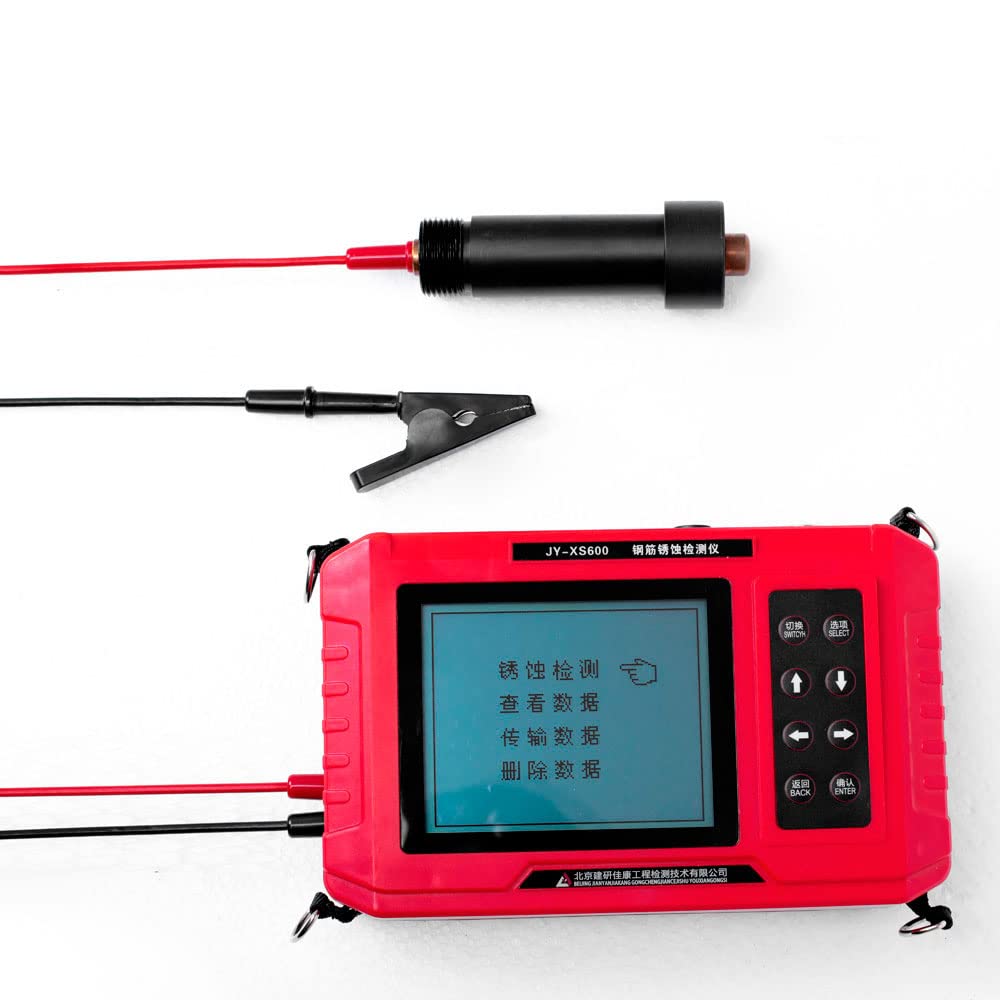

JY-XS600 Rebar Corrosion Instrument Concrete Internal Rebar Corrosion Detector
JY-XS600 Rebar Corrosion Instrument Concrete Internal Rebar Corrosion Detector
Regular price
$1,079.00 USD
Regular price
Sale price
$1,079.00 USD
Unit price
/
per
Couldn't load pickup availability
Introduction
It is used to determine the degree of corrosion of steel bar (reinforcement bar) in the concrete structures by non-destructive methods. It mainly uses electrochemical methods to determine the degree of corrosion of steel bar in the concrete structures. It has functions of corrosion determination, data analysis, data storage, and data output, so it is a portable, precise, convenient, and intelligent steel bar corrosion meter
Main functions
1. To determine the degree of corrosion of steel bar by non-destructive methods;
2. To save, browse, and delete measurement data;
3. To transmit measurement data to data processing software;
Main characteristics
1. It is convenient, rapid, and accurate. The measurement data can be shown as numbers or diagram.
2. The degree of corrosion can be indicated by gray scale of 9 grades or color diagram;
3. You can transmit measurement data to a computer for further analysis through serial port or USB port.
4. The software is with simple interface, easy to operate, and with powerful data analysis capacity. It can create measurement report directly.
2. To save, browse, and delete measurement data;
3. To transmit measurement data to data processing software;
Main characteristics
1. It is convenient, rapid, and accurate. The measurement data can be shown as numbers or diagram.
2. The degree of corrosion can be indicated by gray scale of 9 grades or color diagram;
3. You can transmit measurement data to a computer for further analysis through serial port or USB port.
4. The software is with simple interface, easy to operate, and with powerful data analysis capacity. It can create measurement report directly.
Details Images
|
Measurement potential
|
±999 mV
|
|
Measurement accuracy
|
±1 mV
|
|
Measurement point interval
|
1 to 100 cm
|
|
Data storage
|
Data at 5400 pieces of measurement zone/11000 pieces of measurement points
|
|
Measurement area
|
8100 m2
|
|
Ambient temperature
|
0℃～＋40℃; Please keep it away from direct sunshine
|
|
Relative humidity
|
<90% RH
|
|
Electromagnetic interference
|
Please keep it away from any electromagnetic interference.
|
|
Resolution of LCD
|
160 × 128
|
|
Size and weight
|
Main unit: 210mm×153mm×90mm; 880 g
Probe: φ30mm ×180 mm; 100 g
|
Instrument configuration
The instrument includes main unit, signal wire, metal electrode, electric potential electrode, electric potential gradient electrode, etc.
