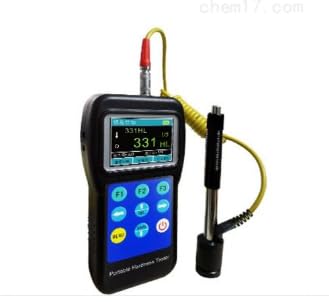

Graigar KH190 Digital Colour Screen Portable Leeb Hardness Tester Test at any angle Hardness meter Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Graigar KH190 Digital Colour Screen Portable Leeb Hardness Tester Test at any angle Hardness meter Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
无法加载取货服务可用情况
Features:
*Window menu style, ture color display;
*Easy to operate;
*Test at any angle, even upside down;
*Has a starting valuecalibration function, ensure the data is applicable and accurate in different codes and standards;
*Seven impact devices are available for special application. Automatically identify the type of impact devices;
*User calibration function;
*Battery information indicates the rest capacity of the battery and the charge status;
*Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;
*Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
TECHNICAL DATA
|
Measuring Materials |
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass),copper and tin alloy, copper (bronze), forged steel |
|
Measuring Range |
HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
|
Indication Error |
±6HLD (D impact device) |
|
Measuring Direction |
360° |
|
Hardness Scale |
HL, HB, HRB, HRC, HRA, HV,HS |
|
Display |
320x240 true color TFT screen |
|
Data Memory |
Max 600 groups (relative to impact times 1~32 adjustable) |
|
Power |
Rechargeable li-battery |
|
Working Temperature |
-20°C~55°C |
|
Size |
152x76x33mm |
|
Weight |
0.3kg |
