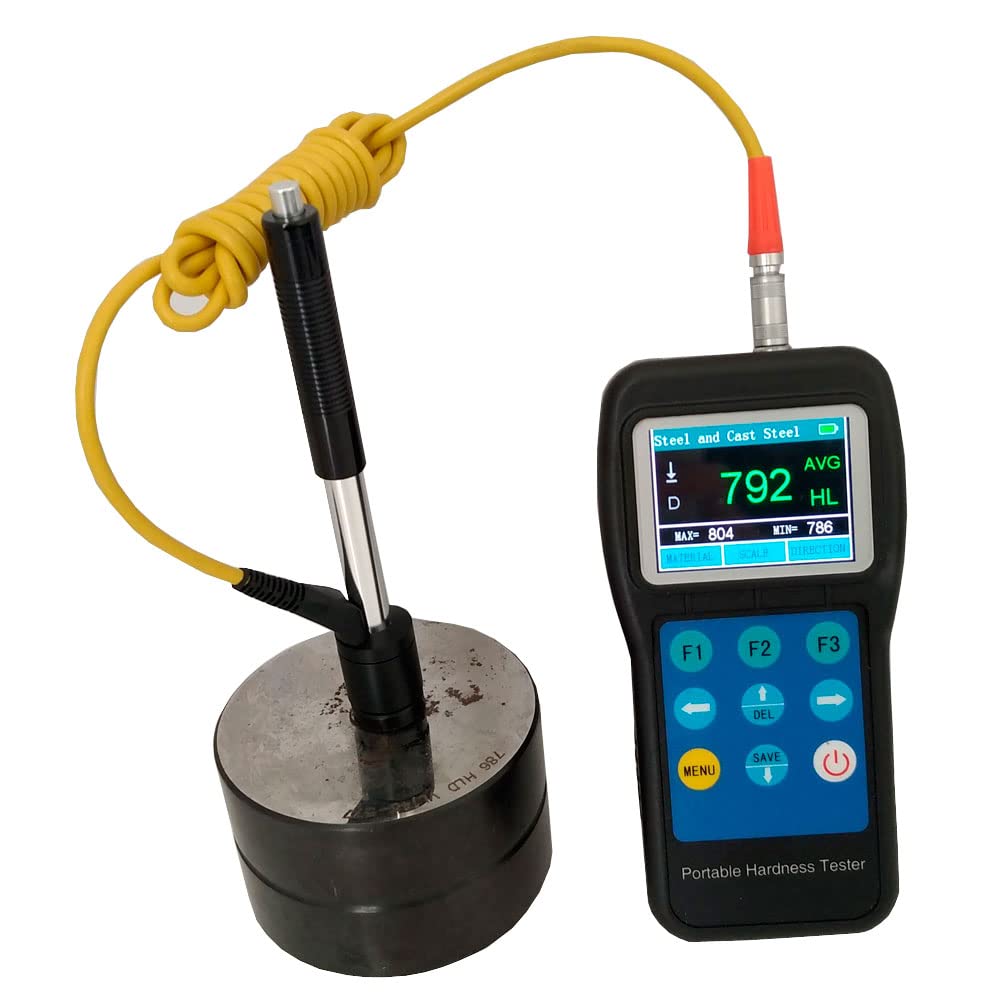

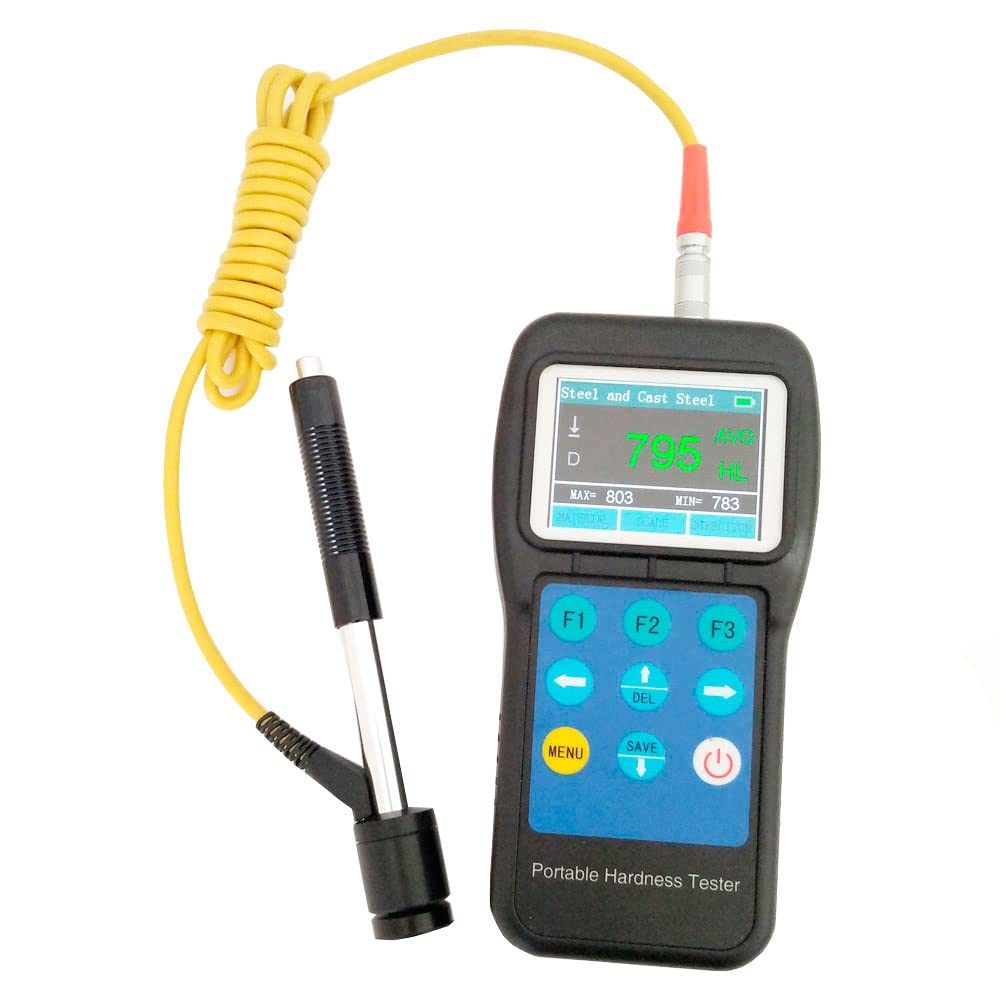

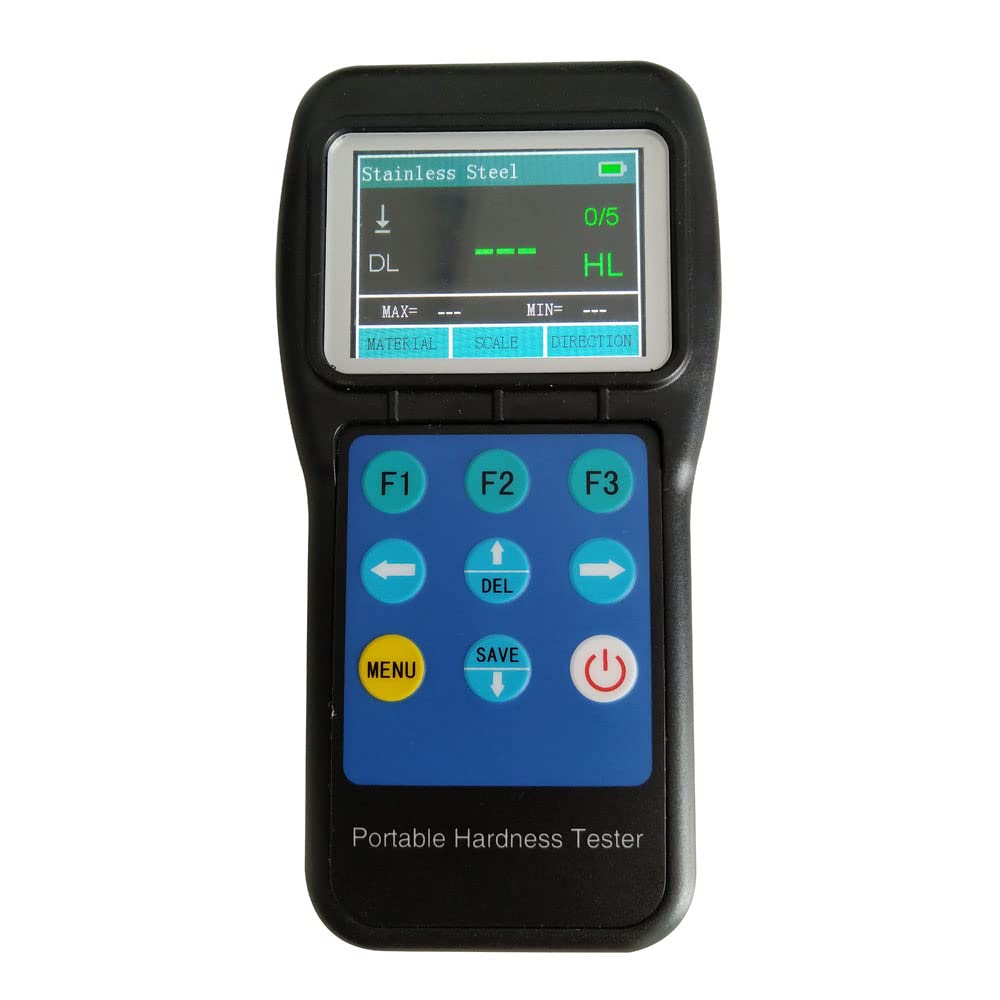

KH190 Portable Hardness Tester Digital Leeb Hardness Meter Measuring Range 170-960HLD KH-190 Replaces JH180
KH190 Portable Hardness Tester Digital Leeb Hardness Meter Measuring Range 170-960HLD KH-190 Replaces JH180
无法加载取货服务可用情况
Features:
*Window menu style, ture color display;
*Easy to operate;
*Test at any angle, even upside down;
*Has a starting valuecalibration function, ensure the data is applicable and accurate in different codes and standards;
*Seven impact devices are available for special application. Automatically identify the type of impact devices;
*User calibration function;
*Battery information indicates the rest capacity of the battery and the charge status;
*Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;

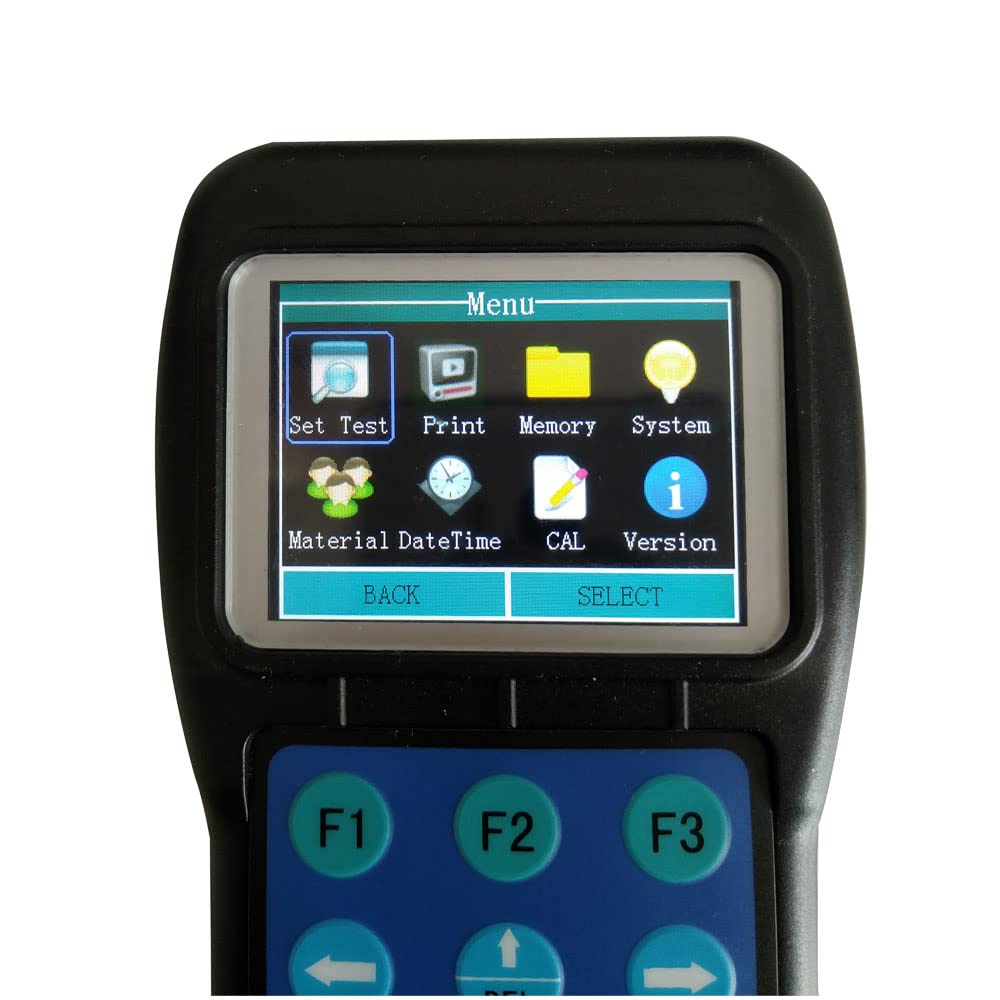

*Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
TECHNICAL DATA
|
Measuring Materials |
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass),copper and tin alloy, copper (bronze), forged steel |
|
Measuring Range |
HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
|
Indication Error |
±6HLD (D impact device) |
|
Measuring Direction |
360° |
|
Hardness Scale |
HL, HB, HRB, HRC, HRA, HV,HS |
|
Display |
320x240 true color TFT screen |
|
Data Memory |
Max 600 groups (relative to impact times 1~32 adjustable) |
|
Power |
Rechargeable li-battery |
|
Working Temperature |
-20°C~55°C |
|
Size |
152x76x33mm |
|
Weight |
0.3kg |
