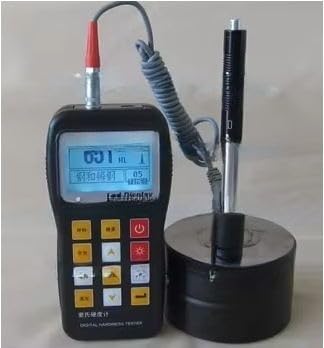

KH210/Leeb/Portable/Metal Hardness Tester

KH210/Leeb/Portable/Metal Hardness Tester

$489.00 USD
$550.00 USD $489.00 USD
促销 售罄

Brand: Graigar

Color: Black

Product Description



Measuring range (170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV,(30~110)HS

Measuring directionAny (360°)

Applicable materialsSteel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, aluminum casting alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper, forged steel

Basic error and indication repeatabilityDType impact device ± 6HLD (basic error) ± 6HLD (indicating repeatability) See Table 5

HardnessXiao (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV), etc.7Species

Upper and Lower limit setting range(170-960)HLD

Indication calibrationCalibration function of indicator software

Data storage500Group measurement

Data InterfaceUSB2.0

Operating voltage2× 1.5V ordinary alkaline battery

Operating temperature－10℃～＋55℃

Appearance size125×71×27mm(Host)

WeightAbout0.3kg(Host)

Features:

  • It has the calibration function of startup indication software to ensure that data is applicable and applicable under different specifications and standards in any industry. Fully sealed metal shell, strong and durable, with excellent resistance to vibration, shock and electromagnetic interference
  • Menu-type operation, rich information, intuitive, one-click to achieve any switching between materials and hardness system, simple and convenient With automatic alarm function, pre-set tolerance limit, automatic alarm beyond the range, especially suitable for batch testing
  • Free conversion of all hardness systems(HL,HB,HRB,HRC,HRA,HV,HS), no need to calculate Available7Different impact devices, automatic identification, no need to recalibrate during replacement, excellent compatibility
  • Large screen LCD display with highlightLEDBacklight, easy to use in dark light environment With automatic sleep, automatic shutdown, remaining power prompt function, low power consumption design
  • Support"Forged Steel (Steel)"Material, when usedD/DCType impact device test"Forged Steel"The sample can be directly readHBValue. No manual table lookup is required. BeltUSB2.0Communication interface, which can easily and quickly exchange data with the computer, print and set parameters Adopt5No. Ordinary battery, can work continuously at least200Hours
  • FRANK
