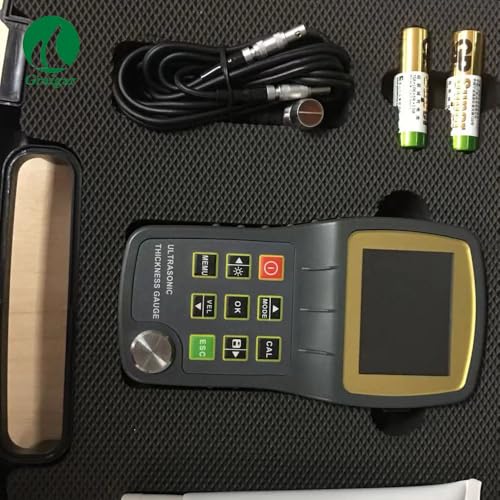

KT350 Digital Echo-Echo Ultrasonic Thickness Gauge 0.75~300mm Thickness Tester

 KT350 Echo-Echo Ultrasonic Thickness Gauge With TF Card USB Interface

Product Introduction:

This ultrasonic thickness gauge adopts 320*240 true color LCD display, with TF card and USB interface, it is capable to through the coating to measure metal, plastic, ceramic and glass material processing parts, and also monitors various pipelines and pressure vessels of their thinning degree after being corroded in the process of use.

This model is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.

Features:

l Automatic zero calibration

l Multiple measurement modes

- standard measurement mode

- peak value measurement mode

- minimum value measurement mode

- difference measurement mode

- average measurement mode

- high temperature measurement mode (with high temperature probe)

l Data saving : data can be saved in groups, no need to save each measurement data, easy operation

l Large capacity data storage: unlimited

l Suitable for measuring coarse grain materials such as gray cast iron (for special probe)

l Suitable for measuring high temperature materials: up to 300℃ or 500℃(for high temperature probe)

Technical Data:

1. Display: 2.4-inch true color LCD (320*240)

2. Range: Normal mode: 0.75 ~ 300mm(steel, depending on the probe)

Through paint mode: 2 ~ 100mm(for coating thickness: 0.1 ~ 3mm)

3. Display resolution: 0.01mm, 0.1mm adjustable

4. Indication Error: ±(1%H+0.1)mm(H= the actual thickness of the measured object)

5. Sound speed: 1000m/s ~ 9999m/s

6. Calibration mode: one-point calibration (for normal measurement)

Two-point calibration (for curved wall or special applications)

7. Speed: normal mode: 4 points per second

Scan mode: 16 points per second, automatically capture the thinnest point

8. TF card interface port, TF card can be used to store data

9. USB port: for communication with PC use data management software

10. Language: Chinese and English

11. Power supply:  1.5V AA batteries 2 pcs, with low voltage prompt when the power is low

12. Automatic shutdown:  offers shutdown time(3, 5, 10, 30 minutes)

13. Working temperature: 0℃ ~ 40℃

14. Dimension: 145×75×27mm

15. Weight: 240g

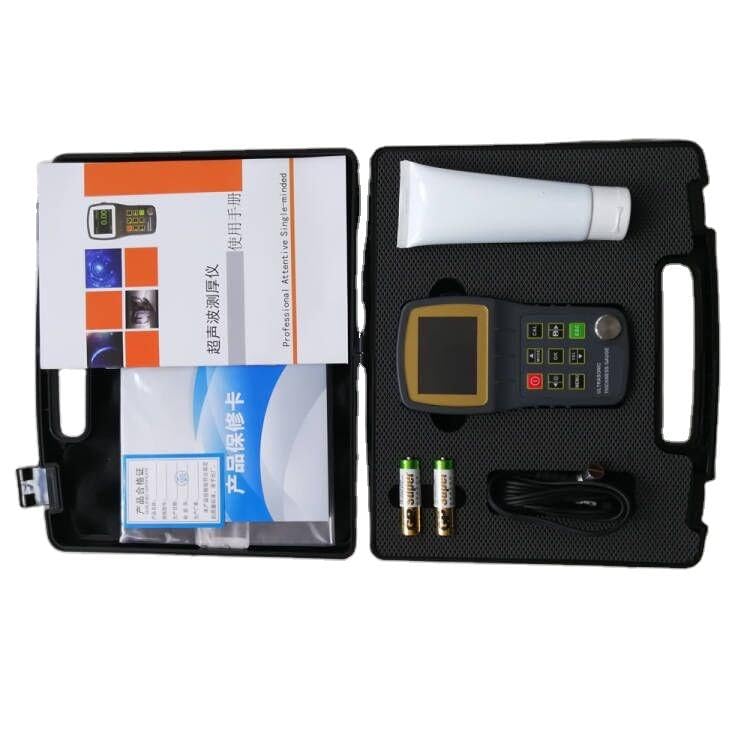

 Standard configuration:

Brand: Graigar

Features:

• Automatic zero calibration Multiple measurement modes
• standard measurement mode peak value measurement mode
• minimum value measurement mode difference measurement mode
• average measurement mode
• high temperature measurement mode (with high temperature probe)

model number: KT350
