Accurate reading with True RMS 600/1000A auto-ranging
Continuity buzzer:600Ω (Buzzer sounds below 90Ω)
model number: KYORITSU2007R
Part Number: KYORITSU2007R

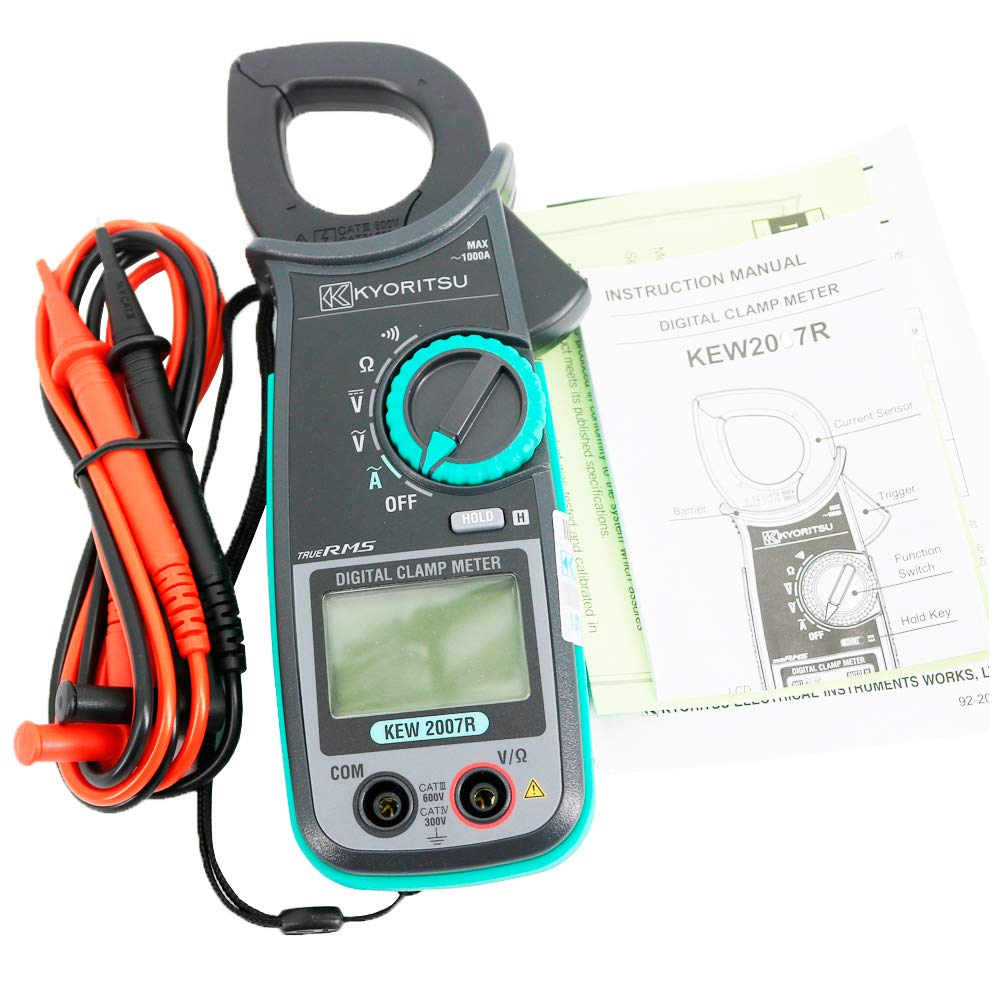

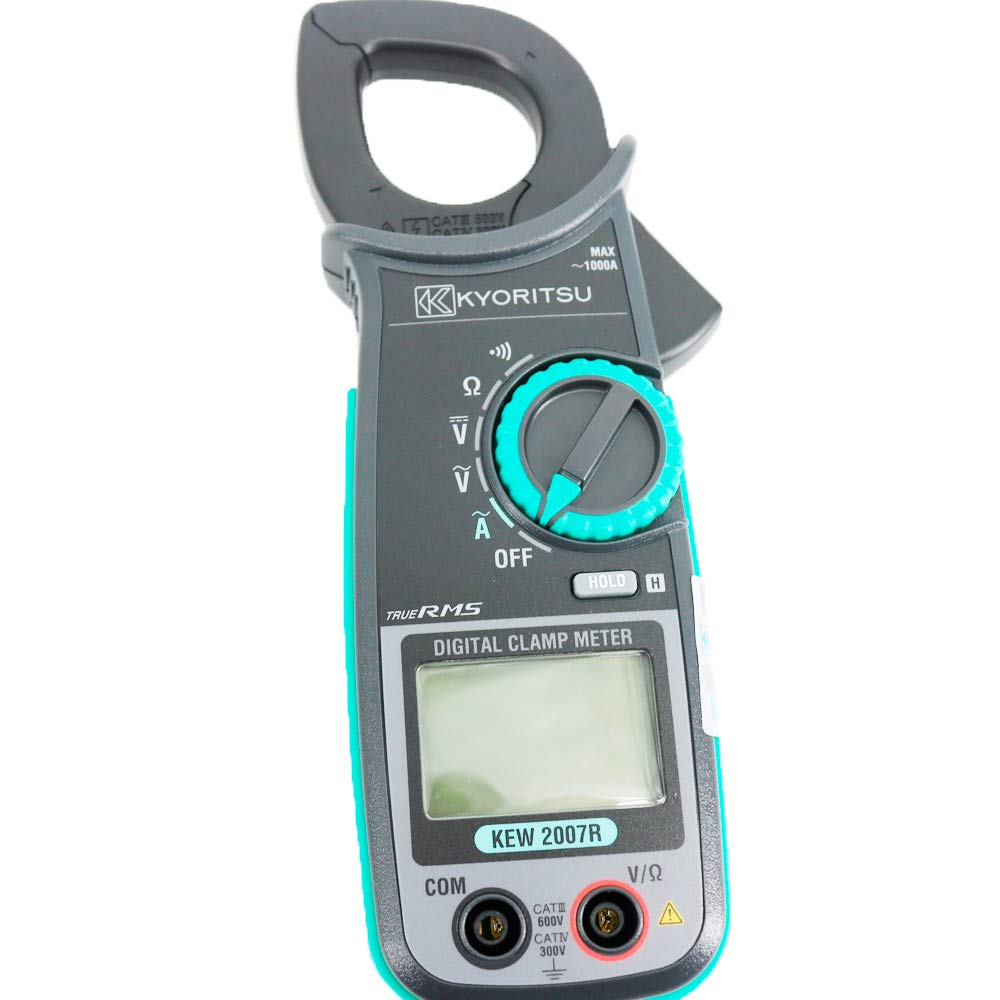

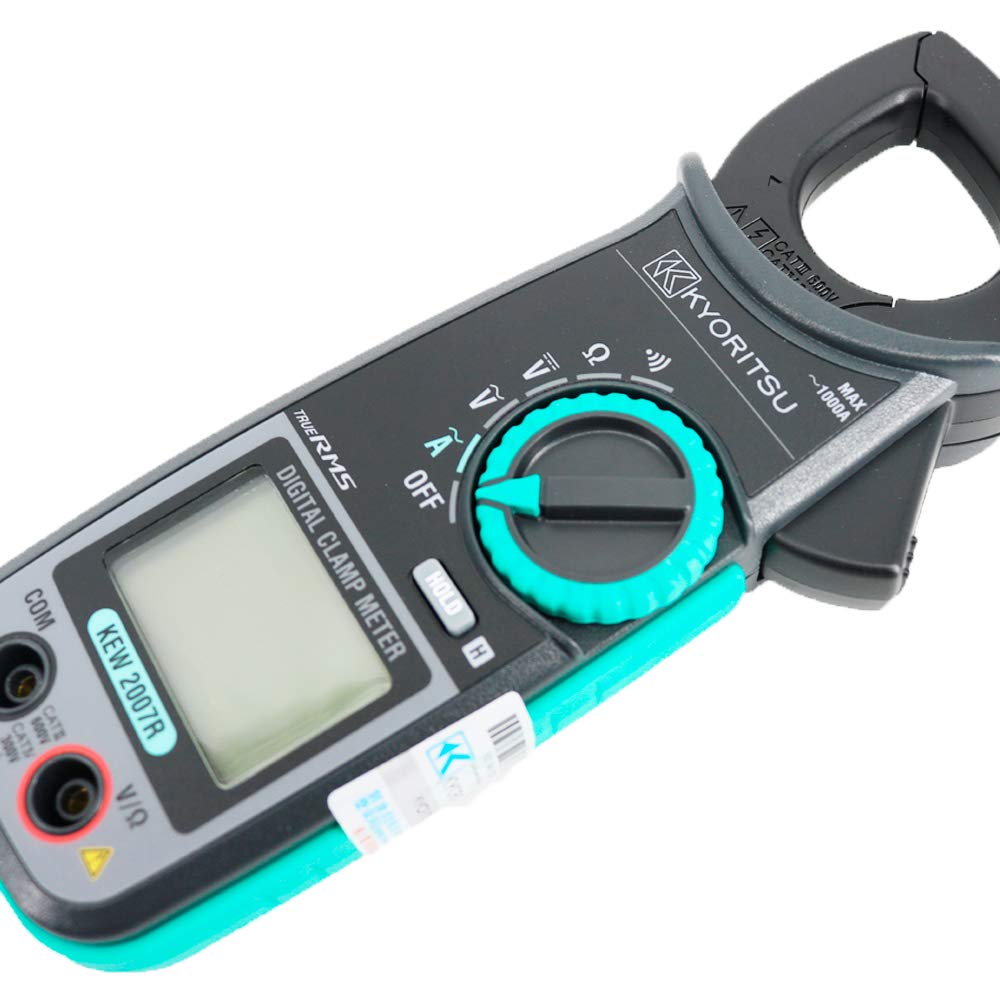

Details: Digital AC Clamp Meter KYORITSU 2007R Fully Safety Jaw Accurate Reading with True RMS

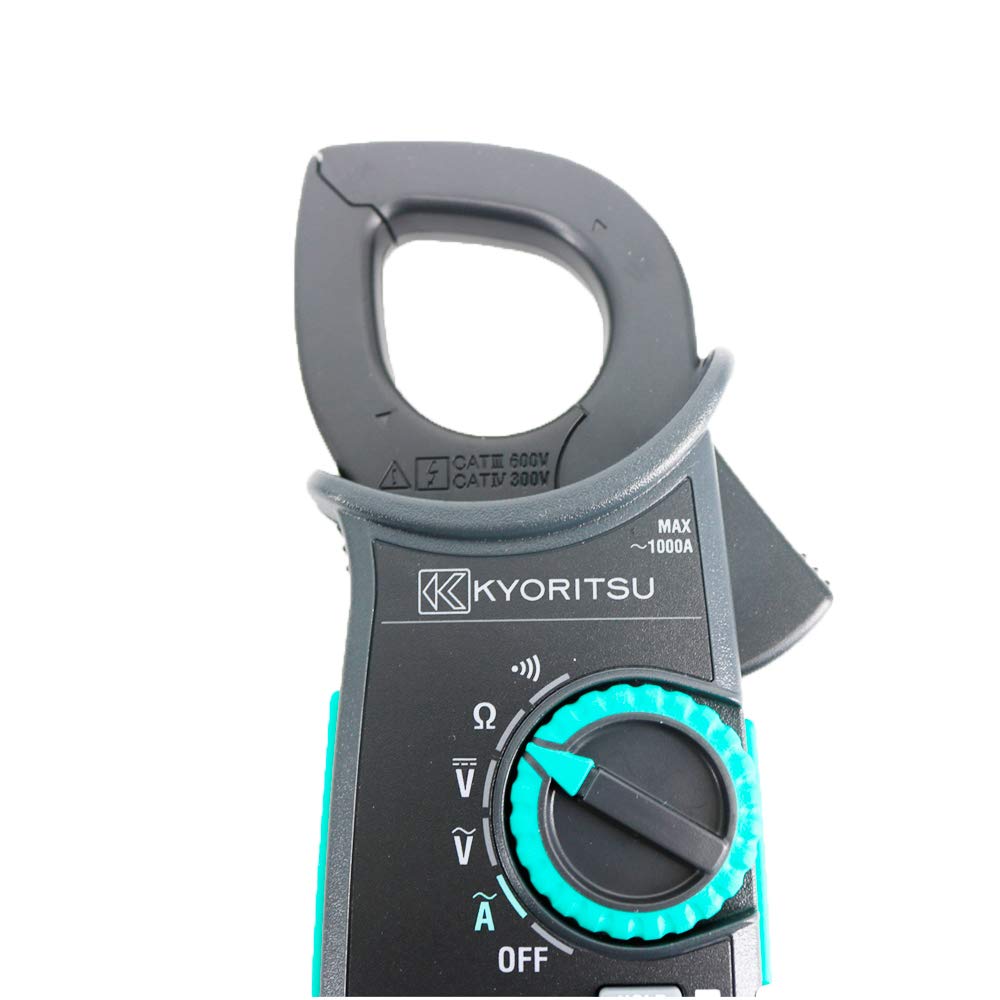

Fully Safety jaw
Ergonomic over-molded body gives convenient one-hand operation

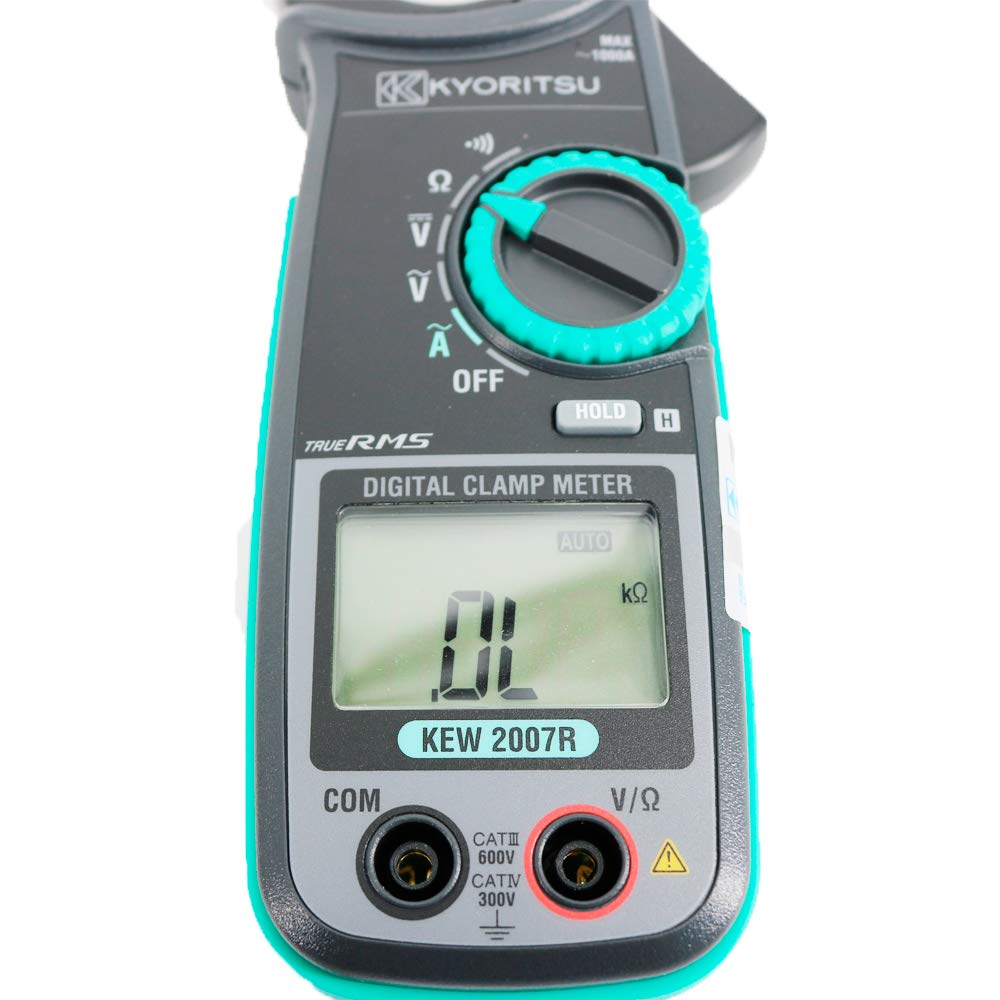

Large easy-to-read display with 0.1A resolution
Accurate reading with True RMS
600/1000A auto-ranging
Long battery life
Safety Standard
IEC 61010-1 CAT IV 300V / CAT III 600V
AC A：600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 - 65Hz]
±2.0%rdg±4dgt [40 - 400Hz]
AC V：600.0V
±1.2%rdg±3dgt [45 - 65Hz]
±1.5%rdg±4dgt [40 - 400Hz]
DC V:600.0V
±1.2%rdg±3dgt
Ω:600.0Ω/6.000kΩ (Auto-ranging)
±1.3%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6.000kΩ)
Continuity buzzer :600Ω (Buzzer sounds below 90Ω)
Conductor size:φ33mm max.

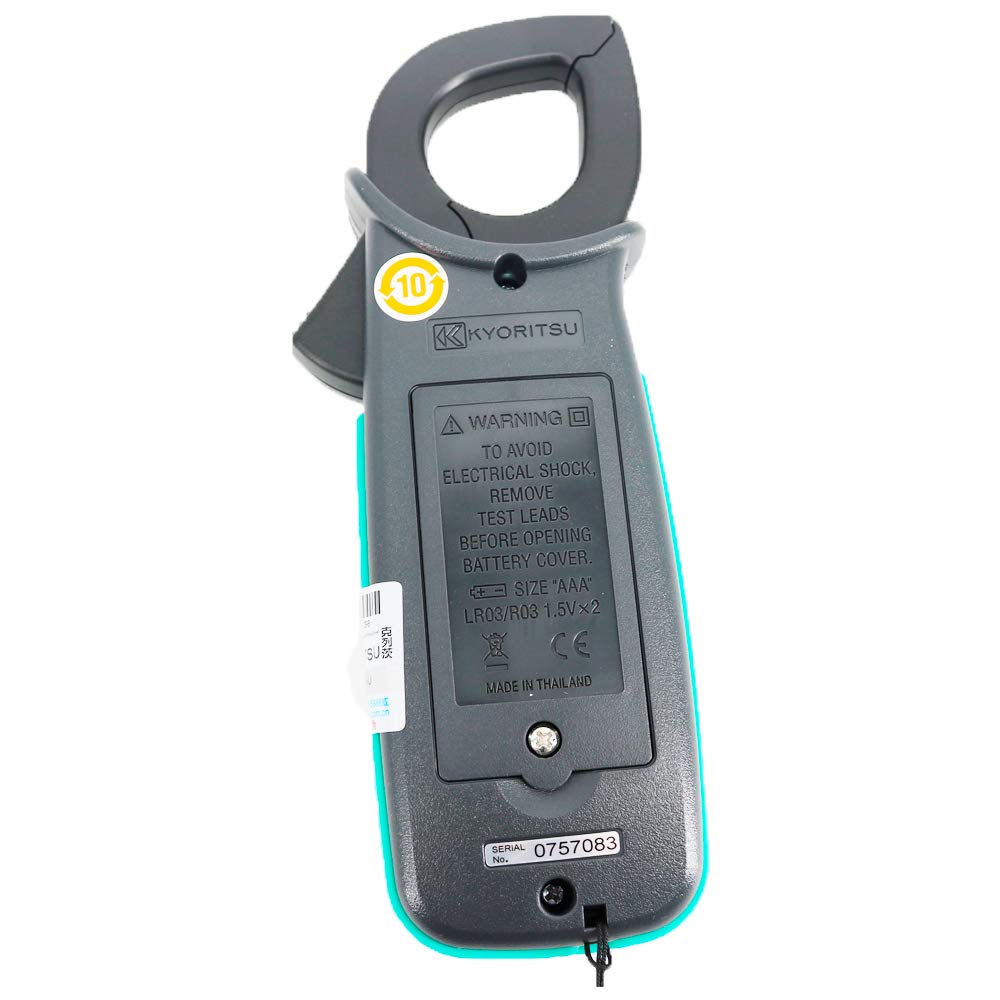

Power source:R03/LR03 (AAA) (1.5V) × 2(
Continuous measuring time:Approx.170 hours (when R03 is used)
(Auto power save : approx. 10 minutes)
Dimensions:204(L) × 81(W) × 36(D)mm
Weight:220g Approx. (Excluding batteries)
