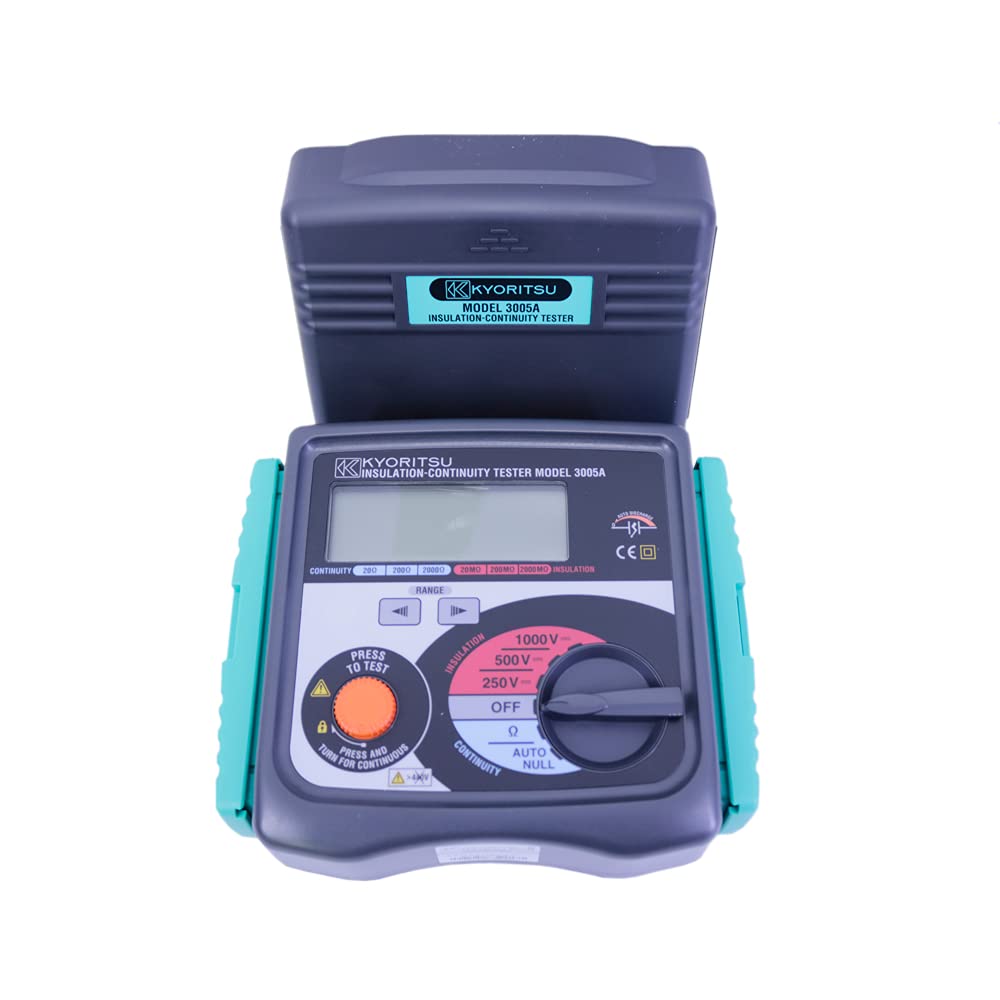

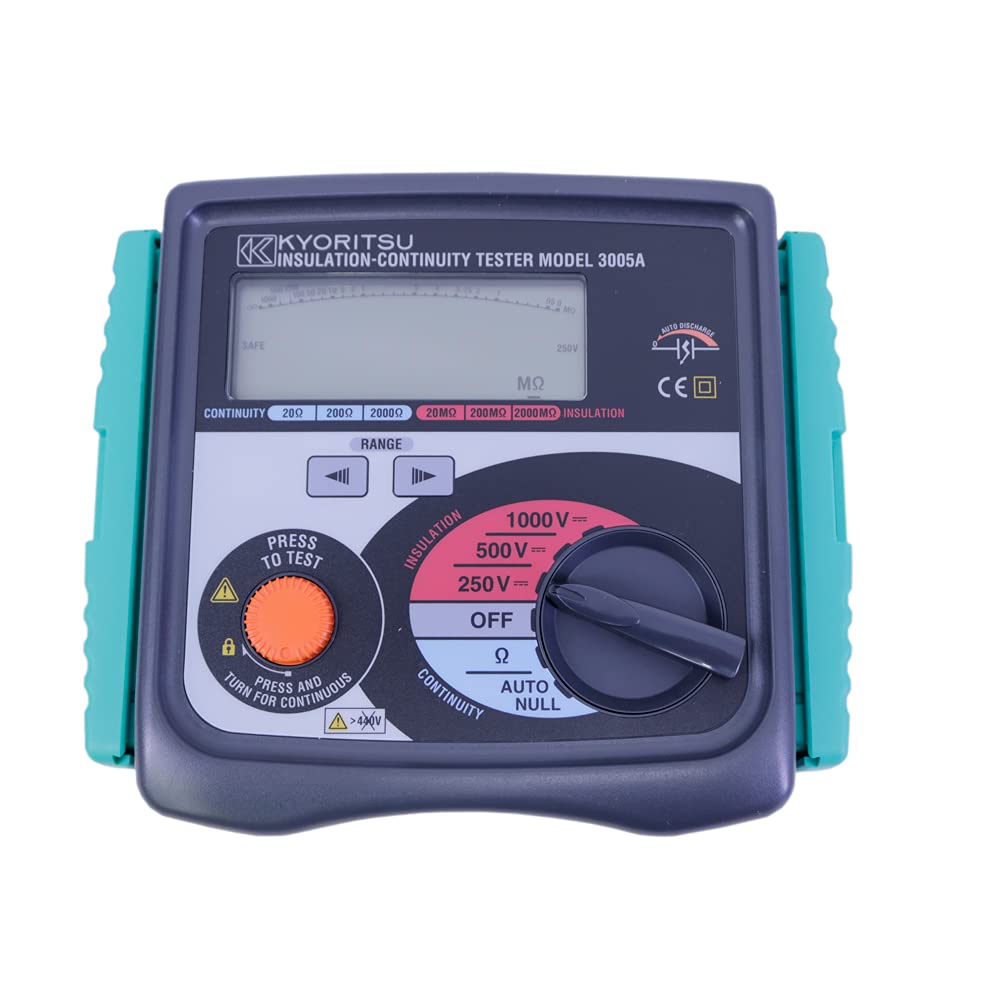

Kyoritsu 3005A Digital Insulation/Continuity Testers Test Voltage 250V/500V/1000V KEW3005A Kyoritsu3005A

Name: Kyoritsu 3005A Digital Insulation/Continuity Testers Test Voltage 250V/500V/1000V KEW3005A Kyoritsu3005A
Brand: Graigar
SKU: B0931SN4QR
Price: 449.00 USD
Availability: InStock

$449.00 USD

Sale Sold out

Quantity

FEATURES:

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Specification of Insulation Resistance:

Test voltage	250V/500V/1000V
Measuring ranges<br>(Mid-scale value)	20MΩ/200MΩ/2000MΩ
Output voltage on open circuit	Rated test voltage+20%, -0%
Nominal current	1mA DC min.
Output short circuit current	1.5 mA DC approx.
Accuracy	±1.5%rdg±5dgt (20MΩ/200MΩ) ±10%rdg±3dgt (2000MΩ)

Specification of Continuity Test:

Measuring ranges<br>(Mid-scale value)	20Ω/200Ω/2000Ω
Output voltage on open circuit	7 - 12V DC
Measuring current	200mA DC min.
Accuracy	±1.5%rdg±5dgt (20Ω) ±1.5%rdg±3dgt (200Ω/2000Ω)

AC Voltage

AC voltage range	0 - 600V AC
Accuracy	±5%rdg±3dgt

General:

Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4
IP Rating	IEC 60529-IP54
EMC Standard	IEC 61326-1

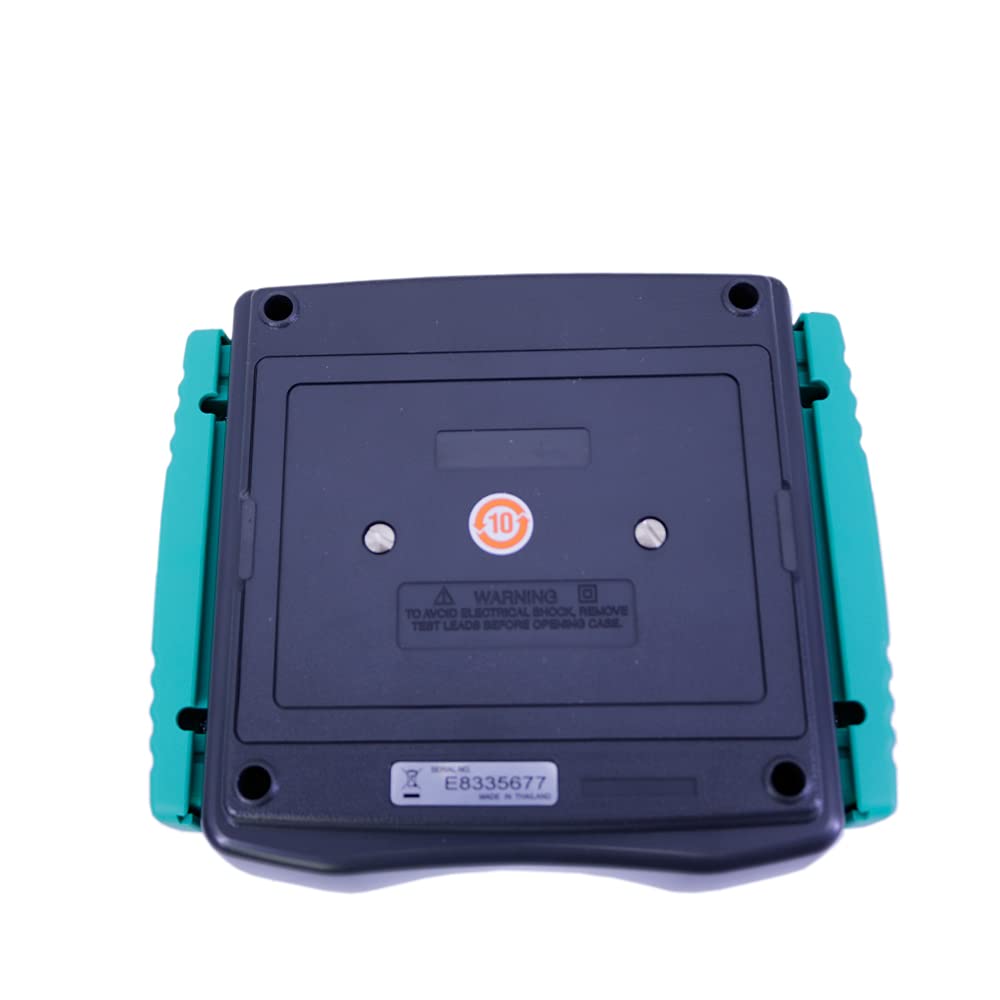

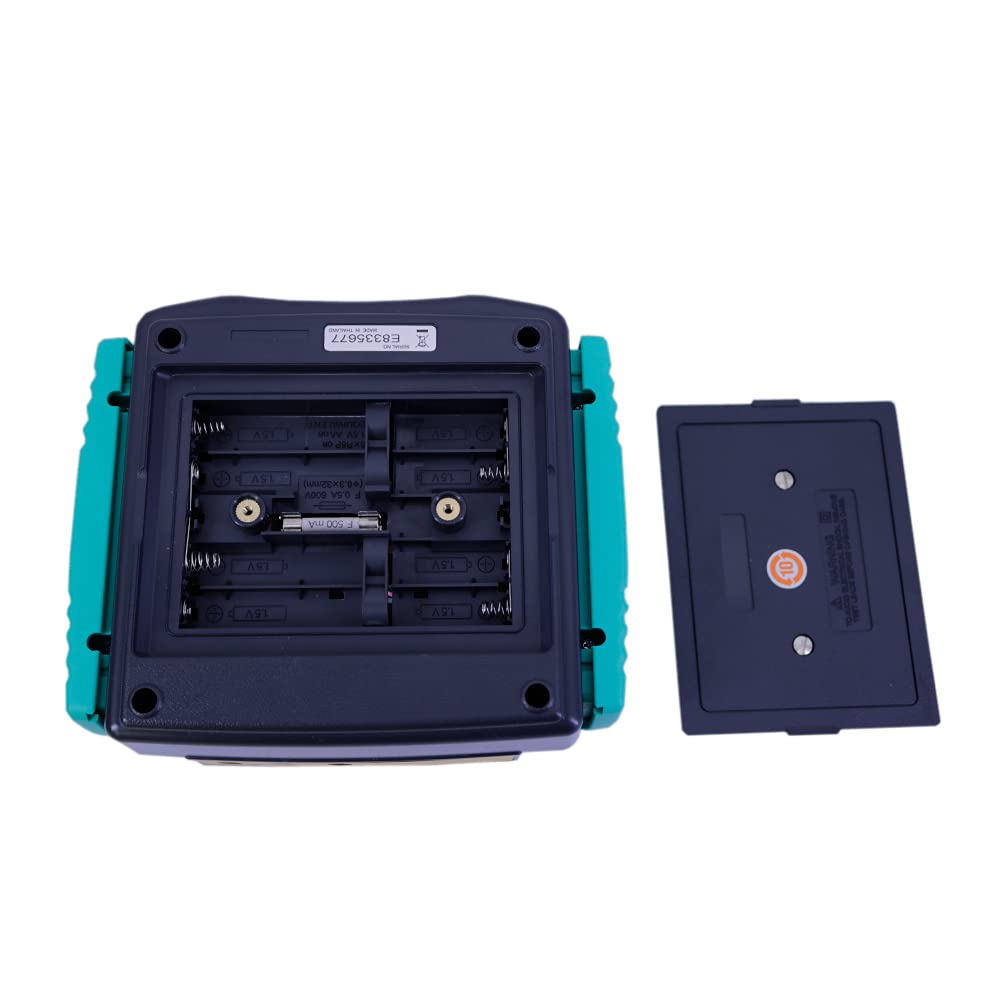

Power source	R6 (AA) (1.5V) × 8
Dimensions	167(L) × 185(W) × 89(D)mm
Weight	970g approx

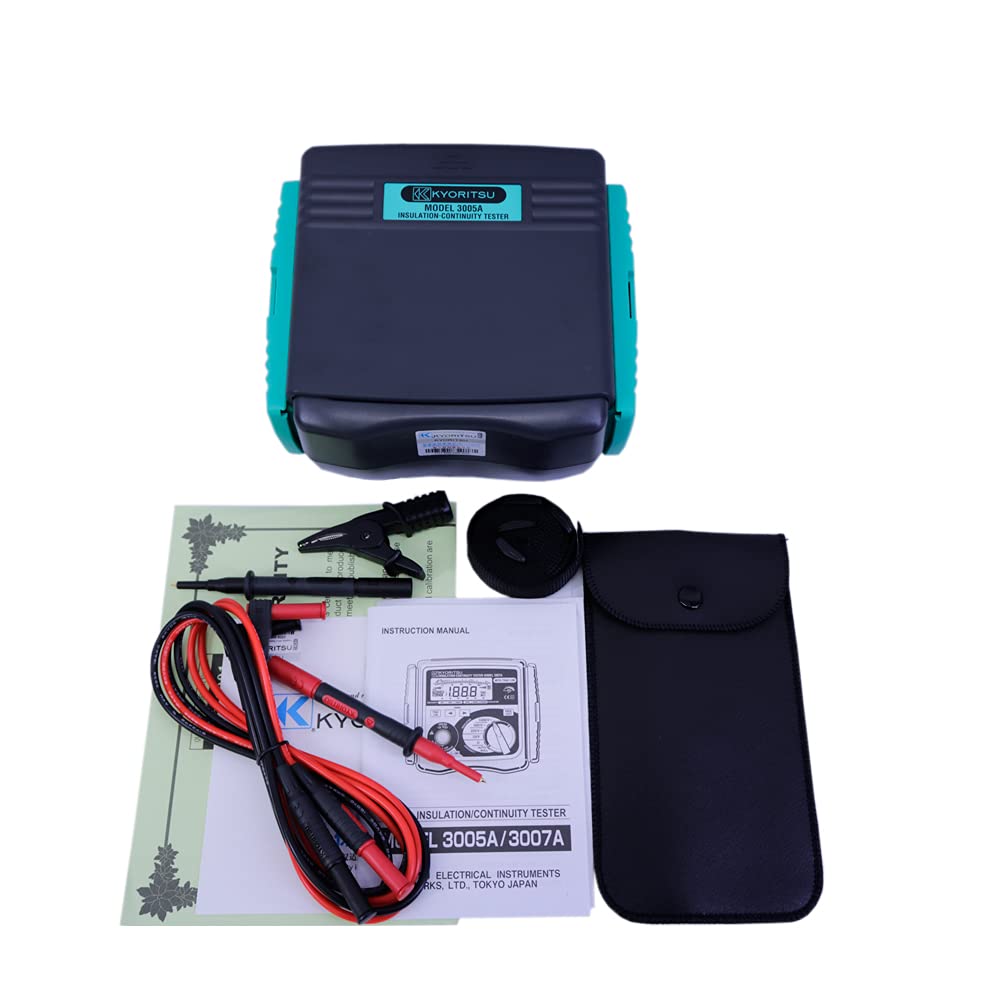

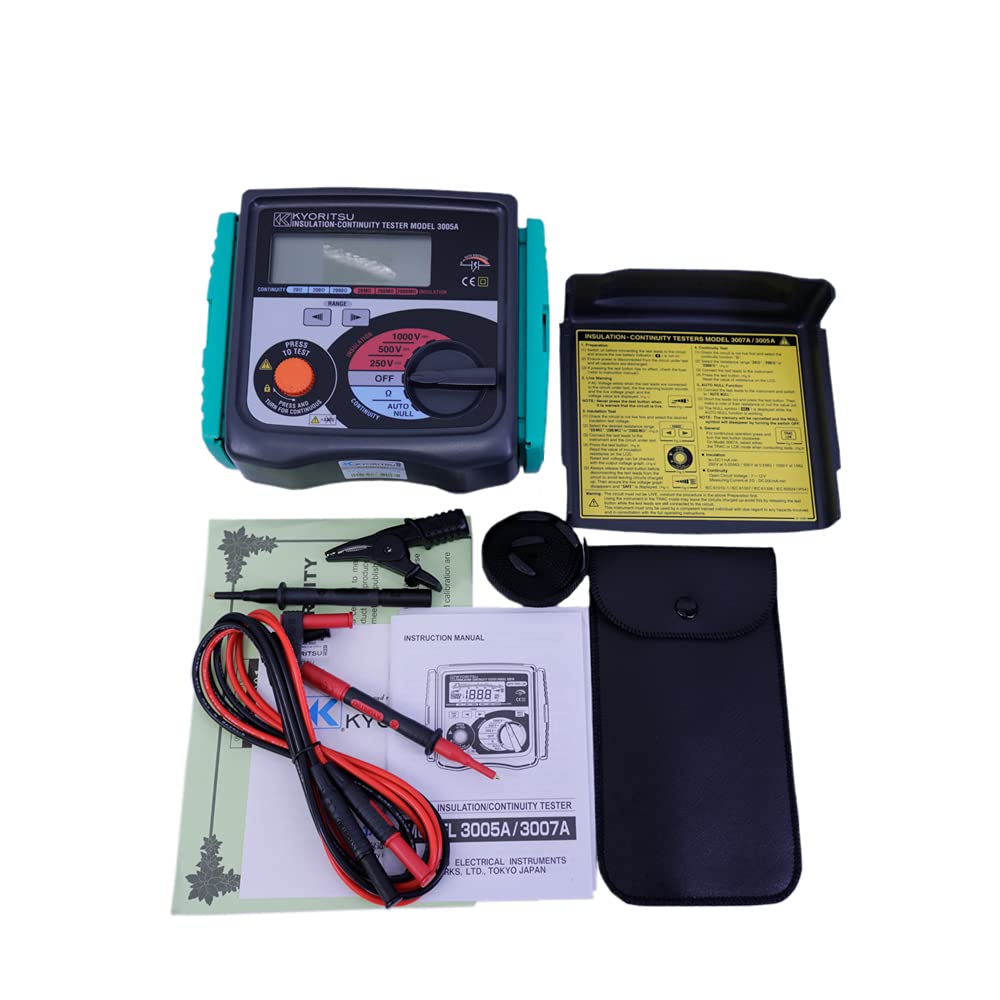

Included Accessories	7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 8, Shoulder Strap Instruction Manual
