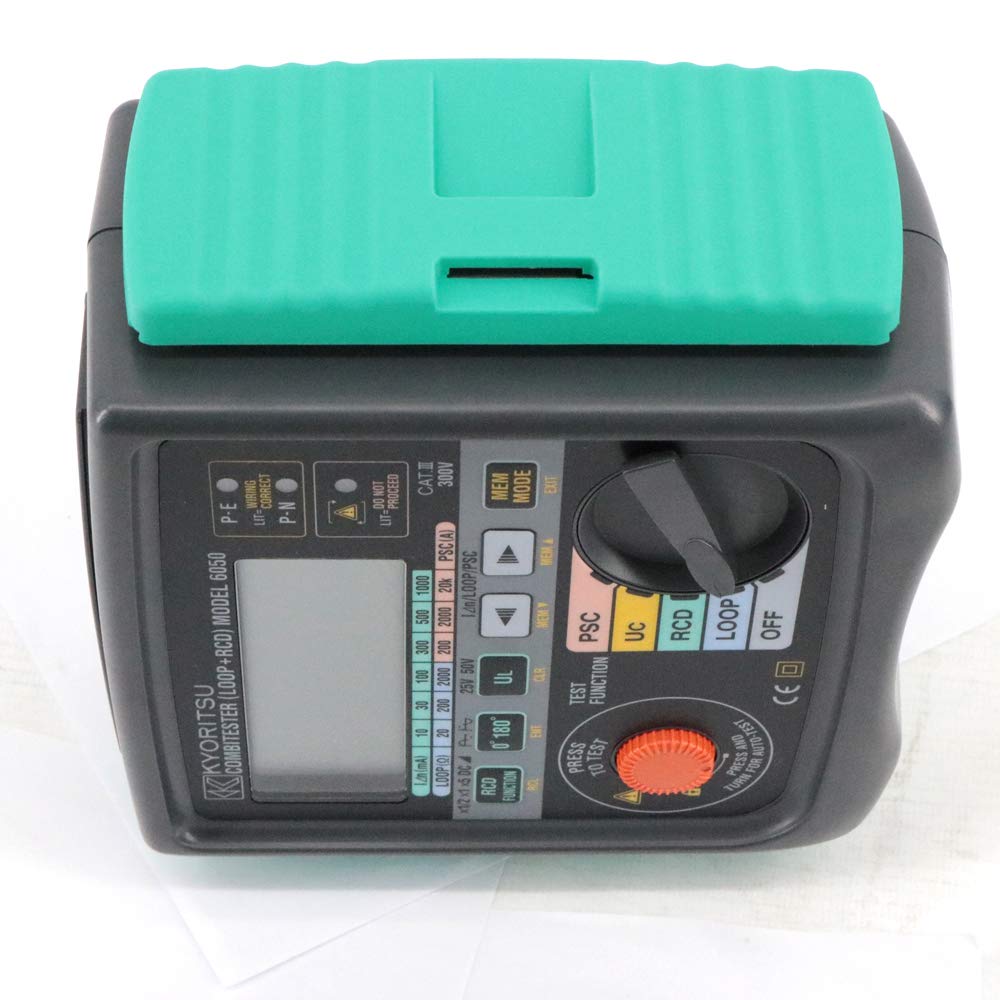

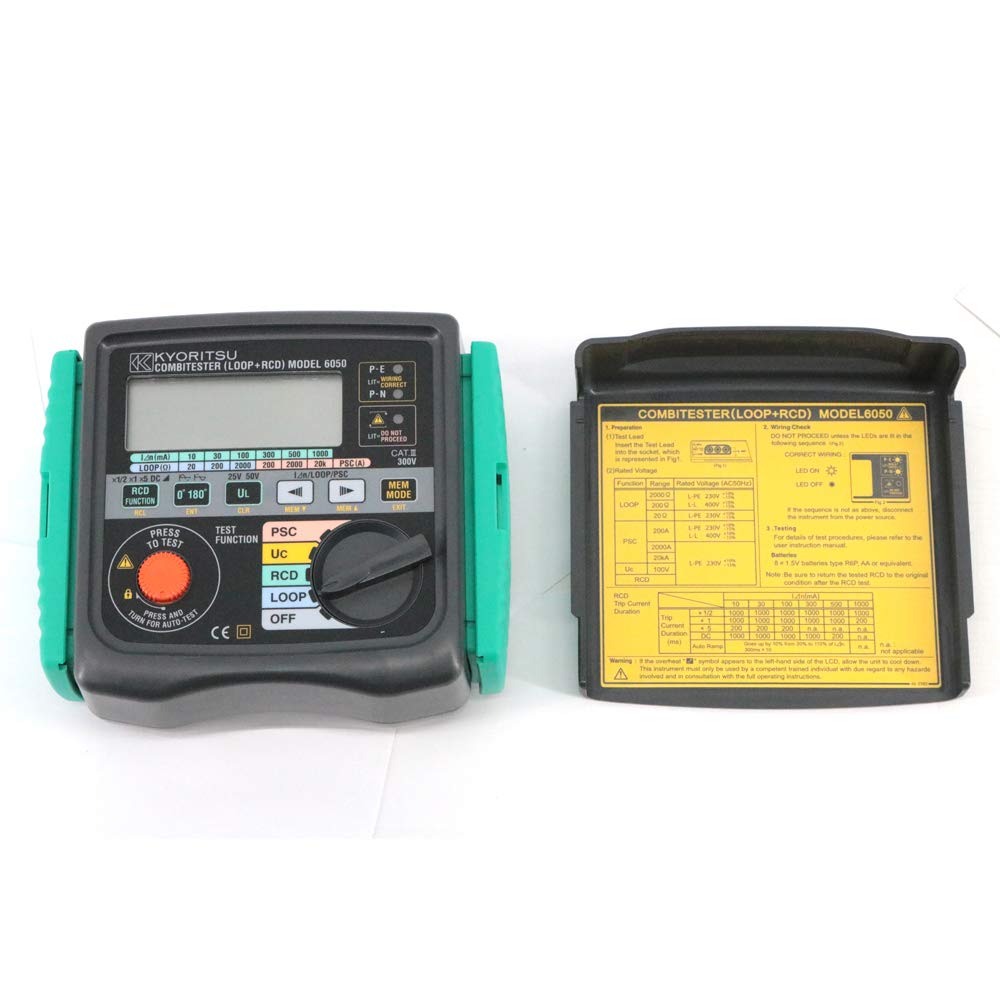

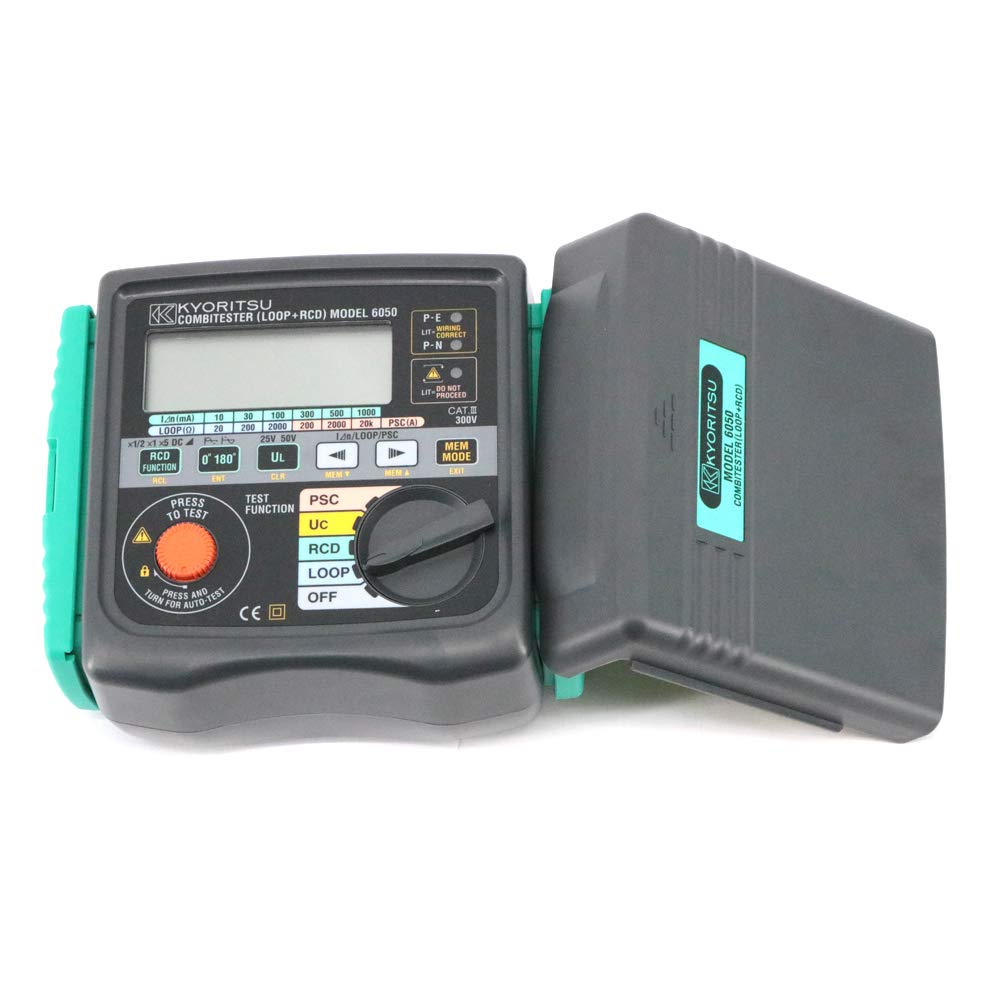

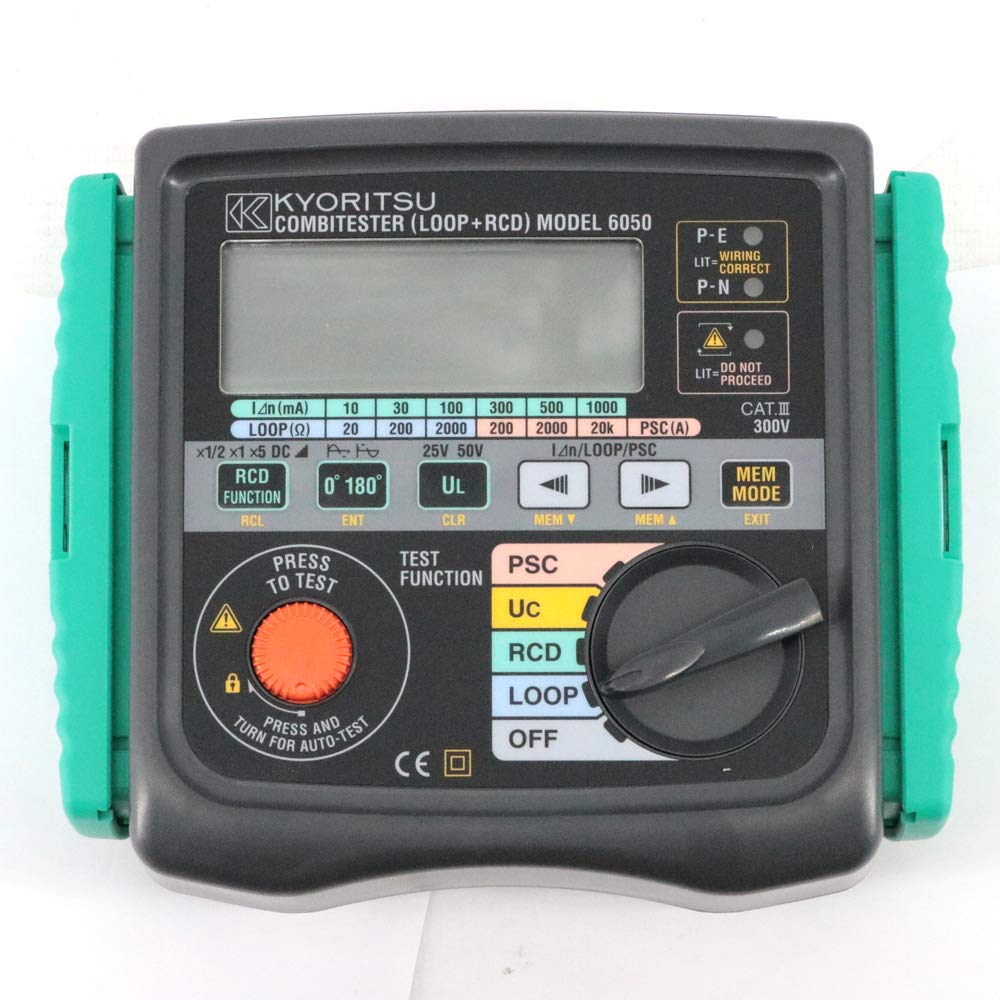

Kyoritsu 6050 Multi Function Testers Combitester (Loop + RCD) 2 in 1 Loop Tester RCD Tester

Brand: Graigar

Features:

• Kyoritsu 6050 Multi Function Testers
• (Loop + RCD) 2 in 1 Loop Tester RCD Tester
• LOOP Impedance 200/2000Ω range measurement is carried out using a test current of 15mA
• Loop Impedance Ranges(Z reading)：20/200/2000Ω
• Loop Impedance Ranges without tripping RCDs：200 and 2000Ω with 15mA of test current

Part Number: Kyoritsu 6050

Details: Kyoritsu 6050 Multi Function Testers Combitester (Loop + RCD) 2 in 1 Loop Tester RCD Tester

Features:
Kew Combitester provides the ultimate in Microprocessor technology offering Loop and RCD tests with a comprehensive memory and downloading test results.
This current will not trip RCD’s rated at 30mA or greater.
High resolution for low Loop Impedance (resolution of 0.01Ω) on 20Ω range.
Direct reading of Prospective Short Circuit Current (PSC) and earth fault current.
RCD tests at 0 and 180 degree phase angle switch permit quick tests and consistent readings.
Test of a large kind of RCD's Standard, Selective, AC and A (DC sensitive breakers).
Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
RCD Ramp test in order to indicate the actual tripping current of RCD.
Contact Voltage Reading (UC). with two selectable contact voltage limits (50 and 25V).
Visual indication of correct wiring status and automatic lock-out if test resistors overheats.
Designed to IEC 61010-1, IEC 61557 and high protection degree IP54.

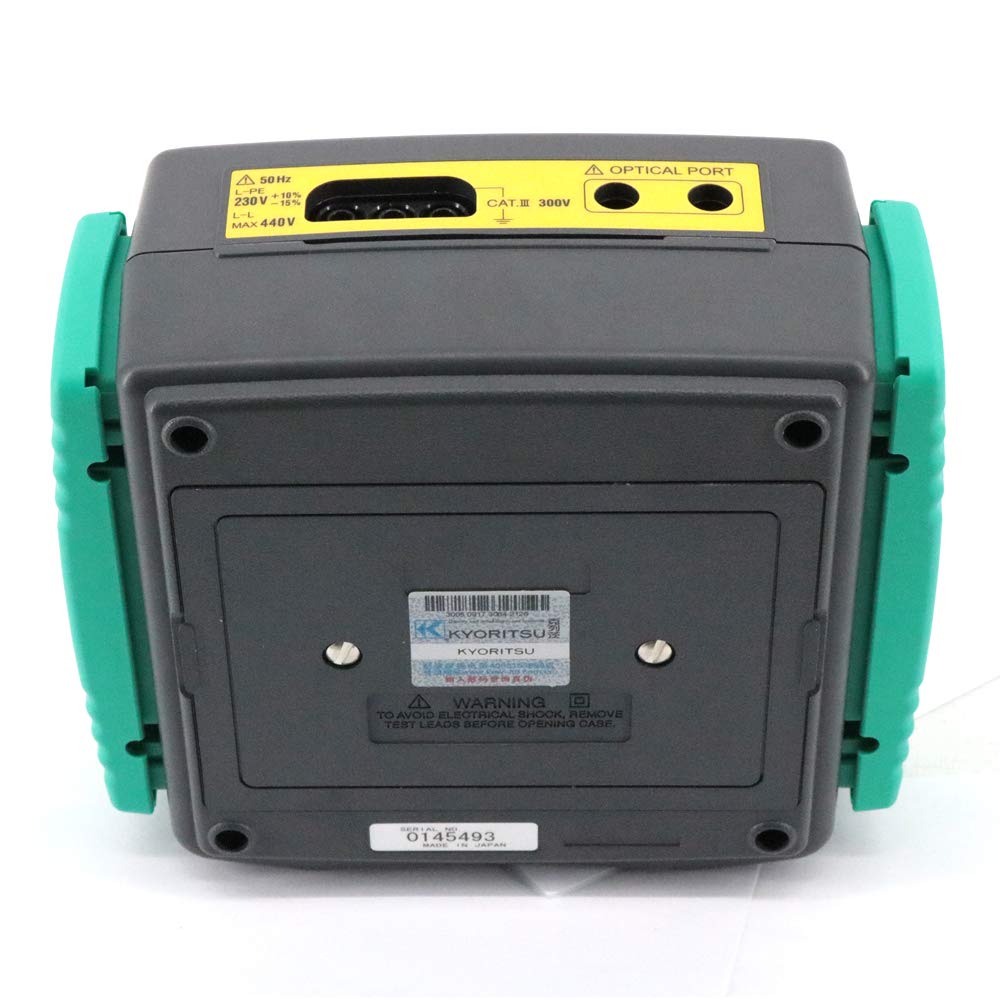

The stored data can be transferred to PC via Optical Adapter Model 8212-RS232C and 8212-USB

Specifications:
Max test current on Loop ranges：3A (20Ω) / 15mA (200 and 2000Ω)
PSC / Earth Fault Current Ranges：200/2000A/20kA
RCD Test A Type(Standard and Selective)：10, 30, 100, 300, 500mA
RCD Ramp Test：From 20% to 110% of IΔn (AC type)
Contact Voltage Block (RCD)：50V and 25V
Contact Voltage Reading (RCD)：100.0V
Working Voltage for RCD Tests：230V+10%-15%
Memory：300 memory locations
PC Software, Connection Cable：optional with 8212-USB, 8212-RS232C
Safety Standards：IEC 61010-1 CAT.III 300V, IEC 61557
Power Source：8 × 1.5V R6P(AA)
Dimensions：186(L) × 167(W) × 89(D)mm

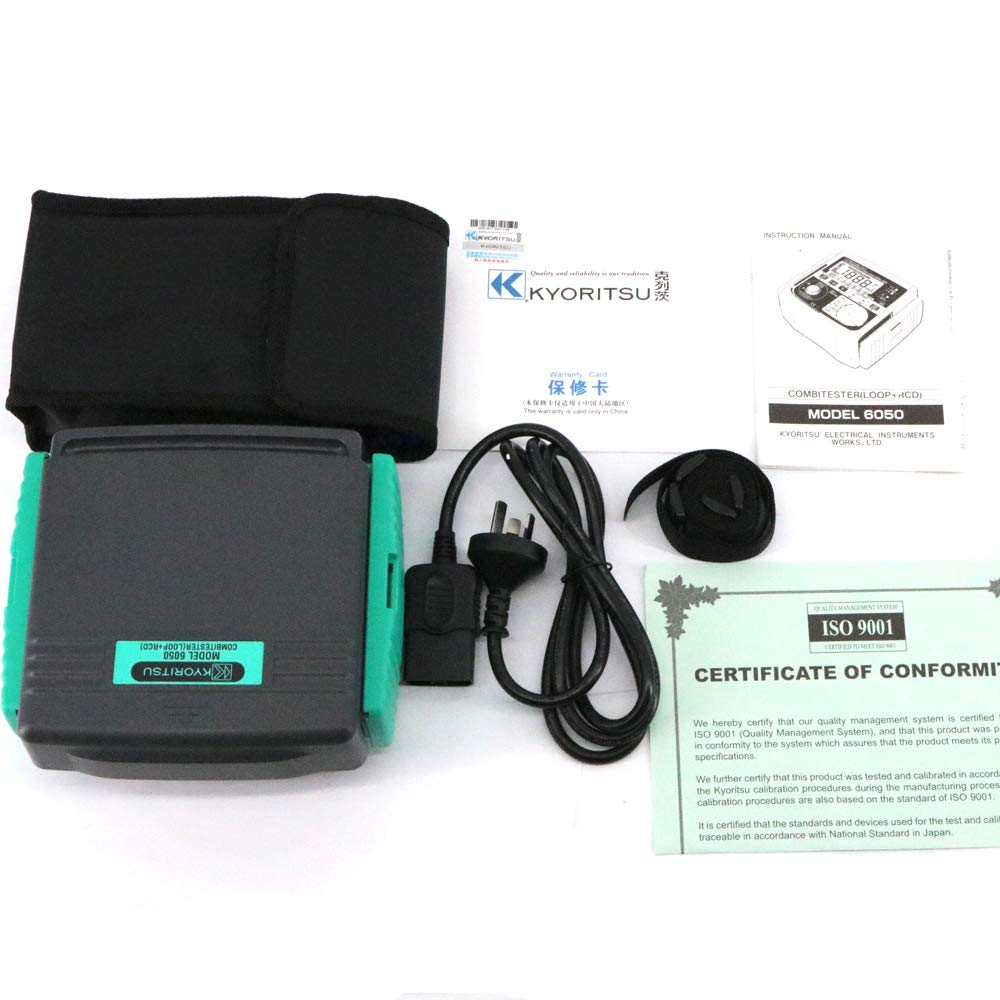

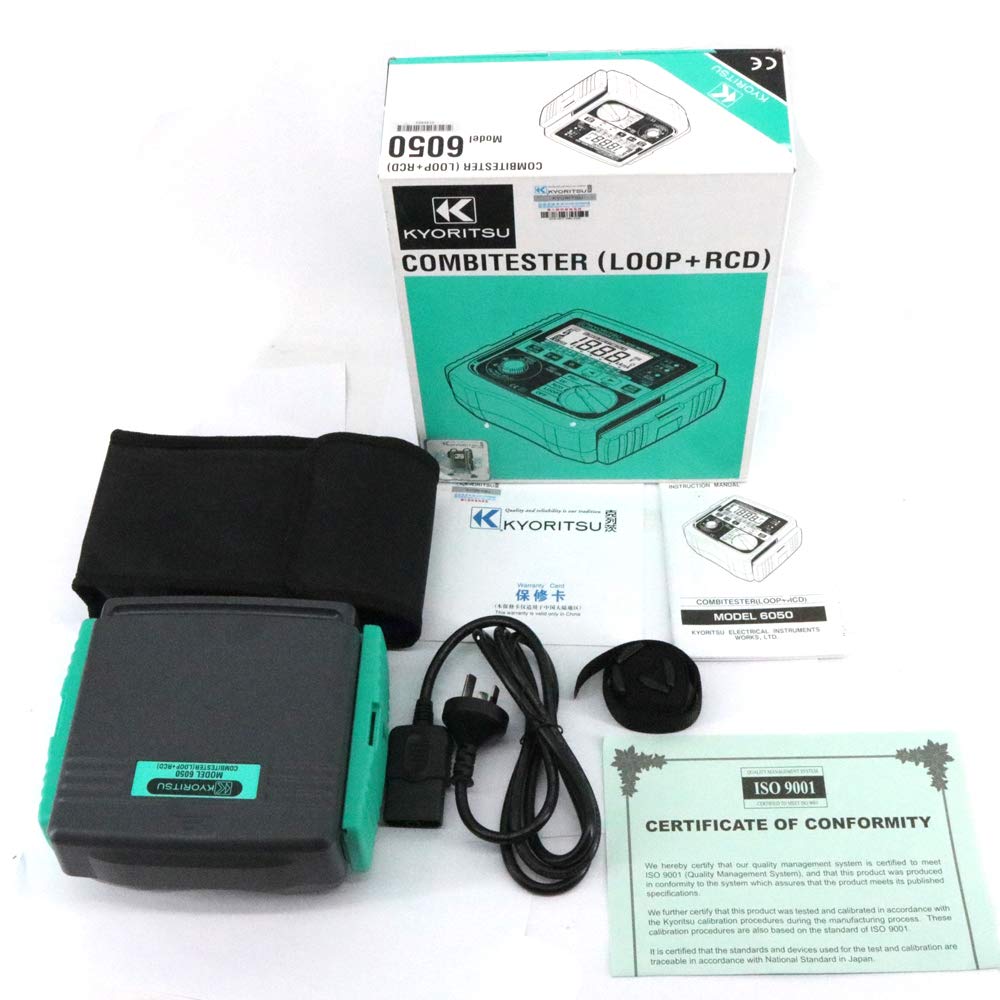

Package Includes:
1 x K

EAN: 0761272050758
