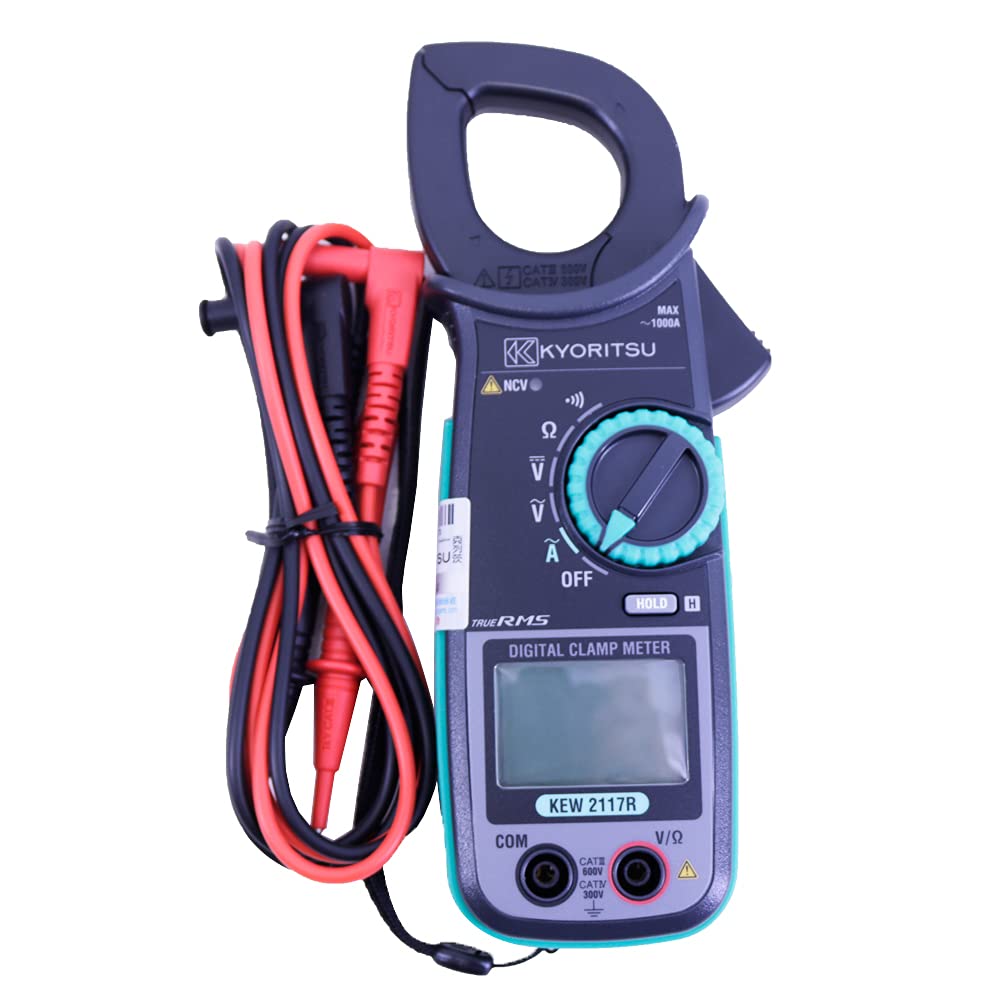

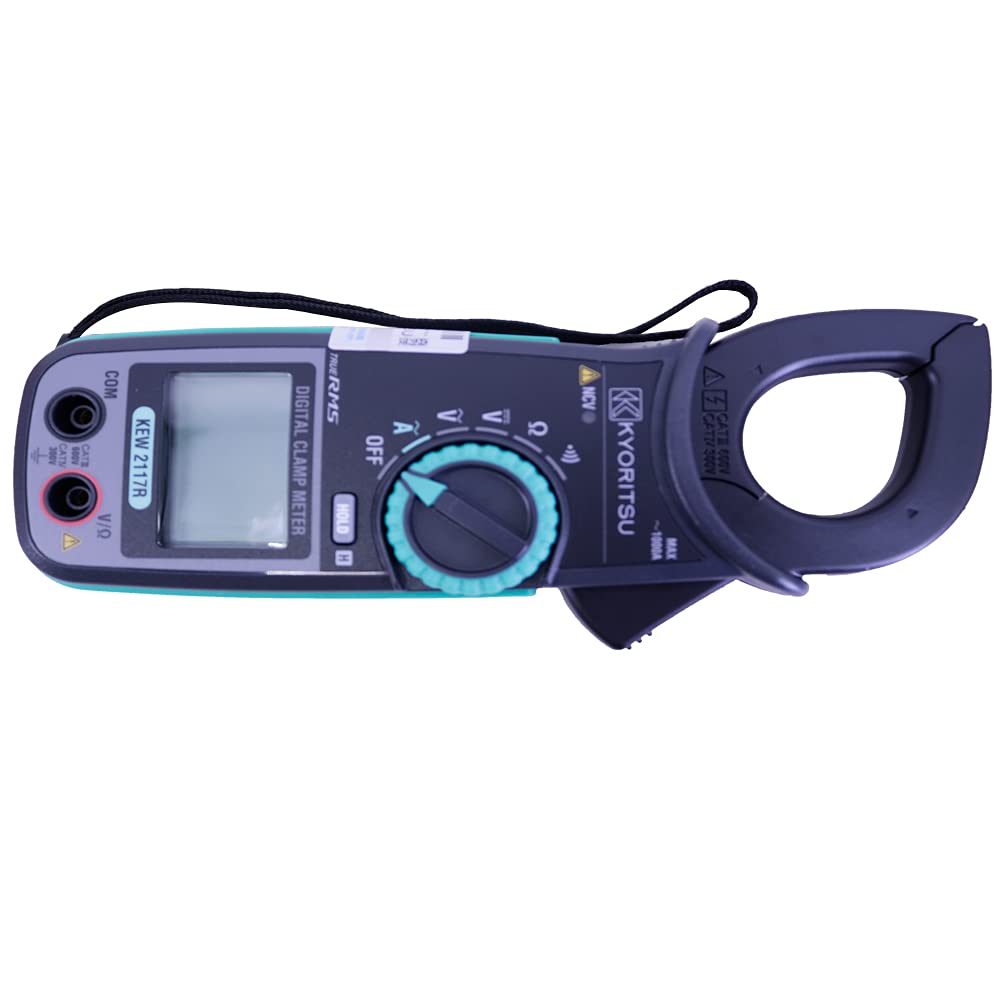

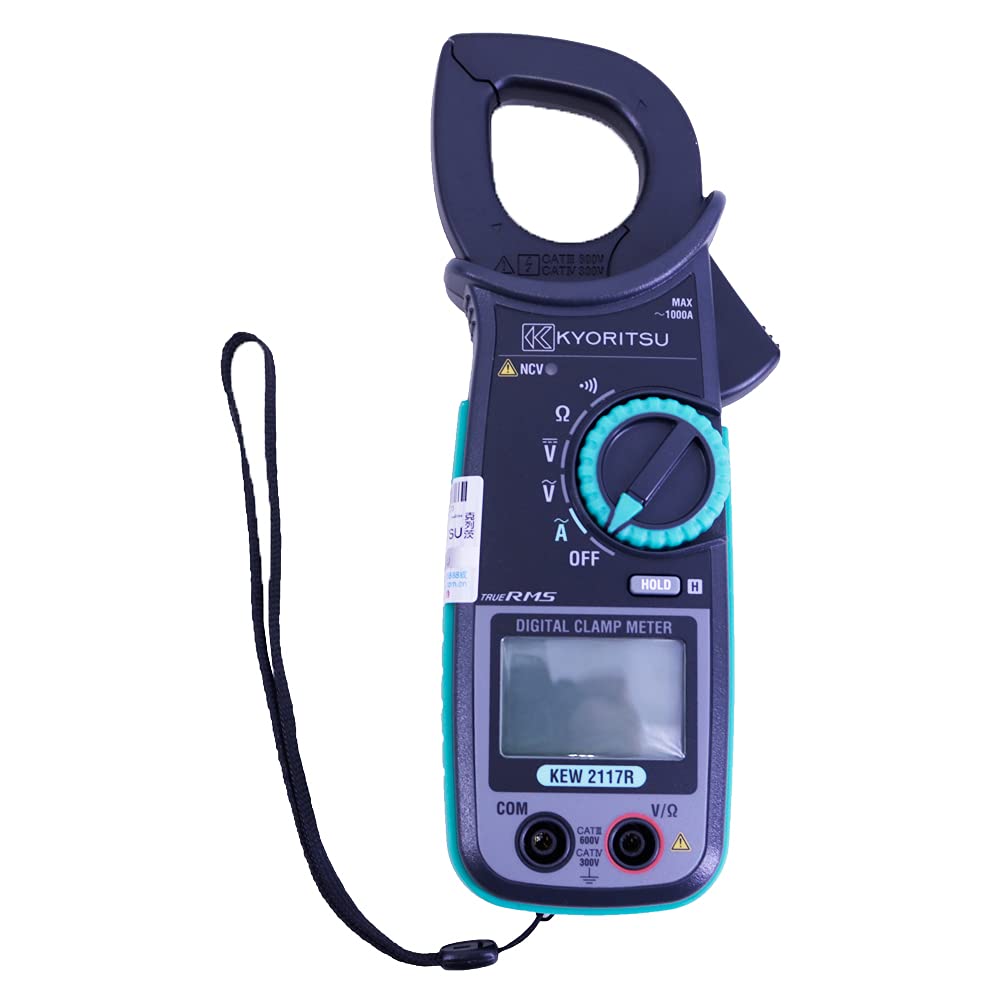

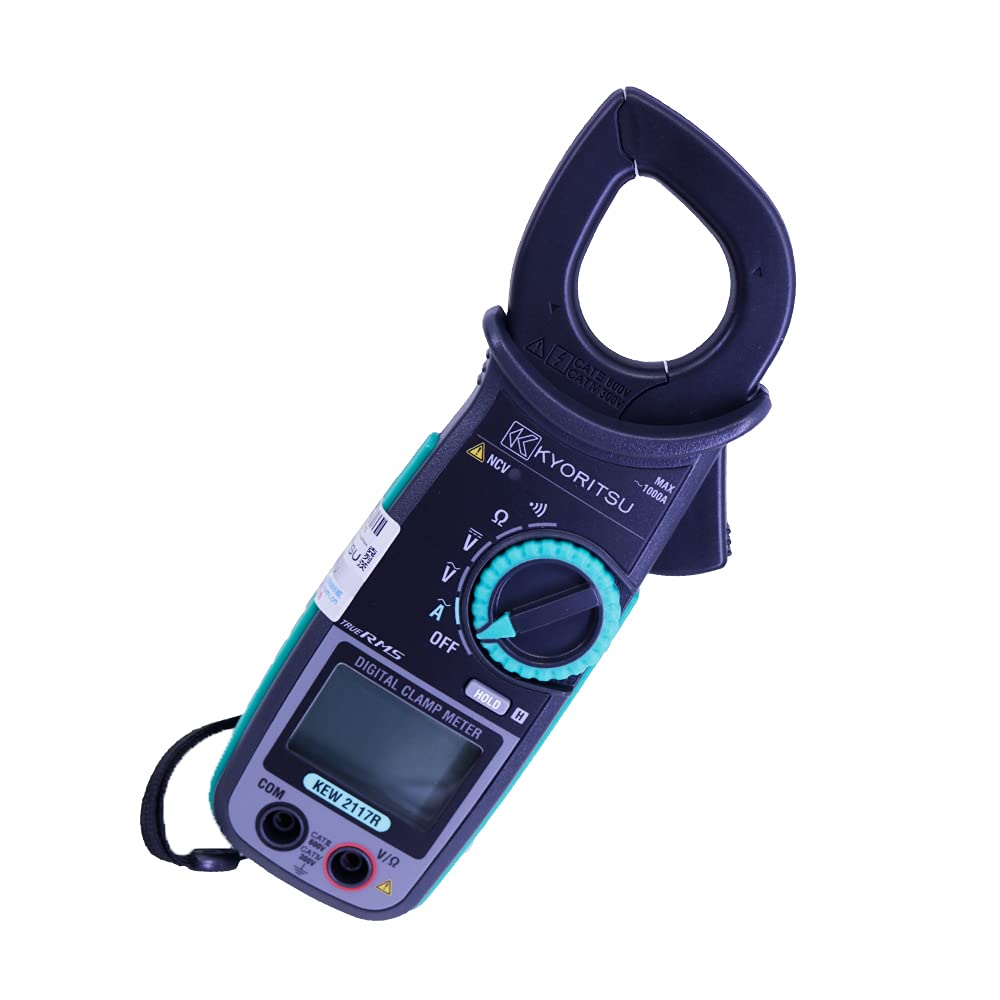

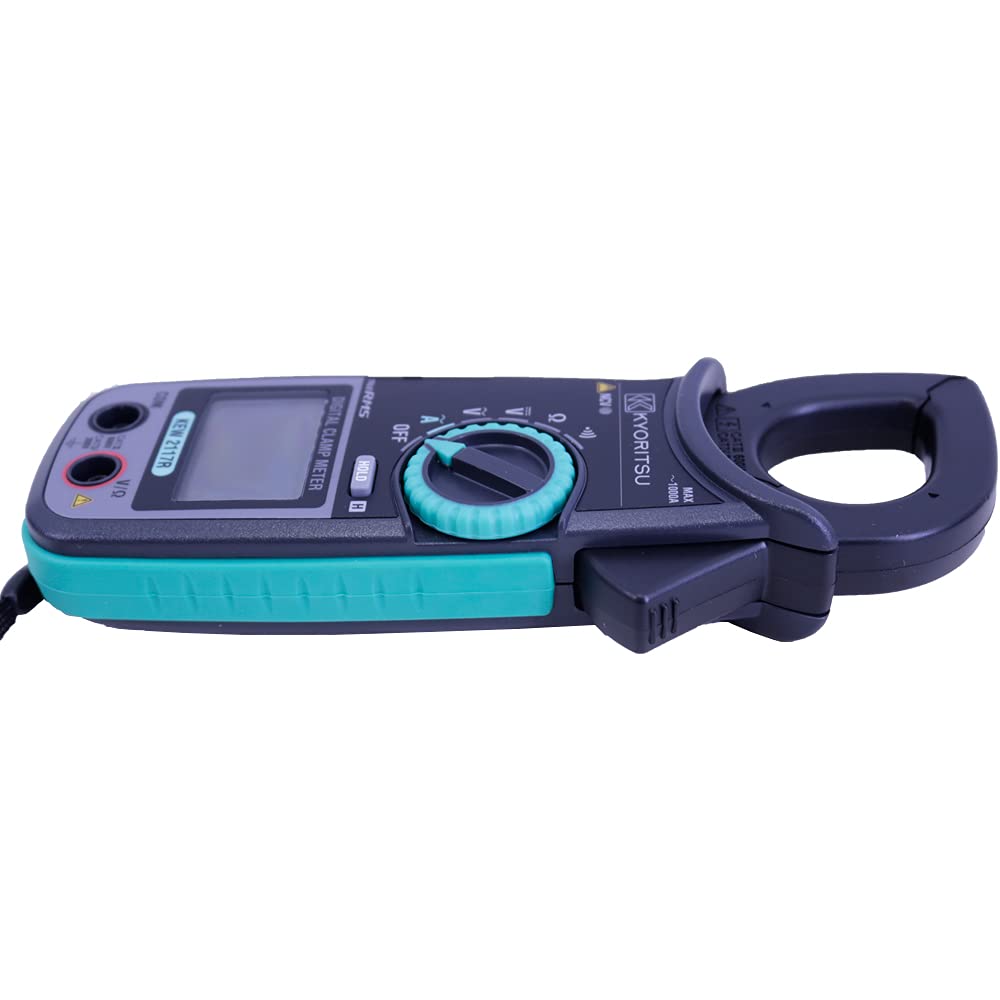

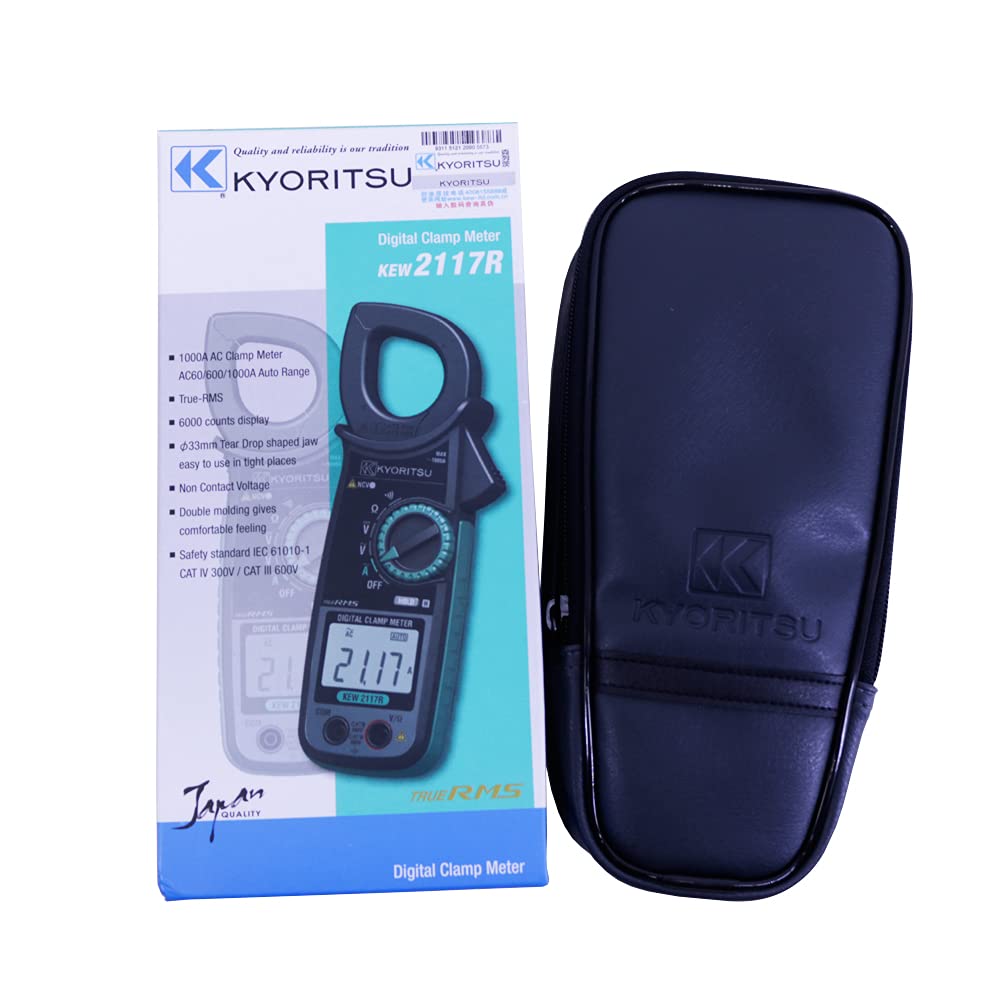

Kyoritsu2117R AC Digital Clamp Meters True RMS 60/600/1000A Auto-Ranging KEW2117R

Kyoritsu2117R AC Digital Clamp Meters True RMS 60/600/1000A Auto-Ranging KEW2117R

$160.00 USD
$185.00 USD $160.00 USD
Sale Sold out

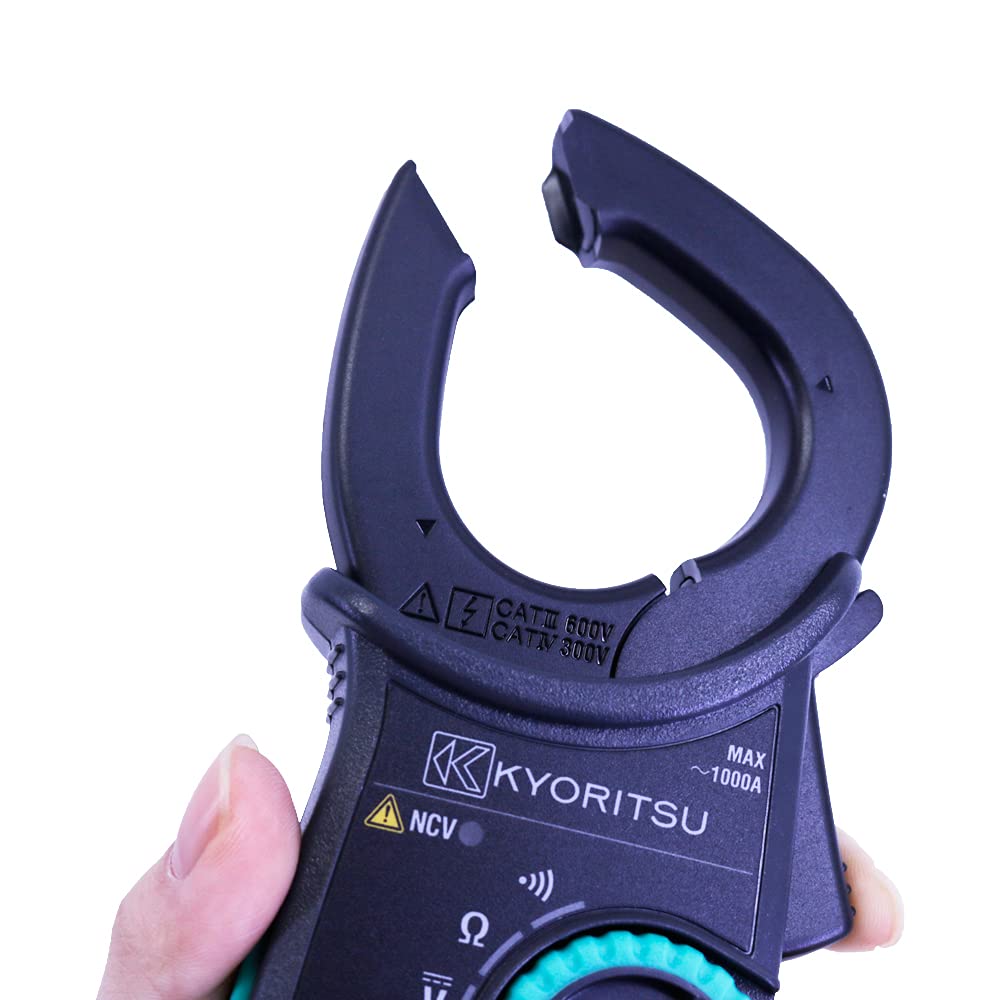

Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.01A resolution
• Accurate reading with True RMS
60/600/1000A auto-ranging
• Long battery life
• Safety Standard
IEC 61010-1 CAT IV 300V / CAT III 600V



AC A

60.00/600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 - 65Hz]
±2.0%rdg±5dgt [40 - 1kHz]

AC V

60.00/600.0V (Auto-ranging)
±1.0%rdg±2dgt [45 - 65Hz] (600V)
±1.5%rdg±4dgt [40 - 1kHz] (60/600V)

DC V

60.00/600.0V (Auto-ranging)
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)

Ω

600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging)
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)

Continuity buzzer

600Ω(Buzzer sounds below 90Ω)

Conductor size

Ø33mm max.

Applicable standards

IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)

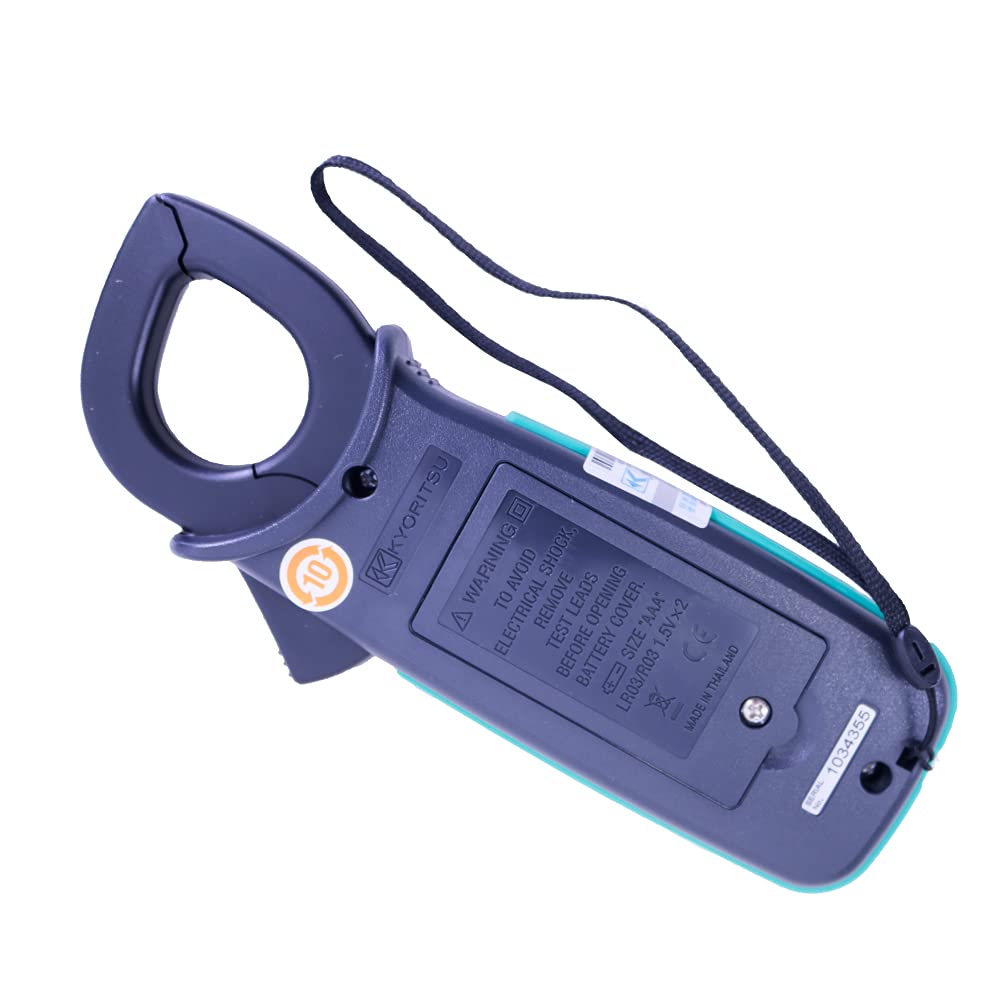

Power source

R03/LR03 (AAA) (1.5V) × 2

Continuous measuring time

Approx.170 hours
(When R3 is used)(NCV_LED:off)
(Auto power save : approx. 10 minutes)

Dimensions

204(L) × 81(W) × 36(D)mm

Weight

220g Approx. (including batteries)

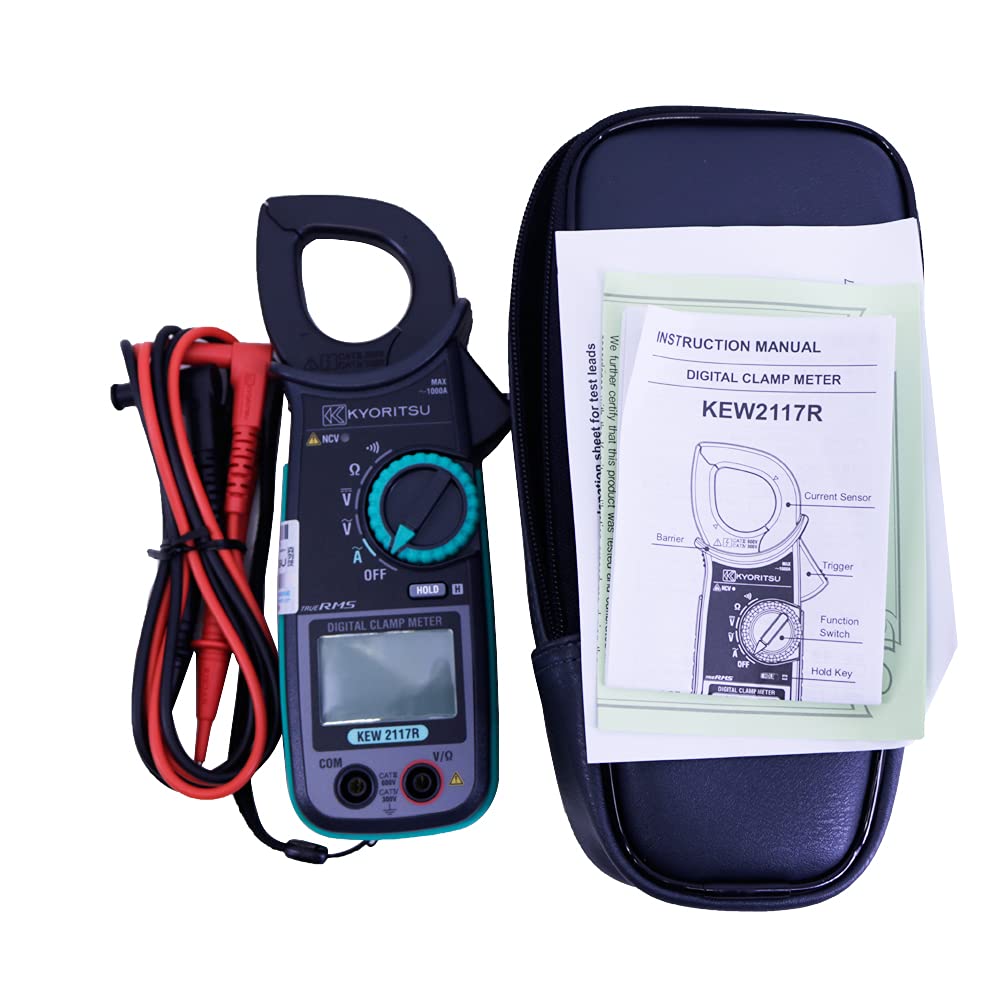

Included Accessories

7066A (Test leads)
9079 (Carrying case), R03 (AAA) × 2,
Instruction Manual
